Black Bars at top and bottom of screen

Hello Manjaro Newbie here.

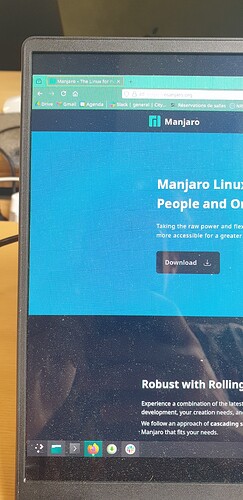

I have these two solid black bars at the top and bottom of my laptop screen that appeared today.

The mouse cursor cannot go in these areas. This issue doesn’t affect any other secondary screen i plug in through the HDMI port.

I also don’t have this issue on start-up displays it only appears instant after I log in.

I tried changing the display resolution and zoom as suggested in a different post. I also tried plugging and unplugging a secondary screen as well as playing with Display positions. No luck.

I would like to recover the full screen real estate, does anyone know how ?
Thks in advance for any help.

System:
  Kernel: 6.9.9-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 14.1.1
    clocksource: tsc avail: acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-6.9-x86_64
    root=UUID=d2f1e2c9-afaf-409f-8dc7-59ff9ba05bbe rw quiet splash
    udev.log_priority=3
  Desktop: KDE Plasma v: 6.0.5 tk: Qt v: N/A info: frameworks v: 6.3.0
    wm: kwin_x11 vt: 2 dm: SDDM Distro: Manjaro base: Arch Linux
Machine:
  Type: Laptop System: LENOVO product: 82WU v: Yoga Slim 6 14IAP8
    serial: <superuser required> Chassis: type: 10 v: Yoga Slim 6 14IAP8
    serial: <superuser required>
  Mobo: LENOVO model: LNVNB161216 v: SDK0T76463 WIN
    serial: <superuser required> part-nu: LENOVO_MT_82WU_BU_idea_FM_Yoga Slim 6
    14IAP8 uuid: <superuser required> UEFI: LENOVO v: KTCN39WW date: 08/18/2023
Battery:
  ID-1: BAT0 charge: 17.8 Wh (26.7%) condition: 66.6/65.0 Wh (102.5%)
    power: 8.6 W volts: 15.0 min: 15.5 model: SMP type: Li-ion serial: <filter>
    status: discharging cycles: 34
CPU:
  Info: model: 12th Gen Intel Core i5-1240P bits: 64 type: MST AMCP
    arch: Alder Lake level: v3 note: check built: 2021+
    process: Intel 7 (10nm ESF) family: 6 model-id: 0x9A (154) stepping: 3
    microcode: 0x433
  Topology: cpus: 1x cores: 12 mt: 4 tpc: 2 st: 8 threads: 16 smt: enabled
    cache: L1: 1.1 MiB desc: d-8x32 KiB, 4x48 KiB; i-4x32 KiB, 8x64 KiB L2: 9 MiB
    desc: 4x1.2 MiB, 2x2 MiB L3: 12 MiB desc: 1x12 MiB
  Speed (MHz): avg: 550 high: 1500 min/max: 400/4400:3300 scaling:
    driver: intel_pstate governor: powersave cores: 1: 400 2: 902 3: 400 4: 400
    5: 1500 6: 400 7: 400 8: 400 9: 1094 10: 400 11: 400 12: 400 13: 400
    14: 400 15: 400 16: 506 bogomips: 67600
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities:
  Type: gather_data_sampling status: Not affected
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: mmio_stale_data status: Not affected
  Type: reg_file_data_sampling mitigation: Clear Register File
  Type: retbleed status: Not affected
  Type: spec_rstack_overflow status: Not affected
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Enhanced / Automatic IBRS; IBPB: conditional;
    RSB filling; PBRSB-eIBRS: SW sequence; BHI: BHI_DIS_S
  Type: srbds status: Not affected
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: Intel Alder Lake-P GT2 [Iris Xe Graphics] vendor: Lenovo
    driver: i915 v: kernel alternate: xe arch: Gen-12.2 process: Intel 10nm
    built: 2021-22+ ports: active: HDMI-A-1,eDP-1 empty: DP-1, DP-2, DP-3, DP-4
    bus-ID: 00:02.0 chip-ID: 8086:46a6 class-ID: 0300
  Device-2: IMC Networks Integrated RGB Camera driver: uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-4:2 chip-ID: 13d3:5285
    class-ID: fe01 serial: <filter>
  Display: x11 server: X.Org v: 21.1.13 with: Xwayland v: 24.1.1
    compositor: kwin_x11 driver: X: loaded: modesetting alternate: fbdev,vesa
    dri: iris gpu: i915 display-ID: :0 screens: 1
  Screen-1: 0 s-res: 1920x2160 s-dpi: 96 s-size: 507x570mm (19.96x22.44")
    s-diag: 763mm (30.03")
  Monitor-1: HDMI-A-1 mapped: HDMI-1 pos: top model: LG (GoldStar) IPS FULLHD
    built: 2014 res: 1920x1080 hz: 60 dpi: 102 gamma: 1.2
    size: 480x270mm (18.9x10.63") diag: 551mm (21.7") ratio: 16:9 modes:
    max: 1920x1080 min: 720x400
  Monitor-2: eDP-1 pos: primary,bottom model: Samsung 0x4187 built: 2022
    res: 1920x1080 hz: 60 dpi: 161 gamma: 1.2 size: 302x189mm (11.89x7.44")
    diag: 356mm (14") ratio: 16:10 modes: 1920x1200
  API: EGL v: 1.5 hw: drv: intel iris platforms: device: 0 drv: iris
    device: 1 drv: swrast surfaceless: drv: iris x11: drv: iris
    inactive: gbm,wayland
  API: OpenGL v: 4.6 compat-v: 4.5 vendor: intel mesa v: 24.1.3-manjaro1.1
    glx-v: 1.4 direct-render: yes renderer: Mesa Intel Graphics (ADL GT2)
    device-ID: 8086:46a6 memory: 7.49 GiB unified: yes
  API: Vulkan Message: No Vulkan data available.
Audio:
  Device-1: Intel Alder Lake PCH-P High Definition Audio vendor: Lenovo
    driver: sof-audio-pci-intel-tgl alternate: snd_hda_intel, snd_soc_avs,
    snd_sof_pci_intel_tgl bus-ID: 00:1f.3 chip-ID: 8086:51c8 class-ID: 0401
  API: ALSA v: k6.9.9-1-MANJARO status: kernel-api with: aoss
    type: oss-emulator tools: alsactl,alsamixer,amixer
  Server-1: JACK v: 1.9.22 status: off tools: N/A
  Server-2: PipeWire v: 1.2.1 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel Alder Lake-P PCH CNVi WiFi driver: iwlwifi v: kernel
    bus-ID: 00:14.3 chip-ID: 8086:51f0 class-ID: 0280
  IF: wlp0s20f3 state: up mac: <filter>
  Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
Bluetooth:
  Device-1: Intel AX211 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-10:3 chip-ID: 8087:0033
    class-ID: e001
  Report: rfkill ID: hci0 rfk-id: 2 state: up address: see --recommends
Drives:
  Local Storage: total: 476.94 GiB used: 36.07 GiB (7.6%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Micron model: MTFDKCD512TFK
    size: 476.94 GiB block-size: physical: 512 B logical: 512 B speed: 63.2 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: 1003V5LN temp: 30.9 C
    scheme: GPT
Partition:
  ID-1: / raw-size: 292.97 GiB size: 287.31 GiB (98.07%)
    used: 36.03 GiB (12.5%) fs: ext4 dev: /dev/nvme0n1p5 maj-min: 259:5
  ID-2: /boot/efi raw-size: 260 MiB size: 256 MiB (98.46%)
    used: 38.4 MiB (15.0%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
Swap:
  Alert: No swap data was found.
Sensors:
  System Temperatures: cpu: 35.0 C mobo: N/A
  Fan Speeds (rpm): N/A
Info:
  Memory: total: 16 GiB note: est. available: 15.35 GiB used: 9.94 GiB (64.8%)
  Processes: 338 Power: uptime: 2h 5m states: freeze,mem,disk suspend: s2idle
    avail: deep wakeups: 0 hibernate: platform avail: shutdown, reboot, suspend,
    test_resume image: 6.13 GiB services: org_kde_powerdevil,
    power-profiles-daemon, upowerd Init: systemd v: 256 default: graphical
    tool: systemctl
  Packages: pm: pacman pkgs: 1257 libs: 366 tools: pamac,yay pm: flatpak
    pkgs: 0 Compilers: gcc: 14.1.1 Shell: Zsh v: 5.9 default: Bash v: 5.2.26
    running-in: konsole inxi: 3.3.35

Change your screen resolution to suit the resolution required by your laptop.

System SettingsDisplay & Monitor

Cheers.


Hi @Hellunteur and welcome to the Manjaro community.

Please refrain from posting screenshots; a simple text explanation is sufficient.

As a new user, please take some time to familiarise yourself with Forum requirements; in particular, the many ways to use the forum to your benefit. To that end, some or all these links will be invaluable:

And last, but not least, the Stable Update Announcements, which you should check frequently for important update related information.

Cheers.

2 Likes

In simple terms: your resolution is set to a 16:9 aspect, whereas you need to use 16:10. :slight_smile:

1 Like

Thks so much. I feel silly ^^
Great help thks so much to the comunity.

1 Like
