I can use my microphone in Discord and other applications, but I can not use it in browsers (Firefox, Chromium, Firefox Dev). When I try to use Google meet, the browser asks permission only to Monitor of Built-in Audio Analog Stereo , but can’t select Built-in Audio Analog Stereo .
inxi -Fza ✔
System:
Kernel: 5.15.59-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 12.1.1
parameters: BOOT_IMAGE=/boot/vmlinuz-5.15-x86_64
root=UUID=e71a85d7-0f6f-4c92-b84a-422d73c1810d rw quiet
resume=UUID=e91cfa2b-1917-49e4-998d-a0c817482c8c udev.log_priority=3
Desktop: KDE Plasma v: 5.24.6 tk: Qt v: 5.15.5 info: latte-dock
wm: kwin_x11 vt: 1 dm: SDDM Distro: Manjaro Linux base: Arch Linux
Machine:
Type: Desktop Mobo: ACER model: Aspire GX-783 v: x.x
serial: <superuser required> UEFI: American Megatrends v: F21 DB
date: 09/27/2017
CPU:
Info: model: Intel Core i5-7400 bits: 64 type: MCP arch: Kaby Lake
gen: core 7 built: 2018 process: Intel 14nm family: 6 model-id: 0x9E (158)
stepping: 9 microcode: 0xF0
Topology: cpus: 1x cores: 4 smt: <unsupported> cache: L1: 256 KiB
desc: d-4x32 KiB; i-4x32 KiB L2: 1024 KiB desc: 4x256 KiB L3: 6 MiB
desc: 1x6 MiB
Speed (MHz): avg: 800 min/max: 800/3500 scaling: driver: intel_pstate
governor: powersave cores: 1: 800 2: 800 3: 800 4: 800 bogomips: 24008
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
Vulnerabilities:
Type: itlb_multihit status: KVM: VMX disabled
Type: l1tf mitigation: PTE Inversion; VMX: conditional cache flushes, SMT
disabled
Type: mds mitigation: Clear CPU buffers; SMT disabled
Type: meltdown mitigation: PTI
Type: mmio_stale_data mitigation: Clear CPU buffers; SMT disabled
Type: retbleed mitigation: IBRS
Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
prctl and seccomp
Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
sanitization
Type: spectre_v2 mitigation: IBRS, IBPB: conditional, RSB filling
Type: srbds mitigation: Microcode
Type: tsx_async_abort status: Not affected
Graphics:
Device-1: NVIDIA GM107 [GeForce GTX 750 Ti] vendor: ASUSTeK driver: nvidia
v: 515.65.01 alternate: nouveau,nvidia_drm non-free: 515.xx+ status: current
(as of 2022-07) arch: Maxwell code: GMxxx process: TSMC 28nm
built: 2014-19 pcie: gen: 3 speed: 8 GT/s lanes: 16 bus-ID: 01:00.0
chip-ID: 10de:1380 class-ID: 0300
Display: x11 server: X.Org v: 21.1.4 compositor: kwin_x11 driver: X:
loaded: nvidia gpu: nvidia display-ID: :0 screens: 1
Screen-1: 0 s-res: 1366x768 s-dpi: 84 s-size: 413x232mm (16.26x9.13")
s-diag: 474mm (18.65")
Monitor-1: VGA-0 res: 1366x768 hz: 60 dpi: 85
size: 410x230mm (16.14x9.06") diag: 470mm (18.51") modes: N/A
OpenGL: renderer: NVIDIA GeForce GTX 750 Ti/PCIe/SSE2 v: 4.6.0 NVIDIA
515.65.01 direct render: Yes
Audio:
Device-1: Intel 100 Series/C230 Series Family HD Audio vendor: Realtek
driver: snd_hda_intel v: kernel bus-ID: 00:1f.3 chip-ID: 8086:a170
class-ID: 0403
Device-2: NVIDIA GM107 High Definition Audio [GeForce 940MX]
vendor: ASUSTeK driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s
lanes: 16 bus-ID: 01:00.1 chip-ID: 10de:0fbc class-ID: 0403
Sound Server-1: ALSA v: k5.15.59-1-MANJARO running: yes
Sound Server-2: JACK v: 1.9.21 running: no
Sound Server-3: PulseAudio v: 16.1 running: yes
Sound Server-4: PipeWire v: 0.3.56 running: yes
Network:
Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
vendor: Gigabyte driver: r8168 v: 8.050.03-NAPI modules: r8169 pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: d000 bus-ID: 02:00.0 chip-ID: 10ec:8168
class-ID: 0200
IF: enp2s0 state: up speed: 100 Mbps duplex: full mac: <filter>
Drives:
Local Storage: total: 1.36 TiB used: 97.16 GiB (7.0%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/sda maj-min: 8:0 vendor: HGST (Hitachi) model: HTS545050A7E680
size: 465.76 GiB block-size: physical: 4096 B logical: 512 B
speed: 6.0 Gb/s type: HDD rpm: 5400 serial: <filter> rev: A230
scheme: GPT
ID-2: /dev/sdb maj-min: 8:16 vendor: Western Digital
model: WD10EURX-63FH1Y0 size: 931.51 GiB block-size: physical: 4096 B
logical: 512 B speed: 6.0 Gb/s type: N/A serial: <filter> rev: 1A01
scheme: GPT
Partition:
ID-1: / raw-size: 930.03 GiB size: 914.36 GiB (98.31%) used: 57.63 GiB
(6.3%) fs: ext4 dev: /dev/sdb1 maj-min: 8:17
ID-2: /boot/efi raw-size: 512 MiB size: 511 MiB (99.80%) used: 316 KiB
(0.1%) fs: vfat dev: /dev/sdb3 maj-min: 8:19
Swap:
Kernel: swappiness: 60 (default) cache-pressure: 100 (default)
ID-1: swap-1 type: partition size: 1000.2 MiB used: 2 MiB (0.2%)
priority: -2 dev: /dev/sdb2 maj-min: 8:18
Sensors:
System Temperatures: cpu: 49.0 C mobo: N/A gpu: nvidia temp: 54 C
Fan Speeds (RPM): N/A gpu: nvidia fan: 35%
Info:
Processes: 204 Uptime: 3h 4m wakeups: 0 Memory: 7.72 GiB used: 4.06 GiB
(52.6%) Init: systemd v: 251 default: graphical tool: systemctl
Compilers: gcc: 12.1.1 clang: 14.0.6 Packages: pacman: 1301 lib: 341
flatpak: 0 Shell: Zsh v: 5.9 default: Bash v: 5.1.16 running-in: konsole
inxi: 3.3.20
If the browser shows only Monitor of Built-in Audio Analog Stereo the audio card is probably configured to use outputs only
Check the card profile in PulseAudio for the Analog audio device
pacmd dump | awk '/card-profile/ && /analog/'
If the profile is set to output only it will look like this:
set-card-profile alsa_card.pci-0000_04_06.0 output:analog-stereo
Your system will probably have a different number to identify the pci location for the onboard audio device
Copy your terminal response to create a command to change the card profile like this:
pacmd set-card-profile alsa_card.pci-0000_04_06.0 output:analog-stereo+input:analog-stereo
Browsers should now show microphone input Built-in Audio Analog Stereo in addition to desktop audio Monitor of Built-in Audio Analog Stereo
1 Like
The first command showed me exactly this:
pacmd dump | awk '/card-profile/ && /analog/'
set-card-profile alsa_card.pci-0000_00_1f.3 output:analog-stereo+input:analog-stereo
It didn’t solve the problem. When I try to use Google Meet, seems that the browser only recognizes Monitor of Built-in Audio Analog Stereo , but it doesn’t recognize my microphone. Thanks.
After starting Google Meet and allow microphone access, open pavucontrol and go to Recordings. There you can switch it. It should be saved then for the next time.
Thanks, but this didn’t work as well.
Is this issue only occurring in Google Meet?
Check PulseAudio source inputs to see if microphone source is available and not suspended
pacmd list-sources
and check information about source stream to Google Meet
pacmd list-source-outputs
Sorry, that is really unhelpful. At least say what didn’t work and what you see.
That lists the sources and sinks:
pactl list sources short
pactl list sinks short
I just tested it here: https://mictests.com/
It’s occurring on all websites (and browsers), but my microphone works in Discord, for example.
Here it is:
pacmd list-sources
2 source(s) available.
* index: 0
name: <alsa_output.pci-0000_00_1f.3.analog-stereo.monitor>
driver: <module-alsa-card.c>
flags: DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: SUSPENDED
suspend cause: IDLE
priority: 1030
volume: front-left: 0 / 0% / -inf dB, front-right: 65536 / 100% / 0.00 dB
balance 1.00
base volume: 65536 / 100% / 0.00 dB
volume steps: 65537
muted: no
current latency: 0.00 ms
max rewind: 0 KiB
sample spec: s16le 2ch 44100Hz
channel map: front-left,front-right
Stereo
used by: 0
linked by: 0
configured latency: 0.00 ms; range is 0.50 .. 2000.00 ms
monitor_of: 0
card: 1 <alsa_card.pci-0000_00_1f.3>
module: 7
properties:
device.description = "Monitor of Built-in Audio Analog Stereo"
device.class = "monitor"
alsa.card = "0"
alsa.card_name = "HDA Intel PCH"
alsa.long_card_name = "HDA Intel PCH at 0xef220000 irq 132"
alsa.driver_name = "snd_hda_intel"
device.bus_path = "pci-0000:00:1f.3"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "a170"
device.product.name = "100 Series/C230 Series Chipset Family HD Audio Controller"
device.form_factor = "internal"
device.string = "0"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
index: 1
name: <alsa_input.pci-0000_00_1f.3.analog-stereo>
driver: <module-alsa-card.c>
flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: SUSPENDED
suspend cause: IDLE
priority: 9039
volume: front-left: 19744 / 30% / -31.26 dB, front-right: 0 / 0% / -inf dB
balance -1.00
base volume: 6554 / 10% / -60.00 dB
volume steps: 65537
muted: no
current latency: 0.00 ms
max rewind: 0 KiB
sample spec: s16le 2ch 44100Hz
channel map: front-left,front-right
Stereo
used by: 0
linked by: 0
configured latency: 0.00 ms; range is 0.50 .. 2000.00 ms
card: 1 <alsa_card.pci-0000_00_1f.3>
module: 7
properties:
alsa.resolution_bits = "16"
device.api = "alsa"
device.class = "sound"
alsa.class = "generic"
alsa.subclass = "generic-mix"
alsa.name = "ALC887-VD Analog"
alsa.id = "ALC887-VD Analog"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.device = "0"
alsa.card = "0"
alsa.card_name = "HDA Intel PCH"
alsa.long_card_name = "HDA Intel PCH at 0xef220000 irq 132"
alsa.driver_name = "snd_hda_intel"
device.bus_path = "pci-0000:00:1f.3"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "a170"
device.product.name = "100 Series/C230 Series Chipset Family HD Audio Controller"
device.form_factor = "internal"
device.string = "front:0"
device.buffering.buffer_size = "352800"
device.buffering.fragment_size = "176400"
device.access_mode = "mmap+timer"
device.profile.name = "analog-stereo"
device.profile.description = "Analog Stereo"
device.description = "Built-in Audio Analog Stereo"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
ports:
analog-input-front-mic: Front Microphone (priority 8500, latency offset -20000 usec, available: no)
properties:
device.icon_name = "audio-input-microphone"
analog-input-rear-mic: Rear Microphone (priority 8200, latency offset 0 usec, available: no)
properties:
device.icon_name = "audio-input-microphone"
analog-input-linein: Line In (priority 8100, latency offset 0 usec, available: no)
properties:
active port: <analog-input-front-mic>
pacmd list-source-outputs
0 source output(s) available.
It’s my fault, I’m a Manjaro newbie.

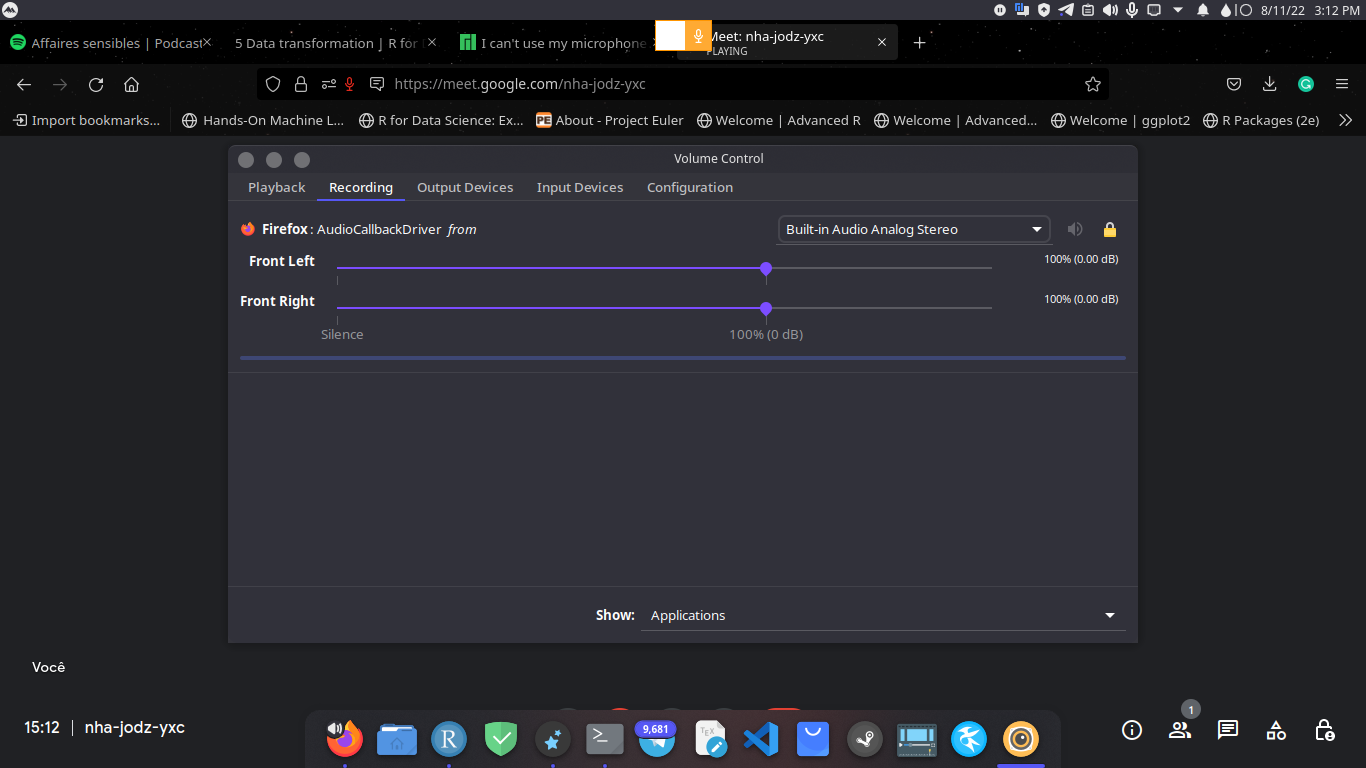

I did what you ask, but when I choose Built-in Audio Analog Stereo , it changes automatically back to Monitor of Built-in Audio Analog Stereo option.
pactl list sources short
0 alsa_output.pci-0000_00_1f.3.analog-stereo.monitor module-alsa-card.c s16le 2ch 44100Hz RUNNING
1 alsa_input.pci-0000_00_1f.3.analog-stereo module-alsa-card.c s16le 2ch 44100Hz SUSPENDED
pactl list sinks short ✔
0 alsa_output.pci-0000_00_1f.3.analog-stereo module-alsa-card.c s16le 2ch 44100Hz RUNNING
Only thing what I think have happened: You actually didn’t choose it. Wrong click etc… I cannot reproduce it.
Both sources are shown as IDLE so there would be no source outputs available
All 3 input ports for onboard audio are not available
ports:
analog-input-front-mic: Front Microphone (priority 8500, latency offset -20000 usec, available: no)
analog-input-rear-mic: Rear Microphone (priority 8200, latency offset 0 usec, available: no)
analog-input-linein: Line In (priority 8100, latency offset 0 usec, available: no)
PulseAudio will avoid using unavailable inputs and switch back to using the sink monitor
Please post more information about ALSA audio settings for device ALC887-VD
amixer --card=0
There it is:
amixer --card=0
Simple mixer control 'Master',0
Capabilities: pvolume pvolume-joined pswitch pswitch-joined
Playback channels: Mono
Limits: Playback 0 - 64
Mono: Playback 64 [100%] [0.00dB] [on]
Simple mixer control 'Headphone',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 64
Mono:
Front Left: Playback 0 [0%] [-64.00dB] [off]
Front Right: Playback 0 [0%] [-64.00dB] [off]
Simple mixer control 'PCM',0
Capabilities: pvolume
Playback channels: Front Left - Front Right
Limits: Playback 0 - 255
Mono:
Front Left: Playback 255 [100%] [0.00dB]
Front Right: Playback 255 [100%] [0.00dB]
Simple mixer control 'Front',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 64
Mono:
Front Left: Playback 64 [100%] [0.00dB] [on]
Front Right: Playback 64 [100%] [0.00dB] [on]
Simple mixer control 'Front Mic',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 31
Mono:
Front Left: Playback 0 [0%] [-34.50dB] [off]
Front Right: Playback 0 [0%] [-34.50dB] [off]
Simple mixer control 'Front Mic Boost',0
Capabilities: volume
Playback channels: Front Left - Front Right
Capture channels: Front Left - Front Right
Limits: 0 - 3
Front Left: 0 [0%] [0.00dB]
Front Right: 0 [0%] [0.00dB]
Simple mixer control 'Surround',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 64
Mono:
Front Left: Playback 64 [100%] [0.00dB] [on]
Front Right: Playback 64 [100%] [0.00dB] [on]
Simple mixer control 'Center',0
Capabilities: pvolume pvolume-joined pswitch pswitch-joined
Playback channels: Mono
Limits: Playback 0 - 64
Mono: Playback 64 [100%] [0.00dB] [on]
Simple mixer control 'LFE',0
Capabilities: pvolume pvolume-joined pswitch pswitch-joined
Playback channels: Mono
Limits: Playback 0 - 64
Mono: Playback 64 [100%] [0.00dB] [on]
Simple mixer control 'Line',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 31
Mono:
Front Left: Playback 0 [0%] [-34.50dB] [off]
Front Right: Playback 0 [0%] [-34.50dB] [off]
Simple mixer control 'Line Boost',0
Capabilities: volume
Playback channels: Front Left - Front Right
Capture channels: Front Left - Front Right
Limits: 0 - 3
Front Left: 0 [0%] [0.00dB]
Front Right: 0 [0%] [0.00dB]
Simple mixer control 'IEC958',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [off]
Simple mixer control 'IEC958 Default PCM',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Capture',0
Capabilities: cvolume cswitch
Capture channels: Front Left - Front Right
Limits: Capture 0 - 46
Front Left: Capture 45 [98%] [29.00dB] [on]
Front Right: Capture 0 [0%] [-16.00dB] [on]
Simple mixer control 'Capture',1
Capabilities: cvolume cswitch
Capture channels: Front Left - Front Right
Limits: Capture 0 - 46
Front Left: Capture 0 [0%] [-16.00dB] [off]
Front Right: Capture 0 [0%] [-16.00dB] [off]
Simple mixer control 'Auto-Mute Mode',0
Capabilities: enum
Items: 'Disabled' 'Enabled'
Item0: 'Enabled'
Simple mixer control 'Channel Mode',0
Capabilities: enum
Items: '2ch' '4ch' '6ch'
Item0: '2ch'
Simple mixer control 'Input Source',0
Capabilities: cenum
Items: 'Front Mic' 'Rear Mic' 'Line'
Item0: 'Front Mic'
Simple mixer control 'Input Source',1
Capabilities: cenum
Items: 'Front Mic' 'Rear Mic' 'Line'
Item0: 'Front Mic'
Simple mixer control 'Loopback Mixing',0
Capabilities: enum
Items: 'Disabled' 'Enabled'
Item0: 'Disabled'
Simple mixer control 'Rear Mic',0
Capabilities: pvolume pswitch
Playback channels: Front Left - Front Right
Limits: Playback 0 - 31
Mono:
Front Left: Playback 0 [0%] [-34.50dB] [off]
Front Right: Playback 0 [0%] [-34.50dB] [off]
Simple mixer control 'Rear Mic Boost',0
Capabilities: volume
Playback channels: Front Left - Front Right
Capture channels: Front Left - Front Right
Limits: 0 - 3
Front Left: 0 [0%] [0.00dB]
Front Right: 0 [0%] [0.00dB]
I found the solution right here: PulseAudio/Troubleshooting - ArchWiki
You just need to modify the default.pa document.
No microphone on Steam or Skype with enable-remixing = no
1 Like
system
17 August 2022 01:26
15
This topic was automatically closed 2 days after the last reply. New replies are no longer allowed.
Welcome to Manjaro!
to give us more information so we can see what’s really going on.
