What going on with intel's iris xe graphics

Support Graphics & Display
1

Hi guys,

After tried all methods in Intel graphics - ArchWiki, I’m exhausted, but the display tearing/flickering issues still on:

inxi -G of my new laptop:

  Device-1: Intel Alder Lake-P Integrated Graphics driver: i915 v: kernel
  Device-2: ELMCU RS 6088Cam type: USB driver: uvcvideo
  Display: wayland server: X.org v: 1.21.1.3 with: Xwayland v: 22.1.1
    compositor: gnome-shell v: 42.1 driver: gpu: i915
    resolution: 2560x1600~120Hz
  OpenGL: renderer: Mesa Intel Graphics (ADL GT2) v: 4.6 Mesa 22.0.4

20-intel.conf

Section "Device"
  Identifier "Intel Graphics"
  Driver "intel"
  #Option "AccelMethod" "sna"
  Option "AccelMethod" "uxa"
  Option "TearFree" "True"
  Option "Tiling" "True"
  Option "SwapbuffersWait" "True"
EndSection

mhwd -li -d

   NAME:	video-modesetting
   ATTACHED:	PCI
   VERSION:	2020.01.13
   INFO:	X.org modesetting video driver.
   PRIORITY:	1
   FREEDRIVER:	true
   DEPENDS:	-
   CONFLICTS:	-
   CLASSIDS:	0300
   VENDORIDS:	*

   NAME:	video-linux
   ATTACHED:	PCI
   VERSION:	2018.05.04
   INFO:	Standard open source drivers.
   PRIORITY:	2
   FREEDRIVER:	true
   DEPENDS:	-
   CONFLICTS:	-
   CLASSIDS:	0300 0380 0302
   VENDORIDS:	1002 8086 10de


Warning: no installed configs for USB devices found!
2

For that you need to remove xf86-video-intel if is installed.

Not quite sure about that config file. You should only need AFAIK to add
i915.enable_psr=0 i915.enable_fbc=0
as kernel boot parameters in /etc/default/grub and then run
sudo update-grub

2 Likes
3

So you use wayland. Xorg is just a backend here. Therefore I guess your xorg config file will be just ignored.

Try add this to the kernel parameter:

i915.enable_dc=0 i915.enable_fbc=0 i915.enable_psr=0

That will disable power saving methods. Maybe one of these are problematic here.

2 Likes
4

there are a lot of hardware-news (gamers-nexus etc…) reporting that there are still a lot of issues of the intel-drivers even with ms-windows. in my opinion intel-iris is still in beta and it will take more time until this is a commercial product and to double the problem wayland is used that is imho also still in beta.

5

Tried, but still not working.
The wired things is when running ubuntu 22.04 (livecd), it works fine. By comparing the grub.cfg, no extra i915 configs found, so what diffs can be ?

6

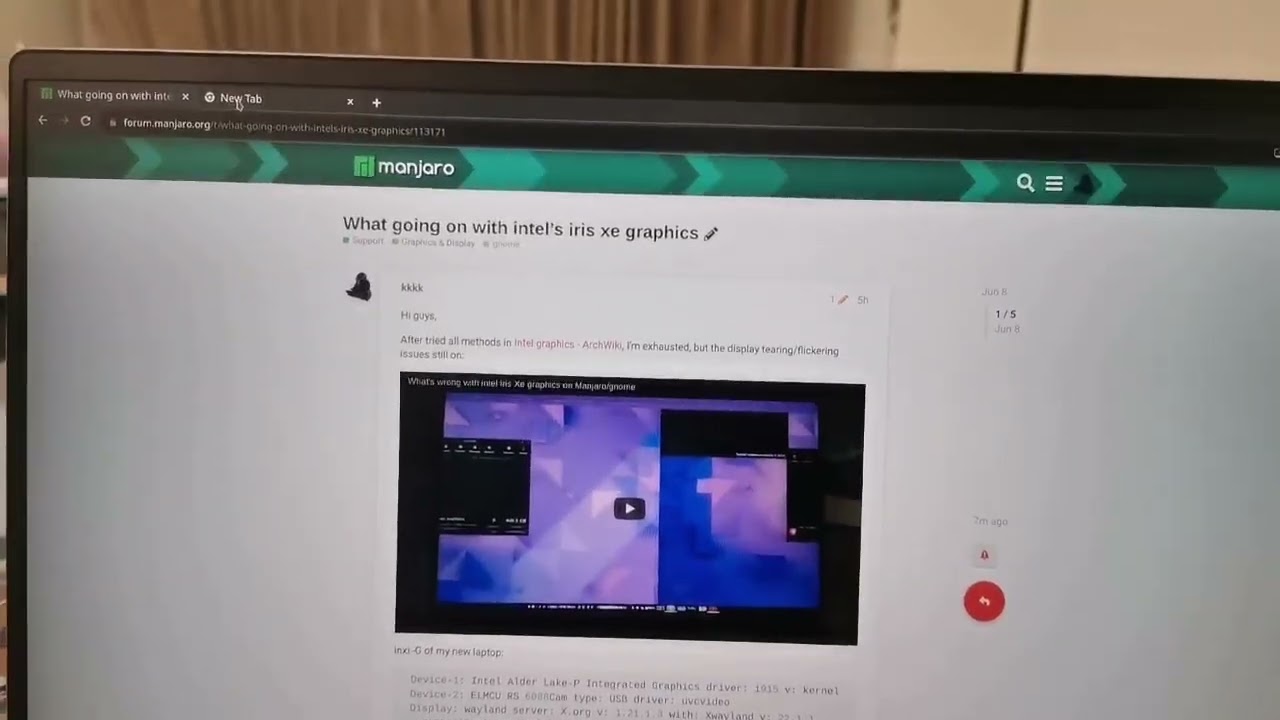

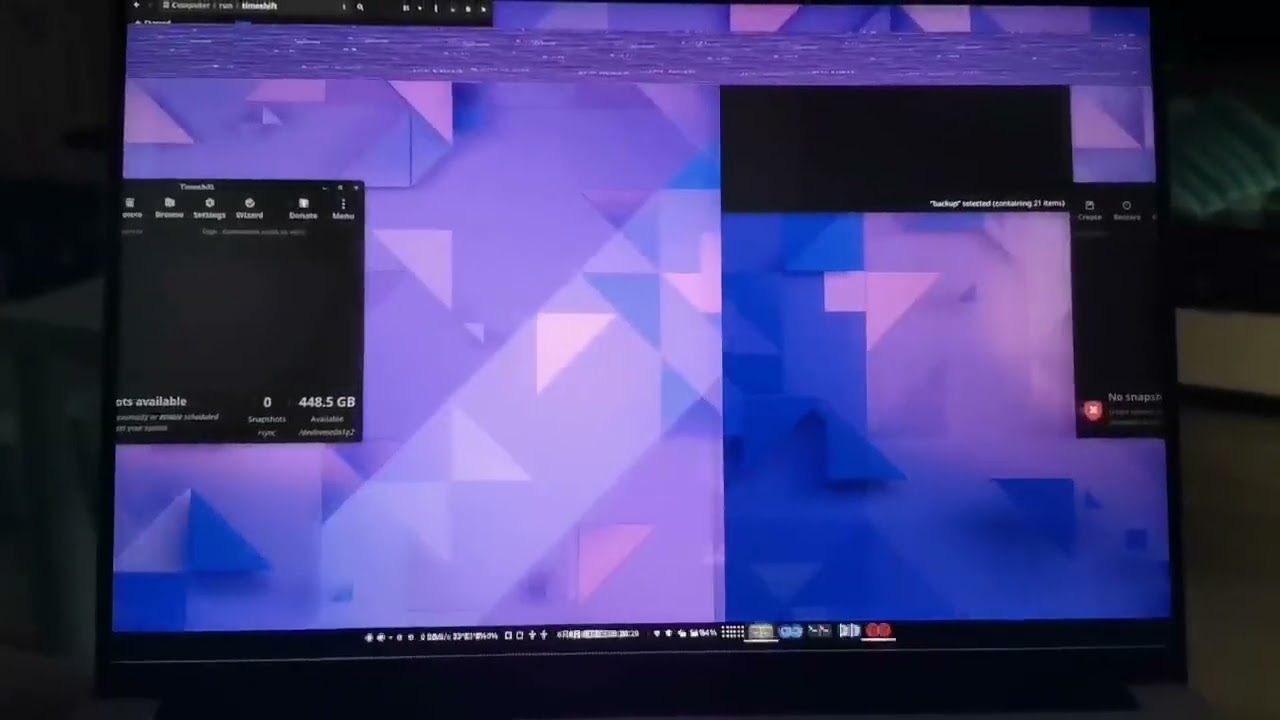

More details: The flickering problem not exists all the time, it comes up when I move the cursor to some positions on screen, see this:

7

Same issue under X11, or only under Wayland?

8

Wayland. haven’t tested on x11.

9

Had same problems with irisXe,
here is how I solved the issue:

  1. sudo gedit /etc/default/grub

or kate sudoedit /etc/default/grub

  1. Comment out this line:

GRUB_CMDLINE_LINUX_DEFAULT=“quiet splash”

  1. Add this line instead:

GRUB_CMDLINE_LINUX_DEFAULT=“quiet splash i915.enable_psr=0”

  1. Save and close your editor

  2. sudo update-grub

  3. reboot

Found the solution here: [ubuntu] Screen Flickering

No problems since then in any distro I tried!
