Unable to get 2nd external monitor to work with either mini DP or USB-C ports

Hey there, I am in the process of migrating from a desktop PC (worked fine so far with two 4k Philips PHL 288E2 monitors successfully for years) to a laptop-only setup.

I am using MEDION® ERAZER® Defender E15, AMD Ryzen™ 7 5800H, Windows 11 Home, 43,9 cm (17,3") FHD Display mit 144 Hz, NVIDIA® GeForce RTX™ 3050 Ti, 512 GB PCIe SSD, 32 GB RAM, Core Gaming Notebook | MEDION.AT since two weeks and I am unable to get my multi-monitor setup to work like before.

Connecting HDMI → HDMI works fine and I am always able to have one external monitor work with HDMI. Other slots for the 2nd monitor would be either mini DP or USB-C but the monitor never shows up or receives a signal. I verified this today in a computer store where I tried to connect all different combinations together with a store clerk.

I also have tried to boot from a Manjaro GNOME USB stick which suffers from the same issue. HDMI-connected display works, the other one with mini DP → DP doesn’t.

Tried with different kernels, X11 vs Wayland, already have the latest stable updates from today, ran commands that might have messed up stuff more, etc.
I am struggling with this for a while now, so really happy about any pointers to a solution.

Thank you in advance!

System:
  Kernel: 6.0.11-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 12.2.0
    parameters: BOOT_IMAGE=/boot/vmlinuz-6.0-x86_64
    root=UUID=f132ef5c-0838-4b20-98e5-187ddfdeaaf9 rw nvidia-drm.modeset=1
    quiet udev.log_priority=3
  Desktop: GNOME v: 43.1 tk: GTK v: 3.24.35 wm: gnome-shell dm: GDM v: 43.0
    Distro: Manjaro Linux base: Arch Linux
Machine:
  Type: Laptop System: MEDION product: Defender E15 v: N/A
    serial: <superuser required> Chassis: type: 10 serial: <superuser required>
  Mobo: MEDION model: NHxxEx v: 1.0 serial: <superuser required> UEFI: INSYDE
    v: 1.07.03RME1_00019 date: 07/20/2021
Battery:
  ID-1: BAT0 charge: 41.5 Wh (92.4%) condition: 44.9/44.4 Wh (101.1%)
    volts: 16.0 min: 14.8 model: Notebook BAT type: Li-ion serial: <filter>
    status: discharging
Memory:
  RAM: total: 30.73 GiB used: 5.17 GiB (16.8%)
  RAM Report: permissions: Unable to run dmidecode. Root privileges required.
CPU:
  Info: model: AMD Ryzen 7 5800H with Radeon Graphics bits: 64 type: MT MCP
    arch: Zen 3 gen: 4 level: v3 note: check built: 2021-22
    process: TSMC n7 (7nm) family: 0x19 (25) model-id: 0x50 (80) stepping: 0
    microcode: 0xA50000B
  Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
    L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 4 MiB desc: 8x512 KiB L3: 16 MiB
    desc: 1x16 MiB
  Speed (MHz): avg: 399 high: 400 min/max: 400/4463 boost: enabled scaling:
    driver: amd-pstate governor: powersave cores: 1: 399 2: 400 3: 399 4: 400
    5: 399 6: 399 7: 399 8: 400 9: 399 10: 399 11: 400 12: 399 13: 399 14: 399
    15: 399 16: 398 bogomips: 102244
  Flags: 3dnowprefetch abm adx aes aperfmperf apic arat avic avx avx2 bmi1
    bmi2 bpext cat_l3 cdp_l3 clflush clflushopt clwb clzero cmov cmp_legacy
    constant_tsc cpb cppc cpuid cqm cqm_llc cqm_mbm_local cqm_mbm_total
    cqm_occup_llc cr8_legacy cx16 cx8 de decodeassists erms extapic
    extd_apicid f16c flushbyasid fma fpu fsgsbase fsrm fxsr fxsr_opt ht
    hw_pstate ibpb ibrs ibs invpcid irperf lahf_lm lbrv lm mba mca mce
    misalignsse mmx mmxext monitor movbe msr mtrr mwaitx nonstop_tsc nopl npt
    nrip_save nx ospke osvw overflow_recov pae pat pausefilter pclmulqdq
    pdpe1gb perfctr_core perfctr_llc perfctr_nb pfthreshold pge pku pni popcnt
    pse pse36 rapl rdpid rdpru rdrand rdseed rdt_a rdtscp rep_good sep sha_ni
    skinit smap smca smep ssbd sse sse2 sse4_1 sse4_2 sse4a ssse3 stibp succor
    svm svm_lock syscall tce topoext tsc tsc_scale umip v_spec_ctrl
    v_vmsave_vmload vaes vgif vmcb_clean vme vmmcall vpclmulqdq wbnoinvd wdt
    xgetbv1 xsave xsavec xsaveerptr xsaveopt xsaves
  Vulnerabilities:
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: mmio_stale_data status: Not affected
  Type: retbleed status: Not affected
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Retpolines, IBPB: conditional, IBRS_FW,
    STIBP: always-on, RSB filling, PBRSB-eIBRS: Not affected
  Type: srbds status: Not affected
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: NVIDIA GA107M [GeForce RTX 3050 Ti Mobile] vendor: CLEVO/KAPOK
    driver: nvidia v: 525.60.11 alternate: nouveau,nvidia_drm non-free: 520.xx+
    status: current (as of 2022-10) arch: Ampere code: GAxxx
    process: TSMC n7 (7nm) built: 2020-22 pcie: gen: 3 speed: 8 GT/s lanes: 8
    link-max: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 01:00.0
    chip-ID: 10de:25a0 class-ID: 0300
  Device-2: AMD Cezanne [Radeon Vega Series / Radeon Mobile Series]
    vendor: CLEVO/KAPOK driver: amdgpu v: kernel arch: GCN-5.1 code: Vega-2
    process: TSMC n7 (7nm) built: 2018-21 pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s ports: active: HDMI-A-1,eDP-1 empty: DP-1
    bus-ID: 05:00.0 chip-ID: 1002:1638 class-ID: 0300 temp: 37.0 C
  Device-3: Chicony USB2.0 Camera type: USB driver: uvcvideo bus-ID: 1-4:2
    chip-ID: 04f2:b729 class-ID: fe01 serial: <filter>
  Display: x11 server: X.org v: 1.21.1.4 with: Xwayland v: 22.1.5
    compositor: gnome-shell driver: X: loaded: modesetting dri: radeonsi
    gpu: amdgpu display-ID: :0 screens: 1
  Screen-1: 0 s-res: 5760x2160 s-size: <missing: xdpyinfo>
  Monitor-1: HDMI-A-1 mapped: HDMI-1 pos: left model: Philips PHL 288E2
    serial: <filter> built: 2021 res: 3840x2160 hz: 60 dpi: 157 gamma: 1.2
    size: 621x341mm (24.45x13.43") diag: 708mm (27.9") ratio: 16:9 modes:
    max: 3840x2160 min: 720x400
  Monitor-2: eDP-1 pos: primary,right model: LG Display 0x065b built: 2019
    res: 1920x1080 hz: 144 dpi: 128 gamma: 1.2 size: 382x215mm (15.04x8.46")
    diag: 438mm (17.3") ratio: 16:9 modes: max: 1920x1080 min: 640x480
  API: OpenGL v: 4.6 Mesa 22.2.4 renderer: AMD Radeon Graphics (renoir LLVM
    14.0.6 DRM 3.48 6.0.11-1-MANJARO) direct render: Yes
Audio:
  Device-1: NVIDIA driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s
    lanes: 8 link-max: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 01:00.1
    chip-ID: 10de:2291 class-ID: 0403
  Device-2: AMD Renoir Radeon High Definition Audio vendor: CLEVO/KAPOK
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s bus-ID: 05:00.1 chip-ID: 1002:1637
    class-ID: 0403
  Device-3: AMD ACP/ACP3X/ACP6x Audio Coprocessor vendor: CLEVO/KAPOK
    driver: N/A alternate: snd_pci_acp3x, snd_rn_pci_acp3x, snd_pci_acp5x,
    snd_pci_acp6x, snd_acp_pci, snd_rpl_pci_acp6x, snd_sof_amd_renoir pcie:
    gen: 3 speed: 8 GT/s lanes: 16 link-max: gen: 4 speed: 16 GT/s
    bus-ID: 05:00.5 chip-ID: 1022:15e2 class-ID: 0480
  Device-4: AMD Family 17h/19h HD Audio vendor: MEDION AG
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s bus-ID: 05:00.6 chip-ID: 1022:15e3
    class-ID: 0403
  Sound API: ALSA v: k6.0.11-1-MANJARO running: yes
  Sound Server-1: JACK v: 1.9.21 running: no
  Sound Server-2: PulseAudio v: 16.1 running: yes
  Sound Server-3: PipeWire v: 0.3.61 running: yes
Network:
  Device-1: Intel Wi-Fi 6 AX200 driver: iwlwifi v: kernel pcie: gen: 2
    speed: 5 GT/s lanes: 1 bus-ID: 02:00.0 chip-ID: 8086:2723 class-ID: 0280
  IF: wlp2s0 state: up mac: <filter>
  IP v4: <filter> type: dynamic noprefixroute scope: global
    broadcast: <filter>
  IP v6: <filter> type: noprefixroute scope: link
  Device-2: Realtek RTL8125 2.5GbE vendor: CLEVO/KAPOK driver: r8169
    v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 1 port: 2000 bus-ID: 04:00.0
    chip-ID: 10ec:8125 class-ID: 0200
  IF: enp4s0 state: down mac: <filter>
  IF-ID-1: br-e1885eb5a3c4 state: up speed: 10000 Mbps duplex: unknown
    mac: <filter>
  IP v4: <filter> scope: global broadcast: <filter>
  IP v6: <filter> scope: link
  IF-ID-2: docker0 state: down mac: <filter>
  Message: Output throttled. IPs: 1; Limit: 10; Override: --limit [1-x;-1
    all]
  IF-ID-3: veth44d68f0 state: up speed: 10000 Mbps duplex: full mac: <filter>
  IF-ID-4: vethc9e5039 state: up speed: 10000 Mbps duplex: full mac: <filter>
  WAN IP: <filter>
Bluetooth:
  Device-1: Intel AX200 Bluetooth type: USB driver: btusb v: 0.8 bus-ID: 3-4:2
    chip-ID: 8087:0029 class-ID: e001
  Report: rfkill ID: hci0 rfk-id: 2 state: down bt-service: enabled,running
    rfk-block: hardware: no software: yes address: see --recommends
Logical:
  Message: No logical block device data found.
RAID:
  Message: No RAID data found.
Drives:
  Local Storage: total: 476.94 GiB used: 36.21 GiB (7.6%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Phison
    model: E12S-512G-SSD-B27B-09 size: 476.94 GiB block-size: physical: 512 B
    logical: 512 B speed: 31.6 Gb/s lanes: 4 type: SSD serial: <filter>
    rev: ECFM22.9 temp: 27.9 C scheme: GPT
  Message: No optical or floppy data found.
Partition:
  ID-1: / raw-size: 476.64 GiB size: 468.09 GiB (98.21%) used: 36.21 GiB (7.7%)
    fs: ext4 dev: /dev/nvme0n1p2 maj-min: 259:2 label: N/A
    uuid: f132ef5c-0838-4b20-98e5-187ddfdeaaf9
  ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
    used: 312 KiB (0.1%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
    label: NO_LABEL uuid: 31E1-47E4
Swap:
  Alert: No swap data was found.
Unmounted:
  Message: No unmounted partitions found.
USB:
  Hub-1: 1-0:1 info: Hi-speed hub with single TT ports: 4 rev: 2.0
    speed: 480 Mb/s chip-ID: 1d6b:0002 class-ID: 0900
  Device-1: 1-4:2 info: Chicony USB2.0 Camera type: Video driver: uvcvideo
    interfaces: 3 rev: 2.0 speed: 480 Mb/s power: 500mA chip-ID: 04f2:b729
    class-ID: fe01 serial: <filter>
  Hub-2: 2-0:1 info: Super-speed hub ports: 2 rev: 3.1 speed: 10 Gb/s
    chip-ID: 1d6b:0003 class-ID: 0900
  Hub-3: 3-0:1 info: Hi-speed hub with single TT ports: 4 rev: 2.0
    speed: 480 Mb/s chip-ID: 1d6b:0002 class-ID: 0900
  Device-1: 3-4:2 info: Intel AX200 Bluetooth type: Bluetooth driver: btusb
    interfaces: 2 rev: 2.0 speed: 12 Mb/s power: 100mA chip-ID: 8087:0029
    class-ID: e001
  Hub-4: 4-0:1 info: Super-speed hub ports: 2 rev: 3.1 speed: 10 Gb/s
    chip-ID: 1d6b:0003 class-ID: 0900
Sensors:
  System Temperatures: cpu: 38.5 C mobo: N/A gpu: amdgpu temp: 37.0 C
  Fan Speeds (RPM): N/A
Info:
  Processes: 396 Uptime: 37m wakeups: 3717 Init: systemd v: 251
  default: graphical tool: systemctl Compilers: gcc: 12.2.0 clang: 14.0.6
  Packages: 1083 pm: pacman pkgs: 1076 libs: 331
  tools: gnome-software,pamac,yay pm: snap pkgs: 7 Shell: Zsh v: 5.9
  running-in: gnome-terminal inxi: 3.3.23

You should check the UEFI (or BIOS as we used to say back in the day) if there is some “security” active about the mDP port.

Hey mithrial, I checked the BIOS and haven’t found any settings related to mDP port. Other settings related to secure boot etc. are already disabled. Also note that I can’t have an external monitor connected through USB-C for some reason, so it’s probably not mDP-specific.

Also turns out that the 2nd monitor doesn’t work when booting from an Ubuntu ISO USB Stick…

So now it’s either faulty ports or hardware on the laptop or issues with my setup + linux.

I meant this
Why doesn`t my monitor show a picture on the USB 3... - MEDION Community

Oh, thats very interesting!

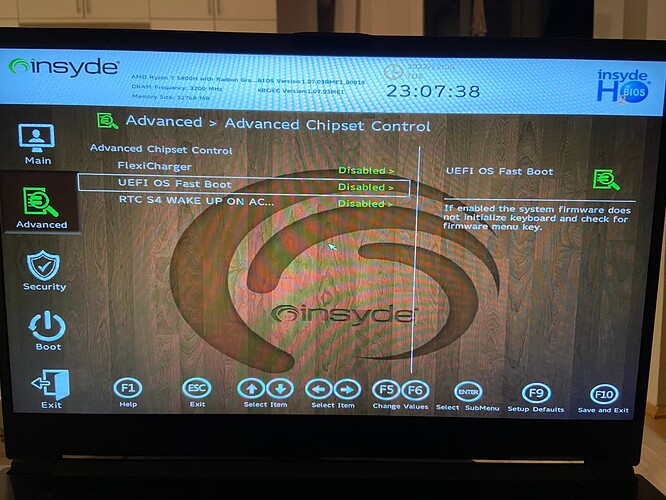

Unfortunately, my BIOS looks very non-standard, which gave me some headaches before already with disabling secure boot. Can’t seem to find that option.

For anyone who is reading this, I was able to solve this by:

  • switching to Ubuntu with Wayland
  • switching to open-source nouveau drivers
  • switching the cables of both monitors with each other

Now I have the setup with Laptop at 144hz and 2x eternal 4K monitors with 60hz working!
