Hello, I have a desktop PC with a Ryzen 9 5900X and a Radeon 7600 RX with a working XFCE Manjaro installation which boots just fine. But, when I try to boot this same machine using a USB Stick (tried different flavors, xfce, KDE, i3), it just get stuck in different phases of the booting process (Reached Target Network is one example of where it get stuck, but not always in this step), I also tried free and proprietary drivers.
I’m not very good at Linux, can anyone help me diagnose? My endgoal is to start a fresh manjaro installation in a new ssd that I will swap in this machine.
Note 1: I created the USB installer using both “dd” and “ventoy”. Secure boot, legacy usb and fast boot are disabled.
Note 2: the working installation was done when I had an older gpu (don’t remember if it was the Nvidia or the Amd one, but definitely wasn’t the 7600)
Note 3: in default boot I can’t access tty (the screen freeze), but if I try to boot with ‘nomodeset’ it goes further in the boot process, but fails to run lightdm. In this situation I can access tty
bedna
2 August 2023 04:42
2
Just a hunch, try switching tty (so your screen goes black), and then change the hdmi cable to your motherboard hdmi port and see if there is anything alive there.
Thank you for answering. My system does not have on-board graphics (but the motherboard has a hdmi port), should it work anyway?
Also if I don’t use nomodeset the pc is just frozen, doing alt+ctrl+f4 does nothing.
Whats your hypothesis?
I tried pressing alt+ctrl+f4 and switching the hdmi to the motherboard’s but nothing happened.
The cooler start spinning faster after the screen freeze
Can you give us at least a summary of your system info?
sudo inxi -v7azy
I did this in the working installation:
System:
Kernel: 6.1.41-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 13.1.1
parameters: BOOT_IMAGE=/boot/vmlinuz-6.1-x86_64
root=UUID=902b2529-d3e2-4c18-b716-96ef4f2ddd34 rw quiet apparmor=1
security=apparmor udev.log_priority=3
Desktop: i3 v: 4.22 info: i3bar dm: LightDM v: 1.32.0 Distro: Manjaro Linux
base: Arch Linux
Machine:
Type: Desktop System: ASUS product: N/A v: N/A serial: N/A
Mobo: ASUSTeK model: TUF GAMING B550M-PLUS v: Rev X.0x serial: <filter>
UEFI: American Megatrends v: 3002 date: 02/23/2023
Battery:
ID-1: hidpp_battery_0 charge: 100% condition: N/A volts: 4.2 min: N/A
model: Logitech G703 LIGHTSPEED Wireless Gaming Mouse w/ HERO type: N/A
serial: <filter> status: full
Memory:
System RAM: total: 64 GiB available: 62.71 GiB used: 5.32 GiB (8.5%)
Array-1: capacity: 128 GiB slots: 4 modules: 4 EC: None
max-module-size: 32 GiB note: est.
Device-1: DIMM_A1 type: DDR4 detail: synchronous unbuffered (unregistered)
size: 16 GiB speed: 2666 MT/s volts: curr: 1.2 min: 1.2 max: 1.2
width (bits): data: 64 total: 64 manufacturer: CRUCIAL
part-no: BL16G32C16U4B.16FE serial: <filter>
Device-2: DIMM_A2 type: DDR4 detail: synchronous unbuffered (unregistered)
size: 16 GiB speed: 2666 MT/s volts: curr: 1.2 min: 1.2 max: 1.2
width (bits): data: 64 total: 64 manufacturer: CRUCIAL
part-no: BL16G32C16U4B.16FE serial: <filter>
Device-3: DIMM_B1 type: DDR4 detail: synchronous unbuffered (unregistered)
size: 16 GiB speed: 2666 MT/s volts: curr: 1.2 min: 1.2 max: 1.2
width (bits): data: 64 total: 64 manufacturer: CRUCIAL
part-no: BL16G32C16U4B.16FE serial: <filter>
Device-4: DIMM_B2 type: DDR4 detail: synchronous unbuffered (unregistered)
size: 16 GiB speed: 2666 MT/s volts: curr: 1.2 min: 1.2 max: 1.2
width (bits): data: 64 total: 64 manufacturer: CRUCIAL
part-no: BL16G32C16U4B.16FE serial: <filter>
CPU:
Info: model: AMD Ryzen 9 5900X socket: AM4 bits: 64 type: MT MCP arch: Zen 3+
gen: 4 level: v3 note: check built: 2022 process: TSMC n6 (7nm)
family: 0x19 (25) model-id: 0x21 (33) stepping: 0 microcode: 0xA201025
Topology: cpus: 1x cores: 12 tpc: 2 threads: 24 smt: enabled cache:
L1: 768 KiB desc: d-12x32 KiB; i-12x32 KiB L2: 6 MiB desc: 12x512 KiB
L3: 64 MiB desc: 2x32 MiB
Speed (MHz): avg: 2512 high: 3700 min/max: 2200/4950 boost: enabled
base/boost: 3700/4950 scaling: driver: acpi-cpufreq governor: schedutil
volts: 1.1 V ext-clock: 100 MHz cores: 1: 2200 2: 2200 3: 2200 4: 2200
5: 2200 6: 2200 7: 2200 8: 2200 9: 2200 10: 3700 11: 2200 12: 3700 13: 2200
14: 2200 15: 3700 16: 2200 17: 2200 18: 2200 19: 2200 20: 2200 21: 3700
22: 2200 23: 2200 24: 3700 bogomips: 177328
Flags: 3dnowprefetch abm adx aes aperfmperf apic arat avic avx avx2 bmi1
bmi2 bpext cat_l3 cdp_l3 clflush clflushopt clwb clzero cmov cmp_legacy
constant_tsc cpb cpuid cqm cqm_llc cqm_mbm_local cqm_mbm_total
cqm_occup_llc cr8_legacy cx16 cx8 de decodeassists erms extapic
extd_apicid f16c flushbyasid fma fpu fsgsbase fsrm fxsr fxsr_opt ht
hw_pstate ibpb ibrs ibs invpcid irperf lahf_lm lbrv lm mba mca mce
misalignsse mmx mmxext monitor movbe msr mtrr mwaitx nonstop_tsc nopl npt
nrip_save nx ospke osvw overflow_recov pae pat pausefilter pclmulqdq
pdpe1gb perfctr_core perfctr_llc perfctr_nb pfthreshold pge pku pni popcnt
pse pse36 rapl rdpid rdpru rdrand rdseed rdt_a rdtscp rep_good sep sha_ni
skinit smap smca smep ssbd sse sse2 sse4_1 sse4_2 sse4a ssse3 stibp succor
svm svm_lock syscall tce topoext tsc tsc_scale umip v_spec_ctrl
v_vmsave_vmload vaes vgif vmcb_clean vme vmmcall vpclmulqdq wbnoinvd wdt
x2apic xgetbv1 xsave xsavec xsaveerptr xsaveopt xsaves
Vulnerabilities:
Type: itlb_multihit status: Not affected
Type: l1tf status: Not affected
Type: mds status: Not affected
Type: meltdown status: Not affected
Type: mmio_stale_data status: Not affected
Type: retbleed status: Not affected
Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
prctl
Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
sanitization
Type: spectre_v2 mitigation: Retpolines, IBPB: conditional, IBRS_FW,
STIBP: always-on, RSB filling, PBRSB-eIBRS: Not affected
Type: srbds status: Not affected
Type: tsx_async_abort status: Not affected
Graphics:
Device-1: AMD Navi 33 [Radeon RX 7700S/7600S/7600M XT] vendor: Micro-Star MSI
driver: amdgpu v: kernel arch: RDNA-3 code: Navi-3x process: TSMC n5 (5nm)
built: 2022+ pcie: gen: 4 speed: 16 GT/s lanes: 8 ports:
active: DP-3,HDMI-A-1 empty: DP-1,DP-2 bus-ID: 09:00.0 chip-ID: 1002:7480
class-ID: 0300
Device-2: Logitech HD Pro Webcam C920 driver: snd-usb-audio,uvcvideo
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-3:2
chip-ID: 046d:082d class-ID: 0102 serial: <filter>
Display: x11 server: X.Org v: 21.1.8 driver: X: loaded: amdgpu
unloaded: modesetting,radeon alternate: fbdev,vesa dri: radeonsi gpu: amdgpu
display-ID: :0 screens: 1
Screen-1: 0 s-res: 3000x1920 s-dpi: 96 s-size: 791x506mm (31.14x19.92")
s-diag: 939mm (36.97")
Monitor-1: DP-3 mapped: DisplayPort-2 pos: right model: Dell P2319H
serial: <filter> built: 2019 res: 1080x1920 hz: 60 dpi: 96 gamma: 1.2
size: 286x509mm (11.26x20.04") diag: 584mm (23") ratio: 16:9 modes:
max: 1920x1080 min: 720x400
Monitor-2: HDMI-A-1 mapped: HDMI-A-0 pos: primary,left model: Dell P2719H
serial: <filter> built: 2021 res: 1920x1080 hz: 60 dpi: 82 gamma: 1.2
size: 598x336mm (23.54x13.23") diag: 686mm (27") ratio: 16:9 modes:
max: 1920x1080 min: 720x400
API: OpenGL Message: Unable to show GL data. Required tool glxinfo missing.
Audio:
Device-1: AMD driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s
lanes: 8 bus-ID: 09:00.1 chip-ID: 1002:ab30 class-ID: 0403
Device-2: AMD Starship/Matisse HD Audio vendor: ASUSTeK
driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
bus-ID: 0b:00.4 chip-ID: 1022:1487 class-ID: 0403
Device-3: Logitech HD Pro Webcam C920 driver: snd-usb-audio,uvcvideo
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-3:2
chip-ID: 046d:082d class-ID: 0102 serial: <filter>
API: ALSA v: k6.1.41-1-MANJARO status: kernel-api with: aoss
type: oss-emulator tools: alsactl,alsamixer,amixer
Server-1: JACK v: 1.9.22 status: off tools: N/A
Server-2: PipeWire v: 0.3.75 status: n/a (root, process) with:
1: pipewire-pulse status: active 2: pipewire-media-session status: active
3: pipewire-alsa type: plugin tools: pactl,pw-cat,pw-cli
Network:
Device-1: Intel Wi-Fi 6 AX200 driver: iwlwifi v: kernel pcie: gen: 2
speed: 5 GT/s lanes: 1 bus-ID: 05:00.0 chip-ID: 8086:2723 class-ID: 0280
IF: wlp5s0 state: up mac: <filter>
IP v4: <filter> type: dynamic noprefixroute scope: global
broadcast: <filter>
IP v6: <filter> type: dynamic noprefixroute scope: global
IP v6: <filter> type: noprefixroute scope: link
Device-2: Realtek RTL8125 2.5GbE vendor: ASUSTeK driver: r8169 v: kernel
pcie: gen: 2 speed: 5 GT/s lanes: 1 port: f000 bus-ID: 06:00.0
chip-ID: 10ec:8125 class-ID: 0200
IF: enp6s0 state: down mac: <filter>
IF-ID-1: br-0eb4baf65976 state: down mac: <filter>
IP v4: <filter> scope: global broadcast: <filter>
IF-ID-2: docker0 state: down mac: <filter>
Message: Output throttled. IPs: 1; Limit: 10; Override: --limit [1-x;-1
all]
WAN IP: <filter>
Bluetooth:
Message: No bluetooth data found.
Logical:
Message: No logical block device data found.
RAID:
Message: No RAID data found.
Drives:
Local Storage: total: 465.76 GiB used: 297.77 GiB (63.9%)
SMART Message: Required tool smartctl not installed. Check --recommends
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Western Digital
model: WDS500G3XHC-00SJG0 size: 465.76 GiB block-size: physical: 512 B
logical: 512 B speed: 31.6 Gb/s lanes: 4 tech: SSD serial: <filter>
fw-rev: 102000WD temp: 43.9 C scheme: GPT
Message: No optical or floppy data found.
Partition:
ID-1: / raw-size: 465.46 GiB size: 457.09 GiB (98.20%)
used: 297.76 GiB (65.1%) fs: ext4 block-size: 4096 B dev: /dev/nvme0n1p2
maj-min: 259:2 label: N/A uuid: 902b2529-d3e2-4c18-b716-96ef4f2ddd34
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 288 KiB (0.1%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p1
maj-min: 259:1 label: NO_LABEL uuid: 967E-6208
Swap:
Alert: No swap data was found.
Unmounted:
Message: No unmounted partitions found.
USB:
Hub-1: 1-0:1 info: hi-speed hub with single TT ports: 10 rev: 2.0
speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
class-ID: 0900
Device-1: 1-6:2 info: ASUSTek AURA LED Controller type: HID
driver: hid-generic,usbhid interfaces: 2 rev: 2.0 speed: 12 Mb/s (1.4 MiB/s)
lanes: 1 mode: 1.1 power: 16mA chip-ID: 0b05:1939 class-ID: 0300
serial: <filter>
Hub-2: 1-7:3 info: Genesys Logic Hub ports: 4 rev: 2.0
speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 100mA
chip-ID: 05e3:0610 class-ID: 0900
Device-1: 1-8:4 info: Logitech G703 LIGHTSPEED Wireless Gaming Mouse w/
HERO type: mouse,keyboard,HID driver: logitech-hidpp-device,usbhid
interfaces: 3 rev: 2.0 speed: 12 Mb/s (1.4 MiB/s) lanes: 1 mode: 1.1
power: 500mA chip-ID: 046d:c090 class-ID: 0300 serial: <filter>
Device-2: 1-9:5 info: SteelSeries ApS Apex Pro TKL type: keyboard,HID
driver: hid-generic,usbhid interfaces: 5 rev: 2.0 speed: 12 Mb/s (1.4 MiB/s)
lanes: 1 mode: 1.1 power: 500mA chip-ID: 1038:1614 class-ID: 0300
Hub-3: 2-0:1 info: super-speed hub ports: 4 rev: 3.1
speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
class-ID: 0900
Hub-4: 3-0:1 info: hi-speed hub with single TT ports: 4 rev: 2.0
speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
class-ID: 0900
Device-1: 3-3:2 info: Logitech HD Pro Webcam C920 type: video,audio
driver: snd-usb-audio,uvcvideo interfaces: 4 rev: 2.0
speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 500mA
chip-ID: 046d:082d class-ID: 0102 serial: <filter>
Hub-5: 4-0:1 info: super-speed hub ports: 4 rev: 3.1
speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
class-ID: 0900
Sensors:
System Temperatures: cpu: 63.5 C mobo: N/A gpu: amdgpu temp: 39.0 C
mem: 53.0 C
Fan Speeds (RPM): N/A gpu: amdgpu fan: 4
Info:
Processes: 463 Uptime: 2m wakeups: 2 Init: systemd v: 253 default: graphical
tool: systemctl Compilers: gcc: 13.1.1 clang: 15.0.7 Packages: 1280
pm: pacman pkgs: 1266 libs: 365 tools: pamac,yay pm: flatpak pkgs: 0 pm: snap
pkgs: 14 Shell: Sudo (sudo) v: 1.9.14p2 default: Bash v: 5.1.16
running-in: alacritty inxi: 3.3.28

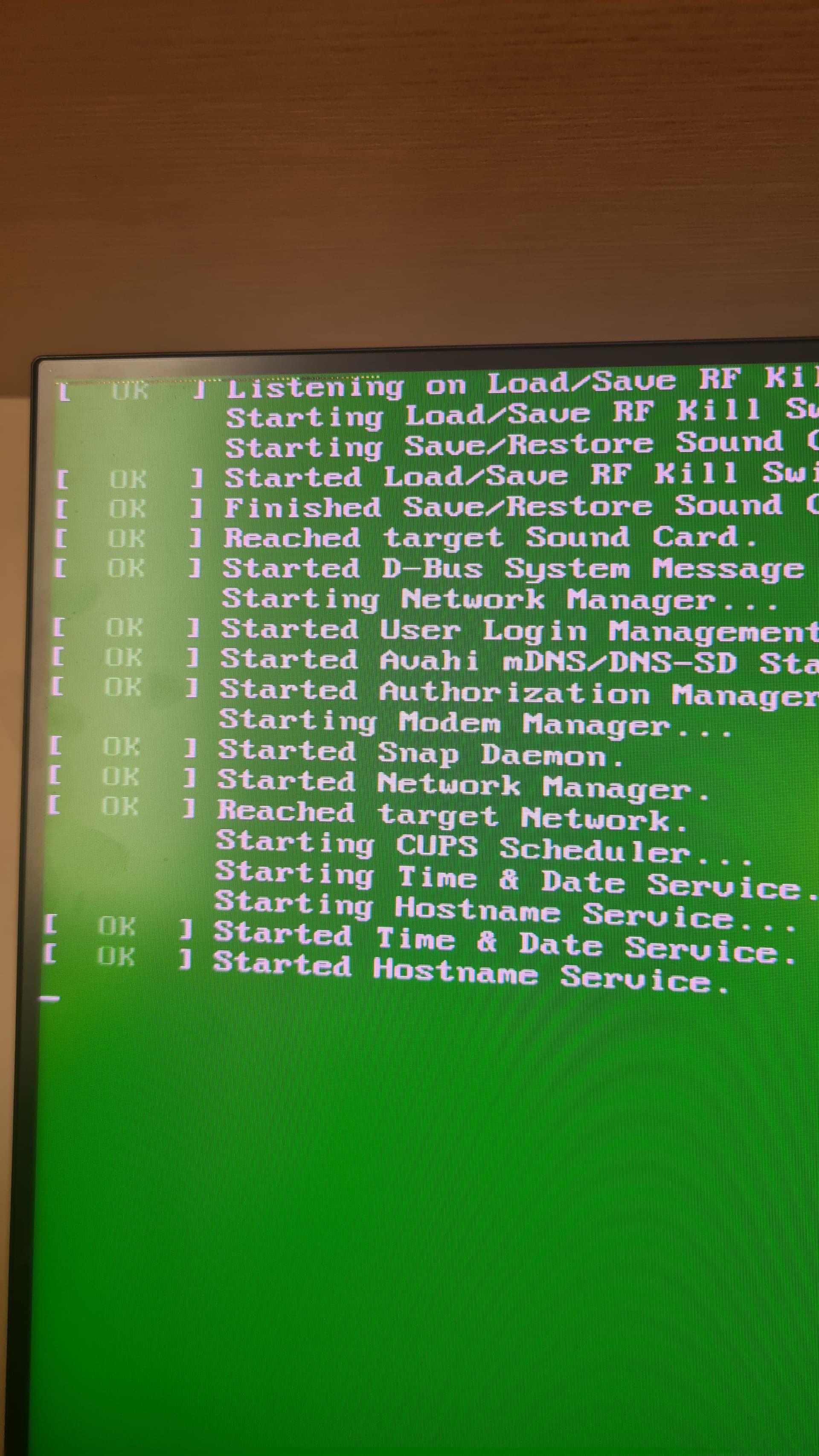

It freezes here with this artifact in the top, the screen is green, but the colors gets normal if I swap the monitor. Tried booting with the second monitor only and didn’t work
Did you verify that the checksum match the downloaded ISO and also the written ISO to USB?
By doing “acpi=off” it went farther in the process, stopped here but it’s not frozen. I can access tty now, checked lightdm (systemctl status lightdm) and it’s active.
Did you try to restart it?
systemctl restart display-manager.service
It makes me think that the GPU is not fully initialized by the UEFI for some reason. Could be wrong.
I tried now I it does nothing, but it say it’s active. Doing “anxi -G” does not show the Radeon driver.
If I try opening i3 it says it cannot open display
Trying “sudo mhwd -a nonfree 0300” says that the driver is installed
Interesting… please share the link or full name of the ISO file. Probably the kernel on the ISO, so its version is lower than 5.15?
This GPU is supported only since 5.16: AMD Navi 33 [Radeon RX 7700S/7600S/7600M XT] Framebuffer, like the console is supported anyway.
I tried manjaro-i3-22.0-minimal-230104-linux61.iso and manjaro-kde-22.1.3-minimal-230529-linux61.iso and manjaro-xfce-22.1.3-minimal-230529-linux61.iso.
But only the i3 one with acpi=off I might try the XFCE later.
When I do sudo inxi -v7azy it detects that there is a GPU, but show driver=n/a.
Thank you for helping me
That’s really strange. Could you check if the module was loaded?
lsmod | grep amd
Eventually load it:
sudo modprobe -v amdgpu
Check if the driver has been mapped to the GPU:
inxi -Gazy
There must be a reason why the kernel doesn’t detect the GPU correctly.
I get this error "could not insert ‘amdgpu’: no such device
When I use the XFCE image it detects the gpu more detailed, but still can’t ‘modprobe -v amdgpu’ same error
The curious thing is that the current installation is working flawless.
sudo lspci -nn -kk -vvvv -d 1002:7480
sudo dmidecode -t slot
If you have a internet connection, please add a pipe to upload it:
<your_command> | curl -F'file=@-' https://0x0.st
Like that:
journalctl --boot 0 | curl -F'file=@-' https://0x0.st
Share the short link here then.
I was avoiding this option but what I did was swap the gpu to an older one (it worked) . I’m installing the os and upgrading it right now to a newer kernel.
After that I’ll swap back the gpu and hope for the best.
Thank you a lot for helping me
This strategy worked. Used an older card do install the os, upgrade the kernel to 6.4, swaped back the card, it booted normally
