LACCC – Locale‑Aware Conky Clock & Calendar (2026 Edition)

amolnaristvan · 10 March 2026 11:33

LACCC – Locale‑Aware Conky Clock & Calendar (2026 Edition)

A modular, Lua‑powered Conky framework for Wayland and X11

I’m sharing my custom Conky project called LACCC (Locale‑Aware Conky Clock & Calendar). It’s a modern, modular, Lua‑driven Conky setup designed to work reliably across all major desktop environments, including Wayland sessions.

The goal was to build a clean, transparent, locale‑aware clock and calendar widget that:

starts reliably on KDE, GNOME, XFCE, Cinnamon, MATE, LXQt, and others
works on both Wayland and X11
uses a modern, minimal visual style
is fully modular through Lua
is easy to extend with additional widgets
follows a consistent 2026 branding and structure

Project structure

All files live in a single directory:

Code

~/.conky/calendar_clock/
 ├─ lacc.conf
 ├─ main.lua
 ├─ autostart.sh
 ├─ lua/
 │   ├─ clock.lua
 │   ├─ calendar.lua
 │   ├─ background.lua
 │   └─ text.lua

The main Conky config loads the Lua modules using relative paths:

lua

lua_load = './main.lua'
lua_draw_hook_post = 'main'

This works because Conky is launched from inside the directory, so ./lua/ always resolves correctly.

Autostart – reliable startup on all DEs

Many desktop environments initialize their compositor and ARGB layers after the session technically starts. If Conky launches too early, transparency or layering may fail.

This autostart script ensures stable startup:

bash

#!/bin/bash

cd "$HOME/.conky/calendar_clock" || exit

sleep 1

setsid conky -c laccc.conf &

sleep 1
exit

This approach:

guarantees Conky starts from the correct working directory
ensures all relative Lua paths resolve properly
avoids early startup issues by adding a short delay
works consistently across all DEs

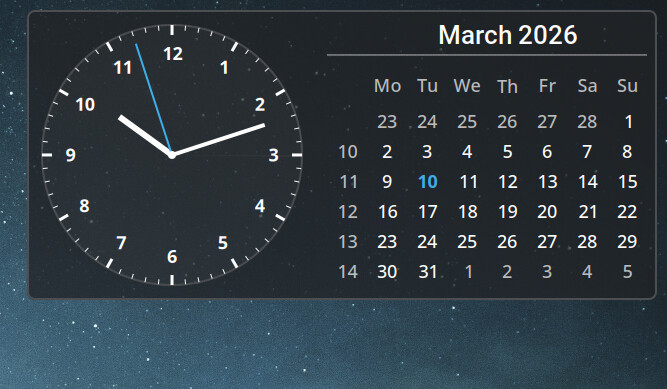

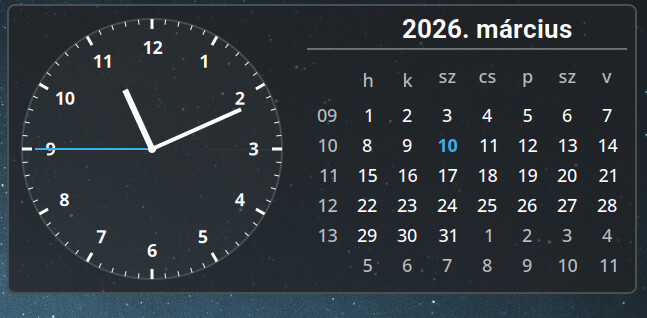

Visual style

The widget uses:

a clean, transparent layout
modern typography
locale‑aware date formatting
Lua‑controlled background, shadow, and text rendering
a modular drawing pipeline

The system is easy to extend with:

weather widgets
system monitors
network indicators
GPU/CPU stats
any custom Lua module you want to add

Lua modules

Each component lives in its own file inside lua/:

main.lua — drawing pipeline and update loop

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
MAIN MODULE – Loader and dispatcher for all LACCC components
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This module:

• detects the script directory,
• extends Lua's module search path,
• loads all LACCC submodules (background, text, clock, calendar),
• provides a unified Conky entry point,
• ensures consistent rendering order across components.

===============================================================================
]] --

-- Detect script directory
local info = debug.getinfo(1, "S").source
local script_path = info:match("@(.*/)")
if not script_path then script_path = "./" end
-- Extend Lua module search path
package.path =
    script_path .. "lua/?.lua;" ..
    package.path
require 'background'
require 'text'
require 'clock'
require 'calendar'
function conky_main()
if conky_main_text then conky_main_text() end
    if conky_main_background then conky_main_background() end
    if conky_main_clock then conky_main_clock() end
    if conky_main_calendar then conky_main_calendar() end
end

clock.lua — clock rendering

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
ANALOG CLOCK MODULE – Gradient dial, ticks, hands using Cairo
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This module renders a fully configurable analog clock using Cairo.
It provides:

• gradient dial and gradient border,
• hour/minute/second hands with independent styles,
• hour and minute ticks,
• optional 1–12 numbers,
• accurate system‑time based movement,
• separate gradient profiles for every visual element,
• Cairo fallback when cairo_xlib is unavailable.

DRAW CONDITION
--------------
draw_me
Controls whether the clock is drawn.
• true / false
• Conky condition string
• Lua function returning boolean

COLOR HANDLING
--------------
hex_to_rgba(hex, alpha)
Converts 0xRRGGBB → Cairo RGBA.

get_color_from_list(stops, t)
Interpolates multi‑stop gradients (0–1 range).

===============================================================================
]] --

require 'cairo'

------------------------------------------------------------
-- CAIRO FALLBACK
------------------------------------------------------------
local ok, cairo_xlib = pcall(require, 'cairo_xlib')
if not ok then
    cairo_xlib = setmetatable({}, {
        __index = function(_, k) return _G[k] end
    })
end
clock = {
    draw_me = true,

    x = 145,
    y = 145,
    radius = 130,

    show_ticks = true,
    show_numbers = true,
    show_seconds = true,

    tick_width_hour = 3,
    tick_width_minute = 1,

    number_size = 18,
    number_radius = 0.78,

    hour_hand_width = 6,
    minute_hand_width = 4,
    second_hand_width = 2,

    center_radius = 4,

    bg = {
        { 1, 0xfcfcfc, 0.03 },
    },

    border = {
        { 1, 0x4c4e51, 1 },
    },

    tick_color = {
        { 1, 0xfcfcfc, 1 },
    },

    number_color = {
        { 1, 0xfcfcfc, 1 },
    },

    hour_color = {
        { 1, 0xfcfcfc, 1 },
    },

    minute_color = {
        { 1, 0xfcfcfc, 1 },
    },

    second_color = {
        { 1, 0x3daee9, 1 },
    },

    center_color = {
        { 1, 0xfcfcfc, 1 },
    },
}
------------------------------------------------------------
-- UTILS
------------------------------------------------------------
function hex_to_rgba(hex, alpha)
    if type(hex) == "string" then
        hex = tonumber(hex:gsub("#", ""), 16)
    end
    local r = ((hex >> 16) & 0xFF) / 255
    local g = ((hex >> 8) & 0xFF) / 255
    local b = (hex & 0xFF) / 255
    return r, g, b, alpha
end

function draw_allowed(flag)
    if flag == nil or flag == true then return true end
    return conky_parse(tostring(flag)) == "1"
end

function get_color_from_list(stops, t)
    local prev = stops[1]
    for i = 2, #stops do
        local nxt = stops[i]
        if t <= nxt[1] then
            local p = (t - prev[1]) / (nxt[1] - prev[1])
            local r1, g1, b1, a1 = hex_to_rgba(prev[2], prev[3])
            local r2, g2, b2, a2 = hex_to_rgba(nxt[2], nxt[3])
            return
                r1 + (r2 - r1) * p,
                g1 + (g2 - g1) * p,
                b1 + (b2 - b1) * p,
                a1 + (a2 - a1) * p
        end
        prev = nxt
    end
    return hex_to_rgba(prev[2], prev[3])
end

------------------------------------------------------------
-- DEFAULT CLOCK CONFIG
------------------------------------------------------------
CLOCK_DEFAULT = {
    draw_me = true,

    x = 200,
    y = 200,
    radius = 80,

    show_ticks = true,
    show_numbers = true,
    show_seconds = true,

    tick_width_hour = 3,
    tick_width_minute = 1,

    number_size = 18,
    number_radius = 0.78,

    hour_hand_width = 5,
    minute_hand_width = 3,
    second_hand_width = 1,

    center_radius = 4,

    bg = {
        { 0, 0x222222, 0.8 },
        { 1, 0x222222, 0.8 },
    },

    border = {
        { 0, 0xffffff, 0.4 },
        { 1, 0xffffff, 0.4 },
    },

    tick_color = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },

    number_color = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },

    hour_color = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },

    minute_color = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },

    second_color = {
        { 0, 0xff0000, 1 },
        { 1, 0xff0000, 1 },
    },

    center_color = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },
}

------------------------------------------------------------
-- CLOCK RENDERER
------------------------------------------------------------
function draw_clock(cr, opts)
    if not draw_allowed(opts.draw_me) then return end
    if conky_window == nil then return end

    -- apply defaults
    local cfg = {}
    for k, v in pairs(CLOCK_DEFAULT) do cfg[k] = v end
    for k, v in pairs(opts) do cfg[k] = v end

    local x          = cfg.x
    local y          = cfg.y
    local r          = cfg.radius

    -- time values
    local hours      = tonumber(os.date("%I"))
    local minutes    = tonumber(os.date("%M"))
    local seconds    = tonumber(os.date("%S"))

    local sec_angle  = (seconds / 60) * 2 * math.pi
    local min_angle  = (minutes / 60) * 2 * math.pi
    local hour_angle = ((hours % 12) / 12 + minutes / 720) * 2 * math.pi

    --------------------------------------------------------
    -- BACKGROUND (gradient dial)
    --------------------------------------------------------
    for i = 0, 360 do
        local t = i / 360
        local r1, g1, b1, a1 = get_color_from_list(cfg.bg, t)
        cairo_set_source_rgba(cr, r1, g1, b1, a1)

        local a1 = math.rad(i)
        local a2 = math.rad(i + 1)

        cairo_move_to(cr, x, y)
        cairo_arc(cr, x, y, r, a1, a2)
        cairo_fill(cr)
    end

    --------------------------------------------------------
    -- BORDER (gradient ring)
    --------------------------------------------------------
    for i = 0, 360 do
        local t = i / 360
        local r1, g1, b1, a1 = get_color_from_list(cfg.border, t)
        cairo_set_source_rgba(cr, r1, g1, b1, a1)

        local a1 = math.rad(i) - math.pi / 2
        local a2 = math.rad(i + 1) - math.pi / 2

        cairo_set_line_width(cr, 2)
        cairo_arc(cr, x, y, r, a1, a2)
        cairo_stroke(cr)
    end

    --------------------------------------------------------
    -- TICKS
    --------------------------------------------------------
    if cfg.show_ticks then
        for i = 0, 59 do
            local angle          = (i / 60) * 2 * math.pi
            local sin_a          = math.sin(angle)
            local cos_a          = math.cos(angle)

            local is_hour        = (i % 5 == 0)
            local tick_len       = is_hour and 10 or 5
            local tick_w         = is_hour and cfg.tick_width_hour or cfg.tick_width_minute

            local t              = i / 60
            local r1, g1, b1, a1 = get_color_from_list(cfg.tick_color, t)
            cairo_set_source_rgba(cr, r1, g1, b1, a1)
            cairo_set_line_width(cr, tick_w)

            local x1 = x + sin_a * (r - tick_len)
            local y1 = y - cos_a * (r - tick_len)
            local x2 = x + sin_a * r
            local y2 = y - cos_a * r

            cairo_move_to(cr, x1, y1)
            cairo_line_to(cr, x2, y2)
            cairo_stroke(cr)
        end
    end

    --------------------------------------------------------
    -- NUMBERS
    --------------------------------------------------------
    if cfg.show_numbers then
        cairo_select_font_face(cr, "Sans", CAIRO_FONT_SLANT_NORMAL, CAIRO_FONT_WEIGHT_BOLD)
        cairo_set_font_size(cr, cfg.number_size)

        for i = 1, 12 do
            local angle = (i / 12) * 2 * math.pi
            local sin_a = math.sin(angle)
            local cos_a = math.cos(angle)

            local nx = x + sin_a * (r * cfg.number_radius)
            local ny = y - cos_a * (r * cfg.number_radius)

            local t = i / 12
            local r1, g1, b1, a1 = get_color_from_list(cfg.number_color, t)
            cairo_set_source_rgba(cr, r1, g1, b1, a1)

            local text = tostring(i)
            local ext = cairo_text_extents_t:create()
            cairo_text_extents(cr, text, ext)

            cairo_move_to(cr, nx - ext.width / 2, ny + ext.height / 2)
            cairo_show_text(cr, text)
        end
    end

    --------------------------------------------------------
    -- HAND DRAWER
    --------------------------------------------------------
    local function draw_hand(angle, length, thickness, color)
        cairo_set_line_width(cr, thickness)

        local t = angle / (2 * math.pi)
        local r1, g1, b1, a1 = get_color_from_list(color, t)
        cairo_set_source_rgba(cr, r1, g1, b1, a1)

        local ex = x + math.sin(angle) * length
        local ey = y - math.cos(angle) * length

        cairo_move_to(cr, x, y)
        cairo_line_to(cr, ex, ey)
        cairo_stroke(cr)
    end

    draw_hand(hour_angle, r * 0.5, cfg.hour_hand_width, cfg.hour_color)
    draw_hand(min_angle, r * 0.75, cfg.minute_hand_width, cfg.minute_color)

    if cfg.show_seconds then
        draw_hand(sec_angle, r * 0.9, cfg.second_hand_width, cfg.second_color)
    end

    --------------------------------------------------------
    -- CENTER DOT
    --------------------------------------------------------
    local r1, g1, b1, a1 = get_color_from_list(cfg.center_color, 0.5)
    cairo_set_source_rgba(cr, r1, g1, b1, a1)
    cairo_arc(cr, x, y, cfg.center_radius, 0, 2 * math.pi)
    cairo_fill(cr)
end

------------------------------------------------------------
-- CONKY ENTRY POINT
------------------------------------------------------------
function conky_main_clock()
    if conky_window == nil then return end
    if not clock then return end

    local cs = cairo_xlib_surface_create(
        conky_window.display,
        conky_window.drawable,
        conky_window.visual,
        conky_window.width,
        conky_window.height
    )

    local cr = cairo_create(cs)

    draw_clock(cr, clock)

    cairo_destroy(cr)
    cairo_surface_destroy(cs)
end

calendar.lua — calendar generation

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
CALENDAR MODULE – cal‑based multilingual engine with monthly cache
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This module renders a fully locale‑aware calendar using Cairo.
It provides:

• automatic language detection via system locale,
• month and weekday names parsed from `cal`,
• correct week start based on locale (no manual config),
• monthly caching to avoid repeated external calls,
• Cairo‑based rendering with gradients and alignment,
• support for week numbers, outside‑month days, and today highlighting.

===============================================================================
]] --

require 'cairo'
------------------------------------------------------------
-- CAIRO FALLBACK
------------------------------------------------------------
local ok, cairo_xlib = pcall(require, 'cairo_xlib')
if not ok then
    cairo_xlib = setmetatable({}, {
        __index = function(_, k) return _G[k] end
    })
end
------------------------------------------------------------
-- CAL ENGINE WITH MONTHLY CACHE
------------------------------------------------------------
local cal_cache = nil
local cal_monthname = nil
local cal_weekdays = nil
local last_month = nil
local function update_cal_cache()
    local current_month = os.date("%m")
    if last_month == current_month and cal_cache ~= nil then
        return
    end
    local handle = io.popen("cal")
    local out = handle:read("*a")
    handle:close()
    cal_cache = out
    last_month = current_month
    local lines = {}
    for line in out:gmatch("[^\n]+") do
        table.insert(lines, line)
    end
    -- First line = month name + year
    cal_monthname = lines[1]:gsub("^%s*(.-)%s*$", "%1")
    -- Second line = weekday names
    cal_weekdays = {}
    for wd in lines[2]:gmatch("(%S+)") do
        table.insert(cal_weekdays, wd)
    end
end
local function get_cal_monthname()
    update_cal_cache()
    return cal_monthname
end
local function get_cal_weekdays()
    update_cal_cache()
    return cal_weekdays
end
------------------------------------------------------------
-- UTILS
------------------------------------------------------------
function hex_to_rgba(hex, alpha)
    if type(hex) == "string" then
        hex = tonumber(hex:gsub("#", ""), 16)
    end
    local r = ((hex >> 16) & 0xFF) / 255
    local g = ((hex >> 8) & 0xFF) / 255
    local b = (hex & 0xFF) / 255
    return r, g, b, alpha
end

function draw_allowed(flag)
    if flag == nil or flag == true then return true end
    return conky_parse(tostring(flag)) == "1"
end

function get_color_from_list(stops, t)
    local prev = stops[1]
    for i = 2, #stops do
        local nxt = stops[i]
        if t <= nxt[1] then
            local p = (t - prev[1]) / (nxt[1] - prev[1])
            local r1, g1, b1, a1 = hex_to_rgba(prev[2], prev[3])
            local r2, g2, b2, a2 = hex_to_rgba(nxt[2], nxt[3])
            return
                r1 + (r2 - r1) * p,
                g1 + (g2 - g1) * p,
                b1 + (b2 - b1) * p,
                a1 + (a2 - a1) * p
        end
        prev = nxt
    end
    return hex_to_rgba(prev[2], prev[3])
end

------------------------------------------------------------
-- SEPARATOR LINE
------------------------------------------------------------
function draw_separator_line(cr, m)
    local x1, y1 = m.x1, m.y1
    local x2, y2 = m.x2, m.y2
    local thickness = m.thickness or 1
    local fg = m.fg
    cairo_set_line_width(cr, thickness)
    local steps = 200
    local dx = (x2 - x1) / steps
    local dy = (y2 - y1) / steps
    for i = 0, steps - 1 do
        local t = (i + 1) / steps
        local r, g, b, a = get_color_from_list(fg, t)
        cairo_set_source_rgba(cr, r, g, b, a)
        local sx = x1 + dx * i
        local sy = y1 + dy * i
        local ex = x1 + dx * (i + 1)
        local ey = y1 + dy * (i + 1)
        cairo_move_to(cr, sx, sy)
        cairo_line_to(cr, ex, ey)
        cairo_stroke(cr)
    end
end

------------------------------------------------------------
-- CONFIG
------------------------------------------------------------
calendar = {
    draw_me        = true,
    month_format   = "year_month",
    x              = 300,
    y              = 15,
    cell_w         = 40,
    row_h          = 30,
    font           = "Noto Sans",
    size           = 18,
    weight         = "bold",
    show_weeknums  = true,
    color_month    = {
        { 1, 0xfcfcfc, 1 },
    },
    color_weekdays = {
        { 1, 0xfcfcfc, 0.7 },
    },
    color_days     = {
        { 1, 0xfcfcfc, 1 },
    },
    color_today    = {
        { 1, 0x3daee9, 1 },
    },
    color_outside  = {
        { 1, 0xfcfcfc, 0.7 },
    },
    color_weeknums = {
        { 1, 0xfcfcfc, 0.5 },
    },
}
------------------------------------------------------------
-- CALENDAR RENDERER
------------------------------------------------------------
function draw_calendar(cr, cfg)
    if not draw_allowed(cfg.draw_me) then return end
    if conky_window == nil then return end
    local x             = cfg.x
    local y             = cfg.y
    local cw            = cfg.cell_w
    local rh            = cfg.row_h
    local now           = os.date("*t")
    local year          = now.year
    local month         = now.month
    local today         = now.day
    local first         = os.time { year = year, month = month, day = 1 }
    local wday          = tonumber(os.date("%w", first))
    -- cal already gives correct week start
    -- no manual shifting needed
    local days_in_month = os.date("*t", os.time { year = year, month = month + 1, day = 0 }).day
    local prev_days     = os.date("*t", os.time { year = year, month = month, day = 0 }).day
    --------------------------------------------------------
    -- MONTH NAME (from cal)
    --------------------------------------------------------
    local month_raw     = get_cal_monthname()
    local fmt           = cfg.month_format or "month_year"
    local month_name
    if fmt == "month_year" then
        month_name = month_raw
    else
        local ystr = tostring(year)
        local m = month_raw:gsub("%s*" .. ystr .. "%s*", "")
        month_name = ystr .. ". " .. m
    end
    draw_text(cr, {
        text   = month_name,
        x      = x + (cfg.show_weeknums and cw or 0) + cw * 3.5,
        y      = y,
        align  = "center",
        font   = "Roboto",
        size   = cfg.size + 8,
        weight = "bold",
        color  = cfg.color_month,
    })
    --------------------------------------------------------
    -- SEPARATOR
    --------------------------------------------------------
    draw_separator_line(cr, {
        x1 = x,
        y1 = y + rh,
        x2 = x + cw * (cfg.show_weeknums and 8 or 7),
        y2 = y + rh,
        thickness = 1,
        fg = cfg.color_weekdays,
    })
    --------------------------------------------------------
    -- WEEKDAY LABELS (from cal)
    --------------------------------------------------------
    local WEEKDAYS = get_cal_weekdays()
    for i = 1, 7 do
        draw_text(cr, {
            text  = WEEKDAYS[i],
            x     = x + (cfg.show_weeknums and cw or 0) + (i - 1) * cw + cw / 2,
            y     = y + rh * 1.8,
            align = "center",
            font  = cfg.font,
            size  = cfg.size,
            color = cfg.color_weekdays,
        })
    end
    --------------------------------------------------------
    -- DAYS GRID
    --------------------------------------------------------
    local row = 0
    local col = 0
    -- PREVIOUS MONTH DAYS
    for i = wday, 1, -1 do
        draw_text(cr, {
            text  = tostring(prev_days - i + 1),
            x     = x + (cfg.show_weeknums and cw or 0) + col * cw + cw / 2,
            y     = y + rh * (row + 3),
            align = "center",
            font  = cfg.font,
            size  = cfg.size,
            color = cfg.color_outside,
        })
        col = col + 1
    end
    -- CURRENT MONTH DAYS
    for d = 1, days_in_month do
        if col == 7 then
            col = 0
            row = row + 1
        end
        if cfg.show_weeknums and col == 0 then
            local t = os.time { year = year, month = month, day = d }
            draw_text(cr, {
                text  = os.date("%V", t),
                x     = x + cw / 2,
                y     = y + rh * (row + 3),
                align = "center",
                font  = cfg.font,
                size  = cfg.size,
                color = cfg.color_weeknums,
            })
        end
        local color  = (d == today) and cfg.color_today or cfg.color_days
        local weight = (d == today) and "bold" or "normal"
        draw_text(cr, {
            text   = tostring(d),
            x      = x + (cfg.show_weeknums and cw or 0) + col * cw + cw / 2,
            y      = y + rh * (row + 3),
            align  = "center",
            font   = cfg.font,
            size   = cfg.size,
            color  = color,
            weight = weight,
        })
        col = col + 1
    end
    -- NEXT MONTH DAYS
    local total_cells   = 42
    local current_cells = row * 7 + col
    local next_d        = 1
    while current_cells < total_cells do
        if col == 7 then
            col = 0
            row = row + 1
        end
        draw_text(cr, {
            text  = tostring(next_d),
            x     = x + (cfg.show_weeknums and cw or 0) + col * cw + cw / 2,
            y     = y + rh * (row + 3),
            align = "center",
            font  = cfg.font,
            size  = cfg.size,
            color = cfg.color_outside,
        })
        next_d        = next_d + 1
        col           = col + 1
        current_cells = current_cells + 1
    end
end

------------------------------------------------------------
-- CONKY ENTRY POINT
------------------------------------------------------------
function conky_main_calendar()
    if conky_window == nil then return end
    if not calendar then return end
    local cs = cairo_xlib_surface_create(
        conky_window.display,
        conky_window.drawable,
        conky_window.visual,
        conky_window.width,
        conky_window.height
    )
    local cr = cairo_create(cs)
    draw_calendar(cr, calendar)
    cairo_destroy(cr)
    cairo_surface_destroy(cs)
end

background.lua — background and shadow

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
BACKGROUND MODULE – Rounded rectangles, gradients, borders using Cairo
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This module draws one or more background panels behind the LACCC components.
It supports:

• rounded rectangle backgrounds,
• vertical gradient fills,
• gradient borders drawn inward for pixel‑perfect edges,
• automatic full‑window sizing when width/height = 0,
• Cairo fallback when cairo_xlib is unavailable.

===============================================================================
]] --

require 'cairo'

local ok, cairo_xlib = pcall(require, 'cairo_xlib')
if not ok then
    cairo_xlib = setmetatable({}, {
        __index = function(_, k) return _G[k] end
    })
end

BACKGROUND_DEFAULT = {
    draw_me = true,
    x = 0,
    y = 0,
    w = 0,
    h = 0,
    radius = 20,

    bg = {
        { 1, 0x141618, 1 },
    },

    border = {
        { 1.00, 0x4c4e51, 1.00 },
    },

    border_width = 2,
}

backgrounds = {
{
    draw_me = true,
    -- draw_me = (has_usb() == 1) or (conky_gpu_mode() ~= "integrated") or (wifi_active() == 1),
    x = 0,
    y = 0,
    w = 0,
    h = 0,
    radius = 8,

    bg = {
        { 1.00, 0x202326, 0.77 },
    },

    border = {
        { 1.00, 0x4c4e51, 1.00 },
    },

    border_width = 2,

}
}

local function hex_to_rgba(hex, a)
    local r = ((hex >> 16) & 0xFF) / 255
    local g = ((hex >> 8) & 0xFF) / 255
    local b = (hex & 0xFF) / 255
    return r, g, b, a
end

local function rounded_rect_path(cr, x, y, w, h, r)
    cairo_new_sub_path(cr)
    cairo_arc(cr, x + w - r, y + r, r, -math.pi / 2, 0)
    cairo_arc(cr, x + w - r, y + h - r, r, 0, math.pi / 2)
    cairo_arc(cr, x + r, y + h - r, r, math.pi / 2, math.pi)
    cairo_arc(cr, x + r, y + r, r, math.pi, 3 * math.pi / 2)
    cairo_close_path(cr)
end

local function draw_background(cr, cfg)
    local x = cfg.x
    local y = cfg.y
    local w = (cfg.w == 0) and conky_window.width or cfg.w
    local h = (cfg.h == 0) and conky_window.height or cfg.h
    local r = cfg.radius
    local bw = cfg.border_width

    --------------------------------------------------------
    -- HÁTTÉR (kerekített, gradient)
    --------------------------------------------------------
    local pat_bg = cairo_pattern_create_linear(x, y, x, y + h)
    for _, s in ipairs(cfg.bg) do
        local pos, col, a = s[1], s[2], s[3]
        local rr, gg, bb, aa = hex_to_rgba(col, a)
        cairo_pattern_add_color_stop_rgba(pat_bg, pos, rr, gg, bb, aa)
    end

    cairo_set_source(cr, pat_bg)
    rounded_rect_path(cr, x, y, w, h, r)
    cairo_fill(cr)
    cairo_pattern_destroy(pat_bg)

    --------------------------------------------------------
    -- BORDER (befelé rajzolva, hibamentes)
    --------------------------------------------------------
    local inset = bw / 2
    local inner_x = x + inset
    local inner_y = y + inset
    local inner_w = w - bw
    local inner_h = h - bw
    local inner_r = r - inset

    if inner_r < 0 then inner_r = 0 end

    local pat = cairo_pattern_create_linear(x, y, x, y + h)
    for _, stop in ipairs(cfg.border) do
        local pos, col, a = stop[1], stop[2], stop[3]
        local rr, gg, bb, aa = hex_to_rgba(col, a)
        cairo_pattern_add_color_stop_rgba(pat, pos, rr, gg, bb, aa)
    end

    cairo_set_source(cr, pat)
    cairo_set_line_width(cr, bw)

    rounded_rect_path(cr, inner_x, inner_y, inner_w, inner_h, inner_r)
    cairo_stroke(cr)

    cairo_pattern_destroy(pat)
end

function conky_main_background()
    if conky_window == nil then return end

    local cs = cairo_xlib_surface_create(
        conky_window.display,
        conky_window.drawable,
        conky_window.visual,
        conky_window.width,
        conky_window.height
    )

    local cr = cairo_create(cs)

    for _, bg in ipairs(backgrounds) do
        draw_background(cr, bg)
    end

    cairo_destroy(cr)
    cairo_surface_destroy(cs)
end

text.lua — typography and layout helpers

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
TEXT MODULE – Gradient text, alignment, centering, Conky variable expansion
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This module provides a Cairo‑based text renderer for Conky.
It supports:

• gradient text coloring,
• left/center/right alignment,
• font slant and weight,
• automatic Conky variable expansion,
• optional draw conditions,
• Wayland‑safe delayed initialization,
• Cairo fallback when cairo_xlib is unavailable.

===============================================================================
]] --

require 'cairo'

------------------------------------------------------------
-- CAIRO FALLBACK
------------------------------------------------------------
local ok, cairo_xlib = pcall(require, 'cairo_xlib')
if not ok then
    cairo_xlib = setmetatable({}, {
        __index = function(_, k) return _G[k] end
    })
end

------------------------------------------------------------
-- GLOBAL UPDATE COUNTER (Wayland stabilization)
------------------------------------------------------------
local update_counter = 0
local UPDATE_DELAY = 3

------------------------------------------------------------
-- TEXT BLOCKS
------------------------------------------------------------

text = {

}
------------------------------------------------------------
-- UTILS
------------------------------------------------------------
function hex_to_rgba(hex, alpha)
    if type(hex) == "string" then
        hex = hex:gsub("#", "")
        hex = tonumber(hex, 16)
    end
    local r = ((hex >> 16) & 0xFF) / 255
    local g = ((hex >> 8) & 0xFF) / 255
    local b = (hex & 0xFF) / 255
    return r, g, b, alpha
end

function draw_allowed(flag)
    if flag == nil or flag == true then return true end
    return conky_parse(tostring(flag)) == "1"
end

function normalize_text(opts)
    if not opts or not opts.text then return nil end
    local txt = opts.text
    if opts.conky ~= false then
        txt = conky_parse(txt)
    end
    if not txt or txt == "" then return nil end
    return txt
end

------------------------------------------------------------
-- COLOR INTERPOLATION
------------------------------------------------------------
function get_color_from_list(stops, t)
    local prev = stops[1]
    for i = 2, #stops do
        local next = stops[i]
        if t <= next[1] then
            local p = (t - prev[1]) / (next[1] - prev[1])
            local r1, g1, b1, a1 = hex_to_rgba(prev[2], prev[3])
            local r2, g2, b2, a2 = hex_to_rgba(next[2], next[3])
            return
                r1 + (r2 - r1) * p,
                g1 + (g2 - g1) * p,
                b1 + (b2 - b1) * p,
                a1 + (a2 - a1) * p
        end
        prev = next
    end
    return hex_to_rgba(prev[2], prev[3])
end

------------------------------------------------------------
-- DEFAULT TEXT CONFIG
------------------------------------------------------------
TEXT_DEFAULT = {
    text    = "",
    draw_me = true,
    x       = 0,
    y       = 0,
    font    = "Sans",
    size    = 14,
    slant   = "normal",
    weight  = "normal",
    align   = "left",
    color   = {
        { 0, 0xffffff, 1 },
        { 1, 0xffffff, 1 },
    },
}

------------------------------------------------------------
-- DRAW TEXT
------------------------------------------------------------
function draw_text(cr, opts)
    if not opts then return end
    if not draw_allowed(opts.draw_me) then return end

    local cfg = {}
    for k, v in pairs(TEXT_DEFAULT) do cfg[k] = v end
    for k, v in pairs(opts) do cfg[k] = v end

    local txt = normalize_text(cfg)
    if not txt then return end

    local slant  = (cfg.slant == "italic") and CAIRO_FONT_SLANT_ITALIC or CAIRO_FONT_SLANT_NORMAL
    local weight = (cfg.weight == "bold") and CAIRO_FONT_WEIGHT_BOLD or CAIRO_FONT_WEIGHT_NORMAL

    cairo_select_font_face(cr, cfg.font, slant, weight)
    cairo_set_font_size(cr, cfg.size)

    local ext = cairo_text_extents_t:create()
    cairo_text_extents(cr, txt, ext)

    local x = cfg.x
    local y = cfg.y

    if x == "center" then x = conky_window.width / 2 end
    if y == "center" then y = conky_window.height / 2 end

    if cfg.align == "center" then
        x = x - ext.width / 2
    elseif cfg.align == "right" then
        x = x - ext.width
    end

    y = y - ext.y_bearing

    local pat = cairo_pattern_create_linear(x, y, x + ext.width, y)
    for _, stop in ipairs(cfg.color) do
        local pos, hex, alpha = stop[1], stop[2], stop[3]
        local r, g, b, a = hex_to_rgba(hex, alpha)
        cairo_pattern_add_color_stop_rgba(pat, pos, r, g, b, a)
    end

    cairo_set_source(cr, pat)
    cairo_pattern_destroy(pat)

    cairo_move_to(cr, x, y)
    cairo_show_text(cr, txt)
end

------------------------------------------------------------
-- CONKY ENTRY POINT
------------------------------------------------------------
function conky_main_text()
    update_counter = update_counter + 1
    if update_counter < UPDATE_DELAY then return end
    if conky_window == nil then return end
    if not text then return end

    local cs = cairo_xlib_surface_create(
        conky_window.display,
        conky_window.drawable,
        conky_window.visual,
        conky_window.width,
        conky_window.height
    )

    local cr = cairo_create(cs)

    for _, t in ipairs(text) do
        draw_text(cr, t)
    end

    cairo_destroy(cr)
    cairo_surface_destroy(cs)
end

Screenshots

Installation

Copy the folder to:

Code

~/.conky/calendar_clock/

Make the autostart script executable:

Code

chmod +x ~/.conky/calendar_clock/autostart.sh

Add it to your session autostart:

Code

~/.config/autostart-scripts/

Log out and back in.

Conky config

--[[
===============================================================================
Locale‑Aware Conky Clock & Calendar (LACCC)
LACC.CONF – Core Conky configuration for the LACCC framework
Part of the 2026 ConkySystem Framework
===============================================================================

OVERVIEW
--------
This file defines the Conky window, rendering behavior, transparency settings,
and the Lua module loader for the LACCC system. It provides the environment
in which all LACCC components (clock, calendar, background, text) are drawn.

The configuration is optimized for all major desktop environments and ensures
stable ARGB rendering, correct window stacking, and consistent behavior across
sessions.

===============================================================================
]]


conky.config = {
use_xft = true,
font = 'DejaVu Sans:size=10',
xftalpha = 1,
background = true,
double_buffer = true,
no_buffers = true,
text_buffer_size = 2048,

update_interval = 1,
cpu_avg_samples = 2,
net_avg_samples = 2,

alignment = 'top_right',
gap_x = 10,
gap_y = 10,

minimum_width = 630,
maximum_width = 630,
minimum_height = 290,

own_window = true,
own_window_type = 'normal',
own_window_title = 'Conky',
own_window_hints = 'undecorated,below,sticky,skip_taskbar,skip_pager',

own_window_transparent = true,
own_window_argb_visual = true,

lua_load = './main.lua',
lua_draw_hook_post = 'main',

border_inner_margin = 0,
border_outer_margin = 0,
border_width = 0,

default_color = '#ededed',
pad_percents = 0,
extra_newline = false,

};

conky.text = [[

]]

Notes

If someone experiences startup issues, it’s almost never a Conky bug. Typical causes are:

wrong working directory
incorrect paths
Conky starting too early in the session

With the structure and autostart script above, the setup is stable on all major desktop environments.

amolnaristvan · 10 March 2026 11:39

Works well with Plasma 6, but one KDE shortcut needs to be adjusted:

On Plasma 6 the default Win + D action is “Show Desktop”, not “Minimize All Windows”.
However, Plasma’s “Show Desktop” hides all windows, including Conky, so Conky appears to disappear.

To keep Conky visible, assign Win + D to “Minimize All Windows” instead:

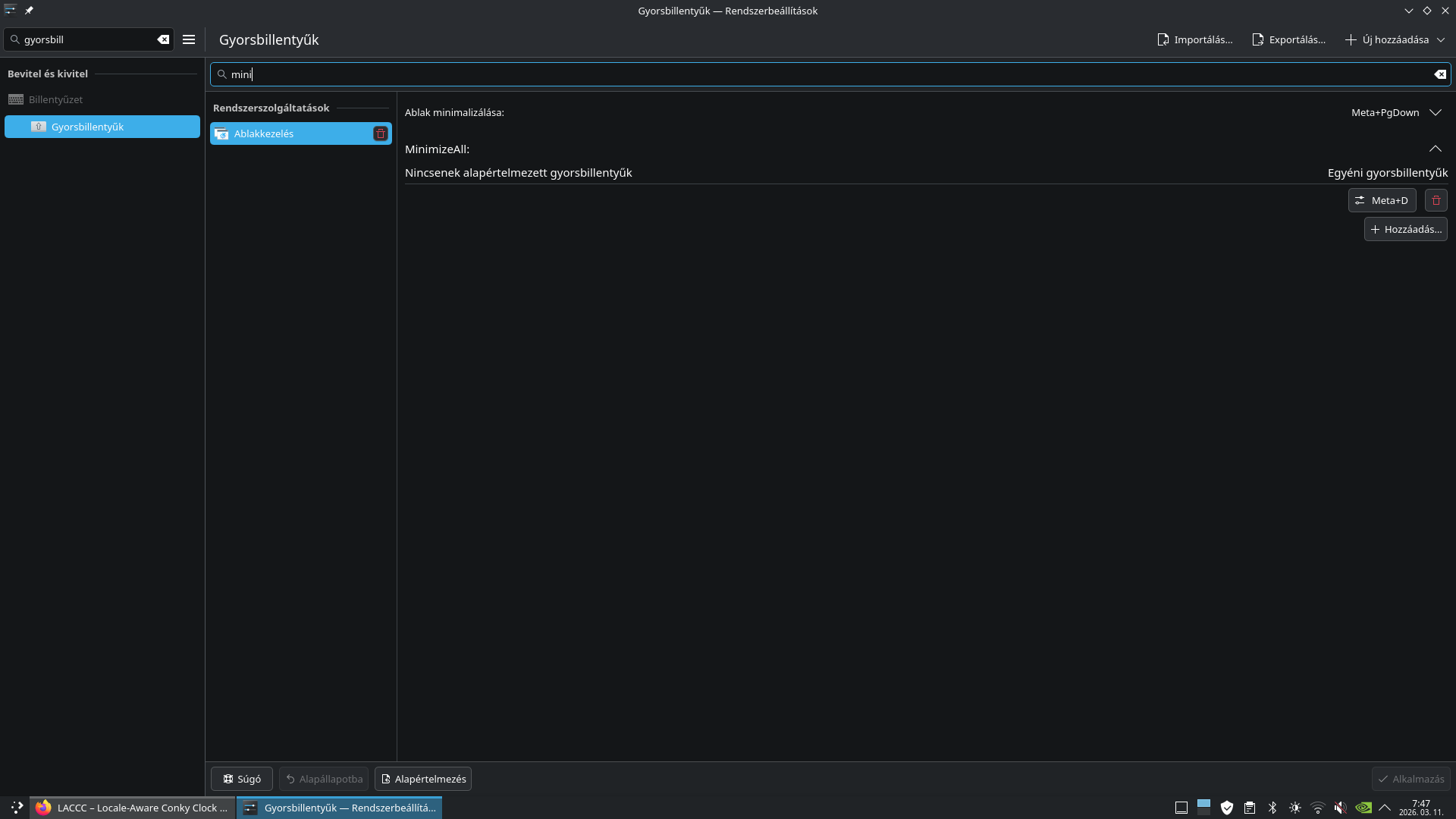

System Settings → Shortcuts → Window Management → Minimize All Windows → assign Win + D

After this, Conky will stay on screen when you press Win + D.

Ben · 11 March 2026 02:31

Wow - I used to have this shortcut on a mouse gesture with Plasma 5.

I cannot find ‘Minimize All Windows’ now!

amolnaristvan · 11 March 2026 06:42

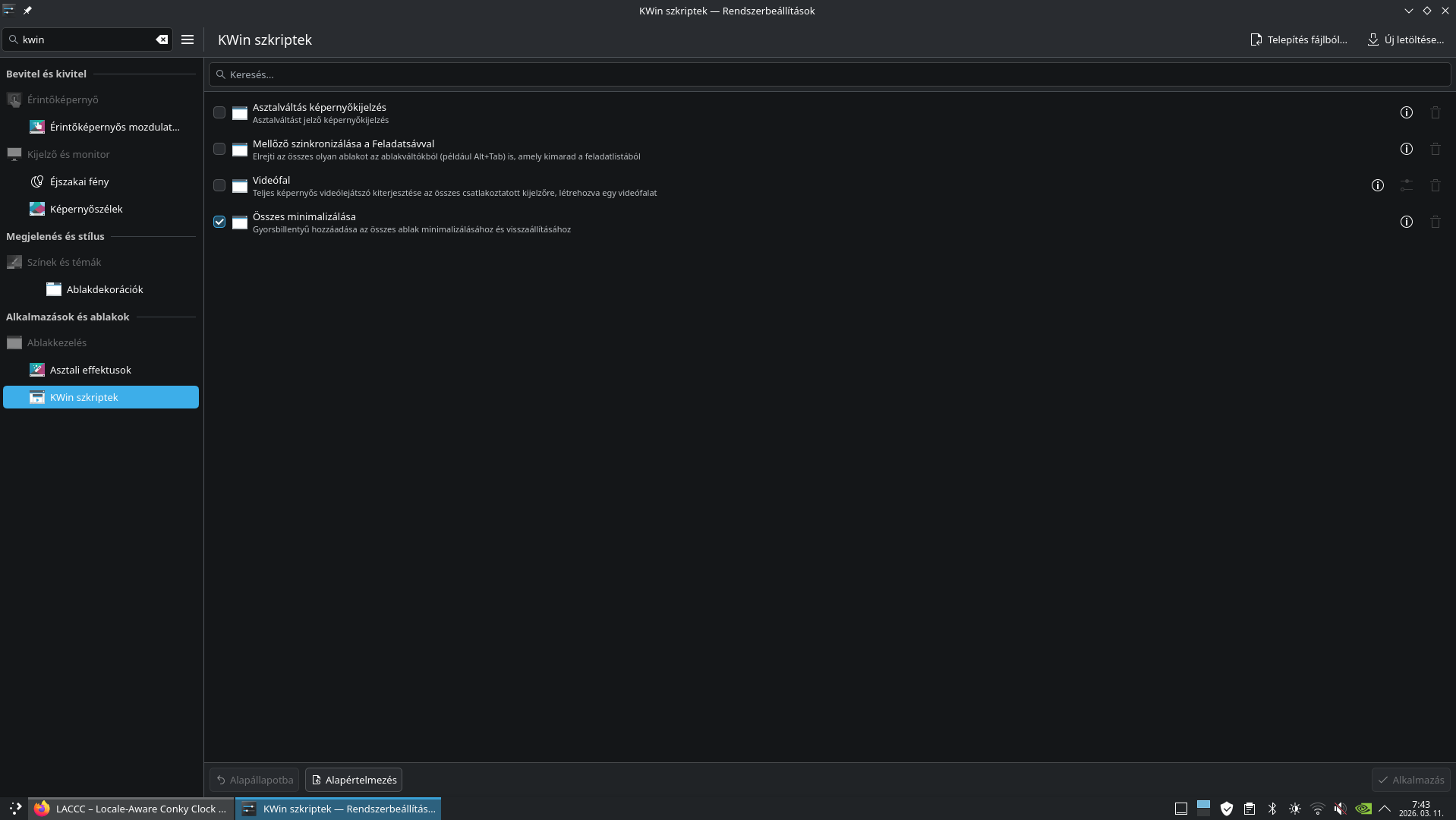

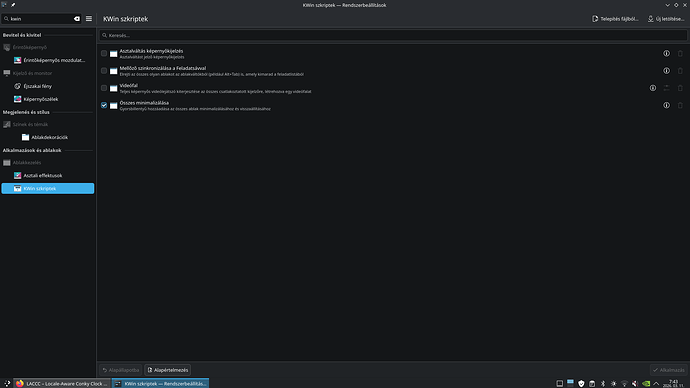

First search kwin and enable it plasma5 Idont know but plasma 6 like works

amolnaristvan · 11 March 2026 06:43

amolnaristvan · 11 March 2026 06:47

Ben · 11 March 2026 15:46

Ah, ok thx - I’d disabled the kwin script so didn’t have a shortcut.

BG405 · 11 March 2026 16:16

Would there be much involved in setting this explicitly at my end, or to add it as an option?
… e.g. for UK date format but Sunday as start of week.

Sorry, if it were 6502 code I could probably do it myself without having to ask.

amolnaristvan · 11 March 2026 17:31

“The beginning of the week and the weekday order come directly from the system’s cal command. I designed it this way intentionally, because cal already follows the user’s locale. So if someone uses the computer in Hungarian, they automatically get Monday as the first day of the week. If someone uses a locale where Sunday is the first day, they get that instead. No manual configuration is needed, it always matches the user’s language and region settings.”

BG405 · 11 March 2026 18:01

Thanks, looking at the man page for cal now. So it seems it will just follow whatever modifications I have made there.

amolnaristvan · 11 March 2026 18:43

I don’t really understand the issue. Using cal is simply the most logical and standards‑compliant way to generate a multilingual calendar. It automatically follows the user’s locale, which is exactly what a system‑integrated calendar should do.

BG405 · 11 March 2026 19:00

I didn’t suggest it was an “issue” just that if I can make those settings, your program will have the desired result as you described.

Your contribution is greatly appreciated! This was never meant as a criticism. It’s just that I found certain programs don’t seem to respect such settings.

amolnaristvan · 11 March 2026 19:17

In line 45
local handle = io.popen("cal")
replace it with
local handle = io.popen("cal -s")

man cal
