How do i add S/PDIF audio to the quick access audio icon on the taskbar?

Support Audio
1

Hello
i have headphones connected to the front of the computer case and S/PDIF on the back,going to speakers.

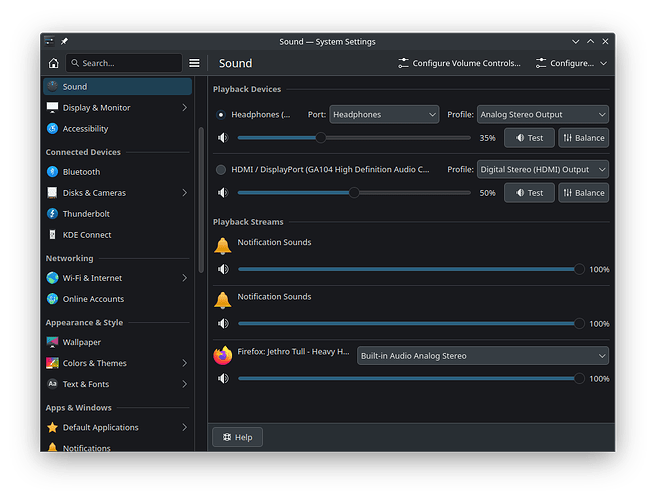

in order to hear from the headphones i need to choose “analog stereo output” in KDE’s sound system setings.

Screenshot_20241027_171135
Screenshot_20241027_1711351063×810 101 KB

and in order to listen to the speakers i need to chose "Digital stereo (IEC958) output.

Screenshot_20241027_171531
Screenshot_20241027_1715311063×810 104 KB

the thing is that i need to got to the system settings each time,and have no quick way to swap between them in the task bar under the volume icon.
(i do have between the screen speakers(HDMI) and headphones or headphones and the speakers when connected via Bluetooth.

i hope it’s clear.

i found a similar question/answer but don’t know how to apply it to my case.
https://askubuntu.com/questions/756390/kde-5-how-to-easily-switch-between-audio-outputs

2

It sounds like the taskbar tool allows for switching to a different audio device, but not for different audio outputs on Built-in Audio device

Please post more information about PulseAudio/PipeWire cards and output sinks

pactl list cards

pactl list sinks

The KDE applet could be replaced with pasystray (or pasystray-wayland) to control audio streams

Or create a script to toggle the named output sinks and add a launcher for the script to
the taskbar

3

Hi

pactl list cards
Card #0
        Name: alsa_card.pci-0000_01_00.1
        Driver: module-alsa-card.c
        Owner Module: 6
        Properties:
                alsa.card = "1"
                alsa.card_name = "HDA NVidia"
                alsa.long_card_name = "HDA NVidia at 0x85080000 irq 17"
                alsa.driver_name = "snd_hda_intel"
                device.bus_path = "pci-0000:01:00.1"
                sysfs.path = "/devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card1"
                device.bus = "pci"
                device.vendor.id = "10de"
                device.vendor.name = "NVIDIA Corporation"
                device.product.id = "228b"
                device.product.name = "GA104 High Definition Audio Controller"
                device.string = "1"
                device.description = "GA104 High Definition Audio Controller"
                module-udev-detect.discovered = "1"
                device.icon_name = "audio-card-pci"
        Profiles:
                output:hdmi-stereo: Digital Stereo (HDMI) Output (sinks: 1, sources: 0, priority: 38668, available: yes)
                output:hdmi-stereo-extra1: Digital Stereo (HDMI 2) Output (sinks: 1, sources: 0, priority: 5700, available: no)
                output:hdmi-surround-extra1: Digital Surround 5.1 (HDMI 2) Output (sinks: 1, sources: 0, priority: 600, available: no)
                output:hdmi-surround71-extra1: Digital Surround 7.1 (HDMI 2) Output (sinks: 1, sources: 0, priority: 600, available: no)
                output:hdmi-stereo-extra2: Digital Stereo (HDMI 3) Output (sinks: 1, sources: 0, priority: 5700, available: no)
                output:hdmi-surround-extra2: Digital Surround 5.1 (HDMI 3) Output (sinks: 1, sources: 0, priority: 600, available: no)
                output:hdmi-surround71-extra2: Digital Surround 7.1 (HDMI 3) Output (sinks: 1, sources: 0, priority: 600, available: no)
                output:hdmi-stereo-extra3: Digital Stereo (HDMI 4) Output (sinks: 1, sources: 0, priority: 5700, available: no)
                output:hdmi-surround-extra3: Digital Surround 5.1 (HDMI 4) Output (sinks: 1, sources: 0, priority: 600, available: no)
                output:hdmi-surround71-extra3: Digital Surround 7.1 (HDMI 4) Output (sinks: 1, sources: 0, priority: 600, available: no)
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
        Active Profile: output:hdmi-stereo
        Ports:
                hdmi-output-0: HDMI / DisplayPort (type: HDMI, priority: 5900, latency offset: 0 usec, available)
                        Properties:
                                device.icon_name = "video-display"
                                device.product.name = "VG27AQML1A
  "
                        Part of profile(s): output:hdmi-stereo
                hdmi-output-1: HDMI / DisplayPort 2 (type: HDMI, priority: 5800, latency offset: 0 usec, not available)
                        Properties:
                                device.icon_name = "video-display"
                        Part of profile(s): output:hdmi-stereo-extra1, output:hdmi-surround-extra1, output:hdmi-surround71-extra1
                hdmi-output-2: HDMI / DisplayPort 3 (type: HDMI, priority: 5700, latency offset: 0 usec, not available)
                        Properties:
                                device.icon_name = "video-display"
                        Part of profile(s): output:hdmi-stereo-extra2, output:hdmi-surround-extra2, output:hdmi-surround71-extra2
                hdmi-output-3: HDMI / DisplayPort 4 (type: HDMI, priority: 5600, latency offset: 0 usec, not available)
                        Properties:
                                device.icon_name = "video-display"
                        Part of profile(s): output:hdmi-stereo-extra3, output:hdmi-surround-extra3, output:hdmi-surround71-extra3

Card #1
        Name: alsa_card.pci-0000_00_1f.3
        Driver: module-alsa-card.c
        Owner Module: 7
        Properties:
                alsa.card = "0"
                alsa.card_name = "HDA Intel PCH"
                alsa.long_card_name = "HDA Intel PCH at 0x4204220000 irq 188"
                alsa.driver_name = "snd_hda_intel"
                device.bus_path = "pci-0000:00:1f.3"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
                device.bus = "pci"
                device.vendor.id = "8086"
                device.vendor.name = "Intel Corporation"
                device.product.id = "7a50"
                device.product.name = "Raptor Lake High Definition Audio Controller"
                device.form_factor = "internal"
                device.string = "0"
                device.description = "Built-in Audio"
                module-udev-detect.discovered = "1"
                device.icon_name = "audio-card-pci"
        Profiles:
                input:analog-stereo: Analog Stereo Input (sinks: 0, sources: 1, priority: 65, available: no)
                output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 39268, available: yes)
                output:analog-stereo+input:analog-stereo: Analog Stereo Duplex (sinks: 1, sources: 1, priority: 6565, available: yes)
                output:analog-surround-21: Analog Surround 2.1 Output (sinks: 1, sources: 0, priority: 1300, available: no)
                output:analog-surround-21+input:analog-stereo: Analog Surround 2.1 Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 1365, available: no)
                output:analog-surround-40: Analog Surround 4.0 Output (sinks: 1, sources: 0, priority: 1200, available: no)
                output:analog-surround-40+input:analog-stereo: Analog Surround 4.0 Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 1265, available: no)
                output:analog-surround-41: Analog Surround 4.1 Output (sinks: 1, sources: 0, priority: 1300, available: no)
                output:analog-surround-41+input:analog-stereo: Analog Surround 4.1 Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 1365, available: no)
                output:analog-surround-50: Analog Surround 5.0 Output (sinks: 1, sources: 0, priority: 1200, available: no)
                output:analog-surround-50+input:analog-stereo: Analog Surround 5.0 Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 1265, available: no)
                output:analog-surround-51: Analog Surround 5.1 Output (sinks: 1, sources: 0, priority: 1300, available: no)
                output:analog-surround-51+input:analog-stereo: Analog Surround 5.1 Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 1365, available: no)
                output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 38268, available: yes)
                output:iec958-stereo+input:analog-stereo: Digital Stereo (IEC958) Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 5565, available: yes)
                output:iec958-ac3-surround-51: Digital Surround 5.1 (IEC958/AC3) Output (sinks: 1, sources: 0, priority: 300, available: yes)
                output:iec958-ac3-surround-51+input:analog-stereo: Digital Surround 5.1 (IEC958/AC3) Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 365, available: no)
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
        Active Profile: output:analog-stereo
        Ports:
                analog-input-front-mic: Front Microphone (type: Mic, priority: 8500, latency offset: 0 usec, not available)
                        Properties:
                                device.icon_name = "audio-input-microphone"
                        Part of profile(s): input:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-surround-21+input:analog-stereo, output:analog-surround-40+input:analog-stereo, output:analog-surround-41+input:analog-stereo, output:analog-surround-50+input:analog-stereo, output:analog-surround-51+input:analog-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-ac3-surround-51+input:analog-stereo
                analog-input-rear-mic: Rear Microphone (type: Mic, priority: 8200, latency offset: 0 usec, not available)
                        Properties:
                                device.icon_name = "audio-input-microphone"
                        Part of profile(s): input:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-surround-21+input:analog-stereo, output:analog-surround-40+input:analog-stereo, output:analog-surround-41+input:analog-stereo, output:analog-surround-50+input:analog-stereo, output:analog-surround-51+input:analog-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-ac3-surround-51+input:analog-stereo
                analog-input-linein: Line In (type: Line, priority: 8100, latency offset: 0 usec, not available)
                        Part of profile(s): input:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-surround-21+input:analog-stereo, output:analog-surround-40+input:analog-stereo, output:analog-surround-41+input:analog-stereo, output:analog-surround-50+input:analog-stereo, output:analog-surround-51+input:analog-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-ac3-surround-51+input:analog-stereo
                analog-output-lineout: Line Out (type: Line, priority: 9000, latency offset: 0 usec, not available)
                        Part of profile(s): output:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-surround-21, output:analog-surround-21+input:analog-stereo, output:analog-surround-40, output:analog-surround-40+input:analog-stereo, output:analog-surround-41, output:analog-surround-41+input:analog-stereo, output:analog-surround-50, output:analog-surround-50+input:analog-stereo, output:analog-surround-51, output:analog-surround-51+input:analog-stereo
                analog-output-headphones: Headphones (type: Headphones, priority: 9900, latency offset: 0 usec, available)
                        Properties:
                                device.icon_name = "audio-headphones"
                        Part of profile(s): output:analog-stereo, output:analog-stereo+input:analog-stereo
                iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
                        Part of profile(s): output:iec958-stereo, output:iec958-stereo+input:analog-stereo```
pactl list sinks
Sink #0
        State: SUSPENDED
        Name: alsa_output.pci-0000_00_1f.3.analog-stereo
        Description: Built-in Audio Analog Stereo
        Driver: module-alsa-card.c
        Sample Specification: s16le 2ch 44100Hz
        Channel Map: front-left,front-right
        Owner Module: 7
        Mute: no
        Volume: front-left: 19005 /  29% / -32.26 dB,   front-right: 19005 /  29% / -32.26 dB
                balance 0.00
        Base Volume: 65536 / 100% / 0.00 dB
        Monitor Source: alsa_output.pci-0000_00_1f.3.analog-stereo.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
        Properties:
                alsa.resolution_bits = "16"
                device.api = "alsa"
                device.class = "sound"
                alsa.class = "generic"
                alsa.subclass = "generic-mix"
                alsa.name = "ALC1220 Analog"
                alsa.id = "ALC1220 Analog"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.device = "0"
                alsa.card = "0"
                alsa.card_name = "HDA Intel PCH"
                alsa.long_card_name = "HDA Intel PCH at 0x4204220000 irq 188"
                alsa.driver_name = "snd_hda_intel"
                device.bus_path = "pci-0000:00:1f.3"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
                device.bus = "pci"
                device.vendor.id = "8086"
                device.vendor.name = "Intel Corporation"
                device.product.id = "7a50"
                device.product.name = "Raptor Lake High Definition Audio Controller"
                device.form_factor = "internal"
                device.string = "front:0"
                device.buffering.buffer_size = "352800"
                device.buffering.fragment_size = "176400"
                device.access_mode = "mmap+timer"
                device.profile.name = "analog-stereo"
                device.profile.description = "Analog Stereo"
                device.description = "Built-in Audio Analog Stereo"
                module-udev-detect.discovered = "1"
                device.icon_name = "audio-card-pci"
        Ports:
                analog-output-lineout: Line Out (type: Line, priority: 9000, not available)
                analog-output-headphones: Headphones (type: Headphones, priority: 9900, available)
        Active Port: analog-output-headphones
        Formats:
                pcm

Sink #1
        State: SUSPENDED
        Name: alsa_output.pci-0000_01_00.1.hdmi-stereo
        Description: GA104 High Definition Audio Controller Digital Stereo (HDMI)
        Driver: module-alsa-card.c
        Sample Specification: s16le 2ch 44100Hz
        Channel Map: front-left,front-right
        Owner Module: 6
        Mute: no
        Volume: front-left: 32768 /  50% / -18.06 dB,   front-right: 32768 /  50% / -18.06 dB
                balance 0.00
        Base Volume: 65536 / 100% / 0.00 dB
        Monitor Source: alsa_output.pci-0000_01_00.1.hdmi-stereo.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE DECIBEL_VOLUME LATENCY SET_FORMATS
        Properties:
                alsa.resolution_bits = "16"
                device.api = "alsa"
                device.class = "sound"
                alsa.class = "generic"
                alsa.subclass = "generic-mix"
                alsa.name = "VG27AQML1A"
                alsa.id = "HDMI 0"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.device = "3"
                alsa.card = "1"
                alsa.card_name = "HDA NVidia"
                alsa.long_card_name = "HDA NVidia at 0x85080000 irq 17"
                alsa.driver_name = "snd_hda_intel"
                device.bus_path = "pci-0000:01:00.1"
                sysfs.path = "/devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card1"
                device.bus = "pci"
                device.vendor.id = "10de"
                device.vendor.name = "NVIDIA Corporation"
                device.product.id = "228b"
                device.product.name = "GA104 High Definition Audio Controller"
                device.string = "hdmi:1"
                device.buffering.buffer_size = "352768"
                device.buffering.fragment_size = "176384"
                device.access_mode = "mmap+timer"
                device.profile.name = "hdmi-stereo"
                device.profile.description = "Digital Stereo (HDMI)"
                device.description = "GA104 High Definition Audio Controller Digital Stereo (HDMI)"
                module-udev-detect.discovered = "1"
                device.icon_name = "audio-card-pci"
        Ports:
                hdmi-output-0: HDMI / DisplayPort (type: HDMI, priority: 5900, available)
        Active Port: hdmi-output-0
        Formats:
                pcm
4

The default applet allows for switching the input/output device as well as selecting the device profile (but not the port). Considering the initial post, this should be sufficient.

You should be able to set the device’s output profile in the audio popup by clicking the three-stripe burger menu beside the volume level slider (a popup with all available profiles shows up).

5
Card #1
        Name: alsa_card.pci-0000_00_1f.3

        Properties:
                alsa.card = "0"
                alsa.card_name = "HDA Intel PCH"

                device.description = "Built-in Audio"

        Profiles:

                output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 39268, available: yes)

                output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 38268, available: yes)

        Active Profile: output:analog-stereo

To set Active Profile to Digital Stereo (IEC958) Output

pactl set-card-profile alsa_card.pci-0000_00_1f.3 output:iec958-stereo

To set Active Profile to Analog Stereo Output

pactl set-card-profile alsa_card.pci-0000_00_1f.3 output:analog-stereo

Built-in Audio device can also be reconfigured to have Independent analog and digital outputs on the same card - ArchWiki
Or PulseAudio can be reconfigured to disable automatic device detection - module-udev-detect and load discrete sinks with module-alsa-sink

6

alright,sorry to have bothered you,but as said by @renkforce; there’s a burger menu next to the volume slider that i missed, and you’re able to change the output from there.
