HDD with unsuccessful shutdowns, probably a smart status error?

Support
1

My HDD is around 8-9years old and the smart values shows alot (4750) “Power Off Retract Count” but they are equal with “Load Cycle Count”. Strange huh?

Should i worry about my HDD? Or is this maybe just a false positive sensor error?

Im always normaly shutdown my PC with the Shutdown Taskbar GUI from KDE…
So im doing 99% of the time, just wait till my PC do his job… besides some hardware crashes and instabilitys in the past, where i had to press the reset or power button… but this problems are long time solved.

Today even in sleepmode the Power Off Retract Count still raising the value.

I also try’d this shutdown HDD Parking Script that someone recommend in a similar Topic,
but it doesn’t help me: https://wiki.odroid.com/odroid-xu4/troubleshooting/shutdown_script

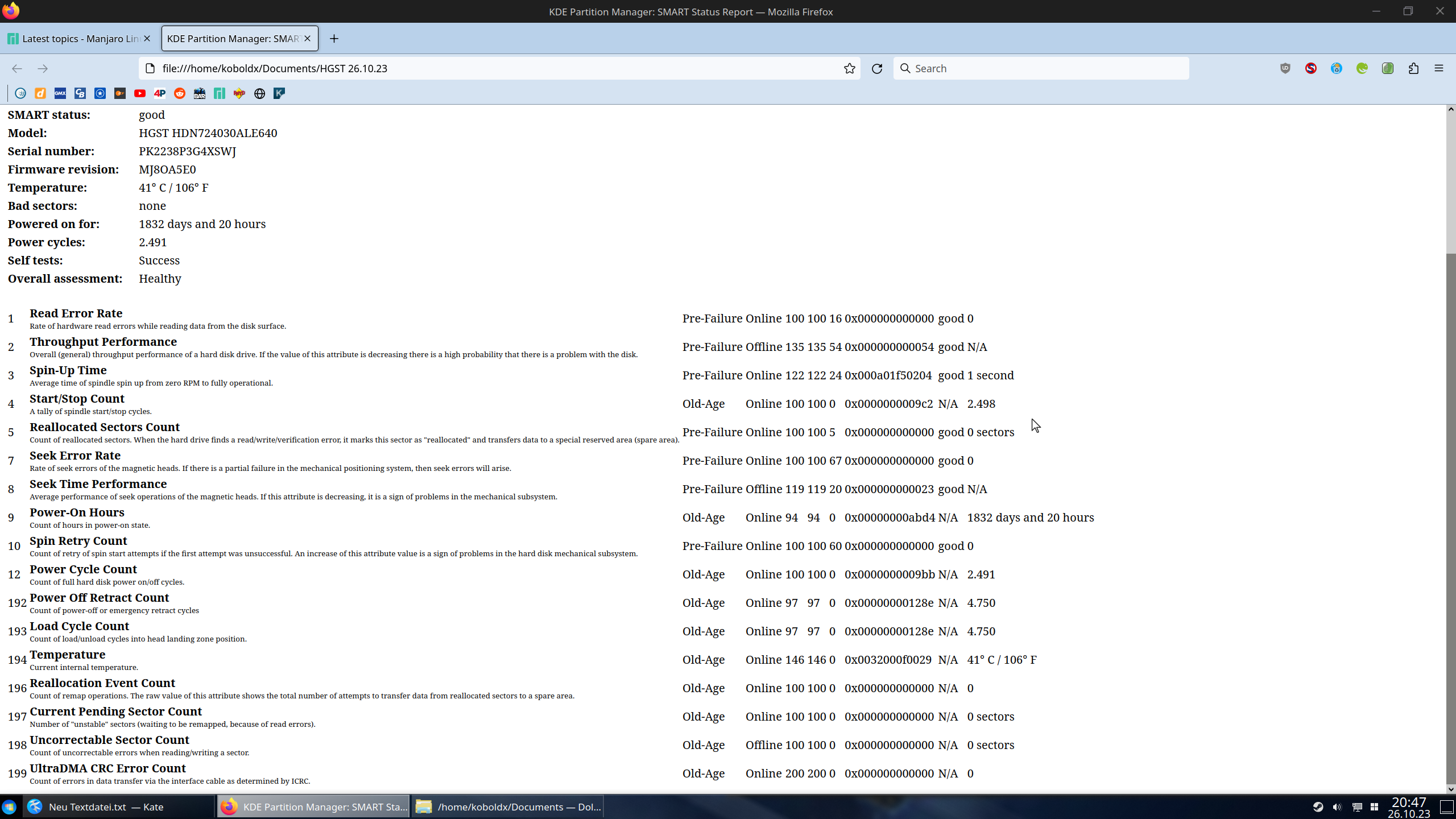

HGST Smart Status
HGST Smart Status2560×1440 653 KB

$ inxi --admin --verbosity=7 --filter --no-host --width
System:
  Kernel: 6.1.55-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
    clocksource: tsc available: hpet,acpi_pm
    parameters: BOOT_IMAGE=/vmlinuz-6.1-x86_64
    root=UUID=eb235aa7-d461-413d-800e-ea57385703fb rw quiet
    sysrq_always_enabled=1 nvidia_drm.modeset=1 retbleed=off
    resume=UUID=717b267e-7322-4bf9-a840-f1210d422d1a udev.log_priority=3
  Desktop: KDE Plasma v: 5.27.8 tk: Qt v: 5.15.11 wm: kwin_x11 vt: 2 dm: SDDM
    Distro: Manjaro Linux base: Arch Linux
Machine:
  Type: Desktop System: Gigabyte product: Z170X-UD3 v: N/A
    serial: <superuser required>
  Mobo: Gigabyte model: Z170X-UD3-CF v: x.x serial: <superuser required>
    UEFI-[Legacy]: American Megatrends v: F23d date: 12/01/2017
Memory:
  System RAM: total: 16 GiB available: 15.58 GiB used: 4.3 GiB (27.6%)
  RAM Report: permissions: Unable to run dmidecode. Root privileges required.
CPU:
  Info: model: Intel Core i7-6700K bits: 64 type: MT MCP arch: Skylake-S
    gen: core 6 level: v3 note: check built: 2015 process: Intel 14nm family: 6
    model-id: 0x5E (94) stepping: 3 microcode: 0xF0
  Topology: cpus: 1x cores: 4 tpc: 2 threads: 8 smt: enabled cache:
    L1: 256 KiB desc: d-4x32 KiB; i-4x32 KiB L2: 1024 KiB desc: 4x256 KiB
    L3: 8 MiB desc: 1x8 MiB
  Speed (MHz): avg: 4500 min/max: 800/4700 scaling: driver: intel_pstate
    governor: performance cores: 1: 4500 2: 4500 3: 4500 4: 4500 5: 4500 6: 4500
    7: 4500 8: 4500 bogomips: 64026
  Flags: 3dnowprefetch abm acpi adx aes aperfmperf apic arat
    arch_capabilities arch_perfmon art avx avx2 bmi1 bmi2 bts clflush
    clflushopt cmov constant_tsc cpuid cpuid_fault cx16 cx8 de ds_cpl dtes64
    dtherm dts ept ept_ad erms est f16c flexpriority flush_l1d fma fpu
    fsgsbase fxsr ht hwp hwp_act_window hwp_epp hwp_notify ibpb ibrs ida
    intel_pt invpcid invpcid_single lahf_lm lm mca mce md_clear mmx monitor
    movbe mpx msr mtrr nonstop_tsc nopl nx pae pat pbe pcid pclmulqdq pdcm
    pdpe1gb pebs pge pln pni popcnt pse pse36 pti pts rdrand rdseed rdtscp
    rep_good sdbg sep smap smep ss ssbd sse sse2 sse4_1 sse4_2 ssse3 stibp
    syscall tm tm2 tpr_shadow tsc tsc_adjust tsc_deadline_timer vme vmx vnmi
    vpid x2apic xgetbv1 xsave xsavec xsaveopt xsaves xtopology xtpr
  Vulnerabilities:
  Type: gather_data_sampling status: Vulnerable: No microcode
  Type: itlb_multihit status: KVM: VMX disabled
  Type: l1tf mitigation: PTE Inversion; VMX: conditional cache flushes, SMT
    vulnerable
  Type: mds mitigation: Clear CPU buffers; SMT vulnerable
  Type: meltdown mitigation: PTI
  Type: mmio_stale_data mitigation: Clear CPU buffers; SMT vulnerable
  Type: retbleed status: Vulnerable
  Type: spec_rstack_overflow status: Not affected
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Retpolines, IBPB: conditional, IBRS_FW,
    STIBP: conditional, RSB filling, PBRSB-eIBRS: Not affected
  Type: srbds mitigation: Microcode
  Type: tsx_async_abort mitigation: TSX disabled
Graphics:
  Device-1: NVIDIA TU102 [GeForce RTX 2080 Ti Rev. A] vendor: Micro-Star MSI
    driver: nvidia v: 535.113.01 alternate: nouveau,nvidia_drm non-free: 535.xx+
    status: current (as of 2023-09) arch: Turing code: TUxxx
    process: TSMC 12nm FF built: 2018-22 pcie: gen: 3 speed: 8 GT/s lanes: 16
    ports: active: none off: DP-3 empty: DP-1, DP-2, HDMI-A-1, Unknown-1
    bus-ID: 01:00.0 chip-ID: 10de:1e07 class-ID: 0300
  Display: x11 server: X.Org v: 21.1.8 compositor: kwin_x11 driver: X:
    loaded: nvidia gpu: nvidia,nvidia-nvswitch display-ID: :0 screens: 1
  Screen-1: 0 s-res: 2560x1440 s-dpi: 122 s-size: 532x302mm (20.94x11.89")
    s-diag: 612mm (24.08")
  Monitor-1: DP-3 mapped: DP-4 note: disabled model: Dell S2417DG
    serial: <filter> built: 2018 res: 2560x1440 dpi: 123 gamma: 1.2
    size: 527x296mm (20.75x11.65") diag: 604mm (23.8") ratio: 16:9 modes:
    max: 2560x1440 min: 640x480
  API: EGL v: 1.5 hw: drv: nvidia platforms: gbm: drv: nvidia
  API: OpenGL v: 4.6.0 vendor: nvidia v: 535.113.01 glx-v: 1.4
    direct-render: yes renderer: NVIDIA GeForce RTX 2080 Ti/PCIe/SSE2
    memory: 10.74 GiB
  API: Vulkan v: 1.3.264 layers: 5 device: 0 type: discrete-gpu name: NVIDIA
    GeForce RTX 2080 Ti driver: nvidia v: 535.113.01 device-ID: 10de:1e07
    surfaces: xcb,xlib
Audio:
  Device-1: Intel 100 Series/C230 Series Family HD Audio vendor: Gigabyte
    driver: snd_hda_intel v: kernel bus-ID: 00:1f.3 chip-ID: 8086:a170
    class-ID: 0403
  Device-2: NVIDIA TU102 High Definition Audio vendor: Micro-Star MSI
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    bus-ID: 01:00.1 chip-ID: 10de:10f7 class-ID: 0403
  Device-3: Creative Labs CA0132 Sound Core3D [Sound Blaster Recon3D /
    Z-Series BlasterX AE-5 Plus] driver: snd_hda_intel v: kernel pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 bus-ID: 0b:00.0 chip-ID: 1102:0012 class-ID: 0403
  API: ALSA v: k6.1.55-1-MANJARO status: kernel-api with: aoss
    type: oss-emulator tools: alsactl,alsamixer,amixer
  Server-1: JACK v: 1.9.22 status: off tools: N/A
  Server-2: PipeWire v: 0.3.81 status: off with: pipewire-media-session
    status: active tools: pw-cli
  Server-3: PulseAudio v: 16.1 status: active with: 1: pulseaudio-alsa
    type: plugin 2: pulseaudio-jack type: module tools: pacat,pactl
Network:
  Device-1: Intel Ethernet I219-V vendor: Gigabyte driver: e1000e v: kernel
    port: N/A bus-ID: 00:1f.6 chip-ID: 8086:15b8 class-ID: 0200
  IF: enp0s31f6 state: up speed: 1000 Mbps duplex: full mac: <filter>
  IP v4: <filter> type: dynamic noprefixroute scope: global
    broadcast: <filter>
  IP v6: <filter> type: noprefixroute scope: link
  WAN IP: <filter>
Bluetooth:
  Message: No bluetooth data found.
Logical:
  Message: No logical block device data found.
RAID:
  Message: No RAID data found.
Drives:
  Local Storage: total: 5.93 TiB used: 344.84 GiB (5.7%)
  SMART Message: Unable to run smartctl. Root privileges required.
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Corsair model: MP600 PRO LPX
    size: 1.82 TiB block-size: physical: 512 B logical: 512 B speed: 63.2 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: EIFM31.6 temp: 32.9 C
    scheme: GPT
  ID-2: /dev/sda maj-min: 8:0 vendor: Samsung model: SSD 860 PRO 1TB
    size: 953.87 GiB block-size: physical: 512 B logical: 512 B speed: 6.0 Gb/s
    tech: SSD serial: <filter> fw-rev: 2B6Q scheme: MBR
  ID-3: /dev/sdb maj-min: 8:16 vendor: HGST (Hitachi) model: HDN724030ALE640
    size: 2.73 TiB block-size: physical: 4096 B logical: 512 B speed: 6.0 Gb/s
    tech: HDD rpm: 7200 serial: <filter> fw-rev: A5E0 scheme: GPT
  ID-4: /dev/sdc maj-min: 8:32 vendor: Samsung model: Portable SSD T5
    size: 465.76 GiB block-size: physical: 512 B logical: 512 B type: USB
    rev: 3.1 spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 tech: SSD serial: <filter>
    scheme: MBR
  Message: No optical or floppy data found.
Partition:
  ID-1: / raw-size: 88.61 GiB size: 86.66 GiB (97.80%) used: 19.79 GiB (22.8%)
    fs: ext4 dev: /dev/sdc1 maj-min: 8:33 label: N/A
    uuid: eb235aa7-d461-413d-800e-ea57385703fb
  ID-2: /boot raw-size: 200 MiB size: 188.2 MiB (94.09%)
    used: 117.5 MiB (62.4%) fs: ext3 dev: /dev/sdc3 maj-min: 8:35 label: N/A
    uuid: 26eda82e-b403-49b8-abca-202167417020
  ID-3: /home raw-size: 332.03 GiB size: 325.75 GiB (98.11%)
    used: 18.38 GiB (5.6%) fs: ext4 dev: /dev/sdc4 maj-min: 8:36 label: N/A
    uuid: ada4a6a2-bd0a-4652-b386-7c637bba7ee9
  ID-4: /media/nvme-games raw-size: 1.82 TiB size: 1.79 TiB (98.37%)
    used: 280.79 GiB (15.3%) fs: ext4 dev: /dev/nvme0n1p1 maj-min: 259:1
    label: nvme-games uuid: 423e0b4c-a042-4ca4-9b01-f066f692d375
  ID-5: /media/temp raw-size: 63.48 GiB size: 62.18 GiB (97.96%)
    used: 25.76 GiB (41.4%) fs: ext4 dev: /dev/sdb1 maj-min: 8:17 label: temp
    uuid: 1e81b7c2-3438-438a-b572-ff8a966a78e1
Swap:
  Kernel: swappiness: 10 (default 60) cache-pressure: 100 (default) zswap: yes
    compressor: zstd max-pool: 20%
  ID-1: swap-1 type: partition size: 7.81 GiB used: 0 KiB (0.0%) priority: -2
    dev: /dev/sdc2 maj-min: 8:34 label: N/A
    uuid: 717b267e-7322-4bf9-a840-f1210d422d1a
Unmounted:
  ID-1: /dev/sda1 maj-min: 8:1 size: 50 MiB fs: ntfs label: System-reserviert
    uuid: B2286A122869D5BF
  ID-2: /dev/sda2 maj-min: 8:2 size: 97.09 GiB fs: ntfs label: win10
    uuid: 5E60C09860C077F3
  ID-3: /dev/sda4 maj-min: 8:4 size: 782.51 GiB fs: ntfs label: games
    uuid: 165692E31D7ADAF2
  ID-4: /dev/sdb2 maj-min: 8:18 size: 1.57 TiB fs: <superuser required>
    label: N/A uuid: N/A
  ID-5: /dev/sdb3 maj-min: 8:19 size: 1.09 TiB fs: <superuser required>
    label: N/A uuid: N/A
USB:
  Hub-1: 1-0:1 info: hi-speed hub with single TT ports: 16 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Device-1: 1-13:2 info: A4Tech XL-730K / XL-750BK XL-755BK Mice
    type: keyboard,mouse driver: hid-generic,usbhid interfaces: 2 rev: 1.1
    speed: 12 Mb/s (1.4 MiB/s) lanes: 1 mode: 1.1 power: 100mA
    chip-ID: 09da:9090 class-ID: 0301
  Hub-2: 2-0:1 info: super-speed hub ports: 10 rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Device-1: 2-5:2 info: Samsung Portable SSD T5 type: mass storage
    driver: uas interfaces: 1 rev: 3.1 speed: 5 Gb/s (596.0 MiB/s) lanes: 1
    mode: 3.2 gen-1x1 power: 896mA chip-ID: 04e8:61f5 class-ID: 0806
    serial: <filter>
  Hub-3: 3-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-4: 4-0:1 info: super-speed hub ports: 4 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-5: 5-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-6: 6-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
Sensors:
  System Temperatures: cpu: 32.0 C mobo: N/A gpu: nvidia temp: 32 C
  Fan Speeds (rpm): N/A gpu: nvidia fan: 25%
Info:
  Processes: 255 Uptime: 11h 59m wakeups: 1 Init: systemd v: 254
  default: graphical tool: systemctl Compilers: gcc: 13.2.1 clang: 16.0.6
  Packages: 1528 pm: pacman pkgs: 1522 libs: 437 tools: pamac pm: flatpak
  pkgs: 6 Shell: Bash v: 5.1.16 running-in: konsole inxi: 3.3.30
2

In the current testing announcement there is info for a kernel bug (probably ported to all kernels, so stable is probably affected) affecting HDDs unable to shut down properly. So it is probably this.

1 Like
3

Yes, it’s this;

4

@Teo
@MrLavender

I have Kernel 6.1.55-1 and 4750 Power Off Retract counts…

Do you guys really thinking, that i have shutdown my PC over 4000 times in this month?

My HDD is from 2014-2015… im also use Linux Manjaro since 08/2020 btw.

5

No, but our new problem is now masking your old one and it will be harder to debug.

1 Like
6

Ok, yeah sorry I just jumped to conclusions with the recent discussion about that issue.

Looking at my TOSHIBA DT01ACA200, which is about the same age as your hdd, I also have 192 Power-Off_Retract_Count and 193 Load Cycle Count with the same value. I think this is normal. The label in KDE Partition Manager does say “Count of power-off OR emergency retract cycles”.

According to https://kb.acronis.com/content/9127

This parameter is considered informational by the most hardware vendors. The value is counted every time the heads are loaded off the media (i.e. every time the machine is powered down, put to sleep or is idle).

but Fujitsu in particular were using it for Emergency Retract Cycle Count.

So nothing to worry about in my opinion. The people reporting the recent issue have actually been able to hear their hdd doing an emergency retract instead of powering down correctly.

1 Like
7

Not really - if the value was higher than load - I would consider it problematic.

Usually a power on is followed by a power off - so the values being identical shouldn’t be an issue.

2 Likes
8

This topic was automatically closed 3 hours after the last reply. New replies are no longer allowed.
