Harddrives and Network Device Disconnecting from OS

Thomas_D · 27 June 2024 15:53

I recently bought a new mainboard (ASRock B650E Taichi Lite) and CPU (amd ryzen 9 7950X3D) and since then I experience that my SATA drives are disconnecting occasionally while running my system (~5min-60min). Also sometimes my LAN connection is not working anymore, especially when used with VPN. Before the replacement of the hardware everything worked without issue.

I see the following logs, when a hard drive is suddenly disconnecting

Jun 27 17:29:35 desktop kernel: ata3.00: exception Emask 0x52 SAct 0x40817c SErr 0xffffffff action 0xe frozen
Jun 27 17:29:35 desktop kernel: ata3: SError: { RecovData RecovComm UnrecovData Persist Proto HostInt PHYRdyChg PHYInt CommWake 10B8B Dispar BadCRC Handshk LinkSeq TrStaTrns UnrecFIS DevExch }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: READ FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 60/20:10:40:23:05/00:00:00:00:00/40 tag 2 ncq dma 16384 in
                                         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: WRITE FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 61/d8:18:18:5c:e2/07:00:21:00:00/40 tag 3 ncq dma 1028096 ou
                                         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: WRITE FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 61/20:20:f0:63:e2/03:00:21:00:00/40 tag 4 ncq dma 409600 out
                                         res 40/00:00:00:4f:c2/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: WRITE FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 61/00:28:10:67:e2/0a:00:21:00:00/40 tag 5 ncq dma 1310720 ou
                                         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: WRITE FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 61/70:30:10:71:e2/08:00:21:00:00/40 tag 6 ncq dma 1105920 ou
                                         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: READ FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 60/20:40:00:a5:1f/00:00:00:00:00/40 tag 8 ncq dma 16384 in
                                         res 40/00:ff:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: READ FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 60/20:78:98:44:32/01:00:37:00:00/40 tag 15 ncq dma 147456 in
                                         res 40/00:01:00:4f:c2/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3.00: failed command: READ FPDMA QUEUED
Jun 27 17:29:35 desktop kernel: ata3.00: cmd 60/08:b0:b8:2c:80/00:00:19:00:00/40 tag 22 ncq dma 4096 in
                                         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x56 (ATA bus error)
Jun 27 17:29:35 desktop kernel: ata3.00: status: { DRDY }
Jun 27 17:29:35 desktop kernel: ata3: hard resetting link
Jun 27 17:29:35 desktop kernel: ahci 0000:4b:00.0: AHCI controller unavailable!
Jun 27 17:29:36 desktop kernel: ata3: failed to resume link (SControl FFFFFFFF)
Jun 27 17:29:36 desktop kernel: ata3: SATA link down (SStatus FFFFFFFF SControl FFFFFFFF)
Jun 27 17:29:41 desktop kernel: ata3: hard resetting link
Jun 27 17:29:41 desktop kernel: ahci 0000:4b:00.0: AHCI controller unavailable!
Jun 27 17:29:42 desktop kernel: ata3: failed to resume link (SControl FFFFFFFF)
Jun 27 17:29:42 desktop kernel: ata3: SATA link down (SStatus FFFFFFFF SControl FFFFFFFF)
Jun 27 17:29:42 desktop kernel: ata3: limiting SATA link speed to <unknown>
Jun 27 17:29:47 desktop kernel: ata3: hard resetting link
Jun 27 17:29:47 desktop kernel: ahci 0000:4b:00.0: AHCI controller unavailable!
Jun 27 17:29:49 desktop kernel: ata3: failed to resume link (SControl FFFFFFFF)
Jun 27 17:29:49 desktop kernel: ata3: SATA link down (SStatus FFFFFFFF SControl FFFFFFFF)
Jun 27 17:29:49 desktop kernel: ata3.00: disable device
Jun 27 17:29:49 desktop kernel: ata3.00: device reported invalid CHS sector 0
Jun 27 17:29:49 desktop kernel: ata3.00: device reported invalid CHS sector 0
Jun 27 17:29:49 desktop kernel: ata3.00: device reported invalid CHS sector 0
Jun 27 17:29:49 desktop kernel: ata3.00: device reported invalid CHS sector 0
Jun 27 17:29:49 desktop kernel: ata3.00: device reported invalid CHS sector 0
Jun 27 17:29:49 desktop kernel: ahci 0000:4b:00.0: AHCI controller unavailable!
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#2 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#2 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#2 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#2 CDB: Read(10) 28 00 00 05 23 40 00 00 20 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 336704 op 0x0:(READ) flags 0x1000 phys_seg 4 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 0, rd 1, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#3 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#3 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#3 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#3 CDB: Write(10) 2a 00 21 e2 5c 18 00 07 d8 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568482840 op 0x1:(WRITE) flags 0x104000 phys_seg 168 prio class 2
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#4 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#4 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#4 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#4 CDB: Write(10) 2a 00 21 e2 63 f0 00 03 20 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568484848 op 0x1:(WRITE) flags 0x100000 phys_seg 91 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 1, rd 1, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: rejecting I/O to offline device
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 2433856 op 0x0:(READ) flags 0x1000 phys_seg 4 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 1, rd 2, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 336704 op 0x0:(READ) flags 0x1000 phys_seg 4 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 1, rd 3, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 2433856 op 0x0:(READ) flags 0x1000 phys_seg 4 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 1, rd 4, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 CDB: Write(10) 2a 00 21 e2 67 10 00 0a 00 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568485648 op 0x1:(WRITE) flags 0x104000 phys_seg 132 prio class 2
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 CDB: Write(10) 2a 00 21 e2 71 10 00 08 70 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568488208 op 0x1:(WRITE) flags 0x100000 phys_seg 128 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 2, rd 4, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#5 CDB: Write(10) 2a 00 21 e2 67 10 00 0a 00 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568485648 op 0x1:(WRITE) flags 0x104000 phys_seg 132 prio class 2
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=43s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#6 CDB: Write(10) 2a 00 21 e2 71 10 00 08 70 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568488208 op 0x1:(WRITE) flags 0x100000 phys_seg 128 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 2, rd 4, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#8 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=44s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#8 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#8 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#8 CDB: Read(10) 28 00 00 1f a5 00 00 00 20 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 2073856 op 0x0:(READ) flags 0x1000 phys_seg 4 prio class 2
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 2, rd 5, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#15 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=48s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#15 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#15 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#15 CDB: Read(10) 28 00 37 32 44 98 00 01 20 00
Jun 27 17:29:49 desktop kernel: I/O error, dev sdc, sector 568490368 op 0x1:(WRITE) flags 0x104000 phys_seg 142 prio class 2
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#22 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=48s
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#22 Sense Key : Illegal Request [current]
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#22 Add. Sense: Unaligned write command
Jun 27 17:29:49 desktop kernel: sd 2:0:0:0: [sdc] tag#22 CDB: Read(10) 28 00 19 80 2c b8 00 00 08 00
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 2, rd 6, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: ata3: EH complete
Jun 27 17:29:49 desktop kernel: ata3.00: detaching (SCSI 2:0:0:0)
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 2, rd 7, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop kernel: BTRFS error (device sdc1): bdev /dev/sdc1 errs: wr 3, rd 7, flush 0, corrupt 0, gen 0
Jun 27 17:29:49 desktop systemd[1]: Unmounting /run/media/thomas/Daten...
Jun 27 17:29:49 desktop umount[6756]: umount: /run/media/thomas/Daten: target is busy.
Jun 27 17:29:49 desktop systemd[1]: run-media-thomas-Daten.mount: Mount process exited, code=exited, status=32/n/a
Jun 27 17:29:49 desktop systemd[1]: Failed unmounting /run/media/thomas/Daten.

I use the latest version of Manjaro with everything uptodate with Linux 6.1.92-1-MANJARO and Gnome.

Arrababiski · 27 June 2024 16:00

Have you an 860 or 870 Samsung SSD Drive?

Thomas_D · 27 June 2024 16:01

This is concerning 4 different hard drives, where 2 of them are SSDs and the other 2 are classical HDDs. None of these are Samsung SSD drives.

Aragorn · 27 June 2024 16:02

Then that should be your first clue.

Check all connectors, and especially so the power supply.
Check that your processor is properly seated, that the heat sink is properly attached, with a proper application of thermal paste — not too much, not too little, and properly spread.
Check that your system is getting adequate cooling — the fans are working and there is adequate airflow.

Thomas_D · 27 June 2024 16:03

This I already checked. Everything is seated nicely, thermals are fine (40-60°C) and there is only little chance that all 4 of the sata connectors are having issues at the same time. On top of that sometimes I lose my LAN aswell, so there must be another issue.

EDIT:

I think I also notice that this especially happens when the drives and LAN are under load

Aragorn · 27 June 2024 16:07

Could be a faulty motherboard then. I presume that the Ethernet connector will be on the motherboard itself, and your SATA connector will be as well.

Just in case you have any doubts about the possibility that your motherboard is the cause, I’ve had a similar thing happening to a motherboard too once, and that was a shop-built computer. The machine was still under warranty, so they installed a new motherboard — and a new HDD, because it was dead too — and the problems were gone.

I’ve also had tons of problems with a couple of other motherboards. Quality control isn’t anymore what it used to be.

Addendum: It could also be the power supply not providing enough juice anymore, but considering that you mention problems with the network connection as well, I suspect the motherboard.

Arrababiski · 27 June 2024 16:11

I remember the WRITE FPDMA QUEUED error in 8x0 Samsung drives due to a faulty firmware, but as none of yours are Samsung obviously this can’t be the cause.

I see lots of log errors involving /dev/sdc. Is it possible to disconnect that disk and work for a while to see if it is the cause?

And be sure you have the latest bios available to be sure all the known bugs have been corrected:

Olli · 27 June 2024 16:32

also check that the bios does really support your cpu.

and please post the output of the mandatory

inxi --admin --verbosity=7 --filter --no-host --width

that can show possible missing modules /hardware support

Thomas_D · 27 June 2024 16:33

It 100% does and i have loads of overhead with my PSU

Thomas_D · 27 June 2024 16:33

I will try that, I suspect maybe it is an issue with too many PCI-E lanes occupied

Olli · 27 June 2024 16:57

have you tried to release the cpu-leaver, unplug and replug the cpu ? sometimes contact-problems can cause this behaviour.

soundofthunder · 27 June 2024 18:06

Consider upgrading your BIOS to v3.02 (released 2024-05-17).

This BIOS specifically updates AGESA 1.1.7.0 for Ryzen processor support.

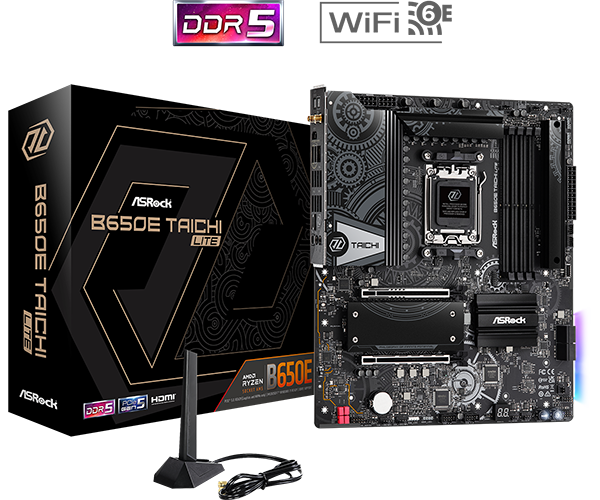

ASRock B650E Taichi Lite BIOS

MrLavender · 27 June 2024 19:02

Try a newer kernel. 6.6 LTS at least.

Thomas_D · 27 June 2024 20:21

I did already quite a few of these, but I just installed v3.02. Running strong atm, I hope this will resolve the problem, otherwise I will try a newer kernel.

Thx!

soundofthunder · 27 June 2024 22:31

At face value, at least, the updated BIOS seems a prerequisite considering you’re using a Ryzen CPU. However, the LTS kernel is a valid suggestion whether or not the BIOS solves the issue.

Kobold · 28 June 2024 08:01

Primary: I would check if you have 1 more female screw between your Mainboard and your PC Case, maybe there is a female screw pressed bellow your MB, where the MB don’t have a hole and forced unwanted pressure.

Secondary: Less devices maybe helps, to have more IRQ’s available. I would deactivate unused devices in Bios… like not needed Sata Ports, iGPU and stuff like that.

Atleast sometimes it could reduced latency spikes, that could lead to distorted sound for example.

Thomas_D · 28 June 2024 14:21

I updated kernel to 6.6.32 and updated the Bios to the latest. The problem still occures, but it is less frequent (might be random). I also used another m.2 and installed a fresh copy of manjaro and it still happens. I contacted Asrock for further support.

Thomas_D · 28 June 2024 14:22

I unplugged two harddrives, but I will check what else I can disable.

Thomas_D · 28 June 2024 14:22

  Kernel: 6.6.32-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 14.1.1
    clocksource: tsc avail: hpet,acpi_pm
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-6.6-x86_64
    root=UUID=97edd2bb-94d6-46d3-a872-5fc965ae2865 rw rootflags=subvol=@ quiet
    splash apparmor=1 security=apparmor udev.log_priority=3
  Desktop: GNOME v: 46.2 tk: GTK v: 3.24.42 wm: gnome-shell
    tools: gsd-screensaver-proxy dm: GDM v: 46.2 Distro: Manjaro base: Arch Linux
Machine:
  Type: Desktop Mobo: ASRock model: B650E Taichi Lite
    serial: <superuser required> uuid: <superuser required> UEFI: American
    Megatrends LLC. v: 3.02 date: 05/14/2024
Battery:
  Message: No system battery data found. Is one present?
Memory:
  System RAM: total: 64 GiB available: 61.92 GiB used: 13.65 GiB (22.0%)
  Message: For most reliable report, use superuser + dmidecode.
  Array-1: capacity: 128 GiB slots: 4 modules: 2 EC: None
    max-module-size: 32 GiB note: est.
  Device-1: Channel-A DIMM 0 type: no module installed
  Device-2: Channel-A DIMM 1 type: DDR5 detail: synchronous unbuffered
    (unregistered) size: 32 GiB speed: 4800 MT/s volts: note: check curr: 1
    min: 1 max: 1 width (bits): data: 64 total: 64 manufacturer: N/A
    part-no: 6400 C32 Series serial: <filter>
  Device-3: Channel-B DIMM 0 type: no module installed
  Device-4: Channel-B DIMM 1 type: DDR5 detail: synchronous unbuffered
    (unregistered) size: 32 GiB speed: 4800 MT/s volts: note: check curr: 1
    min: 1 max: 1 width (bits): data: 64 total: 64 manufacturer: N/A
    part-no: 6400 C32 Series serial: <filter>
CPU:
  Info: model: AMD Ryzen 9 7950X3D bits: 64 type: MT MCP arch: Zen 4 gen: 5
    level: v4 note: check built: 2022+ process: TSMC n5 (5nm) family: 0x19 (25)
    model-id: 0x61 (97) stepping: 2 microcode: 0xA601206
  Topology: cpus: 1x cores: 16 tpc: 2 threads: 32 smt: enabled cache:
    L1: 1024 KiB desc: d-16x32 KiB; i-16x32 KiB L2: 16 MiB desc: 16x1024 KiB
    L3: 128 MiB desc: 1x32 MiB, 1x96 MiB
  Speed (MHz): avg: 2645 high: 5218 min/max: 545/5759 scaling:
    driver: amd-pstate-epp governor: powersave cores: 1: 4481 2: 3330 3: 4071
    4: 4143 5: 545 6: 545 7: 4057 8: 545 9: 5211 10: 4008 11: 545 12: 5140
    13: 545 14: 545 15: 5175 16: 545 17: 3876 18: 3361 19: 3440 20: 545
    21: 3365 22: 3367 23: 3369 24: 3387 25: 5218 26: 545 27: 545 28: 4916
    29: 545 30: 3666 31: 545 32: 545 bogomips: 268905
  Flags: 3dnowprefetch abm adx aes amd_lbr_pmc_freeze amd_lbr_v2 aperfmperf
    apic arat avic avx avx2 avx512_bf16 avx512_bitalg avx512_vbmi2 avx512_vnni
    avx512_vpopcntdq avx512bw avx512cd avx512dq avx512f avx512ifma avx512vbmi
    avx512vl bmi1 bmi2 bpext cat_l3 cdp_l3 clflush clflushopt clwb clzero cmov
    cmp_legacy constant_tsc cpb cppc cpuid cqm cqm_llc cqm_mbm_local
    cqm_mbm_total cqm_occup_llc cr8_legacy cx16 cx8 de decodeassists erms
    extapic extd_apicid f16c flush_l1d flushbyasid fma fpu fsgsbase fsrm fxsr
    fxsr_opt gfni ht hw_pstate ibpb ibrs ibrs_enhanced ibs invpcid irperf
    lahf_lm lbrv lm mba mca mce misalignsse mmx mmxext monitor movbe msr mtrr
    mwaitx nonstop_tsc nopl npt nrip_save nx ospke osvw overflow_recov pae pat
    pausefilter pclmulqdq pdpe1gb perfctr_core perfctr_llc perfctr_nb
    perfmon_v2 pfthreshold pge pku pni popcnt pse pse36 rapl rdpid rdpru
    rdrand rdseed rdt_a rdtscp rep_good sep sha_ni skinit smap smca smep ssbd
    sse sse2 sse4_1 sse4_2 sse4a ssse3 stibp succor svm svm_lock syscall tce
    topoext tsc tsc_scale umip user_shstk v_spec_ctrl v_vmsave_vmload vaes
    vgif vmcb_clean vme vmmcall vnmi vpclmulqdq wbnoinvd wdt x2avic xgetbv1
    xsave xsavec xsaveerptr xsaveopt xsaves
  Vulnerabilities:
  Type: gather_data_sampling status: Not affected
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: mmio_stale_data status: Not affected
  Type: reg_file_data_sampling status: Not affected
  Type: retbleed status: Not affected
  Type: spec_rstack_overflow mitigation: Safe RET
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Enhanced / Automatic IBRS; IBPB: conditional;
    STIBP: always-on; RSB filling; PBRSB-eIBRS: Not affected; BHI: Not
    affected
  Type: srbds status: Not affected
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: AMD Navi 31 [Radeon RX 7900 XT/7900 XTX/7900M] vendor: ASRock
    driver: amdgpu v: kernel arch: RDNA-3 code: Navi-3x process: TSMC n5 (5nm)
    built: 2022+ pcie: gen: 4 speed: 16 GT/s lanes: 16 ports:
    active: DP-1,DP-2,DP-3 empty: HDMI-A-1 bus-ID: 03:00.0 chip-ID: 1002:744c
    class-ID: 0300
  Device-2: AMD Raphael vendor: ASRock driver: amdgpu v: kernel arch: RDNA-2
    code: Navi-2x process: TSMC n7 (7nm) built: 2020-22 pcie: gen: 4
    speed: 16 GT/s lanes: 16 ports: active: none empty: DP-4, DP-5, DP-6,
    HDMI-A-2 bus-ID: 4f:00.0 chip-ID: 1002:164e class-ID: 0300 temp: 52.0 C
  Device-3: Microsoft Microsoft LifeCam HD-5001
    driver: snd-usb-audio,uvcvideo type: USB rev: 2.0 speed: 480 Mb/s lanes: 1
    mode: 2.0 bus-ID: 5-1.1:3 chip-ID: 045e:076e class-ID: 0102
  Display: wayland server: X.org v: 1.21.1.13 with: Xwayland v: 24.1.0
    compositor: gnome-shell driver: X: loaded: nvidia gpu: amdgpu display-ID: 0
  Monitor-1: DP-1 model: Samsung C32HG7x serial: <filter> built: 2017
    res: 2560x1440 dpi: 93 gamma: 1.2 size: 697x392mm (27.44x15.43")
    diag: 800mm (31.5") ratio: 16:9 modes: max: 2560x1440 min: 720x400
  Monitor-2: DP-2 model: LG (GoldStar) Ultra HD serial: <filter> built: 2017
    res: 3840x2160 dpi: 163 gamma: 1.2 size: 600x340mm (23.62x13.39")
    diag: 690mm (27.2") ratio: 16:9 modes: max: 3840x2160 min: 640x480
  Monitor-3: DP-3 model: Philips PHL 273V7 serial: <filter> built: 2018
    res: 1920x1080 dpi: 82 gamma: 1.2 size: 598x336mm (23.54x13.23")
    diag: 686mm (27") ratio: 16:9 modes: max: 1920x1080 min: 720x400
  API: EGL v: 1.5 hw: drv: amd radeonsi platforms: device: 0 drv: radeonsi
    device: 1 drv: radeonsi device: 2 drv: swrast gbm: drv: radeonsi surfaceless:
    drv: radeonsi wayland: drv: radeonsi x11: drv: radeonsi
  API: OpenGL v: 4.6 compat-v: 4.5 vendor: amd mesa v: 24.0.9-manjaro1.1
    glx-v: 1.4 direct-render: yes renderer: AMD Radeon RX 7900 XT (radeonsi
    navi31 LLVM 17.0.6 DRM 3.54 6.6.32-1-MANJARO) device-ID: 1002:744c
    memory: 19.53 GiB unified: no display-ID: :0.0
  API: Vulkan v: 1.3.279 layers: 5 device: 0 type: discrete-gpu name: AMD
    Radeon RX 7900 XT (RADV NAVI31) driver: mesa radv v: 24.0.9-manjaro1.1
    device-ID: 1002:744c surfaces: xcb,xlib,wayland device: 1
    type: integrated-gpu name: AMD Radeon Graphics (RADV RAPHAEL_MENDOCINO)
    driver: mesa radv v: 24.0.9-manjaro1.1 device-ID: 1002:164e
    surfaces: xcb,xlib,wayland
Audio:
  Device-1: AMD Navi 31 HDMI/DP Audio driver: snd_hda_intel v: kernel pcie:
    gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 03:00.1 chip-ID: 1002:ab30
    class-ID: 0403
  Device-2: AMD Rembrandt Radeon High Definition Audio driver: snd_hda_intel
    v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 4f:00.1
    chip-ID: 1002:1640 class-ID: 0403
  Device-3: AMD Family 17h/19h HD Audio driver: snd_hda_intel v: kernel pcie:
    gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 4f:00.6 chip-ID: 1022:15e3
    class-ID: 0403
  Device-4: Generic USB Audio driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-8:4
    chip-ID: 26ce:0a06 class-ID: 0300
  Device-5: Microsoft Microsoft LifeCam HD-5001
    driver: snd-usb-audio,uvcvideo type: USB rev: 2.0 speed: 480 Mb/s lanes: 1
    mode: 2.0 bus-ID: 5-1.1:3 chip-ID: 045e:076e class-ID: 0102
  Device-6: Focusrite-Novation Focusrite Scarlett 2i2 2nd Gen
    driver: snd-usb-audio type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0
    bus-ID: 5-1.2:4 chip-ID: 1235:8202 class-ID: 0102
  Device-7: SteelSeries ApS Arctis 7 driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 1.1 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 5-1.4:6
    chip-ID: 1038:12ad class-ID: 0300
  API: ALSA v: k6.6.32-1-MANJARO status: kernel-api with: aoss
    type: oss-emulator tools: alsactl,alsamixer,amixer
  Server-1: JACK v: 1.9.22 status: off tools: N/A
  Server-2: PipeWire v: 1.0.7 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel Wi-Fi 6E AX210/AX1675 2x2 [Typhoon Peak]
    vendor: Rivet Networks Killer driver: iwlwifi v: kernel pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 link-max: gen: 2 speed: 5 GT/s bus-ID: 49:00.0
    chip-ID: 8086:2725 class-ID: 0280
  IF: wlp73s0 state: down mac: <filter>
  Device-2: Realtek Killer E3000 2.5GbE vendor: ASRock driver: r8169
    v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 1 port: a000 bus-ID: 4a:00.0
    chip-ID: 10ec:3000 class-ID: 0200
  IF: enp74s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
  IP v4: <filter> type: dynamic noprefixroute scope: global
    broadcast: <filter>
  IP v6: <filter> type: dynamic noprefixroute scope: global
  IP v6: <filter> type: noprefixroute scope: link
  IF-ID-1: wg0-mullvad state: unknown speed: N/A duplex: N/A mac: N/A
  IP v4: <filter> scope: global
  IP v6: <filter> scope: global
  Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
  WAN IP: <filter>
Bluetooth:
  Device-1: Intel AX210 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-7:3 chip-ID: 8087:0032
    class-ID: e001
  Report: btmgmt ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 5.3
    lmp-v: 12 status: discoverable: no pairing: no class-ID: 6c0104
Logical:
  Message: No logical block device data found.
RAID:
  Message: No RAID data found.
Drives:
  Local Storage: total: 2.71 TiB used: 1.62 TiB (59.7%)
  SMART Message: Unable to run smartctl. Root privileges required.
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: TeamGroup
    model: T-FORCE TM8FP7002T size: 1.82 TiB block-size: physical: 512 B
    logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: EGFM15.2 temp: 53.9 C scheme: GPT
  ID-2: /dev/nvme1n1 maj-min: 259:3 vendor: Samsung model: SSD 960 EVO 500GB
    size: 465.76 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: 3B7QCXE7 temp: 52.9 C
    scheme: GPT
  ID-3: /dev/sdb maj-min: 8:16 vendor: SanDisk model: SSD PLUS 480GB
    size: 447.13 GiB block-size: physical: 512 B logical: 512 B speed: 6.0 Gb/s
    tech: SSD serial: <filter> fw-rev: 04RL scheme: GPT
  Message: No optical or floppy data found.
Partition:
  ID-1: / raw-size: 1.82 TiB size: 1.82 TiB (100.00%) used: 1.31 TiB (71.8%)
    fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2 label: N/A
    uuid: 97edd2bb-94d6-46d3-a872-5fc965ae2865
  ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
    used: 612 KiB (0.2%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1 label: N/A
    uuid: 0272-20F0
  ID-3: /home raw-size: 1.82 TiB size: 1.82 TiB (100.00%)
    used: 1.31 TiB (71.8%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
    label: N/A uuid: 97edd2bb-94d6-46d3-a872-5fc965ae2865
  ID-4: /mnt/9a81e120-ca6a-4046-b7ae-b6995fde721d raw-size: 465.76 GiB
    size: 457.38 GiB (98.20%) used: 87.07 GiB (19.0%) fs: ext4
    dev: /dev/nvme1n1p1 maj-min: 259:4 label: Daten
    uuid: 9a81e120-ca6a-4046-b7ae-b6995fde721d
  ID-5: /run/media/thomas/Daten raw-size: 447.13 GiB
    size: 447.13 GiB (100.00%) used: 231.72 GiB (51.8%) fs: btrfs dev: /dev/sdb1
    maj-min: 8:17 label: Daten uuid: bf9f763f-b123-4e64-afa5-b89812c14ccc
  ID-6: /var/cache raw-size: 1.82 TiB size: 1.82 TiB (100.00%)
    used: 1.31 TiB (71.8%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
    label: N/A uuid: 97edd2bb-94d6-46d3-a872-5fc965ae2865
  ID-7: /var/log raw-size: 1.82 TiB size: 1.82 TiB (100.00%)
    used: 1.31 TiB (71.8%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
    label: N/A uuid: 97edd2bb-94d6-46d3-a872-5fc965ae2865
Swap:
  Kernel: swappiness: 60 (default) cache-pressure: 100 (default) zswap: yes
    compressor: zstd max-pool: 20%
  ID-1: swap-1 type: file size: 16 GiB used: 524 KiB (0.0%) priority: -2
    file: /swap
Unmounted:
  Message: No unmounted partitions found.
USB:
  Hub-1: 1-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-2: 2-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-3: 3-0:1 info: hi-speed hub with single TT ports: 12 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-4: 3-4:2 info: ASMedia ASM1074 High-Speed hub ports: 4 rev: 2.1
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 100mA
    chip-ID: 174c:2074 class-ID: 0900
  Device-1: 3-7:3 info: Intel AX210 Bluetooth type: bluetooth driver: btusb
    interfaces: 2 rev: 2.0 speed: 12 Mb/s (1.4 MiB/s) lanes: 1 mode: 1.1
    power: 100mA chip-ID: 8087:0032 class-ID: e001
  Device-2: 3-8:4 info: Generic USB Audio type: audio,HID
    driver: hid-generic,snd-usb-audio,usbhid interfaces: 7 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 100mA
    chip-ID: 26ce:0a06 class-ID: 0300
  Device-3: 3-9:5 info: ROCCAT Kone Pro type: mouse,HID
    driver: hid-generic,usbhid interfaces: 4 rev: 2.0 speed: 12 Mb/s (1.4 MiB/s)
    lanes: 1 mode: 1.1 power: 500mA chip-ID: 1e7d:2c88 class-ID: 0300
  Device-4: 3-11:6 info: Ducky One 3 TKL type: HID,keyboard,mouse
    driver: hid-generic,usbhid interfaces: 5 rev: 1.1 speed: 12 Mb/s (1.4 MiB/s)
    lanes: 1 mode: 1.1 power: 100mA chip-ID: 3233:8011 class-ID: 0300
    serial: <filter>
  Hub-5: 4-0:1 info: super-speed hub ports: 5 rev: 3.1
    speed: 20 Gb/s (2.33 GiB/s) lanes: 2 mode: 3.2 gen-2x2 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-6: 4-4:3 info: ASMedia ASM1074 SuperSpeed hub ports: 4 rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 power: 8mA
    chip-ID: 174c:3074 class-ID: 0900
  Hub-7: 5-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-8: 5-1:2 info: ASMedia ASM1074 High-Speed hub ports: 4 rev: 2.1
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 100mA
    chip-ID: 174c:2074 class-ID: 0900
  Device-1: 5-1.1:3 info: Microsoft Microsoft LifeCam HD-5001
    type: video,audio driver: snd-usb-audio,uvcvideo interfaces: 4 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 500mA
    chip-ID: 045e:076e class-ID: 0102
  Device-2: 5-1.2:4 info: Focusrite-Novation Focusrite Scarlett 2i2 2nd Gen
    type: audio driver: snd-usb-audio interfaces: 4 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 500mA
    chip-ID: 1235:8202 class-ID: 0102
  Device-3: 5-1.3:5 info: Brother Industries DCP-J562DW
    type: printer,mass storage driver: usb-storage,usblp interfaces: 3 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 power: 2mA
    chip-ID: 04f9:0380 class-ID: 0806 serial: <filter>
  Device-4: 5-1.4:6 info: SteelSeries ApS Arctis 7 type: audio,HID
    driver: hid-generic,snd-usb-audio,usbhid interfaces: 6 rev: 1.1
    speed: 12 Mb/s (1.4 MiB/s) lanes: 1 mode: 1.1 power: 100mA
    chip-ID: 1038:12ad class-ID: 0300
  Hub-9: 6-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-10: 6-1:2 info: ASMedia ASM1074 SuperSpeed hub ports: 4 rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 power: 8mA
    chip-ID: 174c:3074 class-ID: 0900
  Hub-11: 7-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-12: 8-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-13: 9-0:1 info: hi-speed hub with single TT ports: 1 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Device-1: 9-1:2 info: ASRock LED Controller type: HID
    driver: hid-generic,usbhid interfaces: 1 rev: 1.1 speed: 12 Mb/s (1.4 MiB/s)
    lanes: 1 mode: 1.1 power: 100mA chip-ID: 26ce:01a2 class-ID: 0300
    serial: <filter>
  Hub-14: 10-0:1 info: Linux Foundation 3.0 root hub ports: N/A rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 chip-ID: 1d6b:0003
    class-ID: 0900
Sensors:
  System Temperatures: cpu: 68.1 C mobo: N/A
  Fan Speeds (rpm): N/A
  GPU: device: amdgpu temp: 51.0 C device: amdgpu temp: 58.0 C mem: 68.0 C
    fan: 0 watts: 35.00
Info:
  Processes: 738 Power: uptime: 2h 10m states: freeze,mem,disk suspend: deep
    avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
    suspend, test_resume image: 24.75 GiB services: gsd-power,
    power-profiles-daemon, upowerd Init: systemd v: 255 default: graphical
    tool: systemctl
  Packages: 2295 pm: pacman pkgs: 2258 libs: 511 tools: gnome-software,pamac
    pm: flatpak pkgs: 37 Compilers: clang: 17.0.6 gcc: 14.1.1 alt: 12 Shell: Zsh
    v: 5.9 running-in: gnome-terminal inxi: 3.3.35

Kobold · 28 June 2024 21:17

Check first if you have maybe unneeded female screw under your MB… you can open your PC Case from the backside and use a flashlight to maybe find out how many holes your MB has to attach with screws, for example if your MB has 8 holes to attach but you can identify 9 filled threads on your backside from your PC Case… then you maybe found the problem.

But for sure, if you didnt make a mistake while installing your MB, then its still possible that you need RMA your MB instead.
