GPU process crashed running code-insiders

Support Snap/Flatpak
1

I recently bought Lenovo Yoga 7 Slim Gen 8 and trying to get Manjaro working on it.

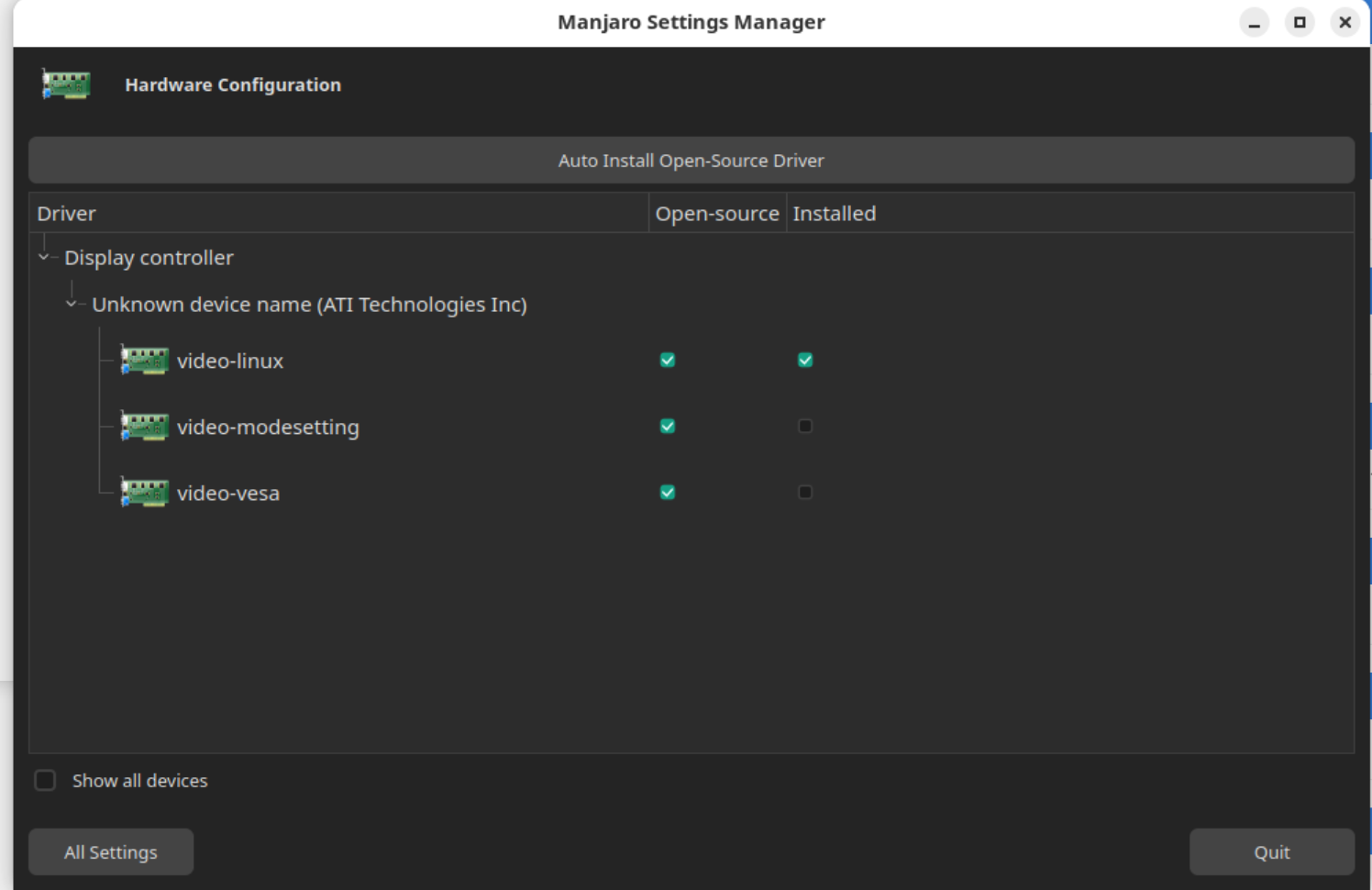

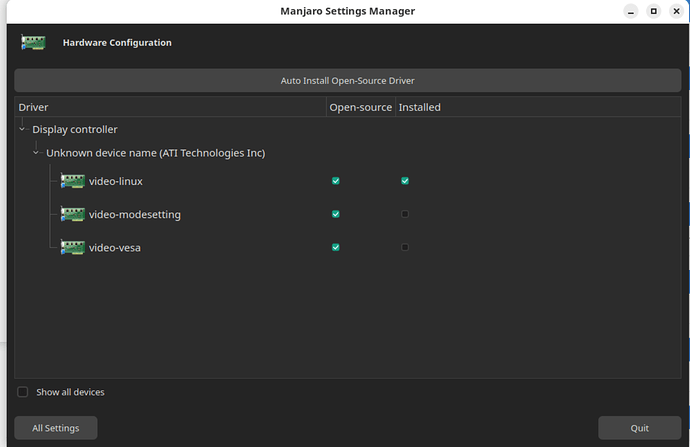

I have a strange anomaly right now, that I can’t explain. If I open hardware configuration, it shows that I have an “Unknown Device Name (ATI technologies)”

Screenshot from 2024-05-11 00-07-12
Screenshot from 2024-05-11 00-07-121496×970 107 KB

It’s probably integrated Radeon 780M graphics. So I’ve been going through AMDGPU wiki page – and can’t really understand what the problem is.

If I run inxi -G, I see video card in use with correct amdgpu driver.

Graphics:
  Device-1: AMD Phoenix1 driver: amdgpu v: kernel
  Device-2: IMC Networks Integrated Camera driver: uvcvideo type: USB
  Display: wayland server: X.org v: 1.21.1.12 with: Xwayland v: 23.2.6
    compositor: gnome-shell v: 45.4 driver: gpu: amdgpu
    resolution: no compositor data resolution: 2944x1840
  API: EGL v: 1.5 drivers: radeonsi,swrast
    platforms: wayland,x11,surfaceless,device
  API: OpenGL v: 4.6 compat-v: 4.5 vendor: amd mesa v: 24.0.2-manjaro1.1
    renderer: AMD Radeon Graphics (radeonsi gfx1103_r1 LLVM 16.0.6 DRM 3.57
    6.8.8-2-MANJARO)

If I run a following command sudo dmesg | grep -i amd. It seems that driver gets properly initialized and used.

[    0.210865] smpboot: CPU0: AMD Ryzen 7 7840S with Radeon 780M Graphics (family: 0x19, model: 0x74, stepping: 0x1)
[    0.211052] Performance Events: Fam17h+ 16-deep LBR, core perfctr, AMD PMU driver.
[    0.806990] pci 0000:00:00.2: AMD-Vi: IOMMU performance counters supported
[    0.809797] AMD-Vi: Extended features (0x246577efa2254afa, 0x0): PPR NX GT [5] IA GA PC GA_vAPIC
[    0.809806] AMD-Vi: Interrupt remapping enabled
[    0.809960] AMD-Vi: Virtual APIC enabled
[    0.810278] perf: AMD IBS detected (0x00000bff)
[    0.810282] perf/amd_iommu: Detected AMD IOMMU #0 (2 banks, 4 counters/bank).
[    2.412815] [drm] amdgpu kernel modesetting enabled.
[    2.416130] amdgpu: Virtual CRAT table created for CPU
[    2.416142] amdgpu: Topology: Add CPU node
[    2.416297] amdgpu 0000:c3:00.0: enabling device (0006 -> 0007)
[    2.513008] amdgpu 0000:c3:00.0: amdgpu: Fetched VBIOS from VFCT
[    2.513013] amdgpu: ATOM BIOS: 113-PHXGENERIC-001
[    2.517939] amdgpu 0000:c3:00.0: [drm:jpeg_v4_0_early_init [amdgpu]] JPEG decode is enabled in VM mode
[    2.551912] amdgpu 0000:c3:00.0: vgaarb: deactivate vga console
[    2.551929] amdgpu 0000:c3:00.0: amdgpu: Trusted Memory Zone (TMZ) feature enabled
[    2.552041] amdgpu 0000:c3:00.0: amdgpu: VRAM: 4096M 0x0000008000000000 - 0x00000080FFFFFFFF (4096M used)
[    2.552049] amdgpu 0000:c3:00.0: amdgpu: GART: 512M 0x00007FFF00000000 - 0x00007FFF1FFFFFFF
[    2.552438] [drm] amdgpu: 4096M of VRAM memory ready
[    2.552441] [drm] amdgpu: 13921M of GTT memory ready.
[    2.553964] amdgpu 0000:c3:00.0: amdgpu: Will use PSP to load VCN firmware
[    3.245827] amdgpu 0000:c3:00.0: amdgpu: RAS: optional ras ta ucode is not available
[    3.254500] amdgpu 0000:c3:00.0: amdgpu: RAP: optional rap ta ucode is not available
[    3.254502] amdgpu 0000:c3:00.0: amdgpu: SECUREDISPLAY: securedisplay ta ucode is not available
[    3.282757] amdgpu 0000:c3:00.0: amdgpu: SMU is initialized successfully!
[    3.367479] amdgpu 0000:c3:00.0: [drm:jpeg_v4_0_hw_init [amdgpu]] JPEG decode initialized successfully.
[    3.405363] amdgpu: HMM registered 4096MB device memory
[    3.407658] kfd kfd: amdgpu: Allocated 3969056 bytes on gart
[    3.407684] kfd kfd: amdgpu: Total number of KFD nodes to be created: 1
[    3.407875] amdgpu: Virtual CRAT table created for GPU
[    3.408703] amdgpu: Topology: Add dGPU node [0x15bf:0x1002]
[    3.408706] kfd kfd: amdgpu: added device 1002:15bf
[    3.408721] amdgpu 0000:c3:00.0: amdgpu: SE 1, SH per SE 2, CU per SH 6, active_cu_number 12
[    3.408729] amdgpu 0000:c3:00.0: amdgpu: ring gfx_0.0.0 uses VM inv eng 0 on hub 0
[    3.408732] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.0.0 uses VM inv eng 1 on hub 0
[    3.408734] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.1.0 uses VM inv eng 4 on hub 0
[    3.408736] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.2.0 uses VM inv eng 6 on hub 0
[    3.408737] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.3.0 uses VM inv eng 7 on hub 0
[    3.408738] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.0.1 uses VM inv eng 8 on hub 0
[    3.408740] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.1.1 uses VM inv eng 9 on hub 0
[    3.408741] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.2.1 uses VM inv eng 10 on hub 0
[    3.408742] amdgpu 0000:c3:00.0: amdgpu: ring comp_1.3.1 uses VM inv eng 11 on hub 0
[    3.408744] amdgpu 0000:c3:00.0: amdgpu: ring sdma0 uses VM inv eng 12 on hub 0
[    3.408745] amdgpu 0000:c3:00.0: amdgpu: ring vcn_unified_0 uses VM inv eng 0 on hub 8
[    3.408746] amdgpu 0000:c3:00.0: amdgpu: ring jpeg_dec uses VM inv eng 1 on hub 8
[    3.408748] amdgpu 0000:c3:00.0: amdgpu: ring mes_kiq_3.1.0 uses VM inv eng 13 on hub 0
[    3.414846] [drm] Initialized amdgpu 3.57.0 20150101 for 0000:c3:00.0 on minor 1
[    3.422896] fbcon: amdgpudrmfb (fb0) is primary device

I’m not sure, what is wong here. The only thing, that doesn’t work is code-insiders pacakge from snap. I’m seeing following issue when I try to run it:

[6521:0511/215245.463385:ERROR:gpu_process_host.cc(993)] GPU process exited unexpectedly: exit_code=133
[6521:0511/215245.463402:WARNING:gpu_process_host.cc(1364)] The GPU process has crashed 5 time(s)
MESA-LOADER: failed to open radeonsi: /snap/core20/current/lib/x86_64-linux-gnu/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /usr/lib/dri/radeonsi_dri.so) (search paths /usr/lib/x86_64-linux-gnu/dri:\$${ORIGIN}/dri:/usr/lib/dri, suffix _dri)
failed to load driver: radeonsi
MESA-LOADER: failed to open kms_swrast: /snap/core20/current/lib/x86_64-linux-gnu/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /usr/lib/dri/kms_swrast_dri.so) (search paths /usr/lib/x86_64-linux-gnu/dri:\$${ORIGIN}/dri:/usr/lib/dri, suffix _dri)
failed to load driver: kms_swrast
MESA-LOADER: failed to open swrast: /snap/core20/current/lib/x86_64-linux-gnu/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /usr/lib/dri/swrast_dri.so) (search paths /usr/lib/x86_64-linux-gnu/dri:\$${ORIGIN}/dri:/usr/lib/dri, suffix _dri)
failed to load swrast driver

I’m not sure, why is driver not being detected as expected?

2

I’m not sure why that’s happening, however it’s not related.

Right, so there’s nothing wrong with the driver.

I’ve edited your topic title and moved your post to the proper category.

1 Like
3

If you run a more full inxi like

inxi -Farz

Then maybe we could see more, such as your BIOS version and memory and swap etc.

4

Here is an output.

System:
  Kernel: 6.8.8-2-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
    clocksource: hpet avail: acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-6.8-x86_64
    root=UUID=f8f6ef62-a557-4552-851d-a3a148d54cd2 rw quiet splash apparmor=1
    security=apparmor resume=UUID=99d8a446-902b-40a9-84e0-6c376afbc887
    udev.log_priority=3
  Desktop: GNOME v: 45.4 tk: GTK v: 3.24.41 wm: gnome-shell with: albert
    tools: gsd-screensaver-proxy dm: GDM v: 45.0.1 Distro: Manjaro
    base: Arch Linux
Machine:
  Type: Laptop System: LENOVO product: 83AA v: Yoga Slim 7 14APU8
    serial: <superuser required> Chassis: type: 10 v: Yoga Slim 7 14APU8
    serial: <superuser required>
  Mobo: LENOVO model: LNVNB161216 v: NO DPK serial: <superuser required>
    part-nu: LENOVO_MT_83AA_BU_idea_FM_Yoga Slim 7 14APU8
    uuid: <superuser required> UEFI: LENOVO v: M6CN38WW date: 11/16/2023
Battery:
  ID-1: BAT0 charge: 36.0 Wh (51.4%) condition: 70.0/70.0 Wh (100.0%)
    power: 8.6 W volts: 15.5 min: 15.5 model: Celxpert L22C4PF7 type: Li-poly
    serial: <filter> status: discharging cycles: 3
CPU:
  Info: model: AMD Ryzen 7 7840S with Radeon 780M Graphics bits: 64
    type: MT MCP arch: Zen 4 gen: 5 level: v4 note: check built: 2022+
    process: TSMC n5 (5nm) family: 0x19 (25) model-id: 0x74 (116) stepping: 1
    microcode: 0xA704101
  Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
    L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 8 MiB desc: 8x1024 KiB
    L3: 16 MiB desc: 1x16 MiB
  Speed (MHz): avg: 652 high: 1454
    min/max: 400/5132:5289:5447:6076:5605:5760:5918 scaling:
    driver: amd-pstate-epp governor: powersave cores: 1: 400 2: 400 3: 1397
    4: 400 5: 400 6: 400 7: 400 8: 1397 9: 400 10: 1385 11: 400 12: 1454
    13: 400 14: 400 15: 400 16: 400 bogomips: 105442
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
  Vulnerabilities:
  Type: gather_data_sampling status: Not affected
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: mmio_stale_data status: Not affected
  Type: reg_file_data_sampling status: Not affected
  Type: retbleed status: Not affected
  Type: spec_rstack_overflow status: Vulnerable: Safe RET, no microcode
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Enhanced / Automatic IBRS; IBPB:
    conditional; STIBP: always-on; RSB filling; PBRSB-eIBRS: Not affected;
    BHI: Not affected
  Type: srbds status: Not affected
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: AMD Phoenix1 vendor: Lenovo driver: amdgpu v: kernel arch: RDNA-3
    code: Phoenix process: TSMC n4 (4nm) built: 2023+ pcie: gen: 4
    speed: 16 GT/s lanes: 16 ports: active: eDP-1 empty: DP-1, DP-2, DP-3,
    DP-4, DP-5, DP-6, DP-7, Writeback-1 bus-ID: c3:00.0 chip-ID: 1002:15bf
    class-ID: 0300 temp: 29.0 C
  Device-2: IMC Networks Integrated Camera driver: uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-1:2 chip-ID: 13d3:5293
    class-ID: fe01 serial: <filter>
  Display: wayland server: X.org v: 1.21.1.12 with: Xwayland v: 23.2.6
    compositor: gnome-shell driver: gpu: amdgpu display-ID: 0
  Monitor-1: eDP-1 model: Samsung 0x4189 built: 2022 res: 2944x1840 dpi: 240
    gamma: 1.2 size: 312x195mm (12.28x7.68") diag: 368mm (14.5") ratio: 16:10
    modes: max: 2944x1840 min: 640x480
  API: EGL v: 1.5 hw: drv: amd radeonsi platforms: device: 0 drv: radeonsi
    device: 1 drv: swrast surfaceless: drv: radeonsi wayland: drv: radeonsi x11:
    drv: radeonsi inactive: gbm
  API: OpenGL v: 4.6 compat-v: 4.5 vendor: amd mesa v: 24.0.2-manjaro1.1
    glx-v: 1.4 direct-render: yes renderer: AMD Radeon Graphics (radeonsi
    gfx1103_r1 LLVM 16.0.6 DRM 3.57 6.8.8-2-MANJARO) device-ID: 1002:15bf
    memory: 3.91 GiB unified: no display-ID: :0.0
Audio:
  Device-1: AMD Rembrandt Radeon High Definition Audio vendor: Lenovo
    driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
    bus-ID: c3:00.1 chip-ID: 1002:1640 class-ID: 0403
  Device-2: AMD ACP/ACP3X/ACP6x Audio Coprocessor vendor: Lenovo
    driver: snd_pci_ps v: kernel alternate: snd_pci_acp3x, snd_rn_pci_acp3x,
    snd_pci_acp5x, snd_pci_acp6x, snd_acp_pci, snd_rpl_pci_acp6x,
    snd_sof_amd_renoir, snd_sof_amd_rembrandt, snd_sof_amd_vangogh,
    snd_sof_amd_acp63 pcie: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: c3:00.5
    chip-ID: 1022:15e2 class-ID: 0480
  Device-3: AMD Family 17h/19h HD Audio vendor: Lenovo driver: snd_hda_intel
    v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: c3:00.6
    chip-ID: 1022:15e3 class-ID: 0403
  API: ALSA v: k6.8.8-2-MANJARO status: kernel-api with: aoss
    type: oss-emulator tools: alsactl,alsamixer,amixer
  Server-1: JACK v: 1.9.22 status: off tools: N/A
  Server-2: PipeWire v: 1.0.3 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: MEDIATEK MT7922 802.11ax PCI Express Wireless Network Adapter
    vendor: Lenovo driver: mt7921e v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 1
    bus-ID: 01:00.0 chip-ID: 14c3:0616 class-ID: 0280
  IF: wlp1s0 state: up mac: <filter>
  Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
Bluetooth:
  Device-1: Foxconn / Hon Hai Bluetooth Adapter driver: btusb v: 0.8 type: USB
    rev: 2.1 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-5:3 chip-ID: 0489:e0d8
    class-ID: e001 serial: <filter>
  Report: rfkill ID: hci0 rfk-id: 2 state: up address: see --recommends
Drives:
  Local Storage: total: 953.87 GiB used: 121.51 GiB (12.7%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Samsung
    model: MZVL21T0HCLR-00BL2 size: 953.87 GiB block-size: physical: 512 B
    logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: EL1QGXA7 temp: 36.9 C scheme: GPT
Partition:
  ID-1: / raw-size: 923.66 GiB size: 908.09 GiB (98.31%)
    used: 121.51 GiB (13.4%) fs: ext4 dev: /dev/nvme0n1p2 maj-min: 259:2
  ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
    used: 7.3 MiB (2.4%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
Swap:
  Kernel: swappiness: 60 (default) cache-pressure: 100 (default) zswap: yes
    compressor: zstd max-pool: 20%
  ID-1: swap-1 type: partition size: 29.91 GiB used: 0 KiB (0.0%)
    priority: -2 dev: /dev/nvme0n1p3 maj-min: 259:3
Sensors:
  System Temperatures: cpu: 33.0 C mobo: N/A gpu: amdgpu temp: 31.0 C
  Fan Speeds (rpm): N/A
Repos:
  Packages: 1268 pm: pacman pkgs: 1264 libs: 346 tools: gnome-software,pamac
    pm: flatpak pkgs: 0 pm: snap pkgs: 4
  Active pacman repo servers in: /etc/pacman.d/mirrorlist
    1: https://mirror.erickochen.nl/manjaro/stable/$repo/$arch
    2: http://ftp.snt.utwente.nl/pub/linux/manjaro/stable/$repo/$arch
    3: https://manjaro.mirror.wearetriple.com/stable/$repo/$arch
    4: https://mirror.koddos.net/manjaro/stable/$repo/$arch
    5: https://mirror.bouwhuis.network/manjaro/stable/$repo/$arch
    6: https://ftp.nluug.nl/pub/os/Linux/distr/manjaro/stable/$repo/$arch
    7: https://manjaro.mirrors.lavatech.top/stable/$repo/$arch
Info:
  Memory: total: 28 GiB available: 27.19 GiB used: 4.75 GiB (17.5%)
  Processes: 411 Power: uptime: 37m states: freeze,mem,disk suspend: s2idle
    wakeups: 0 hibernate: platform avail: shutdown, reboot, suspend, test_resume
    image: 10.86 GiB services: gsd-power, power-profiles-daemon, upowerd
    Init: systemd v: 255 default: graphical tool: systemctl
  Compilers: clang: 16.0.6 gcc: 13.2.1 Shell: Zsh v: 5.9 running-in: tilix
    inxi: 3.3.34
5

So thats latest.

Seems more problem of the snap.

I generally would avoid SNAP anyways, but have you tried other sources?

Flatpak for if you want it containerized. The AUR also has it available.

1 Like
6

Removed all snap* packages and snap support from pamac. Also found code-insiders-bin package in AUR repos and it works as expected!

Thank you for your assistance.

7

This topic was automatically closed 36 hours after the last reply. New replies are no longer allowed.
