Despúes de actualizar pcieport AER: correctable error message BadTLP

Hola, tengo un equipo ASUS TUF Gaming A15 FA507NVR-LP070 AMD Ryzen 7 7435HS/ 1TB SSD/ RTX 4060.
Ayer al actualizar Manjaro y reiniciar aparecía la pantalla en negro y no hacía nada. Al hacer Ctrl+Alt+F3 aparece lo siguiente:

La primera idea fue arrancar con un USBlive para acceder a la consola con chroot pero tampoco me deja con el USBlive:

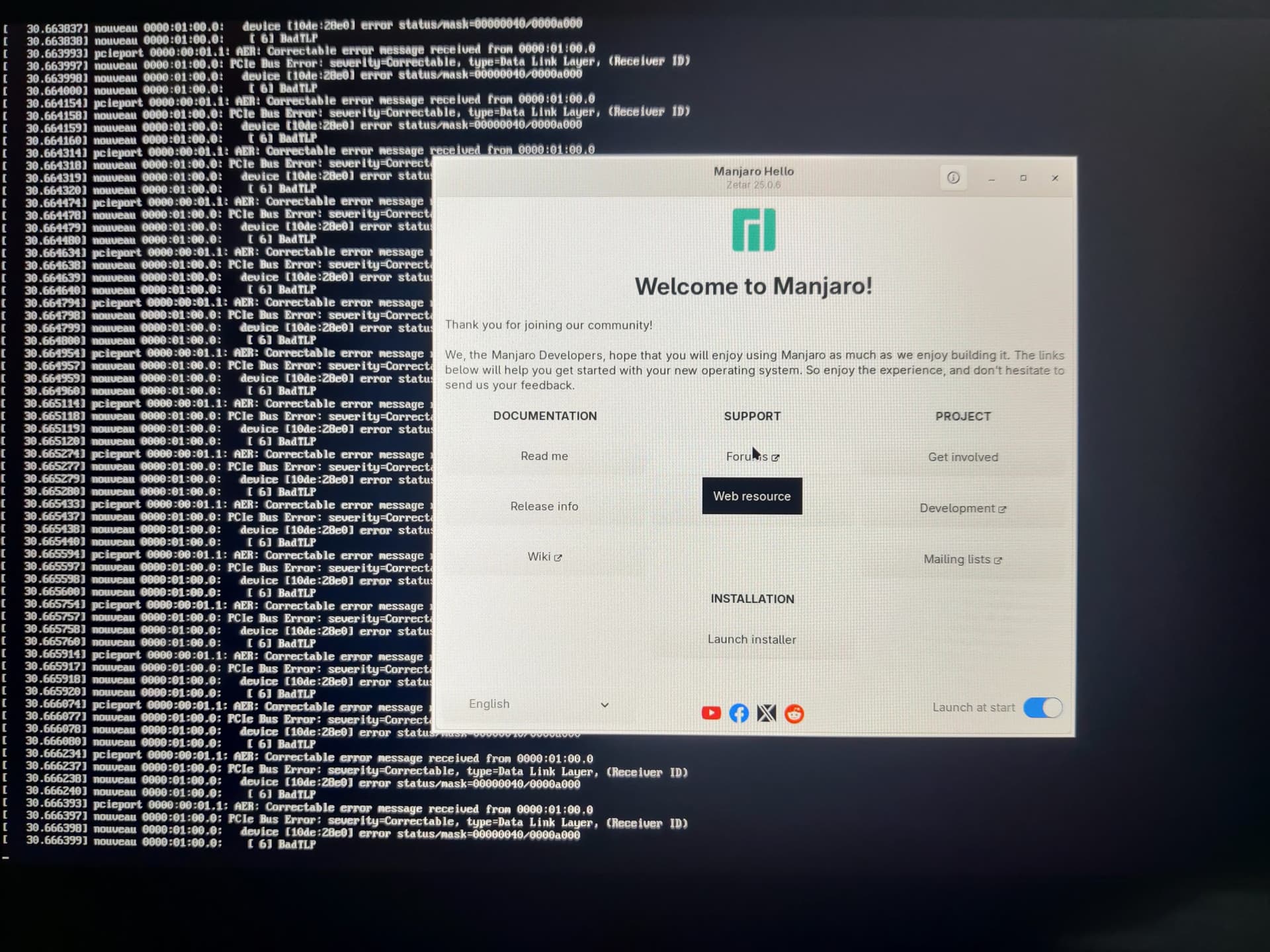

El USBlive inicia y me deja llegar hasta aquí, pero no aparece el escritorio de Manjaro. No me deja ni lanzar el instalador y no puedo acceder a la consola, por eso estoy usando Screenshots y posteando desde otro ordenador. El USBlive lo he probado en otro ordenador y funciona correctamente.

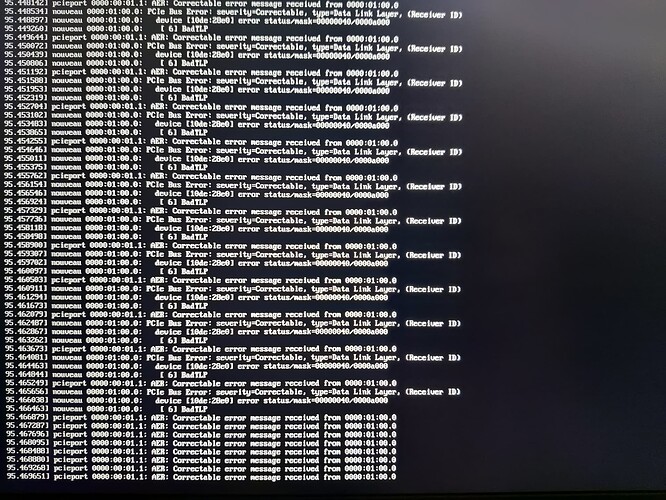

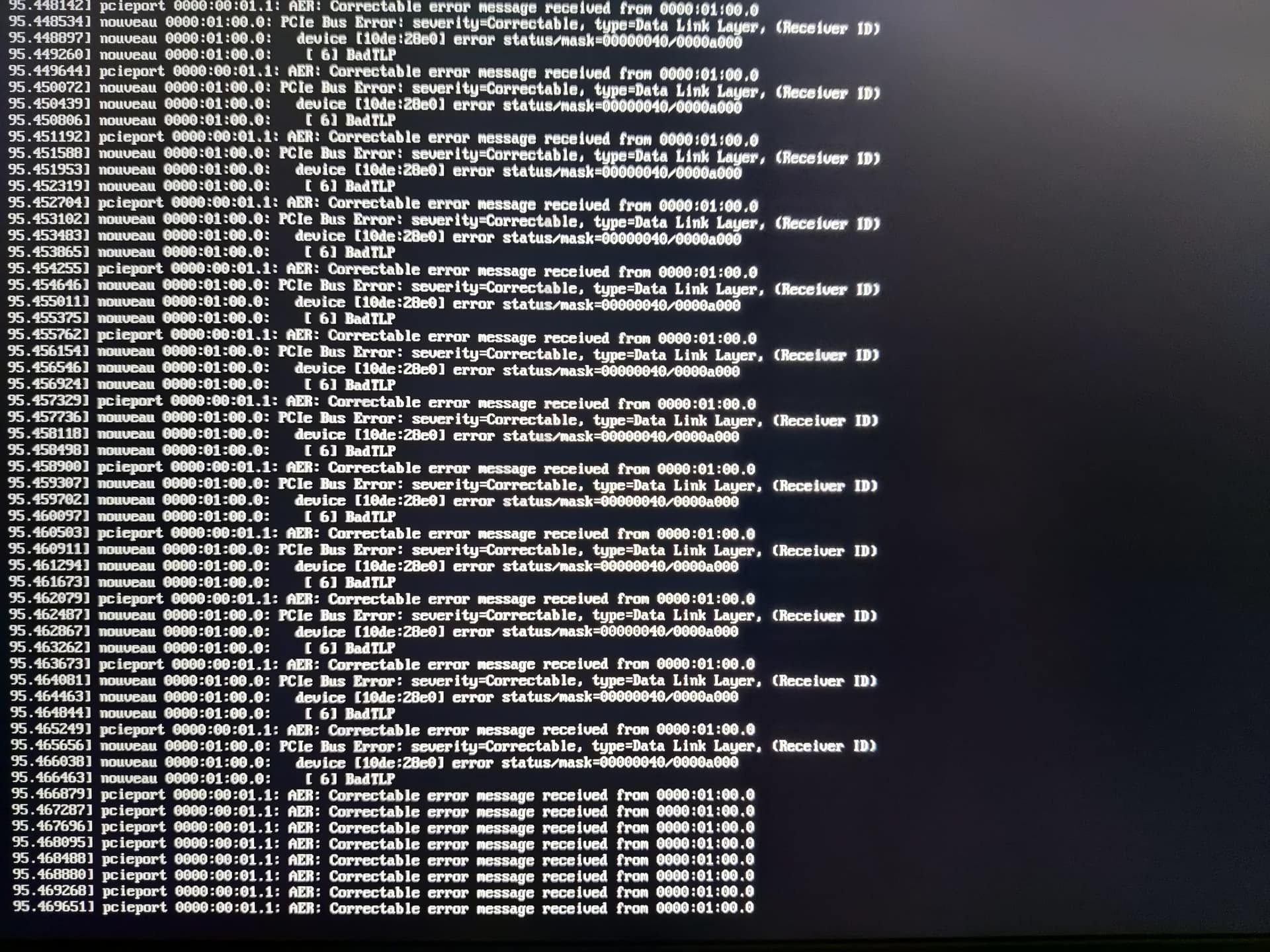

Parece que el error está en bucle y no me deja hacer nada mas.
Por favor, alguna experiencia o idea de como puedo solucionarlo y recuperar mi equipo.

Gracias!!

:wave:

Hello! ¡Hola! Welcome to the Manjaro Forum.

Well, it could be related to power management. Try to access the BIOS, UEFI, of your machine, look for ASPM settings and disable it.

Another try is to use the kernel option pci=nommconf as a workaround because it could be some hardware fault. To do that, in GRUB, locate the line starting with linux, then at the end of this line add pci=nommconf ensuring a space after the last command (e.g: splash pci=nommconf).

To access GRUB, try to press and hold the left shift key during the boot process, (or try to hit it repeatedly, or try with the Esc key).

If you can’t access GRUB yet, try to connect your video cable to the video onboard and see if it can work.

Let’s try in Spanish:

¡Hola! Hello! Bienvenido al Foro Manjaro.

Bueno, podría estar relacionado con la gestión de energía. Intenta acceder a la BIOS o UEFI de tu máquina, busca la configuración ASPM y desactívela.

Otra opción es usar el parámetro del kernel pci=nommconf como solución alternativa, ya que podría tratarse de una falla de hardware. Para hacerlo, en GRUB, localiza la línea que comienza con linux, luego al final de esa línea añade pci=nommconf, asegurándose de dejar un espacio después del último comando (por ejemplo: splash pci=nommconf).

Para acceder a GRUB, intenta mantener presionada la tecla Shift izquierda durante el proceso de arranque (o presionar repetidamente, o probar con la tecla Esc).

Si todavía no puedes acceder a GRUB, intenta conectar el cable de video al video integrado y verifica si funciona.

:vulcan_salute:

Hola, primero gracias por las ideas.
He actualizado la BIOS, pero no encuentro la opción en el menu para desactivar ASPM.

Con la tecla shift apretada repetidamente, puedo acceder al grub.
Aquí he probado con pci=nommconf y con tambien pcie_aspm=off.

La pantalla se queda negra y Linux no arranca, pero con Ctrl+Alt+F3 aparece la terminal.

He buscado mas información del mensaje del problema. El device 10de:28e0 corresponde a la tarjeta gráfica de NVIDIA.

Ahora no se como seguir para arrancar Manjaro en modo normal.
Necesito usar los drivers propios de nvidia? o mejor los libres?
Alguna idea?

1 Like

Bueno, empecemos por lo básico.

¿Ya intentaste volver a colocar tu tarjeta gráfica Nvidia? Podría tratarse de un problema de alineación. Haz lo mismo con el conector de alimentación.

Mientras tanto, cuando sea posible, por favor compártenos la información de tu sistema usando los comandos inxi -zv8 y mhwd -li. Esto podría ayudar a que más usuarios de Manjaro nos ayuden a resolver el problema.

English Version

Alright, so let’s try from the basics.

Did you already try reseating your Nvidia Graphic Card (could be a misalignment issue). Also do that for the power connector.

Well, in the meantime, when possible, please share with us your system’s info using the command inxi -zv8 and mhwd -li . It could help more Manjaro users to help us to solve the problem.

Hola, ya lo he solucionado. Comparto la info que pides y explico:

System:
  Kernel: 6.12.39-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 15.1.1
    clocksource: tsc avail: hpet,acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-6.12-x86_64
    root=UUID=468bd985-95e8-4ed3-8139-899af7a54d73 rw quiet splash
    resume=UUID=ed2a3677-60ae-4c51-b3bb-eec4a4bb705a udev.log_priority=3
  Desktop: KDE Plasma v: 6.3.6 tk: Qt v: N/A info: frameworks v: 6.16.0
    wm: kwin_x11 vt: 2 dm: SDDM Distro: Manjaro base: Arch Linux
Machine:
  Type: Laptop System: ASUSTeK product: ASUS TUF Gaming A15 FA507NVR_FA507NVR
    v: 1.0 serial: <superuser required>
  Mobo: ASUSTeK model: FA507NVR v: 1.0 serial: <superuser required>
    uuid: <superuser required> UEFI: American Megatrends LLC. v: FA507NVR.303
    date: 12/20/2024
Battery:
  ID-1: BAT1 charge: 79.5 Wh (96.7%) condition: 82.2/90.2 Wh (91.1%)
    volts: 16.6 min: 15.9 model: ASUS A32-K55 type: Li-ion serial: N/A
    status: discharging
Memory:
  System RAM: total: 32 GiB available: 31.16 GiB used: 2.25 GiB (7.2%)
  Message: For most reliable report, use superuser + dmidecode.
  Array-1: capacity: 64 GiB slots: 2 modules: 2 EC: None
    max-module-size: 32 GiB note: est.
  Device-1: Channel-A DIMM 0 type: DDR5 detail: synchronous unbuffered
    (unregistered) size: 16 GiB speed: 4800 MT/s volts: note: check curr: 1
    min: 1 max: 1 width (bits): data: 64 total: 64 manufacturer: Samsung
    part-no: M425R2GA3BB0-CQKOL serial: <filter>
  Device-2: Channel-B DIMM 0 type: DDR5 detail: synchronous unbuffered
    (unregistered) size: 16 GiB speed: 4800 MT/s volts: note: check curr: 1
    min: 1 max: 1 width (bits): data: 64 total: 64 manufacturer: Samsung
    part-no: M425R2GA3BB0-CQKOL serial: <filter>
CPU:
  Info: model: AMD Ryzen 7 7435HS bits: 64 type: MT MCP arch: Zen 3+ gen: 3
    level: v3 note: check built: 2022 process: TSMC n6 (7nm) family: 0x19 (25)
    model-id: 0x44 (68) stepping: 1 microcode: 0xA404108
  Topology: cpus: 1x dies: 1 clusters: 1 cores: 8 threads: 16 tpc: 2
    smt: enabled cache: L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 4 MiB
    desc: 8x512 KiB L3: 16 MiB desc: 1x16 MiB
  Speed (MHz): avg: 1095 min/max: 400/4553 boost: enabled scaling:
    driver: amd-pstate-epp governor: powersave cores: 1: 1095 2: 1095 3: 1095
    4: 1095 5: 1095 6: 1095 7: 1095 8: 1095 9: 1095 10: 1095 11: 1095 12: 1095
    13: 1095 14: 1095 15: 1095 16: 1095 bogomips: 99065
  Flags: 3dnowprefetch abm adx aes aperfmperf apic arat avic avx avx2 bmi1
    bmi2 bpext cat_l3 cdp_l3 clflush clflushopt clwb clzero cmov cmp_legacy
    constant_tsc cpb cppc cpuid cqm cqm_llc cqm_mbm_local cqm_mbm_total
    cqm_occup_llc cr8_legacy cx16 cx8 de debug_swap decodeassists erms extapic
    extd_apicid f16c flushbyasid fma fpu fsgsbase fsrm fxsr fxsr_opt ht
    hw_pstate ibpb ibrs ibs invpcid irperf lahf_lm lbrv lm mba mca mce
    misalignsse mmx mmxext monitor movbe msr mtrr mwaitx nonstop_tsc nopl npt
    nrip_save nx ospke osvw overflow_recov pae pat pausefilter pclmulqdq
    pdpe1gb perfctr_core perfctr_llc perfctr_nb pfthreshold pge pku pni popcnt
    pse pse36 rapl rdpid rdpru rdrand rdseed rdt_a rdtscp rep_good sep sha_ni
    skinit smap smca smep ssbd sse sse2 sse4_1 sse4_2 sse4a ssse3 stibp succor
    svm svm_lock syscall tce topoext tsc tsc_scale umip user_shstk v_spec_ctrl
    v_vmsave_vmload vaes vgif vmcb_clean vme vmmcall vpclmulqdq wbnoinvd wdt
    x2apic xgetbv1 xsave xsavec xsaveerptr xsaveopt xsaves xtopology
  Vulnerabilities:
  Type: gather_data_sampling status: Not affected
  Type: indirect_target_selection status: Not affected
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: mmio_stale_data status: Not affected
  Type: reg_file_data_sampling status: Not affected
  Type: retbleed status: Not affected
  Type: spec_rstack_overflow mitigation: Safe RET
  Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
    prctl
  Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
    sanitization
  Type: spectre_v2 mitigation: Retpolines; IBPB: conditional; IBRS_FW;
    STIBP: always-on; RSB filling; PBRSB-eIBRS: Not affected; BHI: Not
    affected
  Type: srbds status: Not affected
  Type: tsa mitigation: Clear CPU buffers
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: NVIDIA AD107M [GeForce RTX 4060 Max-Q / Mobile] vendor: ASUSTeK
    driver: nvidia v: 575.64.03 alternate: nouveau,nvidia_drm
    non-free: 550-570.xx+ status: current (as of 2025-04) arch: Lovelace
    code: AD1xx process: TSMC n4 (5nm) built: 2022+ pcie: gen: 2 speed: 5 GT/s
    lanes: 8 link-max: gen: 4 speed: 16 GT/s ports: active: none off: eDP-1
    empty: DP-1,HDMI-A-1 bus-ID: 01:00.0 chip-ID: 10de:28e0 class-ID: 0300
  Device-2: Sonix USB2.0 HD UVC WebCam driver: uvcvideo type: USB rev: 2.0
    speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-4:2 chip-ID: 322e:2233
    class-ID: 0e02
  Display: x11 server: X.Org v: 21.1.18 with: Xwayland v: 24.1.8
    compositor: kwin_x11 driver: X: loaded: nvidia gpu: nvidia,nvidia-nvswitch
    display-ID: :0 screens: 1
  Screen-1: 0 s-res: 1920x1080 s-dpi: 143 s-size: 341x191mm (13.43x7.52")
    s-diag: 391mm (15.39") monitors: <missing: xrandr>
  Monitor-1: eDP-1 model: AU Optronics B156HAN15.H built: 2022 res: 1920x1080
    dpi: 142 gamma: 1.2 size: 344x193mm (13.54x7.6") diag: 394mm (15.5")
    ratio: 16:9 modes: 1920x1080
  API: EGL v: 1.5 hw: drv: nvidia platforms: device: 0 drv: nvidia device: 2
    drv: swrast gbm: drv: nvidia surfaceless: drv: nvidia x11: drv: nvidia
    inactive: wayland,device-1
  API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: nvidia mesa v: 575.64.03
    glx-v: 1.4 direct-render: yes renderer: NVIDIA GeForce RTX 4060 Laptop
    GPU/PCIe/SSE2 memory: 7.81 GiB
  API: Vulkan v: 1.4.321 layers: 2 device: 0 type: discrete-gpu name: NVIDIA
    GeForce RTX 4060 Laptop GPU driver: nvidia v: 575.64.03
    device-ID: 10de:28e0 surfaces: N/A
  Info: Tools: api: clinfo, eglinfo, glxinfo, vulkaninfo
    de: kscreen-console,kscreen-doctor gpu: nvidia-settings,nvidia-smi
    wl: wayland-info x11: xdpyinfo,xprop
Audio:
  Device-1: NVIDIA AD107 High Definition Audio vendor: ASUSTeK
    driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 8
    bus-ID: 01:00.1 chip-ID: 10de:22be class-ID: 0403
  Device-2: Advanced Micro Devices [AMD] Audio Coprocessor vendor: ASUSTeK
    driver: snd_pci_acp6x v: kernel alternate: snd_pci_acp3x, snd_rn_pci_acp3x,
    snd_pci_acp5x, snd_acp_pci, snd_rpl_pci_acp6x, snd_pci_ps,
    snd_sof_amd_renoir, snd_sof_amd_rembrandt, snd_sof_amd_vangogh,
    snd_sof_amd_acp63, snd_sof_amd_acp70 pcie: gen: 4 speed: 16 GT/s lanes: 16
    bus-ID: 05:00.5 chip-ID: 1022:15e2 class-ID: 0480
  Device-3: Advanced Micro Devices [AMD] Family 17h/19h/1ah HD Audio
    vendor: ASUSTeK driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s
    lanes: 16 bus-ID: 05:00.6 chip-ID: 1022:15e3 class-ID: 0403
  API: ALSA v: k6.12.39-1-MANJARO status: kernel-api with: aoss
    type: oss-emulator tools: alsactl,alsamixer,amixer
  Server-1: JACK v: 1.9.22 status: off tools: N/A
  Server-2: PipeWire v: 1.4.6 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet
    vendor: ASUSTeK driver: r8169 v: kernel pcie: gen: 1 speed: 2.5 GT/s lanes: 1
    port: e000 bus-ID: 02:00.0 chip-ID: 10ec:8168 class-ID: 0200
  IF: eno1 state: down mac: <filter>
  Device-2: Realtek RTL8852BE PCIe 802.11ax Wireless Network
    vendor: AzureWave driver: rtw89_8852be v: kernel pcie: gen: 1 speed: 2.5 GT/s
    lanes: 1 port: d000 bus-ID: 03:00.0 chip-ID: 10ec:b852 class-ID: 0280
  IF: wlp3s0 state: up mac: <filter>
  IP v4: <filter> type: dynamic noprefixroute scope: global
    broadcast: <filter>
  IP v6: <filter> type: noprefixroute scope: link
  Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
  WAN IP: <filter>
Bluetooth:
  Device-1: IMC Networks Bluetooth Radio driver: btusb v: 0.8 type: USB
    rev: 1.0 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-3:2 chip-ID: 13d3:3571
    class-ID: e001 serial: <filter>
  Report: rfkill ID: hci0 rfk-id: 0 state: down bt-service: enabled,running
    rfk-block: hardware: no software: yes address: see --recommends
Logical:
  Message: No logical block device data found.
RAID:
  Message: No RAID data found.
Drives:
  Local Storage: total: 953.87 GiB used: 93.65 GiB (9.8%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Micron
    model: MTFDKBA1T0QFM-1BD1AABGB size: 953.87 GiB block-size: physical: 512 B
    logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: V3MA101 temp: 36.9 C scheme: GPT
  Message: No optical or floppy data found.
Partition:
  ID-1: / raw-size: 60 GiB size: 58.76 GiB (97.93%) used: 13.91 GiB (23.7%)
    fs: ext4 dev: /dev/nvme0n1p3 maj-min: 259:3 label: N/A
    uuid: 468bd985-95e8-4ed3-8139-899af7a54d73
  ID-2: /boot/efi raw-size: 550 MiB size: 548.9 MiB (99.80%)
    used: 32.3 MiB (5.9%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1 label: N/A
    uuid: E066-B951
  ID-3: /home raw-size: 600 GiB size: 589.51 GiB (98.25%)
    used: 64.69 GiB (11.0%) fs: ext4 dev: /dev/nvme0n1p5 maj-min: 259:5
    label: N/A uuid: d486e639-a44d-4086-b84c-21f2cfc7640c
  ID-4: /var raw-size: 30 GiB size: 29.36 GiB (97.87%)
    used: 15.02 GiB (51.1%) fs: ext4 dev: /dev/nvme0n1p4 maj-min: 259:4
    label: N/A uuid: 98f6671f-0254-4b19-8557-e12306a40047
Swap:
  Kernel: swappiness: 60 (default) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: partition size: 16 GiB used: 0 KiB (0.0%) priority: -2
    dev: /dev/nvme0n1p2 maj-min: 259:2 label: N/A
    uuid: ed2a3677-60ae-4c51-b3bb-eec4a4bb705a
Unmounted:
  Message: No unmounted partitions found.
USB:
  Hub-1: 1-0:1 info: hi-speed hub with single TT ports: 4 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Device-1: 1-4:2 info: Sonix USB2.0 HD UVC WebCam type: video
    driver: uvcvideo interfaces: 2 rev: 2.0 speed: 480 Mb/s (57.2 MiB/s) lanes: 1
    mode: 2.0 power: 500mA chip-ID: 322e:2233 class-ID: 0e02
  Hub-2: 2-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-3: 3-0:1 info: hi-speed hub with single TT ports: 3 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Device-1: 3-3:2 info: IMC Networks Bluetooth Radio type: bluetooth
    driver: btusb interfaces: 2 rev: 1.0 speed: 12 Mb/s (1.4 MiB/s) lanes: 1
    mode: 1.1 power: 500mA chip-ID: 13d3:3571 class-ID: e001 serial: <filter>
  Hub-4: 4-0:1 info: super-speed hub ports: 2 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-5: 5-0:1 info: hi-speed hub with single TT ports: 1 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-6: 6-0:1 info: Linux Foundation 3.0 root hub ports: N/A rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-7: 7-0:1 info: hi-speed hub with single TT ports: 1 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-8: 8-0:1 info: super-speed hub ports: 1 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-9: 9-0:1 info: hi-speed hub with single TT ports: 1 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-10: 10-0:1 info: super-speed hub ports: 1 rev: 3.1
    speed: 10 Gb/s (1.16 GiB/s) lanes: 1 mode: 3.2 gen-2x1 chip-ID: 1d6b:0003
    class-ID: 0900
Sensors:
  System Temperatures: cpu: 40.6 C mobo: N/A gpu: nvidia temp: 41 C
  Fan Speeds (rpm): N/A
Info:
  Processes: 333 Power: uptime: 20m states: freeze,mem,disk suspend: s2idle
    wakeups: 0 hibernate: platform avail: shutdown, reboot, suspend, test_resume
    image: 12.44 GiB services: org_kde_powerdevil, power-profiles-daemon,
    upowerd Init: systemd v: 257 default: graphical tool: systemctl
  Packages: 1463 pm: pacman pkgs: 1457 libs: 324 tools: pamac pm: flatpak
    pkgs: 6 Compilers: gcc: 15.1.1 Shell: Zsh v: 5.9 default: Bash v: 5.3.0
    running-in: konsole inxi: 3.3.38
´´´
y

Installed PCI configs:


              NAME               VERSION          FREEDRIVER           TYPE

      video-nvidia            2025.01.13               false            PCI

´´´
Antes aparecían mas, pero siguiendo este articulo del foro:

Tenía activo la configuración de nvidia y la de video-linux.
Una vez desinstalado video-linux y usando el nonfree de NVIDIA manjaro arranca al escritorio de nuevo.

Muchas gracias por la ayuda y por la rápida respuestas!!
Es de gran ayuda para los usuarios mas nuevos en Manjaro/Linux, como yo. :slight_smile:

1 Like

This topic was automatically closed 3 days after the last reply. New replies are no longer allowed.
