is USB detection successful on X96S ? which DTB and kernel are you using for USB detection? I am not able to operate it because USB keyboard and mouse is not working.
Tested different Android firmware to make it wok.
Long time since I tested this.
I to had problem USB not working.
Think i use firmware found on freaktab
Warning , your X96s can be bricked.
Read all info before flashing , use at your own risk!.
Download for rev. X96s_P link
Download for rev. X96s_V311_P link
NB there are 2G (X96s_P) and 4G (X96s_V311_P) version, dont flash wrong firmware.
Long time since I have tested this .
Some other sites having firmware.
https://www.atvxperience.com/
forum.xda-developers.com
chinagadgetsreviews.com
Thank you very much for your help. I will try it and update you
I flashed the firmware suggested by you but still USB keyboard and mouse not detecting in manjaro Linux please help me in right manjaro linux image and dtb file which worked.
Update 17.06.
Removed link. to firmware earlier uploaded, USB dont work on this.
Have tested different Android firmware’s.
The only one that has working USB: aml_upgrade_packages_x96s_2G.img
Needed to use micro-usb port to update true USB BURNING TOOL v2.2 .
I used this on X96s 2G /16G model.
Test at your own risk!!
- Install USB burning tool (windows)
- Load firmware inn tool
- Press start inn tool

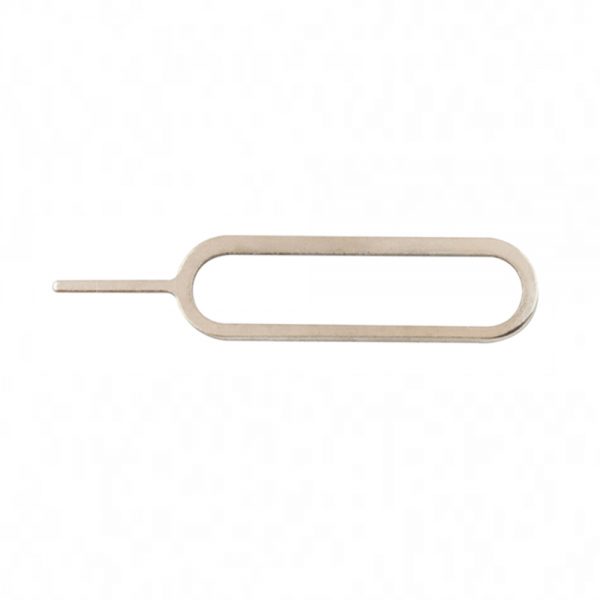

- Hold inn button beside IR port , a small hole ( I use iphone sim card tool)
Press and hold button when connecting micro-usb to X96s from pc.
- Android firmware starts and take about 4-5 min to flash.
- Unplug micro-usb when flashing finished.
- Start Android 1 time.
- Flash Manjaro-ARM-xfce-am6-plus-22.04.img.xz to SDcard (balenaEtcher)
- Edit uEnv.ini BOOT_MNJRO : dtb_name=/dtbs/amlogic/ meson-g12a-radxa-zero.dtb
- Insert sdcard X96s, press and hold button first time power on X96s to boot Manjaro.
dtb: meson-g12a-radxa-zero.dtb
You cant test difrent meson-g12a-XXXX.dtb files
I use a USB-hub having LAN connected to USB3 port.
Wifi not working , makes LAN unstable.
Debug: journalctl -p 0…3
x96s kernel: rtl8723bs mmc2:0001:1 wlan0: sd_recv_rxfifo: alloc recvbuf FAIL!
USE lsmod to find you wifimoduel if you have LAN problem.
Manuel disable WIFI : sudo modprobe -r r8723bs
Blacklist wifi module:
sudo nano /etc/modprobe.d/blacklist_wifi.conf
blacklist r8723bs
REBOOT ( often fails , USE shutdown)
FIX REBOOT: edit uEnv.ini last line remove : quiet splash plymouth.ignore-serial-consoles
Bluetooth outputs error / not working.
Bluetooth: hci0: BCM: Reset failed (-110)
Disable Bluetooth
sudo nano /etc/modprobe.d/blacklist_bluetooth.conf
blacklist hci_uart
AM6-plus and GTking have /boot on fat partiton needed for Android to boot Linux.
Its possible to shorten 2 pins to get Android back if flash failed.
emmc
INSTALL TO internal storage.
cd boot
sudo ./install-aml-emmc.sh
SHUTDOWN
!!! Rember to Re-Activate the Multi-Boot !!
sdcard inn X96s
Hold inn button beside IR port and power on.
Manjaro will boot from sdcard.
SHUTDOWN / poweroff
Remove sdcard
Power on and BOOT from internal storage !!
inxi -C -D
CPU:
Info: quad core model: N/A variant: cortex-a53 bits: 64 type: MCP
Speed (MHz): avg: 1800 min/max: 100/1800 cores: 1: 1800 2: 1800 3: 1800 4: 1800
Drives:
Local Storage: total: 14.56 GiB used: 3.87 GiB (26.5%)
ID-1: /dev/mmcblk1 vendor: Samsung model: MAG2GC size: 14.56 GiB
Thank you for your help
I found the reason why I couldn’t start. The corresponding MBR partition type is not set in etc/fstab
New problem cannot start to Linux after installing EMMC script
It needs to be under uboot
Manually run the commands in emmc_autoscript.cmd
What do I need to do to start automatically from EMMC
GXM:BL1:dc8b51:76f1a5;FEAT:ADFC318C:80;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 107537
BL2 Built : 11:58:42, May 27 2017.
gxl gc3c9a84 - xiaobo.gu@droid05
set vdd cpu_a to 1120 mv
set vdd cpu_b to 1050 mv
set vddee to 1000 mv
Board ID = 5
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR3 chl: Rank0+1 @ 792MHz - PASS
Rank0: 1024MB(auto)-2T-11
Rank1: 1024MB(auto)-2T-11
DataBus test pass!
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x05100000, size: 0x00018400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x00063e00
NOTICE: BL3-1: v1.0(release):3348978
NOTICE: BL3-1: Built : 15:44:01, May 12 2017
NOTICE: BL3-1: BL33 decompress pass
mpu_config_enable:ok
[Image: gxl_v1.1.3221-2cfba69 2017-05-27 16:03:58 qiufang.dai@droid07]
OPS=0x82
wdt: reset registers!
fd 75 3 9d 70 4a cb 24 25 17 b1 6 [0.318904 Inits done]
secure task start!
high task start!
low task start!
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01-g5e3f75b-dirty (Aug 18 2017 - 15:30:31)
DRAM: 2 GiB
Relocation Offset is: 76eb9000
register usb cfg[0][1] = 0000000077f5c8c0
[CANVAS]canvas init
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpu: vpu_clk_gate_init_off
vpp: vpp_init
boot_device_flag : 1
Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
init bus_cycle=6, bus_timing=7, system=5.0ns
reset failed
get_chip_type and ret:fffffffe
get_chip_type and ret:fffffffe
chip detect failed and ret:fffffffe
nandphy_init failed and ret=0xfffffff1
MMC: aml_priv->desc_buf = 0x0000000073eb96b0
aml_priv->desc_buf = 0x0000000073ebb9d0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
init_part() 278: PART_TYPE_DOS
[mmc_init] mmc init success
dtb magic 5f4c4d41
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
start dts,buffer=0000000073ebe200,dt_addr=0000000073ec9a00
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
parts: 12
00: logo 0000000002000000 1
01: recovery 0000000002000000 1
02: rsv 0000000000800000 1
03: tee 0000000000800000 1
04: crypt 0000000002000000 1
05: misc 0000000002000000 1
06: boot 0000000002000000 1
07: system 0000000080000000 1
08: cache 0000000020000000 2
09: stbinfo 0000000001400000 1
10: systembak 0000000025800000 1
11: data ffffffffffffffff 4
init_part() 278: PART_TYPE_DOS
eMMC/TSD partition table have been checked OK!
check pattern success
mmc env offset: 0x27400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
hpd_state=1
[1080p60hz] is invalid for cvbs.
set hdmitx VIC = 16
config HPLL = 2970000
HPLL: 0xc000027b
config HPLL done
j = 4 vid_clk_div = 1
hdmitx: set enc for VIC: 16
HDMITX-DWC addr=0x10004006 rd_data=0x40
Error: HDMITX-DWC exp_data=0xff mask=0x9f
rx version is 1.4 or below div=10
hdmtix: set audio
hdmitx phy setting done
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-917: calc 76807894, store 76807894
_verify_dtb_checksum()-917: calc 76807894, store 76807894
dtb_read()-1039: total valid 2
dtb_read()-1106: do nothing
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
vpp: vpp_pq_load pq val error !!!
Net: dwmac.c9410000amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
Start read misc partition datas!
info->attemp_times = 0
info->active_slot = 0
info->slot_info[0].bootable = 1
info->slot_info[0].online = 1
info->slot_info[1].bootable = 0
info->slot_info[1].online = 0
info->attemp_times = 0
attemp_times = 0
active slot = 0
wipe_data=successful
wipe_cache=successful
upgrade_step=2
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[CANVAS]addr=0x7f851000 width=3840, height=2160
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[usid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
gpio: pin GPIOAO_2 (gpio 102) value is 1
InUsbBurn
noSof
Hit Enter or space or Ctrl+C key to stop autoboot -- : 0
(Re)start USB...
USB0: USB3.0 XHCI init start
Register 3000140 NbrPorts 3
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 4 USB Device(s) found
scanning usb for storage devices... 0 Storage Device(s) found
** Bad device usb 0 **
** Bad device usb 1 **
card out
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
emmc/sd response timeout, cmd1, status=0x1ff2800
ee_gate_off ...
## Booting Android Image at 0x01080000 ...
reloc_addr =73f3e4a0
copy done
load dtb from 0x1000000 ......
Amlogic multi-dtb tool
Single dtb detected
Uncompressing Kernel Image ... OK
kernel loaded at 0x01080000, end = 0x021b57d0
Loading Ramdisk to 73d3f000, end 73ea714e ... OK
Loading Device Tree to 000000001fff1000, end 000000001ffff173 ... OK
fdt_instaboot: no instaboot image
Starting kernel ...
uboot time: 7310570 us
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] Linux version 3.14.29-g9179730-dirty (mly@czkj) (gcc version 4.9.2 20140904 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.09 - Linaro GCC 4.9-2014.09) ) #10 SMP PREEMPT Tue Sep 5 10:05:11 CST 2017
[ 0.000000@0] CPU: AArch64 Processor [410fd034] revision 4
[ 0.000000@0] no prop version_code
[ 0.000000@0] bootconsole [earlycon0] enabled
[ 0.000000@0] fdt Reserved memory table:
[ 0.000000@0] linux,di: 0x000000007e200000 - 0x0000000080000000 (30 MiB)
[ 0.000000@0] DI: DI reserved memory: created CMA memory pool at 0x000000007e200000, size 30 MiB
[ 0.000000@0] linux,chunk-reserve: 0x000000007a200000 - 0x000000007e200000 (64 MiB)
[ 0.000000@0] linux,ion-dev: 0x0000000076200000 - 0x000000007a200000 (64 MiB)
[ 0.000000@0] linux,vdin1_cma: 0x0000000075000000 - 0x0000000076000000 (16 MiB)
[ 0.000000@0] cma: Reserved 16 MiB at 75000000, total cma pages:4096
[ 0.000000@0] linux,ppmgr: 0x0000000076200000 - 0x0000000076200000 (0 MiB)
[ 0.000000@0] linux,codec_mm_cma: 0x000000005ec00000 - 0x0000000073c00000 (336 MiB)
[ 0.000000@0] cma: Reserved 336 MiB at 5ec00000, total cma pages:90112
[ 0.000000@0] linux,picdec: 0x0000000076200000 - 0x0000000076200000 (0 MiB)
[ 0.000000@0] Reserved memory: incorrect alignment of CMA region
[ 0.000000@0] linux,codec_mm_reserved: 0x000000005ab00000 - 0x000000005ec00000 (65 MiB)
[ 0.000000@0] fdt Reserved memory total: 579 MiB
[ 0.000000@0] cma: Reserved 8 MiB at 74800000, total cma pages:92160
[ 0.000000@0] psci: Using PSCI v0.1 Function IDs from DT
[ 0.000000@0] PERCPU: Embedded 12 pages/cpu @ffffffc07616b000 s19968 r8192 d20992 u49152
[ 0.000000@0] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 511749
[ 0.000000@0] Kernel command line: rootfstype=ramfs init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xc81004c0 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 androidboot.selinux=permissive androidboot.selinux=permissive logo=osd1,loaded,0x3d800000,1080p60hz maxcpus=8 vout=1080p60hz,enable hdmimode=1080p60hz cvbsmode=576cvbs hdmitx= cvbsdrv=0 pq= androidboot.firstboot=1 jtag=apao,rgb0 androidboot.hardware=amlogic mac=00:79:18:00:00:1b androidboot.mac=00:79:18:00:00:1b androidboot.slot_suffix=_a
[ 0.000000@0] logo: osd1
[ 0.000000@0] logo: loaded
[ 0.000000@0] logo: 0x3d800000
[ 0.000000@0] logo: 1080p60hz
[ 0.000000@0] vout_serve: 1080p60hz
[ 0.000000@0] vout_serve: enable: 1
[ 0.000000@0] logo: get hdmimode: 1080p60hz
[ 0.000000@0] logo: get cvbsmode: 576cvbs
[ 0.000000@0] tv_vout: cvbs performance line = 0
[ 0.000000@0] [amvecm] pq string error !!!
[ 0.000000@0] jtag: jtag select 2
[ 0.000000@0] jtag: invalid cluster index -1
[ 0.000000@0] jtag: cluster index -1
[ 0.000000@0] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000@0] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes)
[ 0.000000@0] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000@0] Memory: 1421284K/2092032K available (10933K kernel code, 1237K rwdata, 4192K rodata, 1251K init, 3804K bss, 670748K reserved)
[ 0.000000@0] Virtual kernel memory layout:
[ 0.000000@0] vmalloc : 0xffffff8000000000 - 0xffffff8040000000 ( 1024 MB)
[ 0.000000@0] vmemmap : 0xffffff8040010000 - 0xffffff8042c10000 ( 44 MB)
[ 0.000000@0] modules : 0xffffffbffc000000 - 0xffffffc000000000 ( 64 MB)
[ 0.000000@0] memory : 0xffffffc000000000 - 0xffffffc080000000 ( 2048 MB)
[ 0.000000@0] .init : 0xffffffc001f47000 - 0xffffffc00207fe00 ( 1252 kB)
[ 0.000000@0] .text : 0xffffffc001080000 - 0xffffffc001f467e4 ( 15130 kB)
[ 0.000000@0] .data : 0xffffffc002080000 - 0xffffffc0021b57d0 ( 1238 kB)
[ 0.000000@0] PM: Registered nosave memory: [mem 0x01080000-0x01f45fff]
[ 0.000000@0] SLUB: HWalign=64, Order=0-1, MinObjects=0, CPUs=8, Nodes=1
[ 0.000000@0] arch_multi_cluster:1
[ 0.000000@0] Preemptible hierarchical RCU implementation.
[ 0.000000@0] NR_IRQS:64 nr_irqs:64 0
[ 0.000000@0] Architected cp15 timer(s) running at 24.00MHz (phys).
[ 0.000004@0] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 2863311519744ns
[ 0.008248@0] meson_bc_timer: mclk->mux_reg =ffffff8000014990,mclk->reg =ffffff8000016994
[ 0.016844@0] Console: colour dummy device 80x25
[ 0.021096@0] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)
[ 0.031672@0] pid_max: default: 32768 minimum: 301
[ 0.036581@0] Security Framework initialized
[ 0.040787@0] SELinux: Initializing.
[ 0.044531@0] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.051368@0] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.065352@0] Initializing cgroup subsys debug
[ 0.065391@0] Initializing cgroup subsys freezer
[ 0.068912@0] ftrace: allocating 37808 entries in 148 pages
[ 0.124902@0] /cpus/cpu@0: Missing clock-frequency property
[ 0.124942@0] /cpus/cpu@1: Missing clock-frequency property
[ 0.130524@0] /cpus/cpu@2: Missing clock-frequency property
[ 0.136155@0] /cpus/cpu@3: Missing clock-frequency property
[ 0.141726@0] /cpus/cpu@100: Missing clock-frequency property
[ 0.147508@0] /cpus/cpu@101: Missing clock-frequency property
[ 0.153277@0] /cpus/cpu@102: Missing clock-frequency property
[ 0.159058@0] /cpus/cpu@103: Missing clock-frequency property
[ 0.164826@0] hw perfevents: enabled with arm/armv8-pmuv3 PMU driver, 7 counters available
[ 0.215155@0] Meson chip version = RevA (22:A - 82:0)
[ 0.233548@1] CPU1: Booted secondary processor
[ 0.253525@2] CPU2: Booted secondary processor
[ 0.273529@3] CPU3: Booted secondary processor
[ 0.293570@4] CPU4: Booted secondary processor
[ 0.313562@5] CPU5: Booted secondary processor
[ 0.333585@6] CPU6: Booted secondary processor
[ 0.353613@7] CPU7: Booted secondary processor
[ 0.353705@0] Brought up 8 CPUs
[ 0.382525@0] SMP: Total of 8 processors activated.
[ 0.396558@2] sched: registering cpufreq notifiers for scale-invariant loads
[ 0.398082@2] instabooting: 0
[ 0.417468@2] cma: cma_init_reserved_areas, use_cma_first:1
[ 0.417573@2] pinctrl core: initialized pinctrl subsystem
[ 0.423573@2] regulator-dummy: no parameters
[ 0.428116@3] NET: Registered protocol family 16
[ 0.434292@2] ramoops: using module parameters
[ 0.436914@2] console [pstore-1] enabled
[ 0.440254@2] pstore: Registered ramoops as persistent store backend
[ 0.446625@2] ramoops: attached 0x100000@0x7300000, ecc: 0/0
[ 0.453358@2] cpuidle: using governor menu
[ 0.456709@2] aml_vdac_init: module init
[ 0.460531@2] register canvas platform driver
[ 0.464869@3] register rdma platform driver
[ 0.471129@3] vdso: 2 pages (1 code, 1 data) at base ffffffc002088000
[ 0.475478@3] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.482810@3] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.489701@3] software IO TLB [mem 0x56c00000-0x57000000] (4MB) mapped at [ffffffc056c00000-ffffffc056ffffff]
[ 0.498688@3] Serial: AMBA PL011 UART driver
[ 0.503683@2] aml_i2c version: 20140813
[ 0.507098@2] i2c-core: driver [pmu4] using legacy resume method
[ 0.513055@3] codec_mm:codec_mm_module_init
[ 0.517165@2] media_configs_system_init
[ 0.521101@2] aml_watch_point_probe, in
[ 0.525243@3] meson_mpll_clk: register mpll_clk_out0 success done
[ 0.530902@3] meson_mpll_clk: register mpll_clk_out1 success done
[ 0.537026@3] meson_mpll_clk: register mpll_clk_out2 success done
[ 0.543347@3] clk_sys: register PLL sys_pll success done
[ 0.548492@3] gxl_clk: [ xtal ] ->clockrate: 24000000Hz
[ 0.553812@3] gxl_clk: [ 32Khz ] ->clockrate: 32000Hz
[ 0.559015@3] gxl_clk: [ clk81 ] ->clockrate: 166666666Hz
[ 0.564487@3] gxl_clk: [ fixed_pll ] ->clockrate: 2000000000Hz
[ 0.570444@3] gxl_clk: [ fclk_div2 ] ->clockrate: 1000000000Hz
[ 0.576386@3] gxl_clk: [ fclk_div3 ] ->clockrate: 666666666Hz
[ 0.582262@3] gxl_clk: [ fclk_div4 ] ->clockrate: 500000000Hz
[ 0.588112@3] gxl_clk: [ fclk_div5 ] ->clockrate: 400000000Hz
[ 0.593980@3] gxl_clk: [ fclk_div7 ] ->clockrate: 285714285Hz
[ 0.599861@3] gxl_clk: clock initialization complete
[ 0.605018@3] clkmsr: Gxl msr_clk_reg0=ffffff800003c75c,msr_clk_reg2=ffffff800003e764
[ 0.615580@3] aml_iomap: amlogic iomap probe done
[ 0.618296@2] pinmux-gxl c1109880.pinmux: Init pinux probe!
[ 0.624351@3] pinmux-gxl c1109880.pinmux: Probed amlogic pinctrl driver
[ 0.630198@2] genirq: Setting trigger mode 8 for irq 241 failed (gic_set_type+0x0/0xbc)
[ 0.637753@2] genirq: Setting trigger mode 8 for irq 242 failed (gic_set_type+0x0/0xbc)
[ 0.645990@3] genirq: Setting trigger mode 8 for irq 241 failed (gic_set_type+0x0/0xbc)
[ 0.653871@3] genirq: Setting trigger mode 8 for irq 242 failed (gic_set_type+0x0/0xbc)
domain-0 init dvfs: 4
domain-1 init dvfs: 4
[ 0.674445@3] codec_mm has 2 memory regions
[ 0.674512@3] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_cma ok
[ 0.681122@3] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_reserved ok
[ 0.689771@2] codec_mm has 2 memory regions
[ 0.693826@2] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_cma ok
[ 0.701871@2] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_reserved ok
[ 0.713068@2] vpu: driver version: v04
[ 0.714126@2] vpu: load vpu_clk: 666667000Hz(7)
[ 0.718785@3] vpu: vpu_probe OK
[ 0.723632@2] tv_vout: tvout_probe
[ 0.725221@2] tv_vout: chrdev devno 266338304 for disp
[ 0.730378@2] vout_notify: vout_register_server
[ 0.735005@2] tv_vout: register tv module server ok
[ 0.740073@2] tv_vout: create cdev tv
[ 0.743505@2] tv_vout: tvout_probe OK
[ 0.747891@2] canvas_probe reg=00000000c8838000,size=400
[ 0.752545@2] canvas maped reg_base =ffffff800009a000
[ 0.761988@3] rdma_probe
[ 1.141434@2] bio: create slab <bio-0> at 0
[ 1.142699@3] SCSI subsystem initialized
[ 1.144669@3] usbcore: registered new interface driver usbfs
[ 1.149801@3] usbcore: registered new interface driver hub
[ 1.155376@2] usbcore: registered new device driver usb
[ 1.161497@3] i2c-gpio i2c_gpio.40: using pins 172 (SDA) and 173 (SCL)
[ 1.167297@2] Linux video capture interface: v2.00
[ 1.172637@2] pps_core: LinuxPPS API ver. 1 registered
[ 1.176982@2] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 1.186509@2] PTP clock support registered
[ 1.191156@2] hdmitx: system: Ver: 2014May6
[ 1.194863@2] hdmitx: amhdmitx_probe
[ 1.198781@2] hdmitx: hdmi_init_chip_type: 0
[ 1.202606@2] hdmitx hpd irq = 89
[ 1.206603@3] hdmitx20: Mapped PHY: 0xc1100000
[ 1.210339@3] hdmitx20: Mapped PHY: 0xc8834400
[ 1.214787@3] hdmitx20: Mapped PHY: 0xd0100000
[ 1.219254@3] hdmitx20: Mapped PHY: 0xc8100000
[ 1.223764@3] hdmitx20: Mapped PHY: 0xc883c000
[ 1.228168@3] hdmitx20: Mapped PHY: 0xc1104400
[ 1.232628@3] hdmitx20: Mapped PHY: 0xc883a000
[ 1.237099@3] hdmitx20: Mapped PHY: 0xda83a000
[ 1.241554@3] hdmitx20: Mapped PHY: 0xd0044000
[ 1.246020@3] hdmitx: alread display in uboot 0x10
[ 1.250949@3] avmute set to 1
[ 1.253809@3] hdmitx: attr 444,8bit
[ 1.257746@2] vout_serve: vout_init_module
[ 1.261571@2] tv_vout: tv_set_current_vmode[925]fps_target_mode=19
[ 1.264664@0] hdmitx: system: irq 80000002
[ 1.271758@2] tv_vout: mode is 19,sync_duration_den=1,sync_duration_num=60
[ 1.278662@2] tv_vout: already display in uboot
[ 1.283216@2] vout_serve: vinfo mode is: 1080p60hz
[ 1.288015@2] vout_serve: init mode 1080p60hz
[ 1.292673@2] vout_serve: create_vout_fops OK
[ 1.296779@2] vout_serve: create vout attribute OK
[ 1.301577@2] vout_serve: meson_vout_probe OK
[ 1.306182@2] logo: logo_init
[ 1.309401@2] osd_rdma: osd_rdma_init: rdma_table p=0x74841000,op=0x74841000 , v=0xffffff80000b9000
[ 1.318059@2] rdma_register, rdma_table_addr ffffff80000c9000 rdma_table_addr_phy 74842000 reg_buf ffffffc0569d0000
[ 1.328548@2] rdma_register success, handle 1 table_size 4096
[ 1.334303@2] osd_rdma: osd_rdma_init:osd reset rdma handle = 1.
[ 1.340379@2] rdma_register, rdma_table_addr ffffff80000d9000 rdma_table_addr_phy 74843000 reg_buf ffffffc0569d8000
[ 1.350857@2] rdma_register success, handle 2 table_size 4096
[ 1.356615@2] osd_rdma: osd_rdma_init:osd rdma handle = 2.
[ 1.362656@2] Advanced Linux Sound Architecture Driver Initialized.
[ 1.369130@2] Bluetooth: Core ver 2.18
[ 1.372340@1] NET: Registered protocol family 31
[ 1.376857@1] Bluetooth: HCI device and connection manager initialized
[ 1.383403@1] Bluetooth: HCI socket layer initialized
[ 1.388476@1] Bluetooth: L2CAP socket layer initialized
[ 1.393773@1] Bluetooth: SCO socket layer initialized
[ 1.398818@1] NetLabel: Initializing
[ 1.402377@1] NetLabel: domain hash size = 128
[ 1.406927@1] NetLabel: protocols = UNLABELED CIPSOv4
[ 1.412147@1] NetLabel: unlabeled traffic allowed by default
[ 1.420401@2] Switched to clocksource arch_sys_counter
[ 1.464888@2] register gxtv_demod demod driver
[ 1.465323@1] [amlatvdemod..]aml_atvdemod_init.
[ 1.468425@1] NET: Registered protocol family 2
[ 1.473488@1] TCP established hash table entries: 16384 (order: 5, 131072 bytes)
[ 1.480467@1] TCP bind hash table entries: 16384 (order: 6, 262144 bytes)
[ 1.487375@1] TCP: Hash tables configured (established 16384 bind 16384)
[ 1.493962@1] TCP: reno registered
[ 1.497289@1] UDP hash table entries: 1024 (order: 3, 32768 bytes)
[ 1.503543@1] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes)
[ 1.510423@1] NET: Registered protocol family 1
[ 1.514979@1] RPC: Registered named UNIX socket transport module.
[ 1.521125@1] RPC: Registered udp transport module.
[ 1.525718@1] RPC: Registered tcp transport module.
[ 1.530629@1] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 1.537428@1] pwm: output_co = 16 ; clock_co = 8
[ 1.541947@1] pwm: npwm= 16
[ 1.544956@2] pwm: probe ok
[ 1.547931@2] wifi: power_on_pin_OD = 0;
[ 1.551468@2] aml_wifi wifi.35: [wifi_dev_probe] no power_on_pin2
[ 1.557601@2] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm phandle val=42;pwm-channel1=4;pwm-channel2=12
[ 1.567642@2] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[0] = 30541
[ 1.575383@2] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[0] = 30518
[ 1.583039@2] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[1] = 15270
[ 1.590790@2] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[1] = 15259
[ 1.598448@2] hdmitx: plugin
[ 1.600419@3] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[2] = 6
[ 1.600423@3] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[2] = 9
[ 1.600426@3] aml_wifi wifi.35: [pwm_double_channel_conf_dt] wifi pwm dt ok
[ 1.600446@3] aml_wifi wifi.35: [pwm_double_channel_conf] wifi pwm conf ok
[ 1.600501@3] aml_wifi wifi.35: [wifi_dev_probe] dhd_static_buf setup
[ 1.600573@3] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem: WIFI MEM Allocated
[ 1.600577@3] aml_wifi wifi.35: [wifi_dev_probe] interrupt_pin=241
[ 1.600582@3] aml_wifi wifi.35: [wifi_dev_probe] irq_num=100, irq_trigger_type=1
[ 1.600585@3] aml_wifi wifi.35: [wifi_dev_probe] power_on_pin=240
[ 1.600589@3] aml_wifi wifi.35: [wifi_dev_probe] clock_32k_pin=0
[ 1.600894@1] aml_wifi wifi.35: [wifi_setup_dt] wifi_setup_dt
[ 1.600929@1] aml_wifi wifi.35: [wifi_setup_dt] interrupt_pin(241)
[ 1.600942@1] aml_wifi wifi.35: [wifi_setup_dt] power_on_pin(240)
[ 1.601304@3] Unpacking initramfs...
[ 1.659974@1] Freeing initrd memory: 1440K (ffffffc073d3f000 - ffffffc073ea7000)
[ 1.665510@1] futex hash table entries: 2048 (order: 5, 131072 bytes)
[ 1.665589@1] Initialise system trusted keyring
[ 1.665631@1] audit: initializing netlink subsys (disabled)
[ 1.665668@1] audit: type=2000 audit(1.590:1): initialized
[ 1.666589@3] HugeTLB registered 2 MB page size, pre-allocated 0 pages
[ 1.674319@3] VFS: Disk quotas dquot_6.5.2
[ 1.674571@1] Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 1.679860@3] NFS: Registering the id_resolver key type
[ 1.679905@3] Key type id_resolver registered
[ 1.679907@3] Key type id_legacy registered
[ 1.679928@3] NTFS driver 2.1.30 [Flags: R/O].
[ 1.680313@3] jffs2: version 2.2. (NAND) (SUMMARY) ? 2001-2006 Red Hat, Inc.
[ 1.681212@0] fuse init (API version 7.22)
[ 1.681906@0] msgmni has been set to 3498
[ 1.773445@3] NET: Registered protocol family 38
[ 1.776766@3] Key type asymmetric registered
[ 1.781087@3] Asymmetric key parser 'x509' registered
[ 1.786520@3] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 246)
[ 1.793747@3] io scheduler noop registered
[ 1.797843@3] io scheduler deadline registered
[ 1.802600@0] io scheduler cfq registered (default)
[ 1.828999@2] EDID Parser:
[ 1.829062@2] hdmitx: get dtd0 vic: 16
[ 1.829900@2] dump_dtd_info[1812]
[ 1.833241@2] pixel_clock 14625
[ 1.836372@2] h_active 1680
[ 1.839169@2] h_blank 560
[ 1.841809@2] v_active 1050
[ 1.844596@2] v_blank 39
[ 1.847132@2] h_sync_offset 104
[ 1.850281@2] h_sync 176
[ 1.852864@2] v_sync_offset 3
[ 1.855797@2] v_sync 6
[ 1.858174@2] dump_dtd_info[1812]
[ 1.859576@1] meson-rng c8834000.rng: hwrng registered
[ 1.863502@1] loop: module loaded
[ 1.864102@0] zram: Created 1 device(s) ...
[ 1.865157@0] mtdoops: mtd device (mtddev=name/number) must be supplied
[ 1.865931@1] tun: Universal TUN/TAP device driver, 1.6
[ 1.865933@1] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 1.892508@2] pixel_clock 7425
[ 1.895521@2] h_active 1280
[ 1.898318@2] h_blank 371
[ 1.900951@2] v_active 720
[ 1.903656@2] v_blank 30
[ 1.906193@2] h_sync_offset 56
[ 1.909255@2] h_sync 136
[ 1.911808@2] v_sync_offset 1
[ 1.914771@2] v_sync 5
[ 1.917132@2] hdmitx: edid: find IEEEOUT
[ 1.921099@2]
[ 1.922736@2] hdmitx: update rx hdr info 0 at edid parsing
[ 1.928287@2] 00ffffffffffff001e6de176010101010118010380462778eaf353a554519326
[ 1.928287@2] 124849230800010181c08100818095009040a9c0b300023a801871382d40582c
[ 1.928287@2] 4500ba882100001a21399030621a274068b03600ba882100001c000000fd0038
[ 1.928287@2] 3d1e530f000a202020202020000000fc0033324d42323556510a202020200118
[ 1.928287@2]
[ 1.928287@2]
[ 1.960671@2] 02031df149840503021d00101113230907078301000066030c00100080011d00
[ 1.960671@2] 7351d01e203888150056502100001e011d8018711c1620582c25005650210000
[ 1.960671@2] 9e011d80d0721c1620102c2580c48e2100009e023a80d072382d40102c452006
[ 1.960671@2] 442100001e023a801871382d40582c450056502100001e000000000000000048
[ 1.960671@2]
[ 1.960671@2]
[ 1.992479@3] libphy: stmmac: probed
[ 1.992484@3] eth0: PHY ID 001cc916 at 0 IRQ POLL (stmmac-0:00) active
[ 1.992488@3] eth0: PHY ID 001cc916 at 7 IRQ POLL (stmmac-0:07)
[ 1.992960@3] PPP generic driver version 2.4.2
[ 1.993168@3] PPP BSD Compression module registered
[ 1.993169@3] PPP Deflate Compression module registered
[ 1.993188@3] PPP MPPE Compression module registered
[ 1.993191@3] NET: Registered protocol family 24
[ 1.993335@1] usbcore: registered new interface driver asix
[ 1.993494@3] usbcore: registered new interface driver ax88179_178a
[ 1.993624@1] usbcore: registered new interface driver cdc_ether
[ 1.993734@3] usbcore: registered new interface driver net1080
[ 1.993838@1] usbcore: registered new interface driver cdc_subset
[ 1.993944@3] usbcore: registered new interface driver zaurus
[ 1.994075@1] usbcore: registered new interface driver cdc_ncm
[ 1.994392@1] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.994395@1] ehci-h20ahb: H20AHB-EHCI Host Controller driver
[ 1.994642@3] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.995027@3] usbcore: registered new interface driver cdc_acm
[ 1.995029@3] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 1.995149@1] usbcore: registered new interface driver usb-storage
[ 1.995392@1] usbcore: registered new interface driver usbserial
[ 1.996128@3] amlogic-new-usb2 d0078000.usb2phy: USB2 phy probe:phy_mem:0xd0078000, iomap phy_base:0xffffff800010e000
[ 1.996371@1] amlogic-new-usb3 d0078080.usb3phy: This phy has no usb port
[ 1.996389@1] amlogic-new-usb3 d0078080.usb3phy: USB3 phy probe:phy_mem:0xd0078080, iomap phy_base:0xffffff800011a080
[ 1.997040@1] mousedev: PS/2 mouse device common for all mice
[ 1.997527@3] usbcore: registered new interface driver xpad
[ 1.997736@3] i2c /dev entries driver
[ 1.998241@1] IR NEC protocol handler initialized
[ 1.998243@1] IR RC5(x) protocol handler initialized
[ 1.998244@1] IR RC6 protocol handler initialized
[ 1.998245@1] IR JVC protocol handler initialized
[ 1.998246@1] IR Sony protocol handler initialized
[ 1.998248@1] IR RC5 (streamzap) protocol handler initialized
[ 1.998249@1] IR SANYO protocol handler initialized
[ 1.998251@1] IR MCE Keyboard/mouse protocol handler initialized
[ 1.998387@3] usbcore: registered new interface driver uvcvideo
[ 1.998389@3] USB Video Class driver (1.1.1)
[ 1.998496@1] usbcore: registered new interface driver cx231xx
[ 1.998499@1] cx231xx: Cx231xx dvb Extension initialized
[ 1.999398@1] device-mapper: ioctl: 4.27.0-ioctl (2013-10-30) initialised: dm-devel@redhat.com
[ 1.999542@1] Bluetooth: HCI UART driver ver 2.2
[ 1.999545@1] Bluetooth: HCI H4 protocol initialized
[ 1.999889@1] cpu cpu0: bL_cpufreq_init: CPU 0 initialized
[ 2.002129@0] cpu cpu4: bL_cpufreq_init: CPU 4 initialized
[ 2.002295@0] arm_big_little: bL_cpufreq_register: Registered platform driver: scpi
[ 2.002596@3] CPUidle arm64: cpuidle init start!!
[ 2.267245@2] hdmitx: video: get current mode: 1080p60hz
[ 2.267689@3] CPUidle arm64: cpuidle init done!
[ 2.268692@0] @@@@@@@@@@_____2______in dia_init()
[ 2.268945@0] ATVR driver - init called!
[ 2.268945@0] usbcore: registered new interface driver usbhid
[ 2.268946@0] usbhid: USB HID core driver
[ 2.269324@0] ashmem: initialized
[ 2.269487@3] logger: created 256K log 'log_main'
[ 2.269616@0] logger: created 256K log 'log_events'
[ 2.269745@3] logger: created 256K log 'log_radio'
[ 2.269868@0] logger: created 256K log 'log_system'
[ 2.271149@3] meson_uart c81004c0.serial: ==uart0 reg addr = ffffff800011c4c0
[ 2.271171@3] c81004c0.serial: ttyS0 at MMIO 0xc81004c0 (irq = 225, base_baud = 1500000) is a meson_uart
[ 2.334954@2] hdmitx: update rx hdr info 0
[ 2.339057@2] hdmitx: update physcial size: 700 390
[ 2.343975@2] hdmitx: system: [set_disp_mode_auto] ALREADY init VIC = 16
[ 2.350704@2] hdmtix: set audio
[ 2.353851@2] hdmitx tx_aud_src = 0
[ 2.357364@2] hdmitx: fs = 0, cd = 4, tmds_clk = 148500
[ 2.362600@2] hdmitx aud_n_para = 6144
[ 2.371875@3] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 0 to 115200
[ 2.374506@3] console [ttyS0] enabled
[ 2.374506@3] console [ttyS0] enabled
[ 2.382063@3] bootconsole [earlycon0] disabled
[ 2.382063@3] bootconsole [earlycon0] disabled
[ 2.390914@2] meson_uart c11084c0.serial: ==uart1 reg addr = ffffff800011e4c0
[ 2.397546@2] c11084c0.serial: ttyS1 at MMIO 0xc11084c0 (irq = 58, base_baud = 1500000) is a meson_uart
[ 2.407329@3] meson-gpu-clkgen c883c000.gpu_clk: can't request region for resource [mem 0xc883c000-0xc883cfff]
[ 2.416805@3] meson-gpu-clkgen: probe of c883c000.gpu_clk failed with error -16
[ 2.424624@3] hdmitx_hdcp_init
[ 2.428399@0] aml_vrtc rtc.34: rtc core: registered aml_vrtc as rtc0
[ 2.433755@0] BLASTER Driver Init
[ 2.437289@0] secmon has 1 memory regions
[ 2.440658@0] secmon: share in base: 0xffffff800013a000, share out base: 0xffffff800013c000
[ 2.448847@0] secmon secmon.4: assigned reserved memory node linux,secmon ok
[ 2.455854@0] secmon: probe done
[ 2.459380@2] storage: storage in base: 0xffffff8001800000
[ 2.464480@2] storage: storage out base: 0xffffff8001880000
[ 2.469972@2] storage: storage block base: 0xffffff8001900000
[ 2.475671@2] storage: probe done!
[ 2.479605@3] aml_sd_emmc_probe: line 3608
[ 2.483106@3] mmc driver version: 1.07, 2017-4-26: Support new emmc host controller for version 3
[ 2.492397@3] aml_sd_emmc_reg_init 1152
[ 2.495736@3] get property: ocr_avail, value:0x00200080
[ 2.502160@3] get property: f_min, value:300000
[ 2.508269@3] get property: f_max, value:100000000
[ 2.514658@3] get property: max_req_size, value:0x00020000
[ 2.521130@3] get property: pinname, str:emmc
[ 2.526900@3] get property: card_type, value:1
[ 2.532626@3] get property: gpio_dat3, str:
[ 2.538025@3] get property: hw_reset, str:
[ 2.543495@3] emmc:pdata->caps = c0000d47
[ 2.547430@3] emmc:pdata->caps2 = 18060
[ 2.551235@3] emmc:pdata->pm_caps = 0
[ 2.554857@3] storage 1, boot 1
[ 2.557947@3] get_storage_dev return 1
[ 2.600417@3] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 2.600641@3] aml_sd_emmc_probe: line 3608
[ 2.605044@3] aml_sd_emmc_reg_init 1152
[ 2.608507@3] get property: ocr_avail, value:0x00200080
[ 2.614939@3] get property: f_min, value:400000
[ 2.621057@3] get property: f_max, value:40000000
[ 2.627345@3] get property: max_req_size, value:0x00020000
[ 2.633840@3] get property: irq_in, value:3
[ 2.639509@3] get property: irq_out, value:5
[ 2.645246@3] get property: gpio_cd, str:
[ 2.650652@3] get property: pinname, str:sd
[ 2.656241@3] get property: jtag_pin, str:
[ 2.661709@3] get property: card_type, value:5
[ 2.667374@3] get property: gpio_dat3, str:
[ 2.672818@3] sd:pdata->caps = 7
[ 2.675990@3] sd:pdata->caps2 = 0
[ 2.679267@3] sd:pdata->pm_caps = 0
[ 2.696205@0] emmc: BKOPS_EN bit is not set
[ 2.703851@0] emmc: trying cali 0-th time(s)
[ 2.712964@0] emmc: delay[0]= 3750 padding= 1, bidx=3
[ 2.712997@0] emmc: delay[1]= 3750 padding= 1, bidx=3
[ 2.717381@0] emmc: delay[2]= 3750 padding= 1, bidx=3
[ 2.720967@3] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 2.721007@3] aml_sd_emmc_probe: line 3608
[ 2.721545@3] aml_sd_emmc_reg_init 1152
[ 2.721601@3] get property: ocr_avail, value:0x00200080
[ 2.721604@3] get property: f_min, value:400000
[ 2.721606@3] get property: f_max, value:200000000
[ 2.721608@3] get property: max_req_size, value:0x00020000
[ 2.721614@3] get property: pinname, str:sdio
[ 2.721617@3] get property: card_type, value:3
[ 2.721658@3] sdio:pdata->caps = 7810f
[ 2.721659@3] sdio:pdata->caps2 = 0
[ 2.721663@3] sdio:pdata->pm_caps = 1
[ 2.760407@3] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 2.760734@3] ion_dev has 1 memory regions
[ 2.760765@3] ion_dev_mem_init size=0x4000000
[ 2.788733@1] ion_chunk_heap_create: base 2048917504 size 67108864 align 0
[ 2.802301@3] fb: osd_init_module
[ 2.802430@3] fb: viu vsync irq: 35
[ 2.802436@3] fb: failed to init reserved memory
[ 2.802438@3] fb: osd_set_free_scale_mode_hw
[ 2.802450@3] fb: osd_probe vinfo:ffffffc002136500
[ 2.802454@3] fb: init fbdev bpp is:32
[ 2.828717@0] emmc: delay[3]= 4000 padding= 4, bidx=4
[ 2.828770@4] [aml_is_card_insert] card OUT
[ 2.828867@5] [aml_is_card_insert] card OUT
[ 2.841965@0] emmc: delay[4]= 4000 padding= 4, bidx=4
[ 2.842004@3] fb: set osd0 reverse as NONE
[ 2.850988@0] emmc: delay[5]= 4000 padding= 4, bidx=4
[ 2.855999@3] fb: osd probe OK
[ 2.856006@0] emmc: delay[6]= 3750 padding= 1, bidx=3
[ 2.856008@0] emmc: delay[7]= 4000 padding= 4, bidx=4
[ 2.856010@0] emmc: calibration result @ 0: max(4000), min(3750)
[ 2.856013@0] emmc: line_delay =0x1000111, max_cal_result =4000
[ 2.856015@0] emmc: base_index_max 4, base_index_min 3
[ 2.856022@0] emmc: clk 100000000 SDR mode tuning start
[ 2.858819@0] emmc: rx_tuning_result[0] = 10
[ 2.861178@0] emmc: rx_tuning_result[1] = 10
[ 2.863941@0] emmc: rx_tuning_result[2] = 10
[ 2.866533@0] emmc: rx_tuning_result[3] = 10
[ 2.869122@0] emmc: rx_tuning_result[4] = 10
[ 2.871557@0] emmc: rx_tuning_result[5] = 10
[ 2.874324@0] emmc: rx_tuning_result[6] = 10
[ 2.876927@0] emmc: rx_tuning_result[7] = 10
[ 2.879777@0] emmc: rx_tuning_result[9] = 10
[ 2.879780@0] emmc: best_win_start =9, best_win_size =9
[ 2.879783@0] emmc: sd_emmc_regs->gclock=0x100024a,sd_emmc_regs->gadjust=0x32000
[ 2.879788@0] emmc: gclock =0x100024a, gdelay=0x1000111, gadjust=0x32000
[ 2.880600@0] emmc: support driver strength type 1
[ 2.881117@0] emmc: try set sd/emmc to DDR mode
[ 2.881129@0] emmc: try set sd/emmc to DDR mode
[ 2.881961@0] emmc: new HS400 MMC card at address 0001
[ 2.882670@1] emmc: clock 100000000, 8-bit-bus-width
[ 2.882670@1]
[ 2.882671@1] mmcblk0: emmc:0001 MBG4GC 29.1 GiB
[ 2.882803@1] mmcblk0boot0: emmc:0001 MBG4GC partition 1 4.00 MiB
[ 2.882919@1] mmcblk0boot1: emmc:0001 MBG4GC partition 2 4.00 MiB
[ 2.883041@1] mmcblk0rpmb: emmc:0001 MBG4GC partition 3 4.00 MiB
[ 2.883835@0] mmcblk0: p1 p2
[ 2.884399@1] Delete invalid mbr partition part ffffffc0572c1800, part->partno 1
[ 2.884515@0] Delete invalid mbr partition part ffffffc0572c0c00, part->partno 2
[ 2.885019@1] [mmc_read_partition_tbl] mmc read partition OK!
[ 2.885020@1] add_emmc_partition
[ 2.885175@0] [mmcblk0p01] bootloader offset 0x000000000000, size 0x000000400000
[ 2.885302@1] [mmcblk0p02] reserved offset 0x000002400000, size 0x000004000000
[ 2.885428@0] [mmcblk0p03] cache offset 0x000006c00000, size 0x000020000000
[ 2.885552@1] [mmcblk0p04] env offset 0x000027400000, size 0x000000800000
[ 2.885683@0] [mmcblk0p05] logo offset 0x000028400000, size 0x000002000000
[ 2.885815@1] [mmcblk0p06] recovery offset 0x00002ac00000, size 0x000002000000
[ 2.885933@0] [mmcblk0p07] rsv offset 0x00002d400000, size 0x000000800000
[ 2.886056@1] [mmcblk0p08] tee offset 0x00002e400000, size 0x000000800000
[ 2.886184@0] [mmcblk0p09] crypt offset 0x00002f400000, size 0x000002000000
[ 2.886308@1] [mmcblk0p10] misc offset 0x000031c00000, size 0x000002000000
[ 2.886432@0] [mmcblk0p11] boot offset 0x000034400000, size 0x000002000000
[ 2.886552@1] [mmcblk0p12] system offset 0x000036c00000, size 0x000080000000
[ 2.886673@0] [mmcblk0p13] stbinfo offset 0x0000b7400000, size 0x000001400000
[ 2.886797@1] [mmcblk0p14] systembak offset 0x0000b9000000, size 0x000025800000
[ 2.886920@0] [mmcblk0p15] data offset 0x0000df000000, size 0x000668c00000
[ 2.886949@0] card key: card_blk_probe.
[ 2.886953@0] emmc_key_init:527 emmc key lba_start:0x12020,lba_end:0x12220
[ 2.886956@0] emmc key: emmc_key_init:552 ok.
[ 2.889500@0] amlmmc_dtb_init: register dtb chardev
[ 2.889500@0] calc 76807894, store 76807894
[ 2.891789@0] calc 76807894, store 76807894
[ 2.891791@0] total valid 2
[ 2.892247@1] amlmmc_dtb_init: register dtb chardev OK
[ 2.892248@1] Exit aml_emmc_partition_ops OK.
[ 2.893268@0] mmcblk0boot1: unknown partition table
[ 2.894072@0] mmcblk0boot0: unknown partition table
[ 2.894335@1] clear_emmc_wait_flag
[ 3.202075@3] ge2d: ge2d_init_module
[ 3.205307@3] ge2d: ge2d_dev major:241
[ 3.209377@2] ge2d: vpu clock is 666660000 HZ
[ 3.213351@2] ge2d: ge2d clock is 400 MHZ
[ 3.217294@2] ge2d: ge2d: pdev=ffffffc05718d800, irq=182, rstc=0xffffffc057266700, clk=ffffffc057188000
[ 3.226646@2] ge2d: mapped phy: 0xd0160000
[ 3.230667@2] ge2d: ge2d start monitor
[ 3.234413@3] ge2d: ge2d workqueue monitor start
[ 3.234675@2] sysled: module init
[ 3.234806@2] sysled: led_gpio = 228
[ 3.234807@2] sysled: active_low = 0
[ 3.234829@2] sysled: red_led_pin_num = 2861796312
[ 3.234831@2] ------------[ cut here ]------------
[ 3.234845@2] WARNING: CPU: 2 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.234847@2] invalid GPIO -1433170984
[ 3.234850@2] Modules linked in:
[ 3.234856@2] CPU: 2 PID: 1 Comm: swapper/0 Not tainted 3.14.29-g9179730-dirty #10
[ 3.234858@2] Call trace:
[ 3.234866@2] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.234870@2] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.234875@2] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.234880@2] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.234884@2] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.234887@2] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.234890@2] [<ffffffc001441d54>] gpio_request+0x20/0x38
[ 3.234896@2] [<ffffffc0017356f8>] aml_sysled_probe+0x16c/0x32c
[ 3.234902@2] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.234907@2] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.234910@2] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.234915@2] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.234919@2] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.234922@2] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.234927@2] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.234930@2] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.234936@2] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.234940@2] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.234945@2] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.234950@2] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.234966@2] ---[ end trace 5ad01177c38ba718 ]---
[ 3.234968@2] gpiod_request: invalid GPIO
[ 3.234969@2] ------------[ cut here ]------------
[ 3.234974@2] WARNING: CPU: 2 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.234975@2] invalid GPIO -1433170984
[ 3.234976@2] Modules linked in:
[ 3.234979@2] CPU: 2 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.234980@2] Call trace:
[ 3.234984@2] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.234987@2] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.234990@2] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.234994@2] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.234997@2] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.235000@2] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.235003@2] [<ffffffc001735700>] aml_sysled_probe+0x174/0x32c
[ 3.235007@2] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.235010@2] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.235014@2] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.235018@2] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.235021@2] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.235025@2] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.235029@2] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.235032@2] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.235035@2] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.235038@2] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.235041@2] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.235044@2] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.235046@2] ---[ end trace 5ad01177c38ba719 ]---
[ 3.235047@2] gpiod_direction_output: invalid GPIO
[ 3.235049@2] sysled: mcu_pin_num = 2861796312
[ 3.235050@2] ------------[ cut here ]------------
[ 3.235054@2] WARNING: CPU: 2 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.235056@2] invalid GPIO -1433170984
[ 3.235057@2] Modules linked in:
[ 3.235060@2] CPU: 2 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.235061@2] Call trace:
[ 3.235064@2] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.235068@2] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.235070@2] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.235074@2] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.235077@2] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.235080@2] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.235083@2] [<ffffffc001441d54>] gpio_request+0x20/0x38
[ 3.235087@2] [<ffffffc001735744>] aml_sysled_probe+0x1b8/0x32c
[ 3.235090@2] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.235093@2] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.235097@2] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.235101@2] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.235104@2] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.235108@2] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.235111@2] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.235114@2] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.235117@2] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.235120@2] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.235124@2] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.235127@2] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.235128@2] ---[ end trace 5ad01177c38ba71a ]---
[ 3.235129@2] gpiod_request: invalid GPIO
[ 3.235130@2] ------------[ cut here ]------------
[ 3.235134@2] WARNING: CPU: 2 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.235136@2] invalid GPIO -1433170984
[ 3.235137@2] Modules linked in:
[ 3.235140@2] CPU: 2 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.235141@2] Call trace:
[ 3.235145@2] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.235148@2] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.235151@2] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.235154@2] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.235157@2] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.235161@2] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.235164@2] [<ffffffc00173574c>] aml_sysled_probe+0x1c0/0x32c
[ 3.235167@2] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.235171@2] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.235174@2] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.235178@2] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.235181@2] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.235185@2] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.235189@2] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.235192@2] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.235195@2] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.235197@2] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.235201@2] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.235204@2] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.235205@2] ---[ end trace 5ad01177c38ba71b ]---
[ 3.235206@2] gpiod_direction_output: invalid GPIO
[ 3.235370@0] sysled: edwin---> add flash_led_timer
[ 3.235373@0] sysled: Starting timer to fire in 50ms (4294937613)
[ 3.235378@0] sysled: module probed ok
[ 3.235848@0] pwmled: module init
[ 3.235860@0] edwin---> hbs658_init!!
[ 3.236167@2] codec:Amlogic A/V streaming port init
[ 3.238220@2] codec:get gate demux control ok ffffffc0570a1e80
[ 3.238227@2] codec:get gate parser_top control ok ffffffc0561a9540
[ 3.238231@2] codec:get gate vpu_intr control ok ffffffc0561a9340
[ 3.238237@2] codec:get gate vdec control ok ffffffc0561a9080
[ 3.239065@2] codec:[tsync_pcr_init]init success.
[ 3.239090@2] codec:amvideocap_init_module
[ 3.239244@2] codec:amvideocap_probe,amvideocap
[ 3.239247@2] codec:use cma buf.
[ 3.239249@2] codec:amvideocap_dev_register
[ 3.239924@0] codec:amvdec_mmpeg4 module init
[ 3.240289@2] ammvdec_h264 module init
[ 3.241966@1] amvenc_avc_probe -- reserved memory config fail.
[ 3.241969@1] amvenc_avc - cma memory pool size: 40 MB
[ 3.241991@1] encode_wq_init.
[ 3.241996@1] encode start monitor.
[ 3.242053@0] encode workqueue monitor start.
[ 3.242425@2] jpegenc module init
[ 3.242759@1] codec:picdec_driver_probe called.
[ 3.242762@1] picdec has 1 memory regions
[ 3.242792@1] codec:picdec_driver_probe done.
[ 3.243612@2] codec:vdec_request_irq ffffffc0017a624c, vsync
[ 3.243832@1] codec:create_ge2d_work_queue video task ok
[ 4.001688@2] rdma_register, rdma_table_addr ffffff8000256000 rdma_table_addr_phy 74850000 reg_buf ffffffc056370000
[ 4.011975@2] rdma_register success, handle 3 table_size 32768
[ 4.017687@2] video_rdma:rdma_init video rdma handle = 3.
[ 4.023047@2] codec:used fix clk for vdec clk source!
[ 4.028041@2] codec:register clk_set_setting cpu[34]
[ 4.033585@2] vpu_init
[ 4.035468@2] vpu_probe
[ 4.037698@2] HevcEnc reserved memory config fail.
[ 4.042495@2] HevcEnc - cma memory pool size: 64 MB
[ 4.047272@2] HevcEnc - wave420l_irq: 219
[ 4.051288@2] vpu base address get from platform driver physical base addr=0xc8810000, virtual base=0xffffff80003d8000
[ 4.062368@1] success to probe vpu device with video memory from cma
[ 4.068458@1] DI: di_module_init ok.
[ 4.071723@1] DI: di_module_init: major 234
[ 4.076066@2] DI: di_probe
[ 4.078616@2] deinterlace has 1 memory regions
[ 4.082958@2] deinterlace deinterlace.26: assigned reserved memory node linux,di ok
[ 4.090516@2] DI-di_probe: get flag_cma error.
[ 4.094900@2] di_irq:78,timerc_irq:38
[ 4.098684@2] rdma_register, rdma_table_addr ffffff800019b000 rdma_table_addr_phy 7484a000 reg_buf ffffffc056382000
[ 4.108864@2] rdma_register success, handle 4 table_size 8192
[ 4.114554@2] DI: di_probe allocate rdma channel 4.
[ 4.119378@2] DI: DI hw version 2.
[ 4.122808@2] 0x000000db:Y=db,U=0,V=0
[ 4.126361@2] 0x000000dc:Y=dc,U=0,V=0
[ 4.129983@2] 0x000000dd:Y=dd,U=0,V=0
[ 4.133613@2] 0x000000de:Y=de,U=0,V=0
[ 4.137228@2] 0x000000df:Y=df,U=0,V=0
[ 4.140858@2] 0x000000e0:Y=e0,U=0,V=0
[ 4.144473@2] 0x000000e1:Y=e1,U=0,V=0
[ 4.148095@2] 0x000000e2:Y=e2,U=0,V=0
[ 4.151724@2] 0x000000e3:Y=e3,U=0,V=0
[ 4.155340@2] 0x000000f0:Y=f0,U=0,V=0
[ 4.158966@2] 0x000000f1:Y=f1,U=0,V=0
[ 4.162591@2] 0x000000f2:Y=f2,U=0,V=0
[ 4.166208@2] 0x000000f3:Y=f3,U=0,V=0
[ 4.169830@2] 0x000000f4:Y=f4,U=0,V=0
[ 4.173471@2] 0x000000f5:Y=f5,U=0,V=0
[ 4.177078@2] 0x000000f6:Y=f6,U=0,V=0
[ 4.180717@2] 0x000000f7:Y=f7,U=0,V=0
[ 4.184321@2] 0x000000f8:Y=f8,U=0,V=0
[ 4.187944@2] 0x000000f9:Y=f9,U=0,V=0
[ 4.191577@2] 0x000000fa:Y=fa,U=0,V=0
[ 4.195189@2] 0x000000fb:Y=fb,U=0,V=0
[ 4.198810@2] 0x000000fc:Y=fc,U=0,V=0
[ 4.202446@2] 0x000000fd:Y=fd,U=0,V=0
[ 4.206056@2] 0x000000fe:Y=fe,U=0,V=0
[ 4.209678@2] 0x000000ff:Y=ff,U=0,V=0
[ 4.213309@2] DI: support multi decoding 253~254~255.
[ 4.218856@1] efusekeynum: 4
[ 4.221200@1] efusekeyname: mac offset: 0 size: 6
[ 4.227536@1] efusekeyname: mac_bt offset: 6 size: 6
[ 4.233951@1] efusekeyname: mac_wifi offset: 12 size: 6
[ 4.240303@1] efusekeyname: usid offset: 18 size: 16
[ 4.247118@2] efuse efuse.10: probe OK!
[ 4.250949@1] key unify config unifykey-num is 14
[ 4.255177@1] key unify fact unifykey-num is 14
[ 4.259620@1] aml_unifykeys_probe:1280=============unifykey_devno:e800000
[ 4.266647@2] 6unifykey: device unifykeys created ok
[ 4.271550@1] 6aml_unifykeys_init done!
[ 4.275230@1] PPMGRDRV: warn: ppmgr module init func called
[ 4.280903@1] PPMGRDRV: err: ppmgr_driver_probe called
[ 4.285839@1] ppmgr has 1 memory regions
[ 4.289754@1] PPMGRDRV: info: ppmgr_dev major:231
[ 4.294680@2] PPMGRDRV: info: ppmgr_probe done
[ 4.299255@2] amlogic rfkill init
[ 4.302218@2] enter bt_probe of_node
[ 4.305606@2] not get gpio_en
[ 4.308521@2] power on valid level is high
[ 4.312433@2] bt: power_on_pin_OD = 0;
[ 4.316660@1] Bluetooth: BlueSleep Mode Driver Ver 1.2
[ 4.322078@2] ionvideo-000: V4L2 device registered as video13
[ 4.327187@2] ionvideo-001: V4L2 device registered as video14
[ 4.332936@1] ionvideo-002: V4L2 device registered as video15
[ 4.338594@2] ionvideo-003: V4L2 device registered as video16
[ 4.344371@2] ionvideo-004: V4L2 device registered as video17
[ 4.349963@1] ionvideo-005: V4L2 device registered as video18
[ 4.355720@2] ionvideo-006: V4L2 device registered as video19
[ 4.361392@2] ionvideo-007: V4L2 device registered as video20
[ 4.367039@1] ionvideo-008: V4L2 device registered as video21
[ 4.372666@1] ionvid: info: Video Technology Magazine Ion Video
[ 4.378469@1] ionvid: info: Capture Board ver 1.0 successfully loaded
[ 4.384872@1] audio_dsp: [dsp]register dsp to char divece(257)
[ 4.391418@2] amaudio: amaudio: driver amaudio succuess!
[ 4.396220@2] amlvid:info: amlvideo_init called
[ 4.400206@2] amlvid:info: amlvideo_create_instance called
[ 4.405879@2] amlvid:info: v4l2_dev.name=:amlvideo-000
[ 4.411123@1] amlvideo-000: V4L2 device registered as video10
[ 4.417012@2] vdin_drv_init: major 230
[ 4.420680@1] rdma_register, rdma_table_addr ffffff800019e000 rdma_table_addr_phy 7484c000 reg_buf ffffffc055e94600
[ 4.430675@1] rdma_register success, handle 5 table_size 512
[ 4.436257@1] vdin_drv_probe:vdin.0 rdma hanld 5.
[ 4.441142@2]
[ 4.441142@2] vdin memory resource undefined!!
[ 4.447041@2] vdin0 cma_mem_size = 16 MB
[ 4.450946@2] vdin0 irq: 115 rdma irq: 2
[ 4.454841@2] vdin_drv_probe: fclk_div5 is 400 MHZ
[ 4.459563@2] vdin_drv_probe: vdin[0] clock is 50 MHZ
[ 4.464849@2] vdin_drv_probe: driver initialized ok
[ 4.469505@2] rdma_register, rdma_table_addr ffffff80001a9000 rdma_table_addr_phy 7484d000 reg_buf ffffffc055c58000
[ 4.479766@2] rdma_register success, handle 6 table_size 512
[ 4.485356@2] vdin_drv_probe:vdin.1 rdma hanld 6.
[ 4.490202@1] vdin1 has 1 memory regions
[ 4.493938@1] vdin vdin1.28: assigned reserved memory node linux,vdin1_cma ok
[ 4.500952@1]
[ 4.500952@1] vdin memory resource done.
[ 4.506554@1] vdin1 cma_mem_size = 16 MB
[ 4.510442@1] vdin1 irq: 117 rdma irq: 4
[ 4.514348@1] vdin_drv_probe: fclk_div5 is 400 MHZ
[ 4.519063@1] vdin_drv_probe: vdin[1] clock is 50 MHZ
[ 4.524352@2] vdin_drv_probe: driver initialized ok
[ 4.529096@2] vdin_drv_init: vdin driver init done
[ 4.533683@2] tvafe_drv_init: major 229
[ 4.537841@2] tvafe: tvafe_init.
[ 4.541030@1] vbi: vbi_init.
[ 4.544027@1] [RX]-hdmirx: hdmirx_init.
[ 4.547266@1] ESM HLD: Initializing...
[ 4.550994@1] ESM HLD: Registering device range 'esm_rx'...
[ 4.556498@1] ESM HLD: Device range 'esm_rx' has been registered.
[ 4.562534@1] ESM HLD: Creating class /sys/class/elliptic_rx...
[ 4.568511@2] ESM HLD: The class /sys/class/elliptic_rx has been created.
[ 4.575144@2] ESM HLD: Creating device 'esm_rx'...
[ 4.580014@2] ESM HLD: Device 'esm_rx' has been created.
[ 4.585179@2] ESM HLD: Done initializing the HLD driver.
[ 4.590408@2] amvdec_656in module: init.
[ 4.594268@2] amvdec_656in_init_module. 1 hardware detected!.
[ 4.599962@2] amvdec_656in_init_module:major 226
[ 4.604841@1] amvdec_656in_probe:start probe .
[ 4.608935@1] amvdec_656in_probe: bt656 devp->index =0
[ 4.614083@1] amvdec_656in_probe: bt656[0] clock is 333 MHZ
[ 4.619700@2] amvdec_656in_probe:bt656[0]start get ioremap .
[ 4.625307@2] amvdec_656in_probe: bt656[0] maped reg_base =ffffff80001ac000, size=7c
[ 4.632938@2] amvdec_656in_probe: tvin_frontend_init done :0
[ 4.638522@2] amvdec_656in probe ok.
[ 4.642089@2] amvdec_656in_probe:start probe .
[ 4.646452@2] amvdec_656in_probe: bt656 devp->index =1
[ 4.651584@2] amvdec_656in_probe: bt656[1] clock is 333 MHZ
[ 4.657232@2] amvdec_656in_probe:bt656[1]start get ioremap .
[ 4.662805@2] amvdec_656in_probe: bt656[1] maped reg_base =ffffff80001ae000, size=7c
[ 4.670447@2] amvdec_656in_probe: tvin_frontend_init done :1
[ 4.676040@2] amvdec_656in probe ok.
[ 4.679775@1] amvdec_656in_init_module: bt656 driver init done
[ 4.685358@1] [viuin..]viuin_init_module viuin module init
[ 4.691278@2] [viuin..]viuin_probe probe ok.
[ 4.695094@1] aml_vecm_init:module init
[ 4.698947@1]
[ 4.698947@1] VECM probe start
[ 4.703880@2] Can't find wb_sel.
[ 4.706828@2] dolby_vision_init_receiver(dvel)
[ 4.711259@2] dolby_vision_init_receiver: dvel
[ 4.715781@2] aml_vecm_probe: ok
[ 4.719653@2] saradc c1108680.saradc: initialized by BL30
[ 4.724211@2] saradc c1108680.saradc: calibration start:
[ 4.729465@2] saradc c1108680.saradc: nominal=0, value=5
[ 4.734766@2] saradc c1108680.saradc: nominal=256, value=231
[ 4.740333@2] saradc c1108680.saradc: nominal=512, value=460
[ 4.745960@2] saradc c1108680.saradc: nominal=768, value=689
[ 4.751590@2] saradc c1108680.saradc: nominal=1023, value=918
[ 4.757195@2] saradc c1108680.saradc: calibration end: coef=4578
[ 4.763437@1] remote: Driver init
[ 4.766533@1] remote: cant find match item for remote_ao_offset
[ 4.772321@1] meson-remote: probe of c8100580.rc failed with error -1
[ 4.779341@2] gpio-key gpio_keypad.50: gpio_key: 0 name(f1) pin()
[ 4.784752@2] gpio-key gpio_keypad.50: amlogic_gpio_name_map_num pin 0!::
[ 4.791480@2] gpio-key gpio_keypad.50: gpio_key: 0 f1(147)
[ 4.796900@2] gpio-key gpio_keypad.50: start setup_timer
[ 4.802153@2] gpio-key gpio_keypad.50: f1 key(59) registed.
[ 4.807901@1] input: gpio_keypad as /devices/gpio_keypad.50/input/input0
[ 4.814505@2] gpio-key gpio_keypad.50: gpio keypad register input device completed.
[ 4.821920@2] input input0: gpio keypad major:224
[ 4.827905@2] Sensor: lsm303d_init
[ 4.830144@2] Sensor: stk8313_init
[ 4.833399@1] Sensor: stk831x_init
[ 4.836720@2] Sensor: mxc622x_acc_init
[ 4.840468@2] Sensor: mxc6255xc_acc_init
[ 4.844404@1] Sensor: l3gd20_gyr_init
[ 4.848902@2] aml dvb init
[ 4.851130@1] Amlogic Demod DVB-T/C DebugIF Init
[ 4.855310@2] Amlogic Demod DVB-T/C DebugIF Init ok----------------
[ 4.863163@1] aml_wdt c11098d0.amlogic-watchdog: creat work queue for watch dog
[ 4.868793@2] aml_wdt c11098d0.amlogic-watchdog: AML Watchdog Timer probed done
[ 4.876200@1] jtag: module init
[ 4.879142@2] jtag: pinctrl setup apao
[ 4.882623@2] jtag: set state 2
efuse_pw_en: 0x3
WARNING! efuse bits is disabled
Enable A53 JTAG cluster 0 to AO
[ 4.898808@0] jtag: module probed ok
[ 4.899579@2] defendkey c8834500.defendkey: defendkey_devno:db00000
[ 4.903035@2] input input0: key 59 up
[ 4.906916@0] defendkey c8834500.defendkey: defendkey: device defendkey created ok
[ 4.914347@1] defendkey: driver init
[ 4.918338@1] input: cec_input as /devices/virtual/input/input1
[ 4.923811@0] cectx aocec: no hdmirx reg resource
[ 4.928153@0] cectx aocec: no hhi reg resource
[ 4.932580@0] cec: wake up flag:0
[ 4.937927@0] aml_aes_dma c883e000.aml_aes: Aml AES_dma
[ 4.941702@1] aml_tdes_dma c883e000.aml_tdes: Aml TDES_dma
[ 4.947122@0] aml_sha_dma c883e000.aml_sha: Aml SHA1/SHA224/SHA256 dma
[ 4.953629@0] usbcore: registered new interface driver snd-usb-audio
[ 4.960953@1] aml_codec_T9015 c8832000.t9015: aml_T9015_audio_codec_probe
[ 4.968304@0] aml-i2s-dai I2S.42: I2S Mic is in platform!
[ 4.971798@1] aml_pcm_dai: pcm mode detection =1
[ 4.976282@0] aml_spdif_dai: enterd aml_spdif_play,set_clock:-1,sample_rate=4
[ 4.982986@0] aml_spdif_dai: set normal 512 fs /4 fs
[ 4.987883@0] aml_spdif_dai: set 958 audio clk div 4
[ 4.992768@0] aml_audio_hw: IEC958 16bit
[ 4.996635@0] hdmitx: audio: aout notify rate 48000
[ 5.001539@0] hdmitx: audio: aout notify size 16
[ 5.006059@0] hdmitx: audio: aout notify format CT_PCM
[ 5.011137@0] hdmtix: set audio
[ 5.014236@0] hdmitx tx_aud_src = 0
[ 5.017698@0] hdmitx: fs = 3, cd = 4, tmds_clk = 148500
[ 5.022900@0] hdmitx aud_n_para = 6144
[ 5.026628@0] hdmitx: audio: Audio Type: PCM
[ 5.030797@0] hdmitx: audio: set audio param
[ 5.036090@0] aml_snd_card: aml_multi_dev_parse_of ...
[ 5.040160@0] aml_snd_card: no multi dev!
[ 5.250635@0] aml_snd_card: headphone detection disable=1
[ 5.250670@0] aml_snd_card: no spk event delay time set
[ 5.256459@0] aml_snd_m8_card aml_m8_snd.49: T9015-audio-hifi <-> I2S.42 mapping ok
[ 5.263929@0] aml_snd_m8_card aml_m8_snd.49: dit-hifi <-> SPDIF.43 mapping ok
[ 5.270351@0] aml_pcm: enter aml_pcm_new dai->name: PCM.44 dai->id: 0
[ 5.276942@0] aml_snd_m8_card aml_m8_snd.49: pcm2bt-pcm <-> PCM.44 mapping ok
[ 5.283773@0] aml_snd_m8_card aml_m8_snd.49: ASoC: no source widget found for LOUTL
[ 5.291369@0] aml_snd_m8_card aml_m8_snd.49: ASoC: Failed to add route LOUTL -> direct -> Ext Spk
[ 5.300082@0] aml_snd_m8_card aml_m8_snd.49: ASoC: no source widget found for LOUTR
[ 5.307745@0] aml_snd_m8_card aml_m8_snd.49: ASoC: Failed to add route LOUTR -> direct -> Ext Spk
[ 5.318806@3] GACT probability NOT on
[ 5.320096@3] Mirror/redirect action on
[ 5.323901@3] u32 classifier
[ 5.326728@3] Actions configured
[ 5.330268@3] Netfilter messages via NETLINK v0.30.
[ 5.335158@3] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[ 5.341833@1] ctnetlink v0.93: registering with nfnetlink.
[ 5.347277@2] xt_time: kernel timezone is -0000
[ 5.351366@2] ipip: IPv4 over IPv4 tunneling driver
[ 5.357601@2] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 5.361667@2] arp_tables: (C) 2002 David S. Miller
[ 5.367050@2] TCP: cubic registered
[ 5.369680@2] Initializing XFRM netlink socket
[ 5.375072@2] NET: Registered protocol family 10
[ 5.379738@2] mip6: Mobile IPv6
[ 5.381833@2] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 5.389686@2] sit: IPv6 over IPv4 tunneling driver
[ 5.393444@2] NET: Registered protocol family 17
[ 5.396630@2] NET: Registered protocol family 15
[ 5.403493@2] Bridge firewalling registered
[ 5.405406@2] Bluetooth: RFCOMM TTY layer initialized
[ 5.410323@2] Bluetooth: RFCOMM socket layer initialized
[ 5.415682@2] Bluetooth: RFCOMM ver 1.11
[ 5.419452@2] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 5.424905@2] Bluetooth: BNEP filters: protocol multicast
[ 5.430243@2] Bluetooth: BNEP socket layer initialized
[ 5.435338@2] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 5.441413@2] Bluetooth: HIDP socket layer initialized
[ 5.446506@2] l2tp_core: L2TP core driver, V2.0
[ 5.450992@2] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 5.455844@2] l2tp_ip: L2TP IP encapsulation support (L2TPv3)
[ 5.461588@2] l2tp_netlink: L2TP netlink interface
[ 5.466310@2] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3)
[ 5.472383@2] l2tp_debugfs: L2TP debugfs support
[ 5.476889@2] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3)
[ 5.483517@2] NET: Registered protocol family 35
[ 5.488085@2] Key type dns_resolver registered
[ 5.494357@2] Registering SWP/SWPB emulation handler
[ 5.498019@2] Loading compiled-in X.509 certificates
[ 5.502413@2] regulator-dummy: disabling
[ 5.506721@2] aml_vrtc rtc.34: setting system clock to 2015-01-01 00:00:13 UTC (1420070413)
[ 5.516809@2] hdmirx_ext: [hdmiin_drv_init] ver: Jul042016.1
[ 5.520265@2] gxbb_pm: enter meson_pm_probe!
[ 5.524354@2] gxbb_pm: meson_pm_probe done
[ 5.529295@0] cpucore_cooling_register, max_cpu_core_num:4
[ 5.534059@0] cpucore_cooling_register, max_cpu_core_num:4
[ 5.554951@0] aml_istbt_dev_ready NULL
[ 5.55501 5.559693@0] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 115200 to 115200
[ 5.563056@0] Freeing unused kernel memory: 1248K (ffffffc001f47000 - ffffffc00207f000)
[ 5.590658@2] init: init first stage started!
[ 5.755918@5] audit: type=1403 audit(1420070413.740:2): policy loaded auid=4294967295 ses=4294967295
[ 5.760169@5] init: (Initializing SELinux non-enforcing took 0.17s.)
[ 5.770087@5] init: init second stage started!
[ 5.774873@5] init: property_set("ro.boot.selinux", "permissive") failed
[ 5.779519@5] init: Running restorecon...
[ 5.873854@3] init: waitpid failed: No child processes
[ 5.874217@3] init: (Loading properties from /default.prop took 0.00s.)
[ 5.882371@3] init: (Parsing /init.environ.rc took 0.00s.)
[ 5.885782@3] init: (Parsing /init.usb.rc took 0.00s.)
[ 5.891276@3] init: /init.amlogic.rc: 237: chmod requires 2 arguments
[ 5.898189@3] init: (Parsing init.amlogic.usb.rc took 0.00s.)
[ 5.903092@3] init: (Parsing init.amlogic.usb.rc took 0.00s.)
[ 5.908214@3] init: (Parsing init.amlogic.board.rc took 0.01s.)
[ 5.914219@3] init: (Parsing init.amlogic.wifi.rc took 0.00s.)
[ 5.919881@3] init: could not import file 'init.mtk.rc' from '/init.amlogic.rc': No such file or directory
[ 5.929464@3] init: (Parsing /init.amlogic.rc took 0.04s.)
[ 5.935579@3] init: (Parsing /init.usb.configfs.rc took 0.00s.)
[ 5.940906@3] init: (Parsing /init.zygote64_32.rc took 0.00s.)
[ 5.946506@3] init: (Parsing /init.rc took 0.07s.)
[ 5.951319@3] init: aml-firstboot-init insert aml-firstboot-init
[ 5.957780@3] init: Starting service 'ueventd'...
[ 5.962629@3] init: insmod: open("/boot/optee.ko") failed: No such file or directoryinit: insmod: open("/boot/optee_armtz.ko") failed: No such file or directory[ 5.972715@2] ueventd: ueventd started!
[ 6.831687@2] ueventd: Coldboot took 0.86s.
[ 6.838977@7] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 115200 to 115200
[ 6.877958@7] fb: afbc: 1
[ 6.878746@7] init: enter do_confirm_formated /dev/block/tee, /tee
[ 6.881153@7] init: blocksize 1024, bytes_per_inode 1024
[ 6.886356@7] init: do_confirm_formated ext4 try mount
[ 6.893356@0] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 6.902825@0] EXT4-fs (mmcblk0p8): recovery complete
[ 6.905644@0] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: noauto_da_alloc
[ 6.972840@5] init: enter do_confirm_formated /dev/block/data, /data
[ 6.973573@5] init: do_confirm_formated ext4 try mount
[ 6.979241@5] EXT4-fs (mmcblk0p15): VFS: Can't find ext4 filesystem
[ 6.985083@5] init: do_confirm_formated mount fail,maybe firstboot, need format, try format now, dev:/dev/block/data, mountpoint:/data
[ 11.265762@0] random: nonblocking pool is initialized
[ 15.483186@2] init: do_confirm_formated re-mount failed on /dev/block/data, , err[No such file or directory]
[ 15.487442@2] init: enter do_confirm_formated /dev/block/cache, /cache
[ 15.494079@2] init: do_confirm_formated ext4 try mount
[ 15.503409@2] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 15.508875@2] EXT4-fs (mmcblk0p3): recovery complete
[ 15.513830@2] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: noauto_da_alloc
[ 15.563262@3] EXT4-fs (mmcblk0p12): mounted filesystem with ordered data mode. Opts: (null)
[ 15.566138@3] fs_mgr: __mount(source=/dev/block/system,target=/system,type=ext4)=0
[ 15.574184@3] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[ 15.584067@3] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 15.591306@3] fs_mgr: check_fs(): mount(/dev/block/data,/data,ext4)=0: Success
[ 15.652028@6] fs_mgr: check_fs(): unmount(/data) succeeded
[ 15.653294@6] fs_mgr: Not running /system/bin/e2fsck on /dev/block/data (executable not in system image)
[ 15.661959@6] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[ 15.672743@3] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 15.679581@3] fs_mgr: __mount(source=/dev/block/data,target=/data,type=ext4)=0
[ 15.687421@3] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[ 15.694859@3] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 15.703176@3] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 15.713503@3] fs_mgr: check_fs(): mount(/dev/block/cache,/cache,ext4)=0: Success
[ 15.791867@4] fs_mgr: check_fs(): unmount(/cache) succeeded
[ 15.791953@4] fs_mgr: Not running /system/bin/e2fsck on /dev/block/cache (executable not in system image)
[ 15.802046@4] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[ 15.809738@4] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 15.817891@0] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 15.828736@0] fs_mgr: __mount(source=/dev/block/cache,target=/cache,type=ext4)=0
[ 15.836552@0] EXT4-fs (mmcblk0p8): Ignoring removed nomblk_io_submit option
[ 15.844065@0] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 15.852666@0] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 15.862790@0] fs_mgr: check_fs(): mount(/dev/block/tee,/tee,ext4)=0: Success
[ 15.911678@0] fs_mgr: check_fs(): unmount(/tee) succeeded
[ 15.911750@0] fs_mgr: Not running /system/bin/e2fsck on /dev/block/tee (executable not in system image)
[ 15.921348@0] EXT4-fs (mmcblk0p8): Ignoring removed nomblk_io_submit option
[ 15.928951@0] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 15.937551@0] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 15.948141@0] fs_mgr: __mount(source=/dev/block/tee,target=/tee,type=ext4)=0
[ 15.969627@7] Unable to find swap-space signature
[ 15.969735@7] fs_mgr: swapon failed for /dev/block/zram0
[ 15.974599@7] init: do_start: Service logd not found
[ 16.462475@2] init: cannot find '/system/bin/tee-supplicant' (No such file or directory), disabling 'tee_supplicant'
[ 16.468235@2] init: /recovery not specified in fstab
[ 16.472806@2] init: do_start: Service debuggerd not found
[ 16.477609@2] init: do_start: Service debuggerd64 not found
[ 16.483253@2] init: do_start: Service vold not found
[ 16.551405@3] init: cannot find '/system/bin/tzdatacheck' (No such file or directory), disabling 'exec 1 (/system/bin/tzdatacheck)'
[ 16.560984@3] init: decode_uid: Unable to find UID for 'pppoe'. Returning UINT_MAX
[ 16.565489@3] init: decode_uid: Unable to find UID for 'pppoe'. Returning UINT_MAX
[ 16.577853@3] init: insmod: open("/system/lib/mali.ko") failed: No such file or directoryinit: insmod: open("/system/lib/dovi.ko") failed: No such file or directoryinit: do_start: Service logd not found
[ 16.590447@3] init: do_start: Service logd-reinit not found
[ 16.601081@3] init: cannot find '/system/bin/sh' (No such file or directory), disabling 'console'
[ 16.604752@3] init: cannot find '/system/bin/systemcontrol' (No such file or directory), disabling 'system_control'
[ 16.614542@2] binder: 4023:4023 transaction failed 29189, size 0-0
[ 16.621336@3] init: cannot find '/system/bin/hdmi_cec' (No such file or directory), disabling 'hdmi_cec'
[ 16.631344@3] init: insmod: open("/system/lib/aml_thermal.ko") failed: No such file or directoryinit: insmod: open("/system/lib/ddr_window_64.ko") failed: No such file or directory
[ 16.651247@3] amlkey_init() enter!
[ 16.653620@3] emmc_key_read:428, read ok
[ 16.653806@3] amlkey_init() storagekey_info.buffer=ffffff8001900000, storagekey_info.size = 40000!
[ 16.664053@3] vfm_map_store:rm default
[ 16.666427@3] vfm_map_store:add default decoder ppmgr deinterlace amvideo
[ 16.673219@3] init: insmod: open("/system/lib/dwc3.ko") failed: No such file or directory
[ 16.681791@3] file system registered
[ 16.685882@3] init: property 'sys.usb.state' doesn't exist while expanding '${sys.usb.state}'
[ 16.693255@3] init: setprop: cannot expand '${sys.usb.state}'
[ 16.698932@3] init: property 'ro.serialno' doesn't exist while expanding '${ro.serialno}'
[ 16.707058@3] init: write: cannot expand '${ro.serialno}'
[ 16.712396@3] init: property 'ro.product.manufacturer' doesn't exist while expanding '${ro.product.manufacturer}'
[ 16.722583@3] init: write: cannot expand '${ro.product.manufacturer}'
[ 16.728944@3] init: property 'ro.product.model' doesn't exist while expanding '${ro.product.model}'
[ 16.737912@3] init: write: cannot expand '${ro.product.model}'
[ 16.743700@3] init: property 'ro.usb.vendor.string' doesn't exist while expanding '${ro.usb.vendor.string}'
[ 16.753364@3] init: write: cannot expand '${ro.usb.vendor.string}'
[ 16.759475@3] init: property 'ro.usb.product.string' doesn't exist while expanding '${ro.usb.product.string}'
[ 16.769306@3] init: write: cannot expand '${ro.usb.product.string}'
[ 16.776498@3] fb: afbc: 1
[ 16.778373@3] init: insmod: open("/system/lib/compat.ko") failed: No such file or directoryinit: insmod: open("/system/lib/qca80211.ko") failed: No such file or directoryinit: insmod: open("/system/lib/dwc3.ko") failed: No such file or directory
[ 16.800912@3] ffs_data_put(): freeing
[ 16.803375@3] init: property 'sys.usb.state' doesn't exist while expanding '${sys.usb.state}'
[ 16.811788@3] init: setprop: cannot expand '${sys.usb.state}'
[ 16.817440@3] init: property 'ro.serialno' doesn't exist while expanding '${ro.serialno}'
[ 16.825542@3] init: write: cannot expand '${ro.serialno}'
[ 16.830925@3] init: property 'ro.product.manufacturer' doesn't exist while expanding '${ro.product.manufacturer}'
[ 16.841067@3] init: write: cannot expand '${ro.product.manufacturer}'
[ 16.847449@3] init: property 'ro.product.model' doesn't exist while expanding '${ro.product.model}'
[ 16.856422@3] init: write: cannot expand '${ro.product.model}'
[ 16.862222@3] init: property 'ro.usb.vendor.string' doesn't exist while expanding '${ro.usb.vendor.string}'
[ 16.871914@3] init: write: cannot expand '${ro.usb.vendor.string}'
[ 16.878009@3] init: property 'ro.usb.product.string' doesn't exist while expanding '${ro.usb.product.string}'
[ 16.887815@3] init: write: cannot expand '${ro.usb.product.string}'
[ 16.894410@3] init: cannot find '/system/bin/tee-supplicant' (No such file or directory), disabling 'tee_supplicant'
[ 16.905053@3] init: cannot find '/system/bin/update_verifier' (No such file or directory), disabling 'exec 2 (/system/bin/update_verifier)'
[ 16.916925@3] init: cannot find '/system/bin/install-recovery.sh' (No such file or directory), disabling 'flash_recovery'
[ 16.927764@3] init: cannot find '/system/bin/remotecfg' (No such file or directory), disabling 'remotecfg'
[ 16.937436@3] init: cannot find '/system/bin/pppoe_wrapper' (No such file or directory), disabling 'pppoe_wrapper'
[ 16.947603@3] init: cannot find '/system/bin/imageserver' (No such file or directory), disabling 'imageserver'
[ 16.957520@3] init: cannot find '/system/bin/ddrtest.sh' (No such file or directory), disabling 'ddrtest'
[ 16.967006@3] init: cannot find '/system/bin/factoryreset.sh' (No such file or directory), disabling 'factoryreset'
[ 16.977368@3] init: cannot find '/system/bin/app_process64' (No such file or directory), disabling 'zygote'
[ 16.987012@3] init: cannot find '/system/bin/app_process32' (No such file or directory), disabling 'zygote_secondary'
Let it start by default. It starts on Android
No access to manjaro
If you use the command in “emmc_autoscript.cmd” again, you will be prompted
ERROR: Bailing out. Run ‘fsck /dev/mmcblk1p2’ manually
root partition bad
U-boot environment modification
How do I need to modify it？
printenv
EnableSelinux=permissive
active_slot=_a
addmac=if printenv mac; then setenv bootargs ${bootargs} mac=${mac}; elif printenv eth_mac; then setenv bootargs ${bootargs} mac=${eth_mac}; fi
aml_dt=gxm_q201_2g
baudrate=115200
bcb_cmd=get_valid_slot;
boot_part=boot
boot_start=bootm ${loadaddr} ${initrd_addr} ${dtb_mem_addr}
bootargs=rootfstype=ramfs init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xc81004c0 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 androidboot.selinux=permissive androidboot.selinux=permissive logo=osd1,loaded,0x3d800000,1080p60hz maxcpus=8 vout=1080p60hz,enable hdmimode=1080p60hz cvbsmode=576cvbs hdmitx= cvbsdrv=0 pq= androidboot.firstboot=1 jtag=apao,rgb0 androidboot.hardware=amlogic mac=00:79:18:00:00:1b androidboot.mac=00:79:18:00:00:1b androidboot.slot_suffix=_a
bootcmd=run start_autoscript; run storeboot
bootdelay=1
bootfromnand=0
bootfromrecovery=0
bootup_offset=0x10ac1b0
bootup_size=0x3f4c8
cmdline_keys=if keyman init 0x1234; then if keyman read usid ${loadaddr} str; then setenv bootargs ${bootargs} androidboot.serialno=${usid};setenv serial ${usid};fi;if keyman read mac ${loadaddr} str; then setenv bootargs ${bootargs} mac=${mac} androidboot.mac=${mac};fi;if keyman read deviceid ${loadaddr} str; then setenv bootargs ${bootargs} androidboot.deviceid=${deviceid};fi;fi;
cvbs_drv=0
cvbsmode=576cvbs
devnum=1
devtype=mmc
display_bpp=16
display_color_bg=0
display_color_fg=0xffff
display_color_index=16
display_height=1080
display_layer=osd1
display_width=1920
dtb_mem_addr=0x1000000
env_addr=0x1040000
ethact=dwmac.c9410000
ethaddr=00:79:18:00:00:1b
factory_reset_poweroff_protect=echo wipe_data=${wipe_data}; echo wipe_cache=${wipe_cache};if test ${wipe_data} = failed; then run init_display; run storeargs;if mmcinfo; then run recovery_from_sdcard;fi;if usb start 0; then run recovery_from_udisk;fi;run recovery_from_flash;fi; if test ${wipe_cache} = failed; then run init_display; run storeargs;if mmcinfo; then run recovery_from_sdcard;fi;if usb start 0; then run recovery_from_udisk;fi;run recovery_from_flash;fi;
fb_addr=0x3d800000
fb_height=1080
fb_width=1920
fdt_high=0x20000000
firstboot=1
gatewayip=10.18.9.1
hdmimode=1080p60hz
hdmitx_rgb=0
hostname=arm_gxbb
identifyWaitTime=750
init_display=osd open;osd clear;imgread pic logo bootup $loadaddr;bmp display $bootup_offset;bmp scale
initargs=rootfstype=ramfs init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xc81004c0 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 androidboot.selinux=permissive
initrd_addr=0x13000000
ipaddr=10.18.9.97
jtag=apao
loadaddr=1080000
mac=00:79:18:00:00:1b
maxcpus=8
netmask=255.255.255.0
outputmode=1080p60hz
preboot=run bcb_cmd; run factory_reset_poweroff_protect;run upgrade_check;run init_display;run storeargs;run upgrade_key;forceupdate;run switch_bootmode;
reboot_mode=cold_boot
recovery_from_flash=setenv bootargs ${bootargs} aml_dt=${aml_dt} recovery_part={recovery_part} recovery_offset={recovery_offset};if itest ${upgrade_step} == 3; then if ext4load mmc 1:2 ${dtb_mem_addr} /recovery/dtb.img; then echo cache dtb.img loaded; fi;if ext4load mmc 1:2 ${loadaddr} /recovery/recovery.img; then echo cache recovery.img loaded; wipeisb; bootm ${loadaddr}; fi;else fi;if imgread kernel ${recovery_part} ${loadaddr} ${recovery_offset}; then wipeisb; bootm ${loadaddr}; fi;
recovery_from_sdcard=setenv bootargs ${bootargs} aml_dt=${aml_dt} recovery_part={recovery_part} recovery_offset={recovery_offset};if fatload mmc 0 ${loadaddr} aml_autoscript; then autoscr ${loadaddr}; fi;if fatload mmc 0 ${loadaddr} recovery.img; then if fatload mmc 0 ${dtb_mem_addr} dtb.img; then echo sd dtb.img loaded; fi;wipeisb; bootm ${loadaddr};fi;
recovery_from_udisk=setenv bootargs ${bootargs} aml_dt=${aml_dt} recovery_part={recovery_part} recovery_offset={recovery_offset};if fatload usb 0 ${loadaddr} aml_autoscript; then autoscr ${loadaddr}; fi;if fatload usb 0 ${loadaddr} recovery.img; then if fatload usb 0 ${dtb_mem_addr} dtb.img; then echo udisk dtb.img loaded; fi;wipeisb; bootm ${loadaddr};fi;
recovery_offset=0
recovery_part=recovery
sdc_burning=sdc_burn ${sdcburncfg}
sdcburncfg=aml_sdc_burn.ini
serverip=10.18.9.113
start_autoscript=if usb start; then run start_usb_autoscript; fi; if mmcinfo; then run start_mmc_autoscript; fi;
start_mmc_autoscript=if fatload mmc 0 11000000 s905_autoscript; then autoscr 11000000; fi;
start_usb_autoscript=if fatload usb 0 11000000 s905_autoscript; then autoscr 11000000; fi; if fatload usb 1 11000000 s905_autoscript; then autoscr 11000000; fi;
stderr=serial
stdin=serial
stdout=serial
storeargs=setenv bootargs ${initargs} androidboot.selinux=${EnableSelinux} logo=${display_layer},loaded,${fb_addr},${outputmode} maxcpus=${maxcpus} vout=${outputmode},enable hdmimode=${hdmimode} cvbsmode=${cvbsmode} hdmitx=${cecconfig} cvbsdrv=${cvbs_drv} pq=${pq} androidboot.firstboot=${firstboot} jtag=${jtag}; setenv bootargs ${bootargs},rgb${hdmitx_rgb} androidboot.hardware=amlogic;run cmdline_keys;setenv bootargs ${bootargs} androidboot.slot_suffix=${active_slot};
storeboot=if imgread kernel ${boot_part} ${loadaddr}; then bootm ${loadaddr}; fi;run update;
switch_bootmode=get_rebootmode;if test ${reboot_mode} = factory_reset; then run recovery_from_flash;else if test ${reboot_mode} = update; then run update;else if test ${reboot_mode} = cold_boot; then run try_auto_burn; else if test ${reboot_mode} = fastboot; then fastboot;fi;fi;fi;fi;
try_auto_burn=update 700 750;
try_boot_start=if fatload ${devtype} ${devnum} ${loadaddr} uImage; then if fatload ${devtype} ${devnum} ${initrd_addr} uInitrd; then fatload ${devtype} ${devnum} ${env_addr} uEnv.ini && env import -t ${env_addr} ${filesize} && run addmac; fatload ${devtype} ${devnum} ${dtb_mem_addr} ${dtb_name} && run boot_start; fi;fi
update=run usb_burning; run sdc_burning; if mmcinfo; then run recovery_from_sdcard;fi;if usb start 0; then run recovery_from_udisk;fi;run recovery_from_flash;
upgrade_check=echo upgrade_step=${upgrade_step}; if itest ${upgrade_step} == 3; then run init_display; run storeargs; run update;else fi;
upgrade_key=if gpio input GPIOAO_2; then echo detect upgrade key; sleep 3;if gpio input GPIOAO_2; then run update; fi;fi;
upgrade_step=2
usb_burning=update 1000
wipe_cache=successful
wipe_data=successful
Environment size: 6521/65532 bytes
Thank you for updating. I tried many times to download that firmware but it was failing with parse error. I will try this new firmware today. My X96S is 4G/32G , I hope it should work.
After reboot you still have Android that means it never formatted the emmc.
If you cannot answer my points step by step then we’re just going in circles.
Kindly try to answer my questions as it is asked to get clear understanding of what is happening with your device.
Good luck.
My box works from EMMC
My detailed operation process
Help me see what’s wrong
I first brush the machine to Android, start it, and use it normally,
Set u-boot
setenv bootfromrecovery 0
setenv bootfromnand 0
setenv env_addr 0x1040000
setenv initrd_addr 0x13000000
setenv start_mmc_autoscript 'if fatload mmc 0 11000000 s905_autoscript; then autoscr 11000000; fi;'
setenv start_usb_autoscript "if fatload usb 0 11000000 s905_autoscript; then autoscr 11000000; fi; if fatload usb 1 11000000 s905_autoscript; then autoscr 11000000; fi;"
setenv start_autoscript 'if usb start; then run start_usb_autoscript; fi; if mmcinfo; then run start_mmc_autoscript; fi;'
setenv bootcmd 'run start_autoscript; run storeboot'
setenv boot_start 'bootm ${loadaddr} ${initrd_addr} ${dtb_mem_addr}'
setenv addmac 'if printenv mac; then setenv bootargs ${bootargs} mac=${mac}; elif printenv eth_mac; then setenv bootargs ${bootargs} mac=${eth_mac}; fi'
setenv try_boot_start 'if fatload ${devtype} ${devnum} ${loadaddr} uImage; then if fatload ${devtype} ${devnum} ${initrd_addr} uInitrd; then fatload ${devtype} ${devnum} ${env_addr} uEnv.ini && env import -t ${env_addr} ${filesize} && run addmac; fatload ${devtype} ${devnum} ${dtb_mem_addr} ${dtb_name} && run boot_start; fi;fi'
setenv devtype mmc
setenv devnum 1
setenv bootcmd 'run start_autoscript; run try_boot_start'
setenv firstboot 1
saveenv
Use the latest Manjaro-ARM-mate-am6-plus-22.06.img.xz
Burning to USB flash disk with usbimager
Use diskgenius to convert partition guid to MBR and view MBR signature
Modify uEnv.ini
dtb_name=/dtbs/amlogic/meson-gxm-q200.dtb
bootargs=root=PARTUUID=9488785b-02 rootdelay=5 rootflags=data=writeback rw console=ttyAML0,115200n8 console=tty0 no_console_suspend consoleblank=0 fsck.fix=yes fsck.repair=yes net.ifnames=0 quiet splash plymouth.ignore-serial-consoles earlycon loglevel=7
Modify root partition /etc/fstab
# Static information about the filesystems.
# See fstab(5) for details.
# <file system> <dir> <type> <options> <dump> <pass>
PARTUUID=9488785b-01 /boot vfat defaults,noexec,nodev,showexec 0 0
PARTUUID=9488785b-01 /boot vfat defaults 0 0
PARTUUID=9488785b-02 / ext4 defaults 0 1
Connect the USB flash disk and start the box successfully from the USB flash disk
Connect to TTL using SecureCRT
Run install-aml-emmc.sh
Wait for the installation to complete, shut down and remove the USB flash disk.
Reboot successfully from EMMC
Finally modify uEnv.ini delete earlycon loglevel=7
Uboot is configured, so
EMMC boot
“emmc_autoscript” file startup is not required
Summary: I am a novice. For me, the configuration of uboot environment has troubled me for a long time
Thank you spikerguy’s help
1 Like
Does that means now hope able to boot Manjaro from emmc?
I have successfully launched from EMMC
After configuring the u-boot environment
Can be started normally from EMMC
1 Like
Congratulations.
Can you help us all understand what was the issue and how did you solve it?
So any other users will not have to put time in debugging similar issue.
setenv bootfromrecovery 0
setenv bootfromnand 0
setenv env_addr 0x1040000
setenv initrd_addr 0x13000000
setenv start_mmc_autoscript 'if fatload mmc 0 11000000 s905_autoscript; then autoscr 11000000; fi;'
setenv start_usb_autoscript "if fatload usb 0 11000000 s905_autoscript; then autoscr 11000000; fi; if fatload usb 1 11000000 s905_autoscript; then autoscr 11000000; fi;"
setenv start_autoscript 'if usb start; then run start_usb_autoscript; fi; if mmcinfo; then run start_mmc_autoscript; fi;'
setenv bootcmd 'run start_autoscript; run storeboot'
setenv boot_start 'bootm ${loadaddr} ${initrd_addr} ${dtb_mem_addr}'
setenv addmac 'if printenv mac; then setenv bootargs ${bootargs} mac=${mac}; elif printenv eth_mac; then setenv bootargs ${bootargs} mac=${eth_mac}; fi'
setenv try_boot_start 'if fatload ${devtype} ${devnum} ${loadaddr} uImage; then if fatload ${devtype} ${devnum} ${initrd_addr} uInitrd; then fatload ${devtype} ${devnum} ${env_addr} uEnv.ini && env import -t ${env_addr} ${filesize} && run addmac; fatload ${devtype} ${devnum} ${dtb_mem_addr} ${dtb_name} && run boot_start; fi;fi'
setenv devtype mmc
setenv devnum 1
setenv bootcmd 'run start_autoscript; run try_boot_start'
setenv firstboot 1
saveenv
It mainly configures the u-boot environment. The above is the code I use
This allows you to boot without using “emmc_autoscript”
1 Like
Hope it can help everyone
