This is mainline uboot and idk which device you’re using.
You need to share more information on which device you’re using and which image did you use and how did you flash it on emmc.
Hi, i am using i96 pro 4GB/32GB …i am running manjaro from micro SD card using dtbs- amlogic/meson-sm1-sei610.dtb
- I tried the default method -
sudo /boot/install-aml-emmc.sh, this when run shows blank screen no output - i tried download -@danboid - install-aml59.sh , u-boot-gsking-x.bin - this one throws MMC device 2 not found ,missing env variable bootfile , pxeuuid
- i tried third method - after using 1st method , created uEnvi.ini , UPDATED FSTAB with PARTUUID ,renamed u-boot.emmc /extlinux - blank screen at bootup
Which image did you use for this ?
This two method will not work for emmc installation.
When you tried option 1 which os was present in the emmc before you run the script?
Which base image did you use for this device?
I don’t think. Anyone have tested manjaro on emmc in the device you mentioned. So not sure if it will work on it.
What was the output of this script when you run it?
Did you reboot with sdcard inserted after running the script? If not then try it.
1.image used - Manjaro-ARM-kde-plasma-vim3-21.03.img - if i remeber well , at sdcard boot-system info -shows -kernel 5.12.9-1-manjaro-arm
2. android 9.0 was present
3. the device is using S905X3

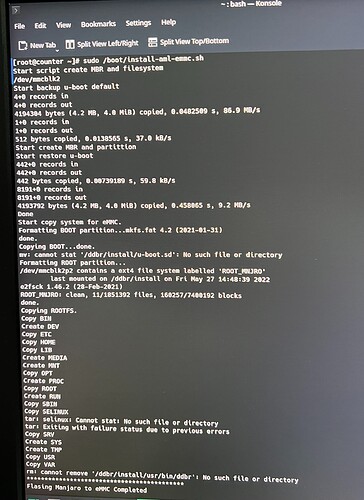

4. screenshot using default method( install-aml-emmc.sh)
This will not work. It uses Mainline uboot.
Use GTking or am6 image that should work and then run the install-emmc script.
This is not the latest script.Try as recommended above.
hi, after the install script , is there any other steps ? like editing boot.ini or need to set uEnv.ini ? if possible can give the steps?
Reboot the device with sdcard inserted.
It should boot into sdcard again and then shutdown and remove the sdcard and hopefully it should boot into emmc installation.
hi! spikerguy
Hope to get your help, thank you!
My box is 2345 Octopus planet s912+2+16gb (EMMC) + Gigabit wired network card rtl8211f
Manjaro-arm-xfce-vim2-21.02 IMG started successfully
I use install manjaro emmc. SH failed to write to EMMC. Then use the USB flash disk to start the card logo
Only re brush h96pro_ 7.1_ Octopus img
The following is the TTL log
GXM:BL1:dc8b51:76f1a5;FEAT:ADFC318C:80;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 117374
BL2 Built : 11:58:42, May 27 2017.
gxl gc3c9a84 - xiaobo.gu@droid05
set vdd cpu_a to 1120 mv
set vdd cpu_b to 1050 mv
set vddee to 1000 mv
Board ID = 5
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR3 chl: Rank0+1 @ 792MHz - PASS
Rank0: 1024MB(auto)-2T-11
Rank1: 1024MB(auto)-2T-11
DataBus test pass!
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x05100000, size: 0x00018400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x00063e00
NOTICE: BL3-1: v1.0(release):3348978
NOTICE: BL3-1: Built : 15:44:01, May 12 2017
NOTICE: BL3-1: BL33 decompress pass
mpu_config_enable:ok
[Image: gxl_v1.1.3221-2cfba69 2017-05-27 16:03:58 qiufang.dai@droid07]
OPS=0x82
wdt: reset registers!
fd 75 3 9d 70 4a cb 24 25 17 b1 6 [0.328740 Inits done]
secure task start!
high task start!
low task start!
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01-g5e3f75b-dirty (Aug 18 2017 - 15:30:31)
DRAM: 2 GiB
Relocation Offset is: 76eb9000
register usb cfg[0][1] = 0000000077f5c8c0
[CANVAS]canvas init
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpu: vpu_clk_gate_init_off
vpp: vpp_init
boot_device_flag : 1
Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
init bus_cycle=6, bus_timing=7, system=5.0ns
reset failed
get_chip_type and ret:fffffffe
get_chip_type and ret:fffffffe
chip detect failed and ret:fffffffe
nandphy_init failed and ret=0xfffffff1
MMC: aml_priv->desc_buf = 0x0000000073eb96b0
aml_priv->desc_buf = 0x0000000073ebb9d0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
init_part() 278: PART_TYPE_DOS
[mmc_init] mmc init success
dtb magic 5f4c4d41
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
start dts,buffer=0000000073ebe200,dt_addr=0000000073ec9a00
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
parts: 12
00: logo 0000000002000000 1
01: recovery 0000000002000000 1
02: rsv 0000000000800000 1
03: tee 0000000000800000 1
04: crypt 0000000002000000 1
05: misc 0000000002000000 1
06: boot 0000000002000000 1
07: system 0000000080000000 1
08: cache 0000000020000000 2
09: stbinfo 0000000001400000 1
10: systembak 0000000025800000 1
11: data ffffffffffffffff 4
init_part() 278: PART_TYPE_DOS
eMMC/TSD partition table have been checked OK!
check pattern success
mmc env offset: 0x27400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
hpd_state=1
[1080p60hz] is invalid for cvbs.
set hdmitx VIC = 16
config HPLL = 2970000
HPLL: 0xc000027b
config HPLL done
j = 4 vid_clk_div = 1
hdmitx: set enc for VIC: 16
HDMITX-DWC addr=0x10004006 rd_data=0x40
Error: HDMITX-DWC exp_data=0xff mask=0x9f
rx version is 1.4 or below div=10
hdmtix: set audio
hdmitx phy setting done
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-917: calc 27b1e0ea, store 27b1e0ea
_verify_dtb_checksum()-917: calc 27b1e0ea, store 27b1e0ea
dtb_read()-1039: total valid 2
dtb_read()-1106: do nothing
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
vpp: vpp_pq_load pq val error !!!
Net: dwmac.c9410000amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
Start read misc partition datas!
info->attemp_times = 0
info->active_slot = 0
info->slot_info[0].bootable = 1
info->slot_info[0].online = 1
info->slot_info[1].bootable = 0
info->slot_info[1].online = 0
info->attemp_times = 0
attemp_times = 0
active slot = 0
wipe_data=successful
wipe_cache=successful
upgrade_step=2
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[CANVAS]addr=0x7f851000 width=3840, height=2160
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[usid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
gpio: pin GPIOAO_2 (gpio 102) value is 1
InUsbBurn
noSof
Hit Enter or space or Ctrl+C key to stop autoboot -- : 0
ee_gate_off ...
## Booting Android Image at 0x01080000 ...
reloc_addr =73f3e4a0
copy done
load dtb from 0x1000000 ......
Amlogic multi-dtb tool
Single dtb detected
Uncompressing Kernel Image ... OK
kernel loaded at 0x01080000, end = 0x021b57d0
Loading Ramdisk to 73d3f000, end 73ea714e ... OK
Loading Device Tree to 000000001fff1000, end 000000001ffff173 ... OK
fdt_instaboot: no instaboot image
Starting kernel ...
uboot time: 2327844 us
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] Linux version 3.14.29-g9179730-dirty (mly@czkj) (gcc version 4.9.2 20140904 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.09 - Linaro GCC 4.9-2014.09) ) #10 SMP PREEMPT Tue Sep 5 10:05:11 CST 2017
[ 0.000000@0] CPU: AArch64 Processor [410fd034] revision 4
[ 0.000000@0] no prop version_code
[ 0.000000@0] bootconsole [earlycon0] enabled
[ 0.000000@0] fdt Reserved memory table:
[ 0.000000@0] linux,di: 0x000000007e200000 - 0x0000000080000000 (30 MiB)
[ 0.000000@0] DI: DI reserved memory: created CMA memory pool at 0x000000007e200000, size 30 MiB
[ 0.000000@0] linux,chunk-reserve: 0x000000007a200000 - 0x000000007e200000 (64 MiB)
[ 0.000000@0] linux,ion-dev: 0x0000000076200000 - 0x000000007a200000 (64 MiB)
[ 0.000000@0] linux,vdin1_cma: 0x0000000075000000 - 0x0000000076000000 (16 MiB)
[ 0.000000@0] cma: Reserved 16 MiB at 75000000, total cma pages:4096
[ 0.000000@0] linux,ppmgr: 0x0000000076200000 - 0x0000000076200000 (0 MiB)
[ 0.000000@0] linux,codec_mm_cma: 0x000000005ec00000 - 0x0000000073c00000 (336 MiB)
[ 0.000000@0] cma: Reserved 336 MiB at 5ec00000, total cma pages:90112
[ 0.000000@0] linux,picdec: 0x0000000076200000 - 0x0000000076200000 (0 MiB)
[ 0.000000@0] Reserved memory: incorrect alignment of CMA region
[ 0.000000@0] linux,codec_mm_reserved: 0x000000005ab00000 - 0x000000005ec00000 (65 MiB)
[ 0.000000@0] fdt Reserved memory total: 579 MiB
[ 0.000000@0] cma: Reserved 8 MiB at 74800000, total cma pages:92160
[ 0.000000@0] psci: Using PSCI v0.1 Function IDs from DT
[ 0.000000@0] PERCPU: Embedded 12 pages/cpu @ffffffc07616b000 s19968 r8192 d20992 u49152
[ 0.000000@0] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 511749
[ 0.000000@0] Kernel command line: rootfstype=ramfs init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xc81004c0 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 androidboot.selinux=permissive androidboot.selinux=permissive logo=osd1,loaded,0x3d800000,1080p60hz maxcpus=8 vout=1080p60hz,enable hdmimode=1080p60hz cvbsmode=576cvbs hdmitx= cvbsdrv=0 pq= androidboot.firstboot=1 jtag=apao,rgb0 androidboot.hardware=amlogic mac=00:79:18:00:00:14 androidboot.mac=00:79:18:00:00:14 androidboot.slot_suffix=_a
[ 0.000000@0] logo: osd1
[ 0.000000@0] logo: loaded
[ 0.000000@0] logo: 0x3d800000
[ 0.000000@0] logo: 1080p60hz
[ 0.000000@0] vout_serve: 1080p60hz
[ 0.000000@0] vout_serve: enable: 1
[ 0.000000@0] logo: get hdmimode: 1080p60hz
[ 0.000000@0] logo: get cvbsmode: 576cvbs
[ 0.000000@0] tv_vout: cvbs performance line = 0
[ 0.000000@0] [amvecm] pq string error !!!
[ 0.000000@0] jtag: jtag select 2
[ 0.000000@0] jtag: invalid cluster index -1
[ 0.000000@0] jtag: cluster index -1
[ 0.000000@0] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000@0] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes)
[ 0.000000@0] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000@0] Memory: 1421284K/2092032K available (10933K kernel code, 1237K rwdata, 4192K rodata, 1251K init, 3804K bss, 670748K reserved)
[ 0.000000@0] Virtual kernel memory layout:
[ 0.000000@0] vmalloc : 0xffffff8000000000 - 0xffffff8040000000 ( 1024 MB)
[ 0.000000@0] vmemmap : 0xffffff8040010000 - 0xffffff8042c10000 ( 44 MB)
[ 0.000000@0] modules : 0xffffffbffc000000 - 0xffffffc000000000 ( 64 MB)
[ 0.000000@0] memory : 0xffffffc000000000 - 0xffffffc080000000 ( 2048 MB)
[ 0.000000@0] .init : 0xffffffc001f47000 - 0xffffffc00207fe00 ( 1252 kB)
[ 0.000000@0] .text : 0xffffffc001080000 - 0xffffffc001f467e4 ( 15130 kB)
[ 0.000000@0] .data : 0xffffffc002080000 - 0xffffffc0021b57d0 ( 1238 kB)
[ 0.000000@0] PM: Registered nosave memory: [mem 0x01080000-0x01f45fff]
[ 0.000000@0] SLUB: HWalign=64, Order=0-1, MinObjects=0, CPUs=8, Nodes=1
[ 0.000000@0] arch_multi_cluster:1
[ 0.000000@0] Preemptible hierarchical RCU implementation.
[ 0.000000@0] NR_IRQS:64 nr_irqs:64 0
[ 0.000000@0] Architected cp15 timer(s) running at 24.00MHz (phys).
[ 0.000004@0] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 2863311519744ns
[ 0.008249@0] meson_bc_timer: mclk->mux_reg =ffffff8000014990,mclk->reg =ffffff8000016994
[ 0.016841@0] Console: colour dummy device 80x25
[ 0.021096@0] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)
[ 0.031672@0] pid_max: default: 32768 minimum: 301
[ 0.036582@0] Security Framework initialized
[ 0.040787@0] SELinux: Initializing.
[ 0.044531@0] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.051368@0] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.065355@0] Initializing cgroup subsys debug
[ 0.065394@0] Initializing cgroup subsys freezer
[ 0.068911@0] ftrace: allocating 37808 entries in 148 pages
[ 0.124900@0] /cpus/cpu@0: Missing clock-frequency property
[ 0.124940@0] /cpus/cpu@1: Missing clock-frequency property
[ 0.130524@0] /cpus/cpu@2: Missing clock-frequency property
[ 0.136153@0] /cpus/cpu@3: Missing clock-frequency property
[ 0.141726@0] /cpus/cpu@100: Missing clock-frequency property
[ 0.147508@0] /cpus/cpu@101: Missing clock-frequency property
[ 0.153277@0] /cpus/cpu@102: Missing clock-frequency property
[ 0.159058@0] /cpus/cpu@103: Missing clock-frequency property
[ 0.164826@0] hw perfevents: enabled with arm/armv8-pmuv3 PMU driver, 7 counters available
[ 0.215148@0] Meson chip version = RevA (22:A - 82:0)
[ 0.233553@1] CPU1: Booted secondary processor
[ 0.253522@2] CPU2: Booted secondary processor
[ 0.273531@3] CPU3: Booted secondary processor
[ 0.293572@4] CPU4: Booted secondary processor
[ 0.313564@5] CPU5: Booted secondary processor
[ 0.333584@6] CPU6: Booted secondary processor
[ 0.353612@7] CPU7: Booted secondary processor
[ 0.353704@0] Brought up 8 CPUs
[ 0.382524@0] SMP: Total of 8 processors activated.
[ 0.396550@2] sched: registering cpufreq notifiers for scale-invariant loads
[ 0.398074@2] instabooting: 0
[ 0.417705@2] cma: cma_init_reserved_areas, use_cma_first:1
[ 0.417813@2] pinctrl core: initialized pinctrl subsystem
[ 0.423842@2] regulator-dummy: no parameters
[ 0.428345@3] NET: Registered protocol family 16
[ 0.434503@2] ramoops: using module parameters
[ 0.437147@2] console [pstore-1] enabled
[ 0.440473@2] pstore: Registered ramoops as persistent store backend
[ 0.446894@2] ramoops: attached 0x100000@0x7300000, ecc: 0/0
[ 0.453571@3] cpuidle: using governor menu
[ 0.456977@2] aml_vdac_init: module init
[ 0.460777@2] register canvas platform driver
[ 0.465073@2] register rdma platform driver
[ 0.471391@2] vdso: 2 pages (1 code, 1 data) at base ffffffc002088000
[ 0.475691@2] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.483050@2] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.489926@2] software IO TLB [mem 0x56c00000-0x57000000] (4MB) mapped at [ffffffc056c00000-ffffffc056ffffff]
[ 0.498984@2] Serial: AMBA PL011 UART driver
[ 0.503855@2] aml_i2c version: 20140813
[ 0.507323@3] i2c-core: driver [pmu4] using legacy resume method
[ 0.513289@2] codec_mm:codec_mm_module_init
[ 0.517397@3] media_configs_system_init
[ 0.521340@3] aml_watch_point_probe, in
[ 0.525504@2] meson_mpll_clk: register mpll_clk_out0 success done
[ 0.531139@2] meson_mpll_clk: register mpll_clk_out1 success done
[ 0.537250@2] meson_mpll_clk: register mpll_clk_out2 success done
[ 0.543628@2] clk_sys: register PLL sys_pll success done
[ 0.548733@2] gxl_clk: [ xtal ] ->clockrate: 24000000Hz
[ 0.554056@2] gxl_clk: [ 32Khz ] ->clockrate: 32000Hz
[ 0.559211@2] gxl_clk: [ clk81 ] ->clockrate: 166666666Hz
[ 0.564738@2] gxl_clk: [ fixed_pll ] ->clockrate: 2000000000Hz
[ 0.570674@2] gxl_clk: [ fclk_div2 ] ->clockrate: 1000000000Hz
[ 0.576629@2] gxl_clk: [ fclk_div3 ] ->clockrate: 666666666Hz
[ 0.582485@2] gxl_clk: [ fclk_div4 ] ->clockrate: 500000000Hz
[ 0.588358@2] gxl_clk: [ fclk_div5 ] ->clockrate: 400000000Hz
[ 0.594210@2] gxl_clk: [ fclk_div7 ] ->clockrate: 285714285Hz
[ 0.600103@2] gxl_clk: clock initialization complete
[ 0.605233@2] clkmsr: Gxl msr_clk_reg0=ffffff800003c75c,msr_clk_reg2=ffffff800003e764
[ 0.615780@2] aml_iomap: amlogic iomap probe done
[ 0.618533@3] pinmux-gxl c1109880.pinmux: Init pinux probe!
[ 0.624601@2] pinmux-gxl c1109880.pinmux: Probed amlogic pinctrl driver
[ 0.630447@3] genirq: Setting trigger mode 8 for irq 241 failed (gic_set_type+0x0/0xbc)
[ 0.638008@3] genirq: Setting trigger mode 8 for irq 242 failed (gic_set_type+0x0/0xbc)
[ 0.646221@2] genirq: Setting trigger mode 8 for irq 241 failed (gic_set_type+0x0/0xbc)
[ 0.654083@2] genirq: Setting trigger mode 8 for irq 242 failed (gic_set_type+0x0/0xbc)
domain-0 init dvfs: 4
domain-1 init dvfs: 4
[ 0.674756@3] codec_mm has 2 memory regions
[ 0.674821@3] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_cma ok
[ 0.681448@3] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_reserved ok
[ 0.690057@2] codec_mm has 2 memory regions
[ 0.694144@2] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_cma ok
[ 0.702164@2] codec_mm codec_mm.19: assigned reserved memory node linux,codec_mm_reserved ok
[ 0.713331@2] vpu: driver version: v04
[ 0.714432@2] vpu: load vpu_clk: 666667000Hz(7)
[ 0.719061@2] vpu: vpu_probe OK
[ 0.724020@2] tv_vout: tvout_probe
[ 0.725527@2] tv_vout: chrdev devno 266338304 for disp
[ 0.730684@2] vout_notify: vout_register_server
[ 0.735246@2] tv_vout: register tv module server ok
[ 0.740358@3] tv_vout: create cdev tv
[ 0.743943@3] tv_vout: tvout_probe OK
[ 0.748196@3] canvas_probe reg=00000000c8838000,size=400
[ 0.752848@3] canvas maped reg_base =ffffff800009a000
[ 0.762153@2] rdma_probe
[ 1.147381@3] bio: create slab <bio-0> at 0
[ 1.148713@0] SCSI subsystem initialized
[ 1.150586@3] usbcore: registered new interface driver usbfs
[ 1.155770@3] usbcore: registered new interface driver hub
[ 1.161304@0] usbcore: registered new device driver usb
[ 1.167436@3] i2c-gpio i2c_gpio.40: using pins 172 (SDA) and 173 (SCL)
[ 1.173705@3] Linux video capture interface: v2.00
[ 1.178103@0] pps_core: LinuxPPS API ver. 1 registered
[ 1.182922@0] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 1.192407@3] PTP clock support registered
[ 1.197183@0] hdmitx: system: Ver: 2014May6
[ 1.200791@0] hdmitx: amhdmitx_probe
[ 1.205138@3] hdmitx: hdmi_init_chip_type: 0
[ 1.208561@3] hdmitx hpd irq = 89
[ 1.212543@3] hdmitx20: Mapped PHY: 0xc1100000
[ 1.216268@3] hdmitx20: Mapped PHY: 0xc8834400
[ 1.220738@3] hdmitx20: Mapped PHY: 0xd0100000
[ 1.225195@3] hdmitx20: Mapped PHY: 0xc8100000
[ 1.229646@3] hdmitx20: Mapped PHY: 0xc883c000
[ 1.234210@3] hdmitx20: Mapped PHY: 0xc1104400
[ 1.238570@3] hdmitx20: Mapped PHY: 0xc883a000
[ 1.243032@3] hdmitx20: Mapped PHY: 0xda83a000
[ 1.247503@3] hdmitx20: Mapped PHY: 0xd0044000
[ 1.251961@3] hdmitx: alread display in uboot 0x10
[ 1.256803@3] avmute set to 1
[ 1.259853@3] hdmitx: attr 444,8bit
[ 1.263700@1] vout_serve: vout_init_module
[ 1.267693@1] tv_vout: tv_set_current_vmode[925]fps_target_mode=19
[ 1.270611@0] hdmitx: system: irq 80000002
[ 1.277706@1] tv_vout: mode is 19,sync_duration_den=1,sync_duration_num=60
[ 1.284603@1] tv_vout: already display in uboot
[ 1.289151@1] vout_serve: vinfo mode is: 1080p60hz
[ 1.293956@1] vout_serve: init mode 1080p60hz
[ 1.298636@3] vout_serve: create_vout_fops OK
[ 1.302716@3] vout_serve: create vout attribute OK
[ 1.307518@3] vout_serve: meson_vout_probe OK
[ 1.312126@0] logo: logo_init
[ 1.315366@0] osd_rdma: osd_rdma_init: rdma_table p=0x74841000,op=0x74841000 , v=0xffffff80000b9000
[ 1.323998@0] rdma_register, rdma_table_addr ffffff80000c9000 rdma_table_addr_phy 74842000 reg_buf ffffffc056983000
[ 1.334491@0] rdma_register success, handle 1 table_size 4096
[ 1.340244@0] osd_rdma: osd_rdma_init:osd reset rdma handle = 1.
[ 1.346313@0] rdma_register, rdma_table_addr ffffff80000d9000 rdma_table_addr_phy 74843000 reg_buf ffffffc057349000
[ 1.356792@0] rdma_register success, handle 2 table_size 4096
[ 1.362558@0] osd_rdma: osd_rdma_init:osd rdma handle = 2.
[ 1.368594@3] Advanced Linux Sound Architecture Driver Initialized.
[ 1.375092@0] Bluetooth: Core ver 2.18
[ 1.378351@3] NET: Registered protocol family 31
[ 1.382772@3] Bluetooth: HCI device and connection manager initialized
[ 1.389371@3] Bluetooth: HCI socket layer initialized
[ 1.394410@3] Bluetooth: L2CAP socket layer initialized
[ 1.399693@3] Bluetooth: SCO socket layer initialized
[ 1.404738@3] NetLabel: Initializing
[ 1.408318@3] NetLabel: domain hash size = 128
[ 1.412883@3] NetLabel: protocols = UNLABELED CIPSOv4
[ 1.418076@3] NetLabel: unlabeled traffic allowed by default
[ 1.426346@0] Switched to clocksource arch_sys_counter
[ 1.470906@3] register gxtv_demod demod driver
[ 1.471338@3] [amlatvdemod..]aml_atvdemod_init.
[ 1.474440@3] NET: Registered protocol family 2
[ 1.479481@3] TCP established hash table entries: 16384 (order: 5, 131072 bytes)
[ 1.486486@3] TCP bind hash table entries: 16384 (order: 6, 262144 bytes)
[ 1.493394@3] TCP: Hash tables configured (established 16384 bind 16384)
[ 1.500143@3] TCP: reno registered
[ 1.503309@3] UDP hash table entries: 1024 (order: 3, 32768 bytes)
[ 1.509702@3] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes)
[ 1.516440@3] NET: Registered protocol family 1
[ 1.520993@3] RPC: Registered named UNIX socket transport module.
[ 1.526856@3] RPC: Registered udp transport module.
[ 1.531737@3] RPC: Registered tcp transport module.
[ 1.536644@3] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 1.543449@3] pwm: output_co = 16 ; clock_co = 8
[ 1.548005@3] pwm: npwm= 16
[ 1.550953@3] pwm: probe ok
[ 1.553939@0] wifi: power_on_pin_OD = 0;
[ 1.557529@0] aml_wifi wifi.35: [wifi_dev_probe] no power_on_pin2
[ 1.563653@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm phandle val=42;pwm-channel1=4;pwm-channel2=12
[ 1.573662@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[0] = 30541
[ 1.581380@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[0] = 30518
[ 1.589060@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[1] = 15270
[ 1.596778@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[1] = 15259
[ 1.604452@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config1[2] = 6
[ 1.611827@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] pwm_config2[2] = 9
[ 1.619159@0] aml_wifi wifi.35: [pwm_double_channel_conf_dt] wifi pwm dt ok
[ 1.626168@0] aml_wifi wifi.35: [pwm_double_channel_conf] wifi pwm conf ok
[ 1.626431@1] hdmitx: plugin
[ 1.636023@0] aml_wifi wifi.35: [wifi_dev_probe] dhd_static_buf setup
[ 1.642512@0] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem: WIFI MEM Allocated
[ 1.650071@0] aml_wifi wifi.35: [wifi_dev_probe] interrupt_pin=241
[ 1.656252@0] aml_wifi wifi.35: [wifi_dev_probe] irq_num=100, irq_trigger_type=1
[ 1.663715@0] aml_wifi wifi.35: [wifi_dev_probe] power_on_pin=240
[ 1.669822@0] aml_wifi wifi.35: [wifi_dev_probe] clock_32k_pin=0
[ 1.676180@0] aml_wifi wifi.35: [wifi_setup_dt] wifi_setup_dt
[ 1.681696@0] aml_wifi wifi.35: [wifi_setup_dt] interrupt_pin(241)
[ 1.683243@1] EDID Parser:
[ 1.683512@1] hdmitx: get dtd0 vic: 16
[ 1.683517@1] dump_dtd_info[1812]
[ 1.683519@1] pixel_clock 14625
[ 1.683520@1] h_active 1680
[ 1.683521@1] h_blank 560
[ 1.683523@1] v_active 1050
[ 1.683524@1] v_blank 39
[ 1.683526@1] h_sync_offset 104
[ 1.683527@1] h_sync 176
[ 1.683528@1] v_sync_offset 3
[ 1.683530@1] v_sync 6
[ 1.683545@1] dump_dtd_info[1812]
[ 1.683547@1] pixel_clock 7425
[ 1.683548@1] h_active 1280
[ 1.683549@1] h_blank 371
[ 1.683551@1] v_active 720
[ 1.683552@1] v_blank 30
[ 1.683553@1] h_sync_offset 56
[ 1.683554@1] h_sync 136
[ 1.683556@1] v_sync_offset 1
[ 1.683557@1] v_sync 5
[ 1.683559@1] hdmitx: edid: find IEEEOUT
[ 1.683583@1]
[ 1.683589@1] hdmitx: update rx hdr info 0 at edid parsing
[ 1.683632@1] 00ffffffffffff001e6de176010101010118010380462778eaf353a554519326
[ 1.683632@1] 124849230800010181c08100818095009040a9c0b300023a801871382d40582c
[ 1.683632@1] 4500ba882100001a21399030621a274068b03600ba882100001c000000fd0038
[ 1.683632@1] 3d1e530f000a202020202020000000fc0033324d42323556510a202020200118
[ 1.683632@1]
[ 1.683632@1]
[ 1.683670@1] 02031df149840503021d00101113230907078301000066030c00100080011d00
[ 1.683670@1] 7351d01e203888150056502100001e011d8018711c1620582c25005650210000
[ 1.683670@1] 9e011d80d0721c1620102c2580c48e2100009e023a80d072382d40102c452006
[ 1.683670@1] 442100001e023a801871382d40582c450056502100001e000000000000000048
[ 1.683670@1]
[ 1.683670@1]
[ 1.683677@1] hdmitx: video: get current mode: 1080p60hz
[ 1.683679@1] hdmitx: update rx hdr info 0
[ 1.683681@1] hdmitx: update physcial size: 700 390
[ 1.683696@1] hdmitx: system: [set_disp_mode_auto] ALREADY init VIC = 16
[ 1.683701@1] hdmtix: set audio
[ 1.683710@1] hdmitx tx_aud_src = 0
[ 1.683733@1] hdmitx: fs = 0, cd = 4, tmds_clk = 148500
[ 1.683736@1] hdmitx aud_n_para = 6144
[ 1.863262@0] aml_wifi wifi.35: [wifi_setup_dt] power_on_pin(240)
[ 1.869715@3] Unpacking initramfs...
[ 1.931428@3] Freeing initrd memory: 1440K (ffffffc073d3f000 - ffffffc073ea7000)
[ 1.938815@3] futex hash table entries: 2048 (order: 5, 131072 bytes)
[ 1.939839@3] Initialise system trusted keyring
[ 1.944351@3] audit: initializing netlink subsys (disabled)
[ 1.949981@3] audit: type=2000 audit(1.850:1): initialized
[ 1.956390@0] HugeTLB registered 2 MB page size, pre-allocated 0 pages
[ 1.969768@0] VFS: Disk quotas dquot_6.5.2
[ 1.970050@3] Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 1.980303@3] NFS: Registering the id_resolver key type
[ 1.980370@3] Key type id_resolver registered
[ 1.984576@3] Key type id_legacy registered
[ 1.988890@3] NTFS driver 2.1.30 [Flags: R/O].
[ 1.993675@0] jffs2: version 2.2. (NAND) (SUMMARY) 漏 2001-2006 Red Hat, Inc.
[ 2.001449@3] fuse init (API version 7.22)
[ 2.005326@3] msgmni has been set to 3498
[ 2.010526@0] NET: Registered protocol family 38
[ 2.013327@0] Key type asymmetric registered
[ 2.017931@0] Asymmetric key parser 'x509' registered
[ 2.023054@3] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 246)
[ 2.030363@3] io scheduler noop registered
[ 2.034364@3] io scheduler deadline registered
[ 2.039094@0] io scheduler cfq registered (default)
[ 2.095278@3] meson-rng c8834000.rng: hwrng registered
[ 2.099884@3] loop: module loaded
[ 2.100530@3] zram: Created 1 device(s) ...
[ 2.103479@3] mtdoops: mtd device (mtddev=name/number) must be supplied
[ 2.109940@3] tun: Universal TUN/TAP device driver, 1.6
[ 2.114290@3] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 2.246808@0] libphy: stmmac: probed
[ 2.246843@0] eth0: PHY ID 001cc916 at 0 IRQ POLL (stmmac-0:00) active
[ 2.251374@0] eth0: PHY ID 001cc916 at 7 IRQ POLL (stmmac-0:07)
[ 2.257848@3] PPP generic driver version 2.4.2
[ 2.262013@3] PPP BSD Compression module registered
[ 2.266705@3] PPP Deflate Compression module registered
[ 2.271955@3] PPP MPPE Compression module registered
[ 2.276960@3] NET: Registered protocol family 24
[ 2.281758@3] usbcore: registered new interface driver asix
[ 2.287361@0] usbcore: registered new interface driver ax88179_178a
[ 2.293602@3] usbcore: registered new interface driver cdc_ether
[ 2.299663@3] usbcore: registered new interface driver net1080
[ 2.305489@0] usbcore: registered new interface driver cdc_subset
[ 2.311672@3] usbcore: registered new interface driver zaurus
[ 2.317453@3] usbcore: registered new interface driver cdc_ncm
[ 2.323477@3] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 2.329894@3] ehci-h20ahb: H20AHB-EHCI Host Controller driver
[ 2.335955@3] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 2.342521@3] usbcore: registered new interface driver cdc_acm
[ 2.347913@3] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 2.356268@3] usbcore: registered new interface driver usb-storage
[ 2.362637@3] usbcore: registered new interface driver usbserial
[ 2.369212@3] amlogic-new-usb2 d0078000.usb2phy: USB2 phy probe:phy_mem:0xd0078000, iomap phy_base:0xffffff800010e000
[ 2.379361@3] amlogic-new-usb3 d0078080.usb3phy: This phy has no usb port
[ 2.385883@3] amlogic-new-usb3 d0078080.usb3phy: USB3 phy probe:phy_mem:0xd0078080, iomap phy_base:0xffffff800011a080
[ 2.397303@0] mousedev: PS/2 mouse device common for all mice
[ 2.402828@0] usbcore: registered new interface driver xpad
[ 2.408173@3] i2c /dev entries driver
[ 2.412143@3] IR NEC protocol handler initialized
[ 2.416312@3] IR RC5(x) protocol handler initialized
[ 2.421339@3] IR RC6 protocol handler initialized
[ 2.426023@3] IR JVC protocol handler initialized
[ 2.430757@3] IR Sony protocol handler initialized
[ 2.435560@3] IR RC5 (streamzap) protocol handler initialized
[ 2.441381@3] IR SANYO protocol handler initialized
[ 2.446235@3] IR MCE Keyboard/mouse protocol handler initialized
[ 2.452482@3] usbcore: registered new interface driver uvcvideo
[ 2.458261@3] USB Video Class driver (1.1.1)
[ 2.462657@0] usbcore: registered new interface driver cx231xx
[ 2.468417@0] cx231xx: Cx231xx dvb Extension initialized
[ 2.474668@3] device-mapper: ioctl: 4.27.0-ioctl (2013-10-30) initialised: dm-devel@redhat.com
[ 2.482551@3] Bluetooth: HCI UART driver ver 2.2
[ 2.487026@3] Bluetooth: HCI H4 protocol initialized
[ 2.492371@3] cpu cpu0: bL_cpufreq_init: CPU 0 initialized
[ 2.499792@0] cpu cpu4: bL_cpufreq_init: CPU 4 initialized
[ 2.503194@0] arm_big_little: bL_cpufreq_register: Registered platform driver: scpi
[ 2.511061@0] CPUidle arm64: cpuidle init start!!
[ 2.516038@0] CPUidle arm64: cpuidle init done!
[ 2.521028@0] @@@@@@@@@@_____2______in dia_init()
[ 2.524725@0] ATVR driver - init called!
[ 2.529070@3] usbcore: registered new interface driver usbhid
[ 2.534434@3] usbhid: USB HID core driver
[ 2.539017@3] ashmem: initialized
[ 2.541956@3] logger: created 256K log 'log_main'
[ 2.546917@0] logger: created 256K log 'log_events'
[ 2.551578@3] logger: created 256K log 'log_radio'
[ 2.556416@3] logger: created 256K log 'log_system'
[ 2.562408@3] meson_uart c81004c0.serial: ==uart0 reg addr = ffffff800011c4c0
[ 2.568366@3] c81004c0.serial: ttyS0 at MMIO 0xc81004c0 (irq = 225, base_baud = 1500000) is a meson_uart
[ 2.583350@3] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 0 to 115200
[ 2.585979@3] console [ttyS0] enabled
[ 2.585979@3] console [ttyS0] enabled
[ 2.593241@3] bootconsole [earlycon0] disabled
[ 2.593241@3] bootconsole [earlycon0] disabled
[ 2.602382@0] meson_uart c11084c0.serial: ==uart1 reg addr = ffffff800011e4c0
[ 2.609122@0] c11084c0.serial: ttyS1 at MMIO 0xc11084c0 (irq = 58, base_baud = 1500000) is a meson_uart
[ 2.619000@3] meson-gpu-clkgen c883c000.gpu_clk: can't request region for resource [mem 0xc883c000-0xc883cfff]
[ 2.628293@3] meson-gpu-clkgen: probe of c883c000.gpu_clk failed with error -16
[ 2.635910@0] hdmitx_hdcp_init
[ 2.639415@0] aml_vrtc rtc.34: rtc core: registered aml_vrtc as rtc0
[ 2.645014@0] BLASTER Driver Init
[ 2.648893@3] secmon has 1 memory regions
[ 2.652082@3] secmon: share in base: 0xffffff800013a000, share out base: 0xffffff800013c000
[ 2.660379@3] secmon secmon.4: assigned reserved memory node linux,secmon ok
[ 2.667319@3] secmon: probe done
[ 2.671024@0] storage: storage in base: 0xffffff8001800000
[ 2.675933@0] storage: storage out base: 0xffffff8001880000
[ 2.681537@0] storage: storage block base: 0xffffff8001900000
[ 2.687152@0] storage: probe done!
[ 2.691301@3] aml_sd_emmc_probe: line 3608
[ 2.694565@3] mmc driver version: 1.07, 2017-4-26: Support new emmc host controller for version 3
[ 2.704000@3] aml_sd_emmc_reg_init 1152
[ 2.707235@3] get property: ocr_avail, value:0x00200080
[ 2.713623@3] get property: f_min, value:300000
[ 2.719765@3] get property: f_max, value:100000000
[ 2.726129@3] get property: max_req_size, value:0x00020000
[ 2.732613@3] get property: pinname, str:emmc
[ 2.738388@3] get property: card_type, value:1
[ 2.744086@3] get property: gpio_dat3, str:
[ 2.749511@3] get property: hw_reset, str:
[ 2.754967@3] emmc:pdata->caps = c0000d47
[ 2.758917@3] emmc:pdata->caps2 = 18060
[ 2.762699@3] emmc:pdata->pm_caps = 0
[ 2.766347@3] storage 1, boot 1
[ 2.769431@3] get_storage_dev return 1
[ 2.806376@3] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 2.806603@3] aml_sd_emmc_probe: line 3608
[ 2.811081@3] aml_sd_emmc_reg_init 1152
[ 2.814466@3] get property: ocr_avail, value:0x00200080
[ 2.820897@3] get property: f_min, value:400000
[ 2.827019@3] get property: f_max, value:40000000
[ 2.833304@3] get property: max_req_size, value:0x00020000
[ 2.839787@3] get property: irq_in, value:3
[ 2.845465@3] get property: irq_out, value:5
[ 2.851212@3] get property: gpio_cd, str:
[ 2.856601@3] get property: pinname, str:sd
[ 2.862199@3] get property: jtag_pin, str:
[ 2.867642@3] get property: card_type, value:5
[ 2.873327@3] get property: gpio_dat3, str:
[ 2.878808@3] sd:pdata->caps = 7
[ 2.881955@3] sd:pdata->caps2 = 0
[ 2.885227@3] sd:pdata->pm_caps = 0
[ 2.926769@4] [aml_is_card_insert] card OUT
[ 2.927006@3] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 2.927068@4] [aml_is_card_insert] card OUT
[ 2.931798@2] emmc: trying cali 0-th time(s)
[ 2.939515@3] aml_sd_emmc_probe: line 3608
[ 2.944198@3] aml_sd_emmc_reg_init 1152
[ 2.947388@3] get property: ocr_avail, value:0x00200080
[ 2.948739@2] emmc: delay[0]= 4000 padding= 4, bidx=4
[ 2.948741@2] emmc: delay[1]= 4000 padding= 4, bidx=4
[ 2.948743@2] emmc: delay[2]= 3750 padding= 1, bidx=3
[ 2.948745@2] emmc: delay[3]= 4000 padding= 4, bidx=4
[ 2.948747@2] emmc: delay[4]= 4000 padding= 4, bidx=4
[ 2.948750@2] emmc: delay[5]= 4000 padding= 4, bidx=4
[ 2.948752@2] emmc: delay[6]= 3750 padding= 1, bidx=3
[ 2.948754@2] emmc: delay[7]= 4000 padding= 4, bidx=4
[ 2.948756@2] emmc: calibration result @ 0: max(4000), min(3750)
[ 2.948759@2] emmc: line_delay =0x1000100, max_cal_result =4000
[ 2.948760@2] emmc: base_index_max 4, base_index_min 3
[ 2.948766@2] emmc: clk 100000000 SDR mode tuning start
[ 2.949373@2] emmc: rx_tuning_result[0] = 10
[ 2.949744@2] emmc: rx_tuning_result[1] = 10
[ 2.950115@2] emmc: rx_tuning_result[2] = 10
[ 2.950483@2] emmc: rx_tuning_result[3] = 10
[ 2.950852@2] emmc: rx_tuning_result[4] = 10
[ 2.951221@2] emmc: rx_tuning_result[5] = 10
[ 2.951592@2] emmc: rx_tuning_result[6] = 10
[ 2.951961@2] emmc: rx_tuning_result[7] = 10
[ 2.952370@2] emmc: rx_tuning_result[9] = 10
[ 2.952372@2] emmc: best_win_start =9, best_win_size =9
[ 2.952375@2] emmc: sd_emmc_regs->gclock=0x100024a,sd_emmc_regs->gadjust=0x32000
[ 2.952378@2] emmc: gclock =0x100024a, gdelay=0x1000100, gadjust=0x32000
[ 2.952525@2] emmc: support driver strength type 1
[ 2.952595@2] emmc: try set sd/emmc to DDR mode
[ 2.952598@2] emmc: try set sd/emmc to DDR mode
[ 2.952729@2] emmc: new HS400 MMC card at address 0001
[ 2.953233@2] emmc: clock 100000000, 8-bit-bus-width
[ 2.953233@2]
[ 2.953233@2] mmcblk0: emmc:0001 MAG2GC 14.6 GiB
[ 2.953352@2] mmcblk0boot0: emmc:0001 MAG2GC partition 1 4.00 MiB
[ 2.953473@2] mmcblk0boot1: emmc:0001 MAG2GC partition 2 4.00 MiB
[ 2.953584@2] mmcblk0rpmb: emmc:0001 MAG2GC partition 3 512 KiB
[ 2.969123@1] mmcblk0: p1 p2
[ 2.969729@2] Delete invalid mbr partition part ffffffc055f08400, part->partno 1
[ 2.969858@1] Delete invalid mbr partition part ffffffc055f08800, part->partno 2
[ 2.970368@2] [mmc_read_partition_tbl] mmc read partition OK!
[ 2.970369@2] add_emmc_partition
[ 2.970534@1] [mmcblk0p01] bootloader offset 0x000000000000, size 0x000000400000
[ 2.970673@2] [mmcblk0p02] reserved offset 0x000002400000, size 0x000004000000
[ 2.970806@1] [mmcblk0p03] cache offset 0x000006c00000, size 0x000020000000
[ 2.970940@2] [mmcblk0p04] env offset 0x000027400000, size 0x000000800000
[ 2.971073@1] [mmcblk0p05] logo offset 0x000028400000, size 0x000002000000
[ 2.971213@2] [mmcblk0p06] recovery offset 0x00002ac00000, size 0x000002000000
[ 2.971346@1] [mmcblk0p07] rsv offset 0x00002d400000, size 0x000000800000
[ 2.971476@2] [mmcblk0p08] tee offset 0x00002e400000, size 0x000000800000
[ 2.971606@1] [mmcblk0p09] crypt offset 0x00002f400000, size 0x000002000000
[ 2.971740@2] [mmcblk0p10] misc offset 0x000031c00000, size 0x000002000000
[ 2.971882@1] [mmcblk0p11] boot offset 0x000034400000, size 0x000002000000
[ 2.972017@2] [mmcblk0p12] system offset 0x000036c00000, size 0x000080000000
[ 2.972145@1] [mmcblk0p13] stbinfo offset 0x0000b7400000, size 0x000001400000
[ 2.972278@2] [mmcblk0p14] systembak offset 0x0000b9000000, size 0x000025800000
[ 2.972405@1] [mmcblk0p15] data offset 0x0000df000000, size 0x0002cc400000
[ 2.972435@1] card key: card_blk_probe.
[ 2.972438@1] emmc_key_init:527 emmc key lba_start:0x12020,lba_end:0x12220
[ 2.972441@1] emmc key: emmc_key_init:552 ok.
[ 2.974885@1] amlmmc_dtb_init: register dtb chardev
[ 2.974885@1] calc 27b1e0ea, store 27b1e0ea
[ 2.977194@1] calc 27b1e0ea, store 27b1e0ea
[ 2.977196@1] total valid 2
[ 2.977642@2] amlmmc_dtb_init: register dtb chardev OK
[ 2.977643@2] Exit aml_emmc_partition_ops OK.
[ 2.978646@1] mmcblk0boot1: unknown partition table
[ 2.979520@1] mmcblk0boot0: unknown partition table
[ 2.979786@2] clear_emmc_wait_flag
[ 3.326512@3] get property: f_min, value:400000
[ 3.332598@3] get property: f_max, value:200000000
[ 3.338987@3] get property: max_req_size, value:0x00020000
[ 3.345451@3] get property: pinname, str:sdio
[ 3.351233@3] get property: card_type, value:3
[ 3.356963@3] sdio:pdata->caps = 7810f
[ 3.360627@3] sdio:pdata->caps2 = 0
[ 3.364078@3] sdio:pdata->pm_caps = 1
[ 3.406362@0] [aml_sd_emmc_probe] aml_sd_emmc_probe() success!
[ 3.407263@0] ion_dev has 1 memory regions
[ 3.410647@0] ion_dev_mem_init size=0x4000000
[ 3.444024@0] ion_chunk_heap_create: base 2048917504 size 67108864 align 0
[ 3.459345@0] fb: osd_init_module
[ 3.459495@0] fb: viu vsync irq: 35
[ 3.460483@0] fb: failed to init reserved memory
[ 3.465086@0] fb: osd_set_free_scale_mode_hw
[ 3.469336@0] fb: osd_probe vinfo:ffffffc002136500
[ 3.474025@0] fb: init fbdev bpp is:32
[ 3.478375@3] fb: set osd0 reverse as NONE
[ 3.494641@0] fb: osd probe OK
[ 3.494895@0] ge2d: ge2d_init_module
[ 3.495607@0] ge2d: ge2d_dev major:241
[ 3.499957@3] ge2d: vpu clock is 666660000 HZ
[ 3.503632@3] ge2d: ge2d clock is 400 MHZ
[ 3.507664@3] ge2d: ge2d: pdev=ffffffc05718d000, irq=182, rstc=0xffffffc055c62440, clk=ffffffc0570d2000
[ 3.516994@3] ge2d: mapped phy: 0xd0160000
[ 3.520961@3] ge2d: ge2d start monitor
[ 3.524846@2] ge2d: ge2d workqueue monitor start
[ 3.525131@1] sysled: module init
[ 3.525264@1] sysled: led_gpio = 228
[ 3.525265@1] sysled: active_low = 0
[ 3.525288@1] sysled: red_led_pin_num = 2861796312
[ 3.525290@1] ------------[ cut here ]------------
[ 3.525304@1] WARNING: CPU: 1 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.525305@1] invalid GPIO -1433170984
[ 3.525309@1] Modules linked in:
[ 3.525315@1] CPU: 1 PID: 1 Comm: swapper/0 Not tainted 3.14.29-g9179730-dirty #10
[ 3.525317@1] Call trace:
[ 3.525324@1] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.525327@1] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.525333@1] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.525338@1] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.525341@1] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.525344@1] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.525347@1] [<ffffffc001441d54>] gpio_request+0x20/0x38
[ 3.525353@1] [<ffffffc0017356f8>] aml_sysled_probe+0x16c/0x32c
[ 3.525359@1] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.525364@1] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.525368@1] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.525372@1] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.525376@1] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.525380@1] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.525384@1] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.525387@1] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.525393@1] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.525397@1] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.525402@1] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.525407@1] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.525423@1] ---[ end trace f40c32f32c1ea0c6 ]---
[ 3.525425@1] gpiod_request: invalid GPIO
[ 3.525426@1] ------------[ cut here ]------------
[ 3.525430@1] WARNING: CPU: 1 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.525432@1] invalid GPIO -1433170984
[ 3.525433@1] Modules linked in:
[ 3.525437@1] CPU: 1 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.525437@1] Call trace:
[ 3.525441@1] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.525444@1] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.525447@1] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.525451@1] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.525454@1] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.525457@1] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.525460@1] [<ffffffc001735700>] aml_sysled_probe+0x174/0x32c
[ 3.525463@1] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.525467@1] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.525471@1] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.525474@1] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.525478@1] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.525481@1] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.525485@1] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.525488@1] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.525491@1] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.525494@1] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.525497@1] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.525501@1] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.525502@1] ---[ end trace f40c32f32c1ea0c7 ]---
[ 3.525503@1] gpiod_direction_output: invalid GPIO
[ 3.525505@1] sysled: mcu_pin_num = 2861796312
[ 3.525506@1] ------------[ cut here ]------------
[ 3.525510@1] WARNING: CPU: 1 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.525511@1] invalid GPIO -1433170984
[ 3.525513@1] Modules linked in:
[ 3.525516@1] CPU: 1 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.525516@1] Call trace:
[ 3.525520@1] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.525523@1] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.525526@1] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.525529@1] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.525533@1] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.525536@1] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.525539@1] [<ffffffc001441d54>] gpio_request+0x20/0x38
[ 3.525542@1] [<ffffffc001735744>] aml_sysled_probe+0x1b8/0x32c
[ 3.525545@1] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.525549@1] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.525553@1] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.525557@1] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.525560@1] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.525564@1] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.525567@1] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.525570@1] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.525573@1] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.525576@1] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.525579@1] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.525583@1] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.525584@1] ---[ end trace f40c32f32c1ea0c8 ]---
[ 3.525585@1] gpiod_request: invalid GPIO
[ 3.525586@1] ------------[ cut here ]------------
[ 3.525590@1] WARNING: CPU: 1 PID: 1 at /ex_disk/mly/Android7_xml20170619_OTT/common/drivers/gpio/gpiolib.c:159 gpio_to_desc+0x5c/0x6c()
[ 3.525591@1] invalid GPIO -1433170984
[ 3.525593@1] Modules linked in:
[ 3.525596@1] CPU: 1 PID: 1 Comm: swapper/0 Tainted: G W 3.14.29-g9179730-dirty #10
[ 3.525596@1] Call trace:
[ 3.525600@1] [<ffffffc001088ee0>] dump_backtrace+0x0/0x144
[ 3.525603@1] [<ffffffc001089040>] show_stack+0x1c/0x28
[ 3.525606@1] [<ffffffc001b16808>] dump_stack+0x74/0xb8
[ 3.525610@1] [<ffffffc00109ea90>] warn_slowpath_common+0x98/0xc0
[ 3.525613@1] [<ffffffc00109eb2c>] warn_slowpath_fmt+0x74/0x88
[ 3.525616@1] [<ffffffc001441054>] gpio_to_desc+0x58/0x6c
[ 3.525619@1] [<ffffffc00173574c>] aml_sysled_probe+0x1c0/0x32c
[ 3.525622@1] [<ffffffc00148deb0>] platform_drv_probe+0x28/0x60
[ 3.525626@1] [<ffffffc00148be1c>] really_probe+0xd4/0x244
[ 3.525629@1] [<ffffffc00148c0b0>] __driver_attach+0xb0/0xb8
[ 3.525633@1] [<ffffffc001489e84>] bus_for_each_dev+0x68/0xac
[ 3.525636@1] [<ffffffc00148b8cc>] driver_attach+0x28/0x34
[ 3.525640@1] [<ffffffc00148b4d4>] bus_add_driver+0x158/0x210
[ 3.525644@1] [<ffffffc00148c86c>] driver_register+0x64/0x124
[ 3.525647@1] [<ffffffc00148de78>] __platform_driver_register+0x74/0x84
[ 3.525650@1] [<ffffffc001f83cc8>] aml_sysled_init+0x2c/0x7c
[ 3.525653@1] [<ffffffc0010816a4>] do_one_initcall+0xd4/0x138
[ 3.525656@1] [<ffffffc001f47914>] kernel_init_freeable+0x13c/0x1dc
[ 3.525660@1] [<ffffffc001b10318>] kernel_init+0x1c/0xdc
[ 3.525661@1] ---[ end trace f40c32f32c1ea0c9 ]---
[ 3.525662@1] gpiod_direction_output: invalid GPIO
[ 3.525833@3] sysled: edwin---> add flash_led_timer
[ 3.525835@3] sysled: Starting timer to fire in 50ms (4294937638)
[ 3.525839@3] sysled: module probed ok
[ 3.526325@3] pwmled: module init
[ 3.526365@3] edwin---> hbs658_init!!
[ 3.526750@1] codec:Amlogic A/V streaming port init
[ 3.528828@1] codec:get gate demux control ok ffffffc055cece00
[ 3.528833@1] codec:get gate parser_top control ok ffffffc055cecdc0
[ 3.528837@1] codec:get gate vpu_intr control ok ffffffc055cecac0
[ 3.528843@1] codec:get gate vdec control ok ffffffc055cec080
[ 3.529699@1] codec:[tsync_pcr_init]init success.
[ 3.529723@1] codec:amvideocap_init_module
[ 3.529878@1] codec:amvideocap_probe,amvideocap
[ 3.529881@1] codec:use cma buf.
[ 3.529883@1] codec:amvideocap_dev_register
[ 3.530563@3] codec:amvdec_mmpeg4 module init
[ 3.530962@1] ammvdec_h264 module init
[ 3.532551@1] amvenc_avc_probe -- reserved memory config fail.
[ 3.532555@1] amvenc_avc - cma memory pool size: 40 MB
[ 3.532577@1] encode_wq_init.
[ 3.532583@1] encode start monitor.
[ 3.532638@3] encode workqueue monitor start.
[ 3.532990@3] jpegenc module init
[ 3.533316@1] codec:picdec_driver_probe called.
[ 3.533320@1] picdec has 1 memory regions
[ 3.533350@1] codec:picdec_driver_probe done.
[ 3.534180@3] codec:vdec_request_irq ffffffc0017a624c, vsync
[ 3.534404@1] codec:create_ge2d_work_queue video task ok
[ 4.292012@3] rdma_register, rdma_table_addr ffffff8000256000 rdma_table_addr_phy 74850000 reg_buf ffffffc055fb8000
[ 4.302571@3] rdma_register success, handle 3 table_size 32768
[ 4.308000@3] video_rdma:rdma_init video rdma handle = 3.
[ 4.313340@3] codec:used fix clk for vdec clk source!
[ 4.318349@3] codec:register clk_set_setting cpu[34]
[ 4.323672@3] vpu_init
[ 4.325770@3] vpu_probe
[ 4.328052@3] HevcEnc reserved memory config fail.
[ 4.332743@3] HevcEnc - cma memory pool size: 64 MB
[ 4.337582@3] HevcEnc - wave420l_irq: 219
[ 4.341577@3] vpu base address get from platform driver physical base addr=0xc8810000, virtual base=0xffffff80003d8000
[ 4.352467@1] success to probe vpu device with video memory from cma
[ 4.358805@1] DI: di_module_init ok.
[ 4.361985@1] DI: di_module_init: major 234
[ 4.366373@2] DI: di_probe
[ 4.368960@1] deinterlace has 1 memory regions
[ 4.373240@1] deinterlace deinterlace.26: assigned reserved memory node linux,di ok
[ 4.380795@1] DI-di_probe: get flag_cma error.
[ 4.385204@1] di_irq:78,timerc_irq:38
[ 4.388973@1] rdma_register, rdma_table_addr ffffff800019b000 rdma_table_addr_phy 7484a000 reg_buf ffffffc055f90000
[ 4.399194@1] rdma_register success, handle 4 table_size 8192
[ 4.404848@1] DI: di_probe allocate rdma channel 4.
[ 4.409687@1] DI: DI hw version 2.
[ 4.413049@1] 0x000000db:Y=db,U=0,V=0
[ 4.416669@1] 0x000000dc:Y=dc,U=0,V=0
[ 4.420285@1] 0x000000dd:Y=dd,U=0,V=0
[ 4.423908@1] 0x000000de:Y=de,U=0,V=0
[ 4.427537@1] 0x000000df:Y=df,U=0,V=0
[ 4.431153@1] 0x000000e0:Y=e0,U=0,V=0
[ 4.434775@1] 0x000000e1:Y=e1,U=0,V=0
[ 4.438403@1] 0x000000e2:Y=e2,U=0,V=0
[ 4.442020@1] 0x000000e3:Y=e3,U=0,V=0
[ 4.445643@1] 0x000000f0:Y=f0,U=0,V=0
[ 4.449275@1] 0x000000f1:Y=f1,U=0,V=0
[ 4.452888@1] 0x000000f2:Y=f2,U=0,V=0
[ 4.456530@1] 0x000000f3:Y=f3,U=0,V=0
[ 4.460137@1] 0x000000f4:Y=f4,U=0,V=0
[ 4.463756@1] 0x000000f5:Y=f5,U=0,V=0
[ 4.467392@1] 0x000000f6:Y=f6,U=0,V=0
[ 4.471005@1] 0x000000f7:Y=f7,U=0,V=0
[ 4.474623@1] 0x000000f8:Y=f8,U=0,V=0
[ 4.478251@1] 0x000000f9:Y=f9,U=0,V=0
[ 4.481868@1] 0x000000fa:Y=fa,U=0,V=0
[ 4.485490@1] 0x000000fb:Y=fb,U=0,V=0
[ 4.489119@1] 0x000000fc:Y=fc,U=0,V=0
[ 4.492737@1] 0x000000fd:Y=fd,U=0,V=0
[ 4.496362@1] 0x000000fe:Y=fe,U=0,V=0
[ 4.499980@1] 0x000000ff:Y=ff,U=0,V=0
[ 4.503603@1] DI: support multi decoding 253~254~255.
[ 4.509230@1] efusekeynum: 4
[ 4.511463@1] efusekeyname: mac offset: 0 size: 6
[ 4.517874@1] efusekeyname: mac_bt offset: 6 size: 6
[ 4.524221@1] efusekeyname: mac_wifi offset: 12 size: 6
[ 4.530629@1] efusekeyname: usid offset: 18 size: 16
[ 4.537302@1] efuse efuse.10: probe OK!
[ 4.541193@1] key unify config unifykey-num is 14
[ 4.545482@1] key unify fact unifykey-num is 14
[ 4.549956@1] aml_unifykeys_probe:1280=============unifykey_devno:e800000
[ 4.556963@1] 6unifykey: device unifykeys created ok
[ 4.561801@1] 6aml_unifykeys_init done!
[ 4.565532@1] PPMGRDRV: warn: ppmgr module init func called
[ 4.571229@1] PPMGRDRV: err: ppmgr_driver_probe called
[ 4.576142@1] ppmgr has 1 memory regions
[ 4.580081@1] PPMGRDRV: info: ppmgr_dev major:231
[ 4.584978@1] PPMGRDRV: info: ppmgr_probe done
[ 4.589592@2] amlogic rfkill init
[ 4.592478@2] enter bt_probe of_node
[ 4.595909@2] not get gpio_en
[ 4.598858@2] power on valid level is high
[ 4.602706@2] bt: power_on_pin_OD = 0;
[ 4.606969@1] Bluetooth: BlueSleep Mode Driver Ver 1.2
[ 4.612304@2] ionvideo-000: V4L2 device registered as video13
[ 4.617542@1] ionvideo-001: V4L2 device registered as video14
[ 4.623187@1] ionvideo-002: V4L2 device registered as video15
[ 4.628961@2] ionvideo-003: V4L2 device registered as video16
[ 4.634580@1] ionvideo-004: V4L2 device registered as video17
[ 4.640304@1] ionvideo-005: V4L2 device registered as video18
[ 4.645969@2] ionvideo-006: V4L2 device registered as video19
[ 4.651707@1] ionvideo-007: V4L2 device registered as video20
[ 4.657450@1] ionvideo-008: V4L2 device registered as video21
[ 4.662910@1] ionvid: info: Video Technology Magazine Ion Video
[ 4.668799@1] ionvid: info: Capture Board ver 1.0 successfully loaded
[ 4.675162@1] audio_dsp: [dsp]register dsp to char divece(257)
[ 4.681712@2] amaudio: amaudio: driver amaudio succuess!
[ 4.686559@2] amlvid:info: amlvideo_init called
[ 4.690511@1] amlvid:info: amlvideo_create_instance called
[ 4.696114@1] amlvid:info: v4l2_dev.name=:amlvideo-000
[ 4.701424@1] amlvideo-000: V4L2 device registered as video10
[ 4.707356@1] vdin_drv_init: major 230
[ 4.710971@1] rdma_register, rdma_table_addr ffffff800019e000 rdma_table_addr_phy 7484c000 reg_buf ffffffc055e34c00
[ 4.721018@1] rdma_register success, handle 5 table_size 512
[ 4.726582@1] vdin_drv_probe:vdin.0 rdma hanld 5.
[ 4.731433@2]
[ 4.731433@2] vdin memory resource undefined!!
[ 4.737384@2] vdin0 cma_mem_size = 16 MB
[ 4.741225@2] vdin0 irq: 115 rdma irq: 2
[ 4.745140@2] vdin_drv_probe: fclk_div5 is 400 MHZ
[ 4.749879@2] vdin_drv_probe: vdin[0] clock is 50 MHZ
[ 4.755099@1] vdin_drv_probe: driver initialized ok
[ 4.759849@1] rdma_register, rdma_table_addr ffffff80001a9000 rdma_table_addr_phy 7484d000 reg_buf ffffffc055e35000
[ 4.770062@1] rdma_register success, handle 6 table_size 512
[ 4.775637@1] vdin_drv_probe:vdin.1 rdma hanld 6.
[ 4.780553@1] vdin1 has 1 memory regions
[ 4.784212@1] vdin vdin1.28: assigned reserved memory node linux,vdin1_cma ok
[ 4.791273@1]
[ 4.791273@1] vdin memory resource done.
[ 4.796878@1] vdin1 cma_mem_size = 16 MB
[ 4.800736@1] vdin1 irq: 117 rdma irq: 4
[ 4.804650@1] vdin_drv_probe: fclk_div5 is 400 MHZ
[ 4.809394@1] vdin_drv_probe: vdin[1] clock is 50 MHZ
[ 4.814608@2] vdin_drv_probe: driver initialized ok
[ 4.819411@1] vdin_drv_init: vdin driver init done
[ 4.823941@1] tvafe_drv_init: major 229
[ 4.828164@2] tvafe: tvafe_init.
[ 4.831310@1] vbi: vbi_init.
[ 4.834319@1] [RX]-hdmirx: hdmirx_init.
[ 4.837594@1] ESM HLD: Initializing...
[ 4.841273@1] ESM HLD: Registering device range 'esm_rx'...
[ 4.846824@1] ESM HLD: Device range 'esm_rx' has been registered.
[ 4.852830@1] ESM HLD: Creating class /sys/class/elliptic_rx...
[ 4.858833@2] ESM HLD: The class /sys/class/elliptic_rx has been created.
[ 4.865423@2] ESM HLD: Creating device 'esm_rx'...
[ 4.870359@1] ESM HLD: Device 'esm_rx' has been created.
[ 4.875428@1] ESM HLD: Done initializing the HLD driver.
[ 4.880729@1] amvdec_656in module: init.
[ 4.884571@1] amvdec_656in_init_module. 1 hardware detected!.
[ 4.890285@1] amvdec_656in_init_module:major 226
[ 4.895112@1] amvdec_656in_probe:start probe .
[ 4.899296@1] amvdec_656in_probe: bt656 devp->index =0
[ 4.904352@1] amvdec_656in_probe: bt656[0] clock is 333 MHZ
[ 4.910041@2] amvdec_656in_probe:bt656[0]start get ioremap .
[ 4.915547@2] amvdec_656in_probe: bt656[0] maped reg_base =ffffff80001ac000, size=7c
[ 4.923239@2] amvdec_656in_probe: tvin_frontend_init done :0
[ 4.928832@2] amvdec_656in probe ok.
[ 4.932371@2] amvdec_656in_probe:start probe .
[ 4.936761@2] amvdec_656in_probe: bt656 devp->index =1
[ 4.941866@2] amvdec_656in_probe: bt656[1] clock is 333 MHZ
[ 4.947536@1] amvdec_656in_probe:bt656[1]start get ioremap .
[ 4.953064@1] amvdec_656in_probe: bt656[1] maped reg_base =ffffff80001ae000, size=7c
[ 4.960755@1] amvdec_656in_probe: tvin_frontend_init done :1
[ 4.966360@1] amvdec_656in probe ok.
[ 4.970072@1] amvdec_656in_init_module: bt656 driver init done
[ 4.975651@1] [viuin..]viuin_init_module viuin module init
[ 4.981589@1] [viuin..]viuin_probe probe ok.
[ 4.985394@1] aml_vecm_init:module init
[ 4.989330@1]
[ 4.989330@1] VECM probe start
[ 4.994169@1] Can't find wb_sel.
[ 4.997161@1] dolby_vision_init_receiver(dvel)
[ 5.001529@1] dolby_vision_init_receiver: dvel
[ 5.006082@1] aml_vecm_probe: ok
[ 5.009984@1] saradc c1108680.saradc: initialized by BL30
[ 5.014474@1] saradc c1108680.saradc: calibration start:
[ 5.019841@1] saradc c1108680.saradc: nominal=0, value=5
[ 5.025030@1] saradc c1108680.saradc: nominal=256, value=231
[ 5.030657@1] saradc c1108680.saradc: nominal=512, value=460
[ 5.036242@1] saradc c1108680.saradc: nominal=768, value=688
[ 5.041866@1] saradc c1108680.saradc: nominal=1023, value=915
[ 5.047548@1] saradc c1108680.saradc: calibration end: coef=4588
[ 5.053714@1] remote: Driver init
[ 5.056865@1] remote: cant find match item for remote_ao_offset
[ 5.062598@1] meson-remote: probe of c8100580.rc failed with error -1
[ 5.069680@1] gpio-key gpio_keypad.50: gpio_key: 0 name(f1) pin()
[ 5.075015@1] gpio-key gpio_keypad.50: amlogic_gpio_name_map_num pin 0!::
[ 5.081800@1] gpio-key gpio_keypad.50: gpio_key: 0 f1(147)
[ 5.087225@1] gpio-key gpio_keypad.50: start setup_timer
[ 5.092435@1] gpio-key gpio_keypad.50: f1 key(59) registed.
[ 5.098217@1] input: gpio_keypad as /devices/gpio_keypad.50/input/input0
[ 5.104745@2] gpio-key gpio_keypad.50: gpio keypad register input device completed.
[ 5.112226@2] input input0: gpio keypad major:224
[ 5.118184@1] Sensor: lsm303d_init
[ 5.120438@1] Sensor: stk8313_init
[ 5.123650@1] Sensor: stk831x_init
[ 5.127068@2] Sensor: mxc622x_acc_init
[ 5.130738@1] Sensor: mxc6255xc_acc_init
[ 5.134681@2] Sensor: l3gd20_gyr_init
[ 5.139240@1] aml dvb init
[ 5.141278@2] Amlogic Demod DVB-T/C DebugIF Init
[ 5.145622@1] Amlogic Demod DVB-T/C DebugIF Init ok----------------
[ 5.153441@2] aml_wdt c11098d0.amlogic-watchdog: creat work queue for watch dog
[ 5.159250@1] aml_wdt c11098d0.amlogic-watchdog: AML Watchdog Timer probed done
[ 5.166466@2] jtag: module init
[ 5.169464@1] jtag: pinctrl setup apao
[ 5.172906@1] jtag: set state 2
efuse_pw_en: 0x3
WARNING! efuse bits is disabled
Enab[ 5.186356@1] input input0: key 59 up
le A53 JTAG cluster 0 to AO
[ 5.192738@0] jtag: module probed ok
[ 5.193501@2] defendkey c8834500.defendkey: defendkey_devno:db00000
[ 5.197279@3] defendkey c8834500.defendkey: defendkey: device defendkey created ok
[ 5.204600@2] defendkey: driver init
[ 5.208706@2] input: cec_input as /devices/virtual/input/input1
[ 5.214046@2] cectx aocec: no hdmirx reg resource
[ 5.218471@2] cectx aocec: no hhi reg resource
[ 5.222859@2] cec: wake up flag:0
[ 5.228166@3] aml_aes_dma c883e000.aml_aes: Aml AES_dma
[ 5.231897@3] aml_tdes_dma c883e000.aml_tdes: Aml TDES_dma
[ 5.237513@2] aml_sha_dma c883e000.aml_sha: Aml SHA1/SHA224/SHA256 dma
[ 5.243864@2] usbcore: registered new interface driver snd-usb-audio
[ 5.251191@2] aml_codec_T9015 c8832000.t9015: aml_T9015_audio_codec_probe
[ 5.258622@3] aml-i2s-dai I2S.42: I2S Mic is in platform!
[ 5.261956@2] aml_pcm_dai: pcm mode detection =1
[ 5.266594@2] aml_spdif_dai: enterd aml_spdif_play,set_clock:-1,sample_rate=4
[ 5.273244@2] aml_spdif_dai: set normal 512 fs /4 fs
[ 5.278149@2] aml_spdif_dai: set 958 audio clk div 4
[ 5.283057@2] aml_audio_hw: IEC958 16bit
[ 5.286944@2] hdmitx: audio: aout notify rate 48000
[ 5.291764@2] hdmitx: audio: aout notify size 16
[ 5.296341@2] hdmitx: audio: aout notify format CT_PCM
[ 5.301425@2] hdmtix: set audio
[ 5.304537@2] hdmitx tx_aud_src = 0
[ 5.308057@2] hdmitx: fs = 3, cd = 4, tmds_clk = 148500
[ 5.313155@2] hdmitx aud_n_para = 6144
[ 5.316937@2] hdmitx: audio: Audio Type: PCM
[ 5.321090@2] hdmitx: audio: set audio param
[ 5.326388@2] aml_snd_card: aml_multi_dev_parse_of ...
[ 5.330410@2] aml_snd_card: no multi dev!
[ 5.536591@2] aml_snd_card: headphone detection disable=1
[ 5.536626@2] aml_snd_card: no spk event delay time set
[ 5.542243@2] aml_snd_m8_card aml_m8_snd.49: T9015-audio-hifi <-> I2S.42 mapping ok
[ 5.549866@2] aml_snd_m8_card aml_m8_snd.49: dit-hifi <-> SPDIF.43 mapping ok
[ 5.556294@2] aml_pcm: enter aml_pcm_new dai->name: PCM.44 dai->id: 0
[ 5.562745@2] aml_snd_m8_card aml_m8_snd.49: pcm2bt-pcm <-> PCM.44 mapping ok
[ 5.569676@2] aml_snd_m8_card aml_m8_snd.49: ASoC: no source widget found for LOUTL
[ 5.577244@2] aml_snd_m8_card aml_m8_snd.49: ASoC: Failed to add route LOUTL -> direct -> Ext Spk
[ 5.586034@2] aml_snd_m8_card aml_m8_snd.49: ASoC: no source widget found for LOUTR
[ 5.593629@2] aml_snd_m8_card aml_m8_snd.49: ASoC: Failed to add route LOUTR -> direct -> Ext Spk
[ 5.604479@0] GACT probability NOT on
[ 5.606052@0] Mirror/redirect action on
[ 5.609867@0] u32 classifier
[ 5.612733@0] Actions configured
[ 5.616223@0] Netfilter messages via NETLINK v0.30.
[ 5.621118@0] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[ 5.627762@3] ctnetlink v0.93: registering with nfnetlink.
[ 5.633230@3] xt_time: kernel timezone is -0000
[ 5.637310@3] ipip: IPv4 over IPv4 tunneling driver
[ 5.642760@3] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 5.647602@3] arp_tables: (C) 2002 David S. Miller
[ 5.652954@3] TCP: cubic registered
[ 5.655636@3] Initializing XFRM netlink socket
[ 5.660992@0] NET: Registered protocol family 10
[ 5.665763@3] mip6: Mobile IPv6
[ 5.667775@3] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 5.675655@3] sit: IPv6 over IPv4 tunneling driver
[ 5.679399@3] NET: Registered protocol family 17
[ 5.682585@3] NET: Registered protocol family 15
[ 5.689451@3] Bridge firewalling registered
[ 5.691351@3] Bluetooth: RFCOMM TTY layer initialized
[ 5.696279@3] Bluetooth: RFCOMM socket layer initialized
[ 5.701561@3] Bluetooth: RFCOMM ver 1.11
[ 5.705408@3] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 5.710866@3] Bluetooth: BNEP filters: protocol multicast
[ 5.716194@3] Bluetooth: BNEP socket layer initialized
[ 5.721282@3] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 5.727342@3] Bluetooth: HIDP socket layer initialized
[ 5.732464@3] l2tp_core: L2TP core driver, V2.0
[ 5.736902@3] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 5.741799@3] l2tp_ip: L2TP IP encapsulation support (L2TPv3)
[ 5.747543@3] l2tp_netlink: L2TP netlink interface
[ 5.752264@3] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3)
[ 5.758320@3] l2tp_debugfs: L2TP debugfs support
[ 5.762844@3] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3)
[ 5.769456@3] NET: Registered protocol family 35
[ 5.774038@3] Key type dns_resolver registered
[ 5.780289@3] Registering SWP/SWPB emulation handler
[ 5.783962@3] Loading compiled-in X.509 certificates
[ 5.788330@3] regulator-dummy: disabling
[ 5.792699@3] aml_vrtc rtc.34: setting system clock to 2015-01-01 00:00:08 UTC (1420070408)
[ 5.802744@0] hdmirx_ext: [hdmiin_drv_init] ver: Jul042016.1
[ 5.806221@0] gxbb_pm: enter meson_pm_probe!
[ 5.810276@0] gxbb_pm: meson_pm_probe done
[ 5.815279@0] cpucore_cooling_register, max_cpu_core_num:4
[ 5.819979@0] cpucore_cooling_register, max_cpu_core_num:4
[ 5.840741@0] aml_istbt_dev_ready NULL
[ 5.84079X 5.845524@0] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 115200 to 115200
[ 5.848947@0] Freeing unused kernel memory: 1248K (ffffffc001f47000 - ffffffc00207f000)
[ 5.876578@0] init: init first stage started!
[ 6.011931@6] audit: type=1403 audit(1420070408.710:2): policy loaded auid=4294967295 ses=4294967295
[ 6.016192@6] init: (Initializing SELinux non-enforcing took 0.14s.)
[ 6.026113@6] init: init second stage started!
[ 6.030751@6] init: property_set("ro.boot.selinux", "permissive") failed
[ 6.035536@6] init: Running restorecon...
[ 6.129834@3] init: waitpid failed: No child processes
[ 6.130201@3] init: (Loading properties from /default.prop took 0.00s.)
[ 6.138382@3] init: (Parsing /init.environ.rc took 0.00s.)
[ 6.141765@3] init: (Parsing /init.usb.rc took 0.00s.)
[ 6.147257@3] init: /init.amlogic.rc: 237: chmod requires 2 arguments
[ 6.154173@3] init: (Parsing init.amlogic.usb.rc took 0.00s.)
[ 6.159060@3] init: (Parsing init.amlogic.usb.rc took 0.00s.)
[ 6.164197@3] init: (Parsing init.amlogic.board.rc took 0.01s.)
[ 6.170202@3] init: (Parsing init.amlogic.wifi.rc took 0.00s.)
[ 6.175865@3] init: could not import file 'init.mtk.rc' from '/init.amlogic.rc': No such file or directory
[ 6.185448@3] init: (Parsing /init.amlogic.rc took 0.04s.)
[ 6.191565@3] init: (Parsing /init.usb.configfs.rc took 0.00s.)
[ 6.196884@3] init: (Parsing /init.zygote64_32.rc took 0.00s.)
[ 6.202490@3] init: (Parsing /init.rc took 0.07s.)
[ 6.207307@3] init: aml-firstboot-init insert aml-firstboot-init
[ 6.213772@3] init: Starting service 'ueventd'...
[ 6.218625@3] init: insmod: open("/boot/optee.ko") failed: No such file or directoryinit: insmod: open("/boot/optee_armtz.ko") failed: No such file or directory[ 6.228651@1] ueventd: ueventd started!
[ 7.092954@3] ueventd: 肹 7.095467@4] meson_uart c81004c0.serial: ttyS0 use xtal(8M) 24000000 change 115200 to 115200
[ 7.134417@4] fb: afbc: 1
[ 7.135223@4] init: enter do_confirm_formated /dev/block/tee, /tee
[ 7.137653@4] init: blocksize 1024, bytes_per_inode 1024
[ 7.142816@4] init: do_confirm_formated ext4 try mount
[ 7.150331@3] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 7.158276@3] EXT4-fs (mmcblk0p8): recovery complete
[ 7.162047@3] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: noauto_da_alloc
[ 7.207864@3] init: enter do_confirm_formated /dev/block/data, /data
[ 7.208593@3] init: do_confirm_formated ext4 try mount
[ 7.216843@3] EXT4-fs (mmcblk0p15): warning: maximal mount count reached, running e2fsck is recommended
[ 7.223806@0] EXT4-fs (mmcblk0p15): recovery complete
[ 7.228076@0] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: noauto_da_alloc
[ 7.297646@4] init: enter do_confirm_formated /dev/block/cache, /cache
[ 7.298548@4] init: do_confirm_formated ext4 try mount
[ 7.306953@4] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 7.313295@4] EXT4-fs (mmcblk0p3): recovery complete
[ 7.317795@4] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: noauto_da_alloc
[ 7.382899@2] EXT4-fs (mmcblk0p12): mounted filesystem with ordered data mode. Opts: (null)
[ 7.385781@2] fs_mgr: __mount(source=/dev/block/system,target=/system,type=ext4)=0
[ 7.393799@2] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[ 7.402917@2] EXT4-fs (mmcblk0p15): warning: maximal mount count reached, running e2fsck is recommended
[ 7.409864@2] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 7.420253@2] fs_mgr: check_fs(): mount(/dev/block/data,/data,ext4)=0: Success
[ 7.457460@2] fs_mgr: check_fs(): unmount(/data) succeeded
[ 7.458733@2] fs_mgr: Not running /system/bin/e2fsck on /dev/block/data (executable not in system image)
[ 7.467272@2] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[ 7.476524@2] EXT4-fs (mmcblk0p15): warning: maximal mount count reached, running e2fsck is recommended
[ 7.483443@2] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 7.494343@2] fs_mgr: __mount(source=/dev/block/data,target=/data,type=ext4)=0
[ 7.503787@2] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[ 7.511060@2] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 7.518054@2] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 7.528259@2] fs_mgr: check_fs(): mount(/dev/block/cache,/cache,ext4)=0: Success
[ 7.567783@2] fs_mgr: check_fs(): unmount(/cache) succeeded
[ 7.567852@2] fs_mgr: Not running /system/bin/e2fsck on /dev/block/cache (executable not in system image)
[ 7.577760@2] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[ 7.586690@2] EXT4-fs (mmcblk0p3): warning: maximal mount count reached, running e2fsck is recommended
[ 7.593709@2] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 7.604578@2] fs_mgr: __mount(source=/dev/block/cache,target=/cache,type=ext4)=0
[ 7.612469@2] EXT4-fs (mmcblk0p8): Ignoring removed nomblk_io_submit option
[ 7.620508@2] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 7.629059@2] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[ 7.638687@2] fs_mgr: check_fs(): mount(/dev/block/tee,/tee,ext4)=0: Success
[ 7.687803@2] fs_mgr: check_fs(): unmount(/tee) succeeded
[ 7.687871@2] fs_mgr: Not running /system/bin/e2fsck on /dev/block/tee (executable not in system image)
[ 7.697446@2] EXT4-fs (mmcblk0p8): Ignoring removed nomblk_io_submit option
[ 7.705399@2] EXT4-fs (mmcblk0p8): warning: maximal mount count reached, running e2fsck is recommended
[ 7.713564@2] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[ 7.724252@2] fs_mgr: __mount(source=/dev/block/tee,target=/tee,type=ext4)=0
[ 7.732853@7] EXT4-fs error (device mmcblk0p12): ext4_readdir:221: inode #495: block 34685: comm init: path /system/etc/init: bad entry in directory: inode out of bounds - offset=0(0), inode=4181730297, rec_len=992, name_len=19
[ 7.758425@4] Unable to find swap-space signature
[ 7.758526@4] fs_mgr: swapon failed for /dev/block/zram0
[ 7.763304@4] init: do_start: Service logd not found
[ 8.243611@3] init: cannot find '/system/bin/tee-supplicant' (No such file or directory), disabling 'tee_supplicant'
[ 8.250394@3] init: property_set("ro.adb.secure", "1") failed
[ 8.254465@3] init: /recovery not specified in fstab
[ 8.259448@3] init: do_start: Service debuggerd not found
[ 8.264436@3] init: do_start: Service debuggerd64 not found
[ 8.269970@3] init: do_start: Service vold not found
[ 8.319926@0] init: cannot find '/system/bin/tzdatacheck' (No such file or directory), disabling 'exec 1 (/system/bin/tzdatacheck)'
[ 8.329085@0] init: decode_uid: Unable to find UID for 'pppoe'. Returning UINT_MAX
[ 8.334328@0] init: decode_uid: Unable to find UID for 'pppoe'. Returning UINT_MAX
[ 8.347455@0] init: insmod: open("/system/lib/mali.ko") failed: No such file or directoryinit: insmod: open("/system/lib/dovi.ko") failed: No such file or directoryinit: do_start: Service logd not found
[ 8.359736@0] init: do_start: Service logd-reinit not found
[ 8.368071@0] init: cannot find '/system/bin/sh' (No such file or directory), disabling 'console'
[ 8.374063@0] init: cannot find '/system/bin/systemcontrol' (No such file or directory), disabling 'system_control'
[ 8.378942@1] binder: 4029:4029 transaction failed 29189, size 0-0
[ 8.390685@0] init: cannot find '/system/bin/hdmi_cec' (No such file or directory), disabling 'hdmi_cec'
[ 8.400687@0] init: insmod: open("/system/lib/aml_thermal.ko") failed: No such file or directoryinit: insmod: open("/system/lib/ddr_window_64.ko") failed: No such file or directory
[ 8.420543@0] amlkey_init() enter!
[ 8.422889@0] emmc_key_read:428, read ok
[ 8.423117@0] amlkey_init() storagekey_info.buffer=ffffff8001900000, storagekey_info.size = 40000!
[ 8.433135@0] vfm_map_store:rm default
[ 8.435739@0] vfm_map_store:add default decoder ppmgr deinterlace amvideo
[ 8.442531@0] init: insmod: open("/system/lib/dwc3.ko") failed: No such file or directory
[ 8.451163@0] file system registered
[ 8.455201@0] init: property 'sys.usb.state' doesn't exist while expanding '${sys.usb.state}'
[ 8.462630@0] init: setprop: cannot expand '${sys.usb.state}'
[ 8.468277@0] init: property 'ro.serialno' doesn't exist while expanding '${ro.serialno}'
[ 8.476345@0] init: write: cannot expand '${ro.serialno}'
[ 8.481888@0] init: property 'ro.usb.vendor.string' doesn't exist while expanding '${ro.usb.vendor.string}'
[ 8.491366@0] init: write: cannot expand '${ro.usb.vendor.string}'
[ 8.497550@0] init: property 'ro.usb.product.string' doesn't exist while expanding '${ro.usb.product.string}'
[ 8.507311@0] init: write: cannot expand '${ro.usb.product.string}'
[ 8.513558@0] init: property_set("ro.radio.noril", "true") failed
[ 8.520496@0] fb: afbc: 1
[ 8.522426@0] init: insmod: open("/system/lib/compat.ko") failed: No such file or directoryinit: insmod: open("/system/lib/qca80211.ko") failed: No such file or directoryinit: insmod: open("/system/lib/dwc3.ko") failed: No such file or directory
[ 8.544914@0] ffs_data_put(): freeing
[ 8.547476@0] init: property 'sys.usb.state' doesn't exist while expanding '${sys.usb.state}'
[ 8.555777@0] init: setprop: cannot expand '${sys.usb.state}'
[ 8.561582@0] init: property 'ro.serialno' doesn't exist while expanding '${ro.serialno}'
[ 8.569587@0] init: write: cannot expand '${ro.serialno}'
[ 8.575054@0] init: property 'ro.usb.vendor.string' doesn't exist while expanding '${ro.usb.vendor.string}'
[ 8.584650@0] init: write: cannot expand '${ro.usb.vendor.string}'
[ 8.590757@0] init: property 'ro.usb.product.string' doesn't exist while expanding '${ro.usb.product.string}'
[ 8.600580@0] init: write: cannot expand '${ro.usb.product.string}'
[ 8.607098@0] init: cannot find '/system/bin/tee-supplicant' (No such file or directory), disabling 'tee_supplicant'
[ 8.617992@0] init: cannot find '/system/bin/update_verifier' (No such file or directory), disabling 'exec 2 (/system/bin/update_verifier)'
[ 8.629723@0] init: cannot find '/system/bin/install-recovery.sh' (No such file or directory), disabling 'flash_recovery'
[ 8.640510@0] init: cannot find '/system/bin/remotecfg' (No such file or directory), disabling 'remotecfg'
[ 8.650115@0] init: cannot find '/system/bin/pppoe_wrapper' (No such file or directory), disabling 'pppoe_wrapper'
[ 8.660345@0] init: cannot find '/system/bin/imageserver' (No such file or directory), disabling 'imageserver'
[ 8.670277@0] init: cannot find '/system/bin/ddrtest.sh' (No such file or directory), disabling 'ddrtest'
[ 8.679766@0] init: cannot find '/system/bin/factoryreset.sh' (No such file or directory), disabling 'factoryreset'
[ 8.690171@0] init: cannot find '/system/bin/app_process64' (No such file or directory), disabling 'zygote'
[ 8.699810@0] init: cannot find '/system/bin/app_process32' (No such file or directory), disabling 'zygote_secondary'
[ 9.379302@1] binder: 4029:4029 transaction failed 29189, size 0-0
[ 10.380418@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 11.381484@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 12.382515@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 12.447537@5] random: nonblocking pool is initialized
[ 13.383585@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 14.384657@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 15.385709@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 16.387030@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 17.388079@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 18.389132@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 19.390182@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 20.391217@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 21.392279@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 22.393339@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 23.394387@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 24.395449@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 25.396908@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 26.397971@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 27.399073@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 28.400148@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 29.401206@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 30.402272@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 31.403320@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 32.404384@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 33.405438@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 34.406643@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 35.407716@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 36.408754@5] binder: 4029:4029 transaction failed 29189, size 0-0
[ 37.409806@5] binder: 4029:4029 transaction failed 29189, size 0-0
Android startup TTL interrupt setting Usb startup
setenv bootfromrecovery 0
setenv bootfromnand 0
setenv start_mmc_autoscript 'if fatload mmc 0 11000000 s905_autoscript; then autoscr 11000000; fi;'
setenv start_usb_autoscript "if fatload usb 0 11000000 s905_autoscript; then autoscr 11000000; fi; if fatload usb 1 11000000 s905_autoscript; then autoscr 11000000; fi;"
setenv start_autoscript 'if usb start; then run start_usb_autoscript; fi; if mmcinfo; then run start_mmc_autoscript; fi;'
setenv bootcmd 'run start_autoscript; run storeboot'
setenv firstboot 1
saveenv
Usb startup log
GXM:BL1:dc8b51:76f1a5;FEAT:ADFC318C:80;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 90840
BL2 Built : 11:58:42, May 27 2017.
gxl gc3c9a84 - xiaobo.gu@droid05
set vdd cpu_a to 1120 mv
set vdd cpu_b to 1050 mv
set vddee to 1000 mv
Board ID = 5
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR3 chl: Rank0+1 @ 792MHz - PASS
Rank0: 1024MB(auto)-2T-11
Rank1: 1024MB(auto)-2T-11
DataBus test pass!
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x05100000, size: 0x00018400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x00063e00
NOTICE: BL3-1: v1.0(release):3348978
NOTICE: BL3-1: Built : 15:44:01, May 12 2017
NOTICE: BL3-1: BL33 decompress pass
mpu_config_enable:ok
[Image: gxl_v1.1.3221-2cfba69 2017-05-27 16:03:58 qiufang.dai@droid07]
OPS=0x82
wdt: reset registers!
fd 75 3 9d 70 4a cb 24 25 17 b1 6 [0.301667 Inits done]
secure task start!
high task start!
low task start!
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01-g5e3f75b-dirty (Aug 18 2017 - 15:30:31)
DRAM: 2 GiB
Relocation Offset is: 76eb9000
register usb cfg[0][1] = 0000000077f5c8c0
[CANVAS]canvas init
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpu: vpu_clk_gate_init_off
vpp: vpp_init
boot_device_flag : 1
Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
init bus_cycle=6, bus_timing=7, system=5.0ns
reset failed
get_chip_type and ret:fffffffe
get_chip_type and ret:fffffffe
chip detect failed and ret:fffffffe
nandphy_init failed and ret=0xfffffff1
MMC: aml_priv->desc_buf = 0x0000000073eb96b0
aml_priv->desc_buf = 0x0000000073ebb9d0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
init_part() 293: PART_TYPE_AML
[mmc_init] mmc init success
dtb magic 5f4c4d41
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
start dts,buffer=0000000073ebe200,dt_addr=0000000073ec9a00
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
parts: 12
00: logo 0000000002000000 1
01: recovery 0000000002000000 1
02: rsv 0000000000800000 1
03: tee 0000000000800000 1
04: crypt 0000000002000000 1
05: misc 0000000002000000 1
06: boot 0000000002000000 1
07: system 0000000080000000 1
08: cache 0000000020000000 2
09: stbinfo 0000000001400000 1
10: systembak 0000000025800000 1
11: data ffffffffffffffff 4
init_part() 293: PART_TYPE_AML
eMMC/TSD partition table have been checked OK!
check pattern success
mmc env offset: 0x27400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
hpd_state=1
[1080p60hz] is invalid for cvbs.
set hdmitx VIC = 16
config HPLL = 2970000
HPLL: 0xc000027b
config HPLL done
j = 4 vid_clk_div = 1
hdmitx: set enc for VIC: 16
HDMITX-DWC addr=0x10004006 rd_data=0x40
Error: HDMITX-DWC exp_data=0xff mask=0x9f
rx version is 1.4 or below div=10
hdmtix: set audio
hdmitx phy setting done
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-917: calc b7fe9ab4, store b7fe9ab4
_verify_dtb_checksum()-917: calc b7fe9ab4, store b7fe9ab4
dtb_read()-1039: total valid 2
dtb_read()-1106: do nothing
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
vpp: vpp_pq_load pq val error !!!
Net: dwmac.c9410000amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
Start read misc partition datas!
info->attemp_times = 0
info->active_slot = 0
info->slot_info[0].bootable = 1
info->slot_info[0].online = 1
info->slot_info[1].bootable = 0
info->slot_info[1].online = 0
info->attemp_times = 0
attemp_times = 0
active slot = 0
wipe_data=successful
wipe_cache=successful
upgrade_step=2
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[CANVAS]addr=0x7f851000 width=3840, height=2160
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[usid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
gpio: pin GPIOAO_2 (gpio 102) value is 1
InUsbBurn
noSof
Hit Enter or space or Ctrl+C key to stop autoboot -- : 0
(Re)start USB...
USB0: USB3.0 XHCI init start
Register 3000140 NbrPorts 3
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 2 USB Device(s) found
scanning usb for storage devices... init_part() 278: PART_TYPE_DOS
1 Storage Device(s) found
reading s905_autoscript
537 bytes read in 28 ms (18.6 KiB/s)
## Executing script at 11000000
start amlogic old u-boot
## Error: "bootfromsd" not defined
card out
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
emmc/sd response timeout, cmd1, status=0x1ff2800
** Bad device mmc 0 **
reading boot_android
** Unable to read file boot_android **
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
emmc/sd response timeout, cmd1, status=0x1ff2800
** Bad device mmc 0 **
reading u-boot.ext
650183 bytes read in 51 ms (12.2 MiB/s)
## Starting application at 0x01000000 ...
[BL31]: tee size: 0
[BL31]: tee size: 0
[ 0.974588] hub 2-0:1.0: config failed, hub doesn't have any ports! (err -19)
domain-0 init dvfs: 4
domain-1 init dvfs: 4
[BL31]: tee size: 0
[ 11.191096] panfrost d00c0000.gpu: dev_pm_opp_set_regulators: no regulator (mali) found: -19
[ 11.465648] debugfs: Directory 'c1105400.audio-controller' with parent 'GX-P230-Q200' already present!
[ 11.469418] debugfs: Directory 'c1105400.audio-controller' with parent 'GX-P230-Q200' already present!
Manjaro Linux 5.11.1-1-MANJARO-ARM (ttyAML0)
S912 login:
This image is not to be used on generic tv boxes.
Flash Android again on the device.
Use an image from here:
- Flash image to sdcard.
- Change dtb filename in uEnv.ini in boot partition to suite your device dtb.
- Boot from sdcard.
- Update Date time.
- Run install script as root.
- Reboot with Sdcard insert.
- Boot into SDCard once.
- Reboot with sdcard removed.
Hopefully it should work and if it does not then maybe there is some other undocumented problem with this device.
Thank you. I’ll try it now. I’ll give you some feedback
I use a USB disk
Flash image to usb disk
GPT partition cannot be started
I need to convert to MBR before I can start
Tips:
[
0.5606021 hub 2-0:1.0: config failed, hub doesn't have any ports! (err -19)
Starting version 250.4-2-arch
1.0723021 meson-drm d0100000.upu: Failed to find CUBS Connector bridge
You are in emergency mode. After logging in, type
" journalctl
-xb
to view
system logs,
"systemct1 reboot"
to reboot,
"systemct1 default"
or
"exit'
to boot into default mode.
Press Enter for maintenance
(or press Control-D to continue) :
Upload TTL log
GXM:BL1:dc8b51:76f1a5;FEAT:ADFC318C:80;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 134524
BL2 Built : 11:58:42, May 27 2017.
gxl gc3c9a84 - xiaobo.gu@droid05
set vdd cpu_a to 1120 mv
set vdd cpu_b to 1050 mv
set vddee to 1000 mv
Board ID = 5
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR3 chl: Rank0+1 @ 792MHz - PASS
Rank0: 1024MB(auto)-2T-11
Rank1: 1024MB(auto)-2T-11
DataBus test pass!
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x05100000, size: 0x00018400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x00063e00
NOTICE: BL3-1: v1.0(release):3348978
NOTICE: BL3-1: Built : 15:44:01, May 12 2017
NOTICE: BL3-1: BL33 decompress pass
mpu_config_enable:ok
[Image: gxl_v1.1.3221-2cfba69 2017-05-27 16:03:58 qiufang.dai@droid07]
OPS=0x82
wdt: reset registers!
fd 75 3 9d 70 4a cb 24 25 17 b1 6 [0.346572 Inits done]
secure task start!
high task start!
low task start!
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01-g5e3f75b-dirty (Aug 18 2017 - 15:30:31)
DRAM: 2 GiB
Relocation Offset is: 76eb9000
register usb cfg[0][1] = 0000000077f5c8c0
[CANVAS]canvas init
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpu: vpu_clk_gate_init_off
vpp: vpp_init
boot_device_flag : 1
Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
init bus_cycle=6, bus_timing=7, system=5.0ns
reset failed
get_chip_type and ret:fffffffe
get_chip_type and ret:fffffffe
chip detect failed and ret:fffffffe
nandphy_init failed and ret=0xfffffff1
MMC: aml_priv->desc_buf = 0x0000000073eb96b0
aml_priv->desc_buf = 0x0000000073ebb9d0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
init_part() 293: PART_TYPE_AML
[mmc_init] mmc init success
dtb magic 5f4c4d41
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
start dts,buffer=0000000073ebe200,dt_addr=0000000073ec9a00
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
parts: 12
00: logo 0000000002000000 1
01: recovery 0000000002000000 1
02: rsv 0000000000800000 1
03: tee 0000000000800000 1
04: crypt 0000000002000000 1
05: misc 0000000002000000 1
06: boot 0000000002000000 1
07: system 0000000080000000 1
08: cache 0000000020000000 2
09: stbinfo 0000000001400000 1
10: systembak 0000000025800000 1
11: data ffffffffffffffff 4
init_part() 293: PART_TYPE_AML
eMMC/TSD partition table have been checked OK!
check pattern success
mmc env offset: 0x27400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
hpd_state=1
[1080p60hz] is invalid for cvbs.
set hdmitx VIC = 16
config HPLL = 2970000
HPLL: 0xc000027b
config HPLL done
j = 4 vid_clk_div = 1
hdmitx: set enc for VIC: 16
HDMITX-DWC addr=0x10004006 rd_data=0x40
Error: HDMITX-DWC exp_data=0xff mask=0x9f
rx version is 1.4 or below div=10
hdmtix: set audio
hdmitx phy setting done
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-917: calc 1e9ccb0f, store 1e9ccb0f
_verify_dtb_checksum()-917: calc 1e9ccb0f, store 1e9ccb0f
dtb_read()-1039: total valid 2
dtb_read()-1106: do nothing
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
vpp: vpp_pq_load pq val error !!!
Net: dwmac.c9410000amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
Start read misc partition datas!
info->attemp_times = 0
info->active_slot = 0
info->slot_info[0].bootable = 1
info->slot_info[0].online = 1
info->slot_info[1].bootable = 0
info->slot_info[1].online = 0
info->attemp_times = 0
attemp_times = 0
active slot = 0
wipe_data=successful
wipe_cache=successful
upgrade_step=2
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[CANVAS]addr=0x7f851000 width=3840, height=2160
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[usid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
gpio: pin GPIOAO_2 (gpio 102) value is 1
InUsbBurn
noSof
Hit Enter or space or Ctrl+C key to stop autoboot -- : 0
(Re)start USB...
USB0: USB3.0 XHCI init start
Register 3000140 NbrPorts 3
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 6 USB Device(s) found
scanning usb for storage devices... init_part() 278: PART_TYPE_DOS
1 Storage Device(s) found
reading s905_autoscript
930 bytes read in 28 ms (32.2 KiB/s)
## Executing script at 11000000
card out
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
emmc/sd response timeout, cmd1, status=0x1ff2800
** Bad device mmc 0 **
reading u-boot.ext
** Unable to read file u-boot.ext **
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
emmc/sd response timeout, cmd1, status=0x1ff2800
** Bad device mmc 0 **
reading uImage
28817984 bytes read in 831 ms (33.1 MiB/s)
reading uInitrd
8478358 bytes read in 277 ms (29.2 MiB/s)
reading uEnv.ini
273 bytes read in 22 ms (11.7 KiB/s)
mac=00:79:18:00:00:15
reading /dtbs/amlogic/meson-gxm-q200.dtb
41834 bytes read in 51 ms (800.8 KiB/s)
ee_gate_off ...
## Booting kernel from Legacy Image at 01080000 ...
Image Name: uImage
Image Type: AArch64 Linux Kernel Image (uncompressed)
Data Size: 28817920 Bytes = 27.5 MiB
Load Address: 01080000
Entry Point: 01080000
Verifying Checksum ... OK
## Loading init Ramdisk from Legacy Image at 13000000 ...
Image Name: uInitrd Image
Image Type: AArch64 Linux RAMDisk Image (uncompressed)
Data Size: 8478294 Bytes = 8.1 MiB
Load Address: 00000000
Entry Point: 00000000
Verifying Checksum ... OK
load dtb from 0x1000000 ......
Amlogic multi-dtb tool
Single dtb detected
## Flattened Device Tree blob at 01000000
Booting using the fdt blob at 0x1000000
Loading Kernel Image(COMP_NONE) ... OK
kernel loaded at 0x01080000, end = 0x02bfba00
libfdt fdt_path_offset() returned FDT_ERR_NOTFOUND
[rsvmem] fdt get prop fail.
Loading Ramdisk to 73690000, end 73ea5e56 ... OK
Loading Device Tree to 000000001fff2000, end 000000001ffff369 ... OK
fdt_instaboot: no instaboot image
Starting kernel ...
uboot time: 10123623 us
[ 0.560602] hub 2-0:1.0: config failed, hub doesn't have any ports! (err -19)
domain-0 init dvfs: 4
domain-1 init dvfs: 4
[ 1.072302] meson-drm d0100000.vpu: Failed to find CVBS Connector bridge
[BL31]: tee size: 0
[ 5.904656] panfrost d00c0000.gpu: dev_pm_opp_set_regulators: no regulator (mali) found: -19
[ 6.315003] debugfs: Directory 'c1105400.audio-controller' with parent 'P230-Q200' already present!
[ 6.318518] debugfs: Directory 'c1105400.audio-controller' with parent 'P230-Q200' already present!
Press Enter for maintenance
(or press Control-D to continue):
[root@manjaro-arm ~]# journalctl -xb
Mar 18 23:53:58 manjaro-arm kernel: Booting Linux on physical CPU 0x0000000000 >
Mar 18 23:53:58 manjaro-arm kernel: Linux version 5.17.1-1-MANJARO-ARM-KHADAS (>
Mar 18 23:53:58 manjaro-arm kernel: Machine model: Amlogic Meson GXM (S912) Q20>
Mar 18 23:53:58 manjaro-arm kernel: efi: UEFI not found.
Mar 18 23:53:58 manjaro-arm kernel: [Firmware Bug]: Kernel image misaligned at >
Mar 18 23:53:58 manjaro-arm kernel: Reserved memory: created CMA memory pool at>
Mar 18 23:53:58 manjaro-arm kernel: OF: reserved mem: initialized node linux,cm>
Mar 18 23:53:58 manjaro-arm kernel: Zone ranges:
Mar 18 23:53:58 manjaro-arm kernel: DMA [mem 0x0000000000000000-0x000000>
Mar 18 23:53:58 manjaro-arm kernel: DMA32 empty
Mar 18 23:53:58 manjaro-arm kernel: Normal empty
Mar 18 23:53:58 manjaro-arm kernel: Movable zone start for each node
Mar 18 23:53:58 manjaro-arm kernel: Early memory node ranges
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000000000000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000001000000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000005000000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000007300000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000010000000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: node 0: [mem 0x0000000010200000-0x00000>
Mar 18 23:53:58 manjaro-arm kernel: Initmem setup node 0 [mem 0x000000000000000>
Mar 18 23:53:58 manjaro-arm kernel: psci: probing for conduit method from DT.
Mar 18 23:53:58 manjaro-arm kernel: psci: PSCIv0.2 detected in firmware.
Mar 18 23:53:58 manjaro-arm kernel: psci: Using standard PSCI v0.2 function IDs
Mar 18 23:53:58 manjaro-arm kernel: psci: Trusted OS migration not required
Mar 18 23:53:58 manjaro-arm kernel: percpu: Embedded 20 pages/cpu s41944 r8192 >
Mar 18 23:53:58 manjaro-arm kernel: pcpu-alloc: s41944 r8192 d31784 u81920 allo>
Mar 18 23:53:58 manjaro-arm kernel: pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [0] 4 [>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU0
Mar 18 23:53:58 manjaro-arm kernel: CPU features: detected: ARM erratum 845719
Mar 18 23:53:58 manjaro-arm kernel: Built 1 zonelists, mobility grouping on. T>
Mar 18 23:53:58 manjaro-arm kernel: Kernel command line: root=LABEL=ROOT_MNJRO >
Mar 18 23:53:58 manjaro-arm kernel: Unknown kernel command line parameters "spl>
Mar 18 23:53:58 manjaro-arm kernel: Dentry cache hash table entries: 262144 (or>
Mar 18 23:53:58 manjaro-arm kernel: Inode-cache hash table entries: 131072 (ord>
Mar 18 23:53:58 manjaro-arm kernel: mem auto-init: stack:off, heap alloc:off, h>
Mar 18 23:53:58 manjaro-arm kernel: Memory: 918780K/1966080K available (15808K >
Mar 18 23:53:58 manjaro-arm kernel: random: get_random_u64 called from cache_ra>
Mar 18 23:53:58 manjaro-arm kernel: SLUB: HWalign=64, Order=0-3, MinObjects=0, >
Mar 18 23:53:58 manjaro-arm kernel: rcu: Preemptible hierarchical RCU implement>
Mar 18 23:53:58 manjaro-arm kernel: Trampoline variant of Tasks RCU ena>
Mar 18 23:53:58 manjaro-arm kernel: Rude variant of Tasks RCU enabled.
Mar 18 23:53:58 manjaro-arm kernel: Tracing variant of Tasks RCU enable>
Mar 18 23:53:58 manjaro-arm kernel: rcu: RCU calculated value of scheduler-enli>
Mar 18 23:53:58 manjaro-arm kernel: NR_IRQS: 64, nr_irqs: 64, preallocated irqs>
Mar 18 23:53:58 manjaro-arm kernel: Root IRQ handler: gic_handle_irq
Mar 18 23:53:58 manjaro-arm kernel: GIC: Using split EOI/Deactivate mode
Mar 18 23:53:58 manjaro-arm kernel: arch_timer: cp15 timer(s) running at 24.00M>
Mar 18 23:53:58 manjaro-arm kernel: clocksource: arch_sys_counter: mask: 0xffff>
Mar 18 23:53:58 manjaro-arm kernel: sched_clock: 56 bits at 24MHz, resolution 4>
Mar 18 23:53:58 manjaro-arm kernel: Console: colour dummy device 80x25
Mar 18 23:53:58 manjaro-arm kernel: printk: console [tty0] enabled
Mar 18 23:53:58 manjaro-arm kernel: Calibrating delay loop (skipped), value cal>
Mar 18 23:53:58 manjaro-arm kernel: pid_max: default: 32768 minimum: 301
Mar 18 23:53:58 manjaro-arm kernel: LSM: Security Framework initializing
Mar 18 23:53:58 manjaro-arm kernel: Yama: becoming mindful.
Mar 18 23:53:58 manjaro-arm kernel: AppArmor: AppArmor initialized
Mar 18 23:53:58 manjaro-arm kernel: Mount-cache hash table entries: 4096 (order>
Mar 18 23:53:58 manjaro-arm kernel: Mountpoint-cache hash table entries: 4096 (>
Mar 18 23:53:58 manjaro-arm kernel: cblist_init_generic: Setting adjustable num>
Mar 18 23:53:58 manjaro-arm kernel: cblist_init_generic: Setting shift to 3 and>
Mar 18 23:53:58 manjaro-arm kernel: cblist_init_generic: Setting shift to 3 and>
Mar 18 23:53:58 manjaro-arm kernel: cblist_init_generic: Setting shift to 3 and>
Mar 18 23:53:58 manjaro-arm kernel: rcu: Hierarchical SRCU implementation.
Mar 18 23:53:58 manjaro-arm kernel: EFI services will not be available.
Mar 18 23:53:58 manjaro-arm kernel: smp: Bringing up secondary CPUs ...
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU1
Mar 18 23:53:58 manjaro-arm kernel: CPU1: Booted secondary processor 0x00000000>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU2
Mar 18 23:53:58 manjaro-arm kernel: CPU2: Booted secondary processor 0x00000000>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU3
Mar 18 23:53:58 manjaro-arm kernel: CPU3: Booted secondary processor 0x00000000>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU4
Mar 18 23:53:58 manjaro-arm kernel: CPU4: Booted secondary processor 0x00000001>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU5
Mar 18 23:53:58 manjaro-arm kernel: CPU5: Booted secondary processor 0x00000001>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU6
Mar 18 23:53:58 manjaro-arm kernel: CPU6: Booted secondary processor 0x00000001>
Mar 18 23:53:58 manjaro-arm kernel: Detected VIPT I-cache on CPU7
Mar 18 23:53:58 manjaro-arm kernel: CPU7: Booted secondary processor 0x00000001>
Mar 18 23:53:58 manjaro-arm kernel: smp: Brought up 1 node, 8 CPUs
Mar 18 23:53:58 manjaro-arm kernel: SMP: Total of 8 processors activated.
Mar 18 23:53:58 manjaro-arm kernel: CPU features: detected: 32-bit EL0 Support
Mar 18 23:53:58 manjaro-arm kernel: CPU features: detected: 32-bit EL1 Support
Mar 18 23:53:58 manjaro-arm kernel: CPU features: detected: CRC32 instructions
Mar 18 23:53:58 manjaro-arm kernel: CPU: All CPU(s) started at EL2
Mar 18 23:53:58 manjaro-arm kernel: alternatives: patching kernel code
Mar 18 23:53:58 manjaro-arm kernel: devtmpfs: initialized
Mar 18 23:53:58 manjaro-arm kernel: clocksource: jiffies: mask: 0xffffffff max_>
Mar 18 23:53:58 manjaro-arm kernel: futex hash table entries: 2048 (order: 5, 1>
Mar 18 23:53:58 manjaro-arm kernel: pinctrl core: initialized pinctrl subsystem
Mar 18 23:53:58 manjaro-arm kernel: DMI not present or invalid.
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_NETLINK/PF_ROUTE protoco>
Mar 18 23:53:58 manjaro-arm kernel: DMA: preallocated 256 KiB GFP_KERNEL pool f>
Mar 18 23:53:58 manjaro-arm kernel: DMA: preallocated 256 KiB GFP_KERNEL|GFP_DM>
Mar 18 23:53:58 manjaro-arm kernel: DMA: preallocated 256 KiB GFP_KERNEL|GFP_DM>
Mar 18 23:53:58 manjaro-arm kernel: audit: initializing netlink subsys (disable>
Mar 18 23:53:58 manjaro-arm kernel: audit: type=2000 audit(0.050:1): state=init>
Mar 18 23:53:58 manjaro-arm kernel: thermal_sys: Registered thermal governor 'f>
Mar 18 23:53:58 manjaro-arm kernel: thermal_sys: Registered thermal governor 'b>
Mar 18 23:53:58 manjaro-arm kernel: thermal_sys: Registered thermal governor 's>
Mar 18 23:53:58 manjaro-arm kernel: thermal_sys: Registered thermal governor 'u>
Mar 18 23:53:58 manjaro-arm kernel: cpuidle: using governor ladder
Mar 18 23:53:58 manjaro-arm kernel: cpuidle: using governor menu
Mar 18 23:53:58 manjaro-arm kernel: hw-breakpoint: found 6 breakpoint and 4 wat>
Mar 18 23:53:58 manjaro-arm kernel: ASID allocator initialised with 65536 entri>
Mar 18 23:53:58 manjaro-arm kernel: Serial: AMBA PL011 UART driver
Mar 18 23:53:58 manjaro-arm kernel: platform c883a000.hdmi-tx: Fixing up cyclic>
Mar 18 23:53:58 manjaro-arm kernel: platform cvbs-connector: Fixing up cyclic d>
Mar 18 23:53:58 manjaro-arm kernel: platform hdmi-connector: Fixing up cyclic d>
Mar 18 23:53:58 manjaro-arm kernel: HugeTLB registered 1.00 GiB page size, pre->
Mar 18 23:53:58 manjaro-arm kernel: HugeTLB registered 32.0 MiB page size, pre->
Mar 18 23:53:58 manjaro-arm kernel: HugeTLB registered 2.00 MiB page size, pre->
Mar 18 23:53:58 manjaro-arm kernel: HugeTLB registered 64.0 KiB page size, pre->
Mar 18 23:53:58 manjaro-arm kernel: cryptd: max_cpu_qlen set to 1000
Mar 18 23:53:58 manjaro-arm kernel: ACPI: Interpreter disabled.
Mar 18 23:53:58 manjaro-arm kernel: iommu: Default domain type: Translated
Mar 18 23:53:58 manjaro-arm kernel: iommu: DMA domain TLB invalidation policy: >
Mar 18 23:53:58 manjaro-arm kernel: vgaarb: loaded
Mar 18 23:53:58 manjaro-arm kernel: SCSI subsystem initialized
Mar 18 23:53:58 manjaro-arm kernel: libata version 3.00 loaded.
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver us>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver hub
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new device driver usb
Mar 18 23:53:58 manjaro-arm kernel: mc: Linux media interface: v0.10
Mar 18 23:53:58 manjaro-arm kernel: videodev: Linux video capture interface: v2>
Mar 18 23:53:58 manjaro-arm kernel: pps_core: LinuxPPS API ver. 1 registered
Mar 18 23:53:58 manjaro-arm kernel: pps_core: Software ver. 5.3.6 - Copyright 2>
Mar 18 23:53:58 manjaro-arm kernel: PTP clock support registered
Mar 18 23:53:58 manjaro-arm kernel: EDAC MC: Ver: 3.0.0
Mar 18 23:53:58 manjaro-arm kernel: Advanced Linux Sound Architecture Driver In>
Mar 18 23:53:58 manjaro-arm kernel: NetLabel: Initializing
Mar 18 23:53:58 manjaro-arm kernel: NetLabel: domain hash size = 128
Mar 18 23:53:58 manjaro-arm kernel: NetLabel: protocols = UNLABELED CIPSOv4 CA>
Mar 18 23:53:58 manjaro-arm kernel: NetLabel: unlabeled traffic allowed by def>
Mar 18 23:53:58 manjaro-arm kernel: clocksource: Switched to clocksource arch_s>
Mar 18 23:53:58 manjaro-arm kernel: VFS: Disk quotas dquot_6.6.0
Mar 18 23:53:58 manjaro-arm kernel: VFS: Dquot-cache hash table entries: 512 (o>
Mar 18 23:53:58 manjaro-arm kernel: AppArmor: AppArmor Filesystem Enabled
Mar 18 23:53:58 manjaro-arm kernel: pnp: PnP ACPI: disabled
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_INET protocol family
Mar 18 23:53:58 manjaro-arm kernel: IP idents hash table entries: 32768 (order:>
Mar 18 23:53:58 manjaro-arm kernel: tcp_listen_portaddr_hash hash table entries>
Mar 18 23:53:58 manjaro-arm kernel: TCP established hash table entries: 16384 (>
Mar 18 23:53:58 manjaro-arm kernel: TCP bind hash table entries: 16384 (order: >
Mar 18 23:53:58 manjaro-arm kernel: TCP: Hash tables configured (established 16>
Mar 18 23:53:58 manjaro-arm kernel: UDP hash table entries: 1024 (order: 3, 327>
Mar 18 23:53:58 manjaro-arm kernel: UDP-Lite hash table entries: 1024 (order: 3>
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_UNIX/PF_LOCAL protocol f>
Mar 18 23:53:58 manjaro-arm kernel: RPC: Registered named UNIX socket transport>
Mar 18 23:53:58 manjaro-arm kernel: RPC: Registered udp transport module.
Mar 18 23:53:58 manjaro-arm kernel: RPC: Registered tcp transport module.
Mar 18 23:53:58 manjaro-arm kernel: RPC: Registered tcp NFSv4.1 backchannel tra>
Mar 18 23:53:58 manjaro-arm kernel: PCI: CLS 0 bytes, default 64
Mar 18 23:53:58 manjaro-arm kernel: Trying to unpack rootfs image as initramfs.>
Mar 18 23:53:58 manjaro-arm kernel: hw perfevents: enabled with armv8_cortex_a5>
Mar 18 23:53:58 manjaro-arm kernel: kvm [1]: IPA Size Limit: 40 bits
Mar 18 23:53:58 manjaro-arm kernel: kvm [1]: vgic interrupt IRQ9
Mar 18 23:53:58 manjaro-arm kernel: kvm [1]: Hyp mode initialized successfully
Mar 18 23:53:58 manjaro-arm kernel: Initialise system trusted keyrings
Mar 18 23:53:58 manjaro-arm kernel: workingset: timestamp_bits=46 max_order=19 >
Mar 18 23:53:58 manjaro-arm kernel: zbud: loaded
Mar 18 23:53:58 manjaro-arm kernel: NFS: Registering the id_resolver key type
Mar 18 23:53:58 manjaro-arm kernel: Key type id_resolver registered
Mar 18 23:53:58 manjaro-arm kernel: Key type id_legacy registered
Mar 18 23:53:58 manjaro-arm kernel: nfs4filelayout_init: NFSv4 File Layout Driv>
Mar 18 23:53:58 manjaro-arm kernel: nfs4flexfilelayout_init: NFSv4 Flexfile Lay>
Mar 18 23:53:58 manjaro-arm kernel: ntfs: driver 2.1.32 [Flags: R/W].
Mar 18 23:53:58 manjaro-arm kernel: fuse: init (API version 7.36)
Mar 18 23:53:58 manjaro-arm kernel: SGI XFS with ACLs, security attributes, quo>
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_ALG protocol family
Mar 18 23:53:58 manjaro-arm kernel: xor: measuring software checksum speed
Mar 18 23:53:58 manjaro-arm kernel: 8regs : 2363 MB/sec
Mar 18 23:53:58 manjaro-arm kernel: 32regs : 2799 MB/sec
Mar 18 23:53:58 manjaro-arm kernel: arm64_neon : 1933 MB/sec
Mar 18 23:53:58 manjaro-arm kernel: xor: using function: 32regs (2799 MB/sec)
Mar 18 23:53:58 manjaro-arm kernel: Key type asymmetric registered
Mar 18 23:53:58 manjaro-arm kernel: Asymmetric key parser 'x509' registered
Mar 18 23:53:58 manjaro-arm kernel: Block layer SCSI generic (bsg) driver versi>
Mar 18 23:53:58 manjaro-arm kernel: io scheduler mq-deadline registered
Mar 18 23:53:58 manjaro-arm kernel: io scheduler kyber registered
Mar 18 23:53:58 manjaro-arm kernel: io scheduler bfq registered
Mar 18 23:53:58 manjaro-arm kernel: irq_meson_gpio: 110 to 8 gpio interrupt mux>
Mar 18 23:53:58 manjaro-arm kernel: IPMI message handler: version 39.2
Mar 18 23:53:58 manjaro-arm kernel: soc soc0: Amlogic Meson GXM (S912) Revision>
Mar 18 23:53:58 manjaro-arm kernel: Serial: 8250/16550 driver, 4 ports, IRQ sha>
Mar 18 23:53:58 manjaro-arm kernel: c81004c0.serial: ttyAML0 at MMIO 0xc81004c0>
Mar 18 23:53:58 manjaro-arm kernel: printk: console [ttyAML0] enabled
Mar 18 23:53:58 manjaro-arm kernel: ehci_hcd: USB 2.0 'Enhanced' Host Controlle>
Mar 18 23:53:58 manjaro-arm kernel: ehci-pci: EHCI PCI platform driver
Mar 18 23:53:58 manjaro-arm kernel: ehci-platform: EHCI generic platform driver
Mar 18 23:53:58 manjaro-arm kernel: ohci_hcd: USB 1.1 'Open' Host Controller (O>
Mar 18 23:53:58 manjaro-arm kernel: ohci-pci: OHCI PCI platform driver
Mar 18 23:53:58 manjaro-arm kernel: ohci-platform: OHCI generic platform driver
Mar 18 23:53:58 manjaro-arm kernel: uhci_hcd: USB Universal Host Controller Int>
Mar 18 23:53:58 manjaro-arm kernel: SPI driver max3421-hcd has no spi_device_id>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver uas
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver us>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver um>
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver us>
Mar 18 23:53:58 manjaro-arm kernel: usbserial: USB Serial support registered fo>
Mar 18 23:53:58 manjaro-arm kernel: mousedev: PS/2 mouse device common for all >
Mar 18 23:53:58 manjaro-arm kernel: i2c_dev: i2c /dev entries driver
Mar 18 23:53:58 manjaro-arm kernel: device-mapper: uevent: version 1.0.3
Mar 18 23:53:58 manjaro-arm kernel: device-mapper: ioctl: 4.45.0-ioctl (2021-03>
Mar 18 23:53:58 manjaro-arm kernel: sdhci: Secure Digital Host Controller Inter>
Mar 18 23:53:58 manjaro-arm kernel: sdhci: Copyright(c) Pierre Ossman
Mar 18 23:53:58 manjaro-arm kernel: Synopsys Designware Multimedia Card Interfa>
Mar 18 23:53:58 manjaro-arm kernel: sdhci-pltfm: SDHCI platform and OF driver h>
Mar 18 23:53:58 manjaro-arm kernel: meson-gx-mmc d0072000.mmc: Got CD GPIO
Mar 18 23:53:58 manjaro-arm kernel: meson-gx-mmc d0074000.mmc: allocated mmc-pw>
Mar 18 23:53:58 manjaro-arm kernel: ledtrig-cpu: registered to indicate activit>
Mar 18 23:53:58 manjaro-arm kernel: No iBFT detected.
Mar 18 23:53:58 manjaro-arm kernel: meson-sm: secure-monitor enabled
Mar 18 23:53:58 manjaro-arm kernel: gxl-crypto c883e000.crypto: will run reques>
Mar 18 23:53:58 manjaro-arm kernel: gxl-crypto c883e000.crypto: will run reques>
Mar 18 23:53:58 manjaro-arm kernel: hid: raw HID events driver (C) Jiri Kosina
Mar 18 23:53:58 manjaro-arm kernel: usbcore: registered new interface driver us>
Mar 18 23:53:58 manjaro-arm kernel: usbhid: USB HID core driver
Mar 18 23:53:58 manjaro-arm kernel: ashmem: initialized
Mar 18 23:53:58 manjaro-arm kernel: platform-mhu c883c404.mailbox: Platform MHU>
Mar 18 23:53:58 manjaro-arm kernel: Initializing XFRM netlink socket
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_INET6 protocol family
Mar 18 23:53:58 manjaro-arm kernel: mmc1: new HS200 MMC card at address 0001
Mar 18 23:53:58 manjaro-arm kernel: mmcblk1: mmc1:0001 MAG2GC 14.7 GiB
Mar 18 23:53:58 manjaro-arm kernel: mmcblk1boot0: mmc1:0001 MAG2GC 4.00 MiB
Mar 18 23:53:58 manjaro-arm kernel: mmcblk1boot1: mmc1:0001 MAG2GC 4.00 MiB
Mar 18 23:53:58 manjaro-arm kernel: mmcblk1rpmb: mmc1:0001 MAG2GC 512 KiB, char>
Mar 18 23:53:58 manjaro-arm kernel: Freeing initrd memory: 8276K
Mar 18 23:53:58 manjaro-arm kernel: Segment Routing with IPv6
Mar 18 23:53:58 manjaro-arm kernel: In-situ OAM (IOAM) with IPv6
Mar 18 23:53:58 manjaro-arm kernel: mip6: Mobile IPv6
Mar 18 23:53:58 manjaro-arm kernel: NET: Registered PF_PACKET protocol family
Mar 18 23:53:58 manjaro-arm kernel: Key type dns_resolver registered
Mar 18 23:53:58 manjaro-arm kernel: registered taskstats version 1
Mar 18 23:53:58 manjaro-arm kernel: Loading compiled-in X.509 certificates
Mar 18 23:53:58 manjaro-arm kernel: zswap: loaded using pool lzo/zbud
Mar 18 23:53:58 manjaro-arm kernel: debug_vm_pgtable: [debug_vm_pgtable >
Mar 18 23:53:58 manjaro-arm kernel: Key type ._fscrypt registered
Mar 18 23:53:58 manjaro-arm kernel: Key type .fscrypt registered
Mar 18 23:53:58 manjaro-arm kernel: Key type fscrypt-provisioning registered
Mar 18 23:53:58 manjaro-arm kernel: Key type encrypted registered
Mar 18 23:53:58 manjaro-arm kernel: dwc3-meson-g12a d0078080.usb: USB2 ports: 3
Mar 18 23:53:58 manjaro-arm kernel: dwc3-meson-g12a d0078080.usb: USB3 ports: 0
Mar 18 23:53:58 manjaro-arm kernel: dwc2 c9100000.usb: supply vusb_d not found,>
Mar 18 23:53:58 manjaro-arm kernel: dwc2 c9100000.usb: supply vusb_a not found,>
Mar 18 23:53:58 manjaro-arm kernel: dwc2 c9100000.usb: EPs: 7, dedicated fifos,>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: xHCI Host Control>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: new USB bus regis>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: hcc params 0x0228>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: irq 42, io mem 0x>
Mar 18 23:53:58 manjaro-arm kernel: usb usb1: New USB device found, idVendor=1d>
Mar 18 23:53:58 manjaro-arm kernel: usb usb1: New USB device strings: Mfr=3, Pr>
Mar 18 23:53:58 manjaro-arm kernel: usb usb1: Product: xHCI Host Controller
Mar 18 23:53:58 manjaro-arm kernel: usb usb1: Manufacturer: Linux 5.17.1-1-MANJ>
Mar 18 23:53:58 manjaro-arm kernel: usb usb1: SerialNumber: xhci-hcd.0.auto
Mar 18 23:53:58 manjaro-arm kernel: hub 1-0:1.0: USB hub found
Mar 18 23:53:58 manjaro-arm kernel: hub 1-0:1.0: 3 ports detected
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: xHCI Host Control>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: new USB bus regis>
Mar 18 23:53:58 manjaro-arm kernel: xhci-hcd xhci-hcd.0.auto: Host supports USB>
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: We don't know the algorithms for >
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: New USB device found, idVendor=1d>
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: New USB device strings: Mfr=3, Pr>
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: Product: xHCI Host Controller
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: Manufacturer: Linux 5.17.1-1-MANJ>
Mar 18 23:53:58 manjaro-arm kernel: usb usb2: SerialNumber: xhci-hcd.0.auto
Mar 18 23:53:58 manjaro-arm kernel: hub 2-0:1.0: USB hub found
Mar 18 23:53:58 manjaro-arm kernel: hub 2-0:1.0: config failed, hub doesn't hav>
Mar 18 23:53:58 manjaro-arm kernel: scpi_protocol scpi: SCP Protocol legacy pre>
Mar 18 23:53:58 manjaro-arm kernel: ALSA device list:
Mar 18 23:53:58 manjaro-arm kernel: No soundcards found.
Mar 18 23:53:58 manjaro-arm kernel: Freeing unused kernel memory: 3520K
Mar 18 23:53:58 manjaro-arm kernel: Run /init as init process
Mar 18 23:53:58 manjaro-arm kernel: with arguments:
Mar 18 23:53:58 manjaro-arm kernel: /init
Mar 18 23:53:58 manjaro-arm kernel: splash
Mar 18 23:53:58 manjaro-arm kernel: with environment:
Mar 18 23:53:58 manjaro-arm kernel: HOME=/
Mar 18 23:53:58 manjaro-arm kernel: TERM=linux
Mar 18 23:53:58 manjaro-arm kernel: mac=00:79:18:00:00:15
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: new high-speed USB device number 2>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: New USB device found, idVendor=174>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: New USB device strings: Mfr=2, Pro>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: Product: KS-AMTU02
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: Manufacturer: KINGSHARE
Mar 18 23:53:58 manjaro-arm kernel: usb 1-1: SerialNumber: 123456789010
Mar 18 23:53:58 manjaro-arm kernel: scsi host0: uas
Mar 18 23:53:58 manjaro-arm kernel: scsi 0:0:0:0: Direct-Access KINGSHAR KS>
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: Attached scsi generic sg0 type 0
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] 125045424 512-byte logica>
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] Write Protect is off
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] Write cache: enabled, rea>
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] Optimal transfer size 335>
Mar 18 23:53:58 manjaro-arm kernel: sda: sda1 sda2
Mar 18 23:53:58 manjaro-arm kernel: random: fast init done
Mar 18 23:53:58 manjaro-arm kernel: sd 0:0:0:0: [sda] Attached SCSI disk
Mar 18 23:53:58 manjaro-arm kernel: meson-drm d0100000.vpu: Queued 2 outputs on>
Mar 18 23:53:58 manjaro-arm kernel: meson-drm d0100000.vpu: Failed to find CVBS>
Mar 18 23:53:58 manjaro-arm kernel: meson-dw-hdmi c883a000.hdmi-tx: Detected HD>
Mar 18 23:53:58 manjaro-arm kernel: meson-dw-hdmi c883a000.hdmi-tx: registered >
Mar 18 23:53:58 manjaro-arm kernel: meson-drm d0100000.vpu: bound c883a000.hdmi>
Mar 18 23:53:58 manjaro-arm kernel: [drm] Initialized meson 1.0.0 20161109 for >
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2: new high-speed USB device number 3>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2: New USB device found, idVendor=05e>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2: New USB device strings: Mfr=0, Pro>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2: Product: USB2.0 Hub
Mar 18 23:53:58 manjaro-arm kernel: hub 1-2:1.0: USB hub found
Mar 18 23:53:58 manjaro-arm kernel: hub 1-2:1.0: 4 ports detected
Mar 18 23:53:58 manjaro-arm kernel: Console: switching to colour frame buffer d>
Mar 18 23:53:58 manjaro-arm kernel: meson-drm d0100000.vpu: [drm] fb0: mesondrm>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: new high-speed USB device number>
Mar 18 23:53:58 manjaro-arm kernel: EXT4-fs (sda2): mounted filesystem with wri>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: New USB device found, idVendor=0>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: New USB device strings: Mfr=1, P>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: Product: AX88772C
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: Manufacturer: ASIX Elec. Corp.
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.1: SerialNumber: 56C54B
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.3: new low-speed USB device number >
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.3: New USB device found, idVendor=2>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.3: New USB device strings: Mfr=0, P>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.3: Product: USB OPTICAL MOUSE
Mar 18 23:53:58 manjaro-arm kernel: input: USB OPTICAL MOUSE as /devices/platf>
Mar 18 23:53:58 manjaro-arm kernel: hid-generic 0003:275D:0BA6.0001: input,hidr>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.4: new low-speed USB device number >
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.4: New USB device found, idVendor=2>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.4: New USB device strings: Mfr=0, P>
Mar 18 23:53:58 manjaro-arm kernel: usb 1-2.4: Product: CASUE USB KB
Mar 18 23:53:58 manjaro-arm systemd[1]: System time before build time, advancin>
Mar 18 23:53:58 manjaro-arm kernel: input: CASUE USB KB as /devices/platform/so>
Mar 18 23:53:58 manjaro-arm systemd[1]: systemd 250.4-2-arch running in system >
Mar 18 23:53:58 manjaro-arm systemd[1]: Detected architecture arm64.
Mar 18 23:53:58 manjaro-arm systemd[1]: Detected first boot.
Mar 18 23:53:58 manjaro-arm systemd[1]: Hostname set to <manjaro-arm>.
Mar 18 23:53:58 manjaro-arm kernel: random: systemd: uninitialized urandom read>
Mar 18 23:53:58 manjaro-arm systemd[1]: Initializing machine ID from random gen>
Mar 18 23:53:58 manjaro-arm kernel: hid-generic 0003:2A7A:9A27.0002: input,hidr>
Mar 18 23:53:58 manjaro-arm kernel: input: CASUE USB KB Consumer Control as /de>
Mar 18 23:53:58 manjaro-arm kernel: input: CASUE USB KB System Control as /devi>
Mar 18 23:53:58 manjaro-arm kernel: hid-generic 0003:2A7A:9A27.0003: input,hidr>
Mar 18 23:53:58 manjaro-arm systemd[1]: Failed to populate /etc with preset uni>
Mar 18 23:53:58 manjaro-arm systemd[1]: /usr/lib/systemd/system/plymouth-start.>
Mar 18 23:53:58 manjaro-arm systemd[1]: Configuration file /usr/lib/systemd/sys>
Mar 18 23:53:58 manjaro-arm systemd[1]: Queued start job for default target Gra>
Mar 18 23:53:58 manjaro-arm kernel: random: systemd: uninitialized urandom read>
Mar 18 23:53:58 manjaro-arm systemd[1]: Created slice Slice /system/getty.
Mar 18 23:53:58 manjaro-arm kernel: random: systemd: uninitialized urandom read>
Mar 18 23:53:58 manjaro-arm systemd[1]: Created slice Slice /system/modprobe.
Mar 18 23:53:58 manjaro-arm kernel: random: systemd: uninitialized urandom read>
Mar 18 23:53:58 manjaro-arm systemd[1]: Created slice Slice /system/serial-gett>
Mar 18 23:53:58 manjaro-arm systemd[1]: Created slice User and Session Slice.
Mar 18 23:53:58 manjaro-arm systemd[1]: Started Forward Password Requests to Wa>
Mar 18 23:53:58 manjaro-arm systemd[1]: Set up automount Arbitrary Executable F>
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Local Integrity Protecte>
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Remote File Systems.
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Slice Units.
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Swaps.
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Local Verity Protected V>
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on Device-mapper event daemon>
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on LVM2 poll daemon socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on Process Core Dump Socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on Journal Audit Socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on Journal Socket (/dev/log).
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on Journal Socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on udev Control Socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Listening on udev Kernel Socket.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting Huge Pages File System...
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting POSIX Message Queue File Syste>
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting Kernel Debug File System...
Mar 18 23:53:58 manjaro-arm systemd[1]: Kernel Trace File System was skipped be>
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting Temporary Directory /tmp...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Create List of Static Device N>
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Monitoring of LVM2 mirrors, sn>
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Load Kernel Module configfs...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Load Kernel Module drm...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Load Kernel Module fuse...
Mar 18 23:53:58 manjaro-arm systemd[1]: File System Check on Root Device was sk>
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Journal Service...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Load Kernel Modules...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Remount Root and Kernel File S>
Mar 18 23:53:58 manjaro-arm systemd[1]: Repartition Root Disk was skipped becau>
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Coldplug All udev Devices...
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Setup Virtual Console...
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted Huge Pages File System.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted POSIX Message Queue File System.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted Kernel Debug File System.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted Temporary Directory /tmp.
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Create List of Static Device N>
Mar 18 23:53:58 manjaro-arm systemd[1]: modprobe@configfs.service: Deactivated >
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Load Kernel Module configfs.
Mar 18 23:53:58 manjaro-arm systemd[1]: modprobe@drm.service: Deactivated succe>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Load Kernel Module drm.
Mar 18 23:53:58 manjaro-arm systemd[1]: modprobe@fuse.service: Deactivated succ>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Load Kernel Module fuse.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting FUSE Control File System...
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounting Kernel Configuration File Syst>
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted FUSE Control File System.
Mar 18 23:53:58 manjaro-arm systemd[1]: Mounted Kernel Configuration File Syste>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Load Kernel Modules.
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.310:2): p>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Setup Virtual Console.
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.310:3): p>
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Apply Kernel Variables...
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Apply Kernel Variables.
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.370:4): p>
Mar 18 23:53:58 manjaro-arm systemd-journald[323]: Journal started
-- Subject: The journal has been started
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- The system journal process has started up, opened the journal
-- files for writing and is now ready to process requests.
Mar 18 23:53:58 manjaro-arm systemd-journald[323]: Runtime Journal (/run/log/jo>
-- Subject: Disk space used by the journal
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Runtime Journal (/run/log/journal/1b20f1dfebd54ad7bfa3c0263baec2b0) is curre>
-- Maximum allowed usage is set to 90.2M.
-- Leaving at least 45.1M free (of currently available 894.3M of disk space).
-- Enforced usage limit is thus 90.2M, of which 82.2M are still available.
--
-- The limits controlling how much disk space is used by the journal may
-- be configured with SystemMaxUse=, SystemKeepFree=, SystemMaxFileSize=,
-- RuntimeMaxUse=, RuntimeKeepFree=, RuntimeMaxFileSize= settings in
-- /etc/systemd/journald.conf. See journald.conf(5) for details.
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm systemd-modules-load[324]: Inserted module 'crypto_>
Mar 18 23:53:58 manjaro-arm systemd-vconsole-setup[327]: KD_FONT_OP_GET failed >
Mar 18 23:53:58 manjaro-arm systemd-vconsole-setup[327]: Fonts will not be copi>
Mar 18 23:53:58 manjaro-arm systemd[1]: Started Journal Service.
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.390:5): p>
Mar 18 23:53:58 manjaro-arm systemd-remount-fs[330]: mount: /: can't find PARTU>
Mar 18 23:53:58 manjaro-arm systemd-remount-fs[325]: /usr/bin/mount for / exite>
Mar 18 23:53:58 manjaro-arm systemd[1]: systemd-remount-fs.service: Main proces>
-- Subject: Unit process exited
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- An ExecStart= process belonging to unit systemd-remount-fs.service has exite>
--
-- The process' exit code is 'exited' and its exit status is 1.
Mar 18 23:53:58 manjaro-arm systemd[1]: systemd-remount-fs.service: Failed with>
-- Subject: Unit failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- The unit systemd-remount-fs.service has entered the 'failed' state with resu>
Mar 18 23:53:58 manjaro-arm systemd[1]: Failed to start Remount Root and Kernel>
-- Subject: A start job for unit systemd-remount-fs.service has failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-remount-fs.service has finished with a failure.
--
-- The job identifier is 58 and the job result is failed.
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.490:6): p>
Mar 18 23:53:58 manjaro-arm systemd[1]: Rebuild Hardware Database was skipped b>
-- Subject: A start job for unit systemd-hwdb-update.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-hwdb-update.service has finished successfully.
--
-- The job identifier is 51.
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Flush Journal to Persistent St>
-- Subject: A start job for unit systemd-journal-flush.service has begun execut>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-journal-flush.service has begun execution.
--
-- The job identifier is 37.
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Load/Save Random Seed...
-- Subject: A start job for unit systemd-random-seed.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-random-seed.service has begun execution.
--
-- The job identifier is 17.
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Create System Users...
-- Subject: A start job for unit systemd-sysusers.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-sysusers.service has begun execution.
--
-- The job identifier is 62.
Mar 18 23:53:58 manjaro-arm systemd-journald[323]: Time spent on flushing to /v>
Mar 18 23:53:58 manjaro-arm systemd-journald[323]: System Journal (/var/log/jou>
-- Subject: Disk space used by the journal
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- System Journal (/var/log/journal/1b20f1dfebd54ad7bfa3c0263baec2b0) is curren>
-- Maximum allowed usage is set to 438.1M.
-- Leaving at least 219.0M free (of currently available 231.9M of disk space).
-- Enforced usage limit is thus 20.8M, of which 12.8M are still available.
--
-- The limits controlling how much disk space is used by the journal may
-- be configured with SystemMaxUse=, SystemKeepFree=, SystemMaxFileSize=,
-- RuntimeMaxUse=, RuntimeKeepFree=, RuntimeMaxFileSize= settings in
-- /etc/systemd/journald.conf. See journald.conf(5) for details.
Mar 18 23:53:58 manjaro-arm systemd-journald[323]: Received client request to f>
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.580:7): p>
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm systemd-random-seed[337]: Kernel entropy pool is no>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Monitoring of LVM2 mirrors, sn>
-- Subject: A start job for unit lvm2-monitor.service has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit lvm2-monitor.service has finished successfully.
--
-- The job identifier is 30.
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Flush Journal to Persistent St>
-- Subject: A start job for unit systemd-journal-flush.service has finished suc>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-journal-flush.service has finished successfully.
--
-- The job identifier is 37.
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.650:8): p>
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Coldplug All udev Devices.
-- Subject: A start job for unit systemd-udev-trigger.service has finished succ>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-udev-trigger.service has finished successfully.
--
-- The job identifier is 64.
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.660:9): p>
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Create System Users.
-- Subject: A start job for unit systemd-sysusers.service has finished successf>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-sysusers.service has finished successfully.
--
-- The job identifier is 62.
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm kernel: audit: type=1130 audit(1647647638.670:10): >
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Create Static Device Nodes in >
-- Subject: A start job for unit systemd-tmpfiles-setup-dev.service has begun e>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-tmpfiles-setup-dev.service has begun execution.
--
-- The job identifier is 68.
Mar 18 23:53:58 manjaro-arm systemd[1]: Finished Create Static Device Nodes in >
-- Subject: A start job for unit systemd-tmpfiles-setup-dev.service has finishe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-tmpfiles-setup-dev.service has finished success>
--
-- The job identifier is 68.
Mar 18 23:53:58 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:58 manjaro-arm systemd[1]: Reached target Preparation for Local Fi>
-- Subject: A start job for unit local-fs-pre.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit local-fs-pre.target has finished successfully.
--
-- The job identifier is 59.
Mar 18 23:53:58 manjaro-arm systemd[1]: Virtual Machine and Container Storage (>
-- Subject: A start job for unit var-lib-machines.mount has finished successful>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit var-lib-machines.mount has finished successfully.
--
-- The job identifier is 102.
Mar 18 23:53:58 manjaro-arm audit: BPF prog-id=6 op=LOAD
Mar 18 23:53:58 manjaro-arm audit: BPF prog-id=7 op=LOAD
Mar 18 23:53:58 manjaro-arm audit: BPF prog-id=8 op=LOAD
Mar 18 23:53:58 manjaro-arm systemd[1]: Starting Rule-based Manager for Device >
-- Subject: A start job for unit systemd-udevd.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-udevd.service has begun execution.
--
-- The job identifier is 5.
Mar 18 23:53:59 manjaro-arm systemd-udevd[342]: Network interface NamePolicy= d>
Mar 18 23:53:59 manjaro-arm systemd[1]: Started Rule-based Manager for Device E>
-- Subject: A start job for unit systemd-udevd.service has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-udevd.service has finished successfully.
--
-- The job identifier is 5.
Mar 18 23:53:59 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:59 manjaro-arm systemd[1]: Starting Show Plymouth Boot Screen...
-- Subject: A start job for unit plymouth-start.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit plymouth-start.service has begun execution.
--
-- The job identifier is 25.
Mar 18 23:53:59 manjaro-arm kernel: kauditd_printk_skb: 4 callbacks suppressed
Mar 18 23:53:59 manjaro-arm kernel: audit: type=1130 audit(1647647639.250:15): >
Mar 18 23:53:59 manjaro-arm systemd[1]: Started Show Plymouth Boot Screen.
-- Subject: A start job for unit plymouth-start.service has finished successful>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit plymouth-start.service has finished successfully.
--
-- The job identifier is 25.
Mar 18 23:53:59 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:53:59 manjaro-arm systemd[1]: Dispatch Password Requests to Console D>
-- Subject: A start job for unit systemd-ask-password-console.path has finished>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-ask-password-console.path has finished successf>
--
-- The job identifier is 32.
Mar 18 23:53:59 manjaro-arm systemd[1]: Started Forward Password Requests to Pl>
-- Subject: A start job for unit systemd-ask-password-plymouth.path has finishe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-ask-password-plymouth.path has finished success>
--
-- The job identifier is 26.
Mar 18 23:53:59 manjaro-arm systemd[1]: Reached target Local Encrypted Volumes.
-- Subject: A start job for unit cryptsetup.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit cryptsetup.target has finished successfully.
--
-- The job identifier is 42.
Mar 18 23:53:59 manjaro-arm systemd[1]: Reached target Path Units.
-- Subject: A start job for unit paths.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit paths.target has finished successfully.
--
-- The job identifier is 80.
Mar 18 23:53:59 manjaro-arm kernel: audit: type=1130 audit(1647647639.310:16): >
Mar 18 23:53:59 manjaro-arm kernel: input: gpio-keys-polled as /devices/platfor>
Mar 18 23:53:59 manjaro-arm kernel: input: adc-keys as /devices/platform/adc-ke>
Mar 18 23:53:59 manjaro-arm kernel: meson-gx-mmc d0070000.mmc: allocated mmc-pw>
Mar 18 23:53:59 manjaro-arm kernel: Registered IR keymap rc-empty
Mar 18 23:53:59 manjaro-arm kernel: rc rc0: meson-ir as /devices/platform/soc/c>
Mar 18 23:53:59 manjaro-arm kernel: rc rc0: lirc_dev: driver meson-ir registere>
Mar 18 23:53:59 manjaro-arm kernel: input: meson-ir as /devices/platform/soc/c8>
Mar 18 23:53:59 manjaro-arm kernel: meson-ir c8100580.ir: receiver initialized
Mar 18 23:53:59 manjaro-arm kernel: meson_vdec: module is from the staging dire>
Mar 18 23:53:59 manjaro-arm systemd[1]: Found device /dev/ttyAML0.
-- Subject: A start job for unit dev-ttyAML0.device has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit dev-ttyAML0.device has finished successfully.
--
-- The job identifier is 88.
Mar 18 23:53:59 manjaro-arm systemd[1]: Reached target Hardware activated USB g>
-- Subject: A start job for unit usb-gadget.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit usb-gadget.target has finished successfully.
--
-- The job identifier is 120.
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: IRQ eth_wa>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: IRQ eth_lp>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: PTP uses m>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: User ID: 0>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: DW>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: DMA HW cap>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: RX Checksu>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: COE Type 2
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: TX Checksu>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: Wake-Up On>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: Normal des>
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: Ring mode >
Mar 18 23:53:59 manjaro-arm kernel: meson8b-dwmac c9410000.ethernet: Enable RX >
Mar 18 23:53:59 manjaro-arm kernel: panfrost d00c0000.gpu: clock rate = 24000000
Mar 18 23:53:59 manjaro-arm kernel: panfrost d00c0000.gpu: dev_pm_opp_set_regul>
Mar 18 23:54:00 manjaro-arm kernel: panfrost d00c0000.gpu: mali-t820 id 0x820 m>
Mar 18 23:54:00 manjaro-arm kernel: panfrost d00c0000.gpu: features: 00000000,1>
Mar 18 23:54:00 manjaro-arm kernel: panfrost d00c0000.gpu: Features: L2:0x07110>
Mar 18 23:54:00 manjaro-arm kernel: panfrost d00c0000.gpu: shader_present=0x7 l>
Mar 18 23:54:00 manjaro-arm kernel: [drm] Initialized panfrost 1.2.0 20180908 f>
Mar 18 23:54:00 manjaro-arm mtp-probe[375]: checking bus 1, device 4: "/sys/dev>
Mar 18 23:54:00 manjaro-arm mtp-probe[372]: checking bus 1, device 2: "/sys/dev>
Mar 18 23:54:00 manjaro-arm mtp-probe[372]: bus: 1, device: 2 was not an MTP de>
Mar 18 23:54:00 manjaro-arm mtp-probe[376]: checking bus 1, device 6: "/sys/dev>
Mar 18 23:54:00 manjaro-arm mtp-probe[376]: bus: 1, device: 6 was not an MTP de>
Mar 18 23:54:00 manjaro-arm mtp-probe[374]: checking bus 1, device 5: "/sys/dev>
Mar 18 23:54:00 manjaro-arm mtp-probe[374]: bus: 1, device: 5 was not an MTP de>
Mar 18 23:54:00 manjaro-arm mtp-probe[375]: bus: 1, device: 4 was not an MTP de>
Mar 18 23:54:00 manjaro-arm kernel: random: crng init done
Mar 18 23:54:00 manjaro-arm kernel: random: 6 urandom warning(s) missed due to >
Mar 18 23:54:00 manjaro-arm systemd[1]: Finished Load/Save Random Seed.
-- Subject: A start job for unit systemd-random-seed.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-random-seed.service has finished successfully.
--
-- The job identifier is 17.
Mar 18 23:54:00 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:54:00 manjaro-arm kernel: audit: type=1130 audit(1647647640.240:17): >
Mar 18 23:54:00 manjaro-arm systemd[1]: Reached target First Boot Complete.
-- Subject: A start job for unit first-boot-complete.target has finished succes>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit first-boot-complete.target has finished successfully.
--
-- The job identifier is 18.
Mar 18 23:54:00 manjaro-arm systemd-udevd[354]: Using default interface naming >
Mar 18 23:54:00 manjaro-arm kernel: debugfs: Directory 'c1105400.audio-controll>
Mar 18 23:54:00 manjaro-arm kernel: debugfs: Directory 'c1105400.audio-controll>
Mar 18 23:54:00 manjaro-arm systemd-udevd[343]: controlC0: Process '/usr/bin/al>
Mar 18 23:54:00 manjaro-arm systemd[1]: Dispatch Password Requests to Console D>
-- Subject: A start job for unit systemd-ask-password-console.path has finished>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-ask-password-console.path has finished successf>
--
-- The job identifier is 152.
Mar 18 23:54:00 manjaro-arm systemd[1]: Kernel Trace File System was skipped be>
-- Subject: A start job for unit sys-kernel-tracing.mount has finished successf>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit sys-kernel-tracing.mount has finished successfully.
--
-- The job identifier is 155.
Mar 18 23:54:00 manjaro-arm systemd[1]: File System Check on Root Device was sk>
-- Subject: A start job for unit systemd-fsck-root.service has finished success>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-fsck-root.service has finished successfully.
--
-- The job identifier is 180.
Mar 18 23:54:00 manjaro-arm systemd[1]: Starting Remount Root and Kernel File S>
-- Subject: A start job for unit systemd-remount-fs.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-remount-fs.service has begun execution.
--
-- The job identifier is 178.
Mar 18 23:54:00 manjaro-arm systemd[1]: Repartition Root Disk was skipped becau>
-- Subject: A start job for unit systemd-repart.service has finished successful>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-repart.service has finished successfully.
--
-- The job identifier is 166.
Mar 18 23:54:00 manjaro-arm systemd-remount-fs[400]: mount: /: can't find PARTU>
Mar 18 23:54:00 manjaro-arm systemd-remount-fs[399]: /usr/bin/mount for / exite>
Mar 18 23:54:00 manjaro-arm systemd[1]: systemd-remount-fs.service: Main proces>
-- Subject: Unit process exited
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- An ExecStart= process belonging to unit systemd-remount-fs.service has exite>
--
-- The process' exit code is 'exited' and its exit status is 1.
Mar 18 23:54:00 manjaro-arm systemd[1]: systemd-remount-fs.service: Failed with>
-- Subject: Unit failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- The unit systemd-remount-fs.service has entered the 'failed' state with resu>
Mar 18 23:54:00 manjaro-arm systemd[1]: Failed to start Remount Root and Kernel>
-- Subject: A start job for unit systemd-remount-fs.service has failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-remount-fs.service has finished with a failure.
--
-- The job identifier is 178 and the job result is failed.
Mar 18 23:54:00 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:54:00 manjaro-arm systemd[1]: Rebuild Hardware Database was skipped b>
-- Subject: A start job for unit systemd-hwdb-update.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-hwdb-update.service has finished successfully.
--
-- The job identifier is 171.
Mar 18 23:54:00 manjaro-arm kernel: audit: type=1130 audit(1647647640.760:18): >
Mar 18 23:54:00 manjaro-arm kernel: Asix Electronics AX88772C usb-001:004:10: a>
Mar 18 23:54:00 manjaro-arm kernel: asix 1-2.1:1.0 eth1: register 'asix' at usb>
Mar 18 23:54:00 manjaro-arm kernel: usbcore: registered new interface driver as>
Mar 18 23:54:00 manjaro-arm systemd-udevd[348]: Using default interface naming >
Mar 18 23:54:25 manjaro-arm kernel: VDDAO_3V3: disabling
Mar 18 23:55:28 manjaro-arm systemd[1]: dev-disk-by\x2dpartuuid-14c3cc6c\x2d8d0>
Mar 18 23:55:28 manjaro-arm systemd[1]: Timed out waiting for device /dev/disk/>
-- Subject: A start job for unit dev-disk-by\x2dpartuuid-14c3cc6c\x2d8d0d\x2d4d>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit dev-disk-by\x2dpartuuid-14c3cc6c\x2d8d0d\x2d4da2\x2db00>
--
-- The job identifier is 55 and the job result is timeout.
Mar 18 23:55:28 manjaro-arm systemd[1]: Dependency failed for /boot.
-- Subject: A start job for unit boot.mount has failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit boot.mount has finished with a failure.
--
-- The job identifier is 54 and the job result is dependency.
Mar 18 23:55:28 manjaro-arm systemd[1]: Dependency failed for Local File System>
-- Subject: A start job for unit local-fs.target has failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit local-fs.target has finished with a failure.
--
-- The job identifier is 53 and the job result is dependency.
Mar 18 23:55:28 manjaro-arm systemd[1]: local-fs.target: Job local-fs.target/st>
Mar 18 23:55:28 manjaro-arm systemd[1]: local-fs.target: Triggering OnFailure= >
Mar 18 23:55:28 manjaro-arm systemd[1]: boot.mount: Job boot.mount/start failed>
Mar 18 23:55:28 manjaro-arm systemd[1]: dev-disk-by\x2dpartuuid-14c3cc6c\x2d8d0>
Mar 18 23:55:28 manjaro-arm systemd[1]: systemd-ask-password-wall.path: Deactiv>
-- Subject: Unit succeeded
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- The unit systemd-ask-password-wall.path has successfully entered the 'dead' >
Mar 18 23:55:28 manjaro-arm systemd[1]: Stopped Forward Password Requests to Wa>
-- Subject: A stop job for unit systemd-ask-password-wall.path has finished
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A stop job for unit systemd-ask-password-wall.path has finished.
--
-- The job identifier is 200 and the job result is done.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Timer Units.
-- Subject: A start job for unit timers.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit timers.target has finished successfully.
--
-- The job identifier is 70.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Sound Card.
-- Subject: A start job for unit sound.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit sound.target has finished successfully.
--
-- The job identifier is 122.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Login Prompts.
-- Subject: A start job for unit getty.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit getty.target has finished successfully.
--
-- The job identifier is 81.
Mar 18 23:55:28 manjaro-arm systemd[1]: Store a System Token in an EFI Variable>
-- Subject: A start job for unit systemd-boot-system-token.service has finished>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-boot-system-token.service has finished successf>
--
-- The job identifier is 66.
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Commit a transient machine-id >
-- Subject: A start job for unit systemd-machine-id-commit.service has begun ex>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-machine-id-commit.service has begun execution.
--
-- The job identifier is 44.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Network.
-- Subject: A start job for unit network.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit network.target has finished successfully.
--
-- The job identifier is 95.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Network is Online.
-- Subject: A start job for unit network-online.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit network-online.target has finished successfully.
--
-- The job identifier is 105.
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Socket Units.
-- Subject: A start job for unit sockets.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit sockets.target has finished successfully.
--
-- The job identifier is 77.
Mar 18 23:55:28 manjaro-arm systemd[1]: Started Emergency Shell.
-- Subject: A start job for unit emergency.service has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit emergency.service has finished successfully.
--
-- The job identifier is 191.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm systemd[1]: Reached target Emergency Mode.
-- Subject: A start job for unit emergency.target has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit emergency.target has finished successfully.
--
-- The job identifier is 190.
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Rebuild Dynamic Linker Cache...
-- Subject: A start job for unit ldconfig.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit ldconfig.service has begun execution.
--
-- The job identifier is 15.
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.310:19): >
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Tell Plymouth To Write Out Run>
-- Subject: A start job for unit plymouth-read-write.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit plymouth-read-write.service has begun execution.
--
-- The job identifier is 49.
Mar 18 23:55:28 manjaro-arm systemd[1]: Set Up Additional Binary Formats was sk>
-- Subject: A start job for unit systemd-binfmt.service has finished successful>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-binfmt.service has finished successfully.
--
-- The job identifier is 12.
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Create Volatile Files and Dire>
-- Subject: A start job for unit systemd-tmpfiles-setup.service has begun execu>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-tmpfiles-setup.service has begun execution.
--
-- The job identifier is 19.
Mar 18 23:55:28 manjaro-arm systemd[1]: Finished Tell Plymouth To Write Out Run>
-- Subject: A start job for unit plymouth-read-write.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit plymouth-read-write.service has finished successfully.
--
-- The job identifier is 49.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm systemd[1]: Received SIGRTMIN+20 from PID 251 (plym>
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.370:20): >
Mar 18 23:55:28 manjaro-arm systemd[1]: Finished Create Volatile Files and Dire>
-- Subject: A start job for unit systemd-tmpfiles-setup.service has finished su>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-tmpfiles-setup.service has finished successfull>
--
-- The job identifier is 19.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Rebuild Journal Catalog...
-- Subject: A start job for unit systemd-journal-catalog-update.service has beg>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-journal-catalog-update.service has begun execut>
--
-- The job identifier is 67.
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.530:21): >
Mar 18 23:55:28 manjaro-arm systemd[1]: Starting Record System Boot/Shutdown in>
-- Subject: A start job for unit systemd-update-utmp.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-update-utmp.service has begun execution.
--
-- The job identifier is 50.
Mar 18 23:55:28 manjaro-arm audit[412]: SYSTEM_BOOT pid=412 uid=0 auid=42949672>
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1127 audit(1647647728.580:22): >
Mar 18 23:55:28 manjaro-arm systemd[1]: Finished Record System Boot/Shutdown in>
-- Subject: A start job for unit systemd-update-utmp.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-update-utmp.service has finished successfully.
--
-- The job identifier is 50.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.590:23): >
Mar 18 23:55:28 manjaro-arm systemd[1]: etc-machine\x2did.mount: Deactivated su>
-- Subject: Unit succeeded
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- The unit etc-machine\x2did.mount has successfully entered the 'dead' state.
Mar 18 23:55:28 manjaro-arm systemd[1]: Finished Commit a transient machine-id >
-- Subject: A start job for unit systemd-machine-id-commit.service has finished>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-machine-id-commit.service has finished successf>
--
-- The job identifier is 44.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.690:24): >
Mar 18 23:55:28 manjaro-arm systemd[1]: Finished Rebuild Journal Catalog.
-- Subject: A start job for unit systemd-journal-catalog-update.service has fin>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-journal-catalog-update.service has finished suc>
--
-- The job identifier is 67.
Mar 18 23:55:28 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:28 manjaro-arm kernel: audit: type=1130 audit(1647647728.720:25): >
Mar 18 23:55:33 manjaro-arm systemd[1]: Received SIGRTMIN+21 from PID 251 (plym>
Mar 18 23:55:33 manjaro-arm systemd[1]: Received SIGRTMIN+21 from PID 251 (plym>
Mar 18 23:55:49 manjaro-arm systemd[1]: Finished Rebuild Dynamic Linker Cache.
-- Subject: A start job for unit ldconfig.service has finished successfully
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit ldconfig.service has finished successfully.
--
-- The job identifier is 15.
Mar 18 23:55:49 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:49 manjaro-arm kernel: audit: type=1130 audit(1647647749.290:26): >
Mar 18 23:55:49 manjaro-arm systemd[1]: Starting Update is Completed...
-- Subject: A start job for unit systemd-update-done.service has begun execution
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-update-done.service has begun execution.
--
-- The job identifier is 14.
Mar 18 23:55:49 manjaro-arm systemd[1]: Finished Update is Completed.
-- Subject: A start job for unit systemd-update-done.service has finished succe>
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- A start job for unit systemd-update-done.service has finished successfully.
--
-- The job identifier is 14.
Mar 18 23:55:49 manjaro-arm systemd[1]: Startup finished in 2.950s (kernel) + 1>
-- Subject: System start-up is now complete
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- All system services necessary queued for starting at boot have been
-- started. Note that this does not mean that the machine is now idle as servic>
-- might still be busy with completing start-up.
--
-- Kernel start-up required 2950533 microseconds.
--
-- Initial RAM disk start-up required INITRD_USEC microseconds.
--
-- Userspace start-up required 112335504 microseconds.
Mar 18 23:55:49 manjaro-arm audit[1]: SERVICE_START pid=1 uid=0 auid=4294967295>
Mar 18 23:55:49 manjaro-arm kernel: audit: type=1130 audit(1647647749.320:27): >
lines 1078-1100/1100 (END)
[1]+ Stopped journalctl -xb
log file: ystemctl default
bash: ystemctl: command not found
[root@manjaro-arm ~]# ystemctl default
bash: ystemctl: command not found
[root@manjaro-arm ~]# systemctl default
Job for graphical.target canceled.
[root@manjaro-arm ~]# Press Enter for maintenance
Manjaro-arm-xfce-vim2-21.02
I can use it to start the desktop and use it normally
I test manjaro-arm-kde-plasma-vim2-22.04
Flash image to Usb disk
Convert partition to MBR
Use u-boot.ext can also be started and used normally
I think vim2 is more suitable for my box
I stubbornly want to use EMMC to run my box
I used install-manjaro.emmc.sh to install but failed.
I need your help
I’m from China.
I need to translate English
May not be accurate enough
I hope you can understand
1 Like
Please use am6 image so I can help you find the issue.
If you use vim2 then i cannot help as it uses different boot process and that will never ever work from emmc on tv boxes.
Try again each step mentioned here.
Flash Android first.
Boot into android.
Boot into am6 image
And reply your feedback on each step so we can identify the issue on boot process.
If you give me random boot log without explaining what exactly your doing then it will be impossible for me to help you.
I don’t know what went wrong. Not working properly
Yes, I brush in Android first. Android works normally.
Use manjaro-arm-xfce-am6-plus-22.04 img. xz Flash image to sdcard. I used a 16GB SD .
Start from SD using TTL interrupt settings.
setenv bootfromrecovery 0
setenv bootfromnand 0
setenv start_mmc_autoscript 'if fatload mmc 0 11000000 s905_autoscript; then autoscr 11000000; fi;'
setenv start_usb_autoscript "if fatload usb 0 11000000 s905_autoscript; then autoscr 11000000; fi; if fatload usb 1 11000000 s905_autoscript; then autoscr 11000000; fi;"
setenv start_autoscript 'if usb start; then run start_usb_autoscript; fi; if mmcinfo; then run start_mmc_autoscript; fi;'
setenv bootcmd 'run start_autoscript; run storeboot'
setenv firstboot 1
saveenv
Cannot boot from SD card
I found that it was the GPT partition table. I changed it to the MRT partition table
Modify uEnv.ini
dtb_name=/dtbs/amlogic/meson-gxm-q200.dtb
bootargs=root=LABEL=ROOT_MNJRO rootdelay=5 rootflags=data=writeback rw console=ttyAML0,115200n8 console=tty0 no_console_suspend consoleblank=0 fsck.fix=yes fsck.repair=yes net.ifnames=0 quiet splash plymouth.ignore-serial-consoles
It can be started from the SD card but the system error is entered
Below are error photos and TTL logs
GXM:BL1:dc8b51:76f1a5;FEAT:ADFC318C:80;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 87917
BL2 Built : 11:58:42, May 27 2017.
gxl gc3c9a84 - xiaobo.gu@droid05
set vdd cpu_a to 1120 mv
set vdd cpu_b to 1050 mv
set vddee to 1000 mv
Board ID = 5
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR3 chl: Rank0+1 @ 792MHz - PASS
Rank0: 1024MB(auto)-2T-11
Rank1: 1024MB(auto)-2T-11
DataBus test pass!
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x05100000, size: 0x00018400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x00063e00
NOTICE: BL3-1: v1.0(release):3348978
NOTICE: BL3-1: Built : 15:44:01, May 12 2017
NOTICE: BL3-1: BL33 decompress pass
mpu_config_enable:ok
[Image: gxl_v1.1.3221-2cfba69 2017-05-27 16:03:58 qiufang.dai@droid07]
OPS=0x82
wdt: reset registers!
fd 75 3 9d 70 4a cb 24 25 17 b1 6 [0.298709 Inits done]
secure task start!
high task start!
low task start!
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01-g5e3f75b-dirty (Aug 18 2017 - 15:30:31)
DRAM: 2 GiB
Relocation Offset is: 76eb9000
register usb cfg[0][1] = 0000000077f5c8c0
[CANVAS]canvas init
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpu: vpu_clk_gate_init_off
vpp: vpp_init
boot_device_flag : 1
Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
init bus_cycle=6, bus_timing=7, system=5.0ns
reset failed
get_chip_type and ret:fffffffe
get_chip_type and ret:fffffffe
chip detect failed and ret:fffffffe
nandphy_init failed and ret=0xfffffff1
MMC: aml_priv->desc_buf = 0x0000000073eb96b0
aml_priv->desc_buf = 0x0000000073ebb9d0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
init_part() 293: PART_TYPE_AML
[mmc_init] mmc init success
dtb magic 5f4c4d41
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
start dts,buffer=0000000073ebe200,dt_addr=0000000073ec9a00
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
parts: 12
00: logo 0000000002000000 1
01: recovery 0000000002000000 1
02: rsv 0000000000800000 1
03: tee 0000000000800000 1
04: crypt 0000000002000000 1
05: misc 0000000002000000 1
06: boot 0000000002000000 1
07: system 0000000080000000 1
08: cache 0000000020000000 2
09: stbinfo 0000000001400000 1
10: systembak 0000000025800000 1
11: data ffffffffffffffff 4
init_part() 293: PART_TYPE_AML
eMMC/TSD partition table have been checked OK!
check pattern success
mmc env offset: 0x27400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
hpd_state=1
[1080p60hz] is invalid for cvbs.
set hdmitx VIC = 16
config HPLL = 2970000
HPLL: 0xc000027b
config HPLL done
j = 4 vid_clk_div = 1
hdmitx: set enc for VIC: 16
HDMITX-DWC addr=0x10004006 rd_data=0x40
Error: HDMITX-DWC exp_data=0xff mask=0x9f
rx version is 1.4 or below div=10
hdmtix: set audio
hdmitx phy setting done
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-917: calc 93e76b16, store 93e76b16
_verify_dtb_checksum()-917: calc 93e76b16, store 93e76b16
dtb_read()-1039: total valid 2
dtb_read()-1106: do nothing
Amlogic multi-dtb tool
Multi dtb detected
edwin--->DDR size: 0x78000000
Multi dtb tool version: v2 .
Support 2 dtbs.
aml_dt soc: gxm platform: q201 variant: 2g
dtb 0 soc: gxm plat: q201 vari: 1g
dtb 1 soc: gxm plat: q201 vari: 2g
Find match dtb: 1
vpp: vpp_pq_load pq val error !!!
Net: dwmac.c9410000amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
Start read misc partition datas!
info->attemp_times = 0
info->active_slot = 0
info->slot_info[0].bootable = 1
info->slot_info[0].online = 1
info->slot_info[1].bootable = 0
info->slot_info[1].online = 0
info->attemp_times = 0
attemp_times = 0
active slot = 0
wipe_data=successful
wipe_cache=successful
upgrade_step=2
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[OSD]load fb addr from dts
[OSD]fb_addr for logo: 0x7f851000
[CANVAS]addr=0x7f851000 width=3840, height=2160
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[usid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
gpio: pin GPIOAO_2 (gpio 102) value is 1
InUsbBurn
noSof
Hit Enter or space or Ctrl+C key to stop autoboot -- : 0
(Re)start USB...
USB0: USB3.0 XHCI init start
Register 3000140 NbrPorts 3
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 1 USB Device(s) found
scanning usb for storage devices... 0 Storage Device(s) found
** Bad device usb 0 **
** Bad device usb 1 **
card in
init_part() 278: PART_TYPE_DOS
[mmc_init] mmc init success
Device: SDIO Port B
Manufacturer ID: fe
OEM: 3432
Name: SD16G
Tran Speed: 50000000
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 14.9 GiB
mmc clock: 40000000
Bus Width: 4-bit
reading s905_autoscript
930 bytes read in 6 ms (151.4 KiB/s)
## Executing script at 11000000
reading u-boot.ext
** Unable to read file u-boot.ext **
** Bad device usb 0 **
reading uImage
28817984 bytes read in 1667 ms (16.5 MiB/s)
reading uInitrd
8478358 bytes read in 490 ms (16.5 MiB/s)
reading uEnv.ini
273 bytes read in 5 ms (52.7 KiB/s)
mac=00:79:18:00:00:15
reading /dtbs/amlogic/meson-gxm-q200.dtb
41834 bytes read in 14 ms (2.8 MiB/s)
ee_gate_off ...
## Booting kernel from Legacy Image at 01080000 ...
Image Name: uImage
Image Type: AArch64 Linux Kernel Image (uncompressed)
Data Size: 28817920 Bytes = 27.5 MiB
Load Address: 01080000
Entry Point: 01080000
Verifying Checksum ... OK
## Loading init Ramdisk from Legacy Image at 13000000 ...
Image Name: uInitrd Image
Image Type: AArch64 Linux RAMDisk Image (uncompressed)
Data Size: 8478294 Bytes = 8.1 MiB
Load Address: 00000000
Entry Point: 00000000
Verifying Checksum ... OK
load dtb from 0x1000000 ......
Amlogic multi-dtb tool
Single dtb detected
## Flattened Device Tree blob at 01000000
Booting using the fdt blob at 0x1000000
Loading Kernel Image(COMP_NONE) ... OK
kernel loaded at 0x01080000, end = 0x02bfba00
libfdt fdt_path_offset() returned FDT_ERR_NOTFOUND
[rsvmem] fdt get prop fail.
Loading Ramdisk to 73690000, end 73ea5e56 ... OK
Loading Device Tree to 000000001fff2000, end 000000001ffff369 ... OK
fdt_instaboot: no instaboot image
Starting kernel ...
uboot time: 6244110 us
[ 0.634021] hub 2-0:1.0: config failed, hub doesn't have any ports! (err -19)
domain-0 init dvfs: 4
domain-1 init dvfs: 4
[ 1.170974] meson-drm d0100000.vpu: Failed to find CVBS Connector bridge
[BL31]: tee size: 0
[ 8.080693] panfrost d00c0000.gpu: dev_pm_opp_set_regulators: no regulator (mali) found: -19
[ 8.514688] debugfs: Directory 'c1105400.audio-controller' with parent 'P230-Q200' already present!
[ 8.518141] debugfs: Directory 'c1105400.audio-controller' with parent 'P230-Q200' already present!
Press Enter for maintenance
Tips：Sorry, you can’t embed media items in a post.
Screen display
[ 0.632433 hub 2-0:1.0: config failed, hub doesn’t have any ports! (err -19)
Starting version 250.4-2-arch
[1.139777] meson-drm d0100000.vpu: Failed to find CVBS Connector bridge
You are in emergency mode. After logging in, type " journalctl -xb" to view
system logs, “systemctl reboot” to reboot, “systemctl default” or “exit”
to boot into default mode.
Press Enter for maintenance
(or press Control-D to continue) :
1 Like
I understand much better now.
This shows that the boot process is working fine.
Kernel is loading but I suspect that the rootfs is not found. Most likely cause sdcard configuration is different in the dtb used.
I think you need to try a different dtb why don’t you use vim2 dtb as it have worked for you before.
Also update the uEnv.ini to this content
dtb_name=/dtbs/amlogic/meson-gxm-q200.dtb
bootargs=root=LABEL=ROOT_MNJRO rootdelay=5 rootflags=data=writeback rw console=ttyAML0,115200n8 console=tty0 no_console_suspend consoleblank=0 fsck.fix=yes fsck.repair=yes net.ifnames=0 earlycon loglevel=7
After this try to boot and share the log.
We will get better log with this
I have been using meson-gxm-q200.dtb configuration startup
Vim2 image is also meson-gxm-q200.dtb
Take your advice
I’ll try other DTB files to test
Expect me to succeed
Don’t forget to add these to uEnv.ini file to get more logs.
I tried manjaro on X96S but USB Keyboard and mouse not working, which DTB and kernel are you using for detecting USB in X96S ? Please help me in it, I am stuck …
