"amdgpu: The CS has been rejected" crash on gstreamer

deedee · 2 September 2026 20:46

Hi,

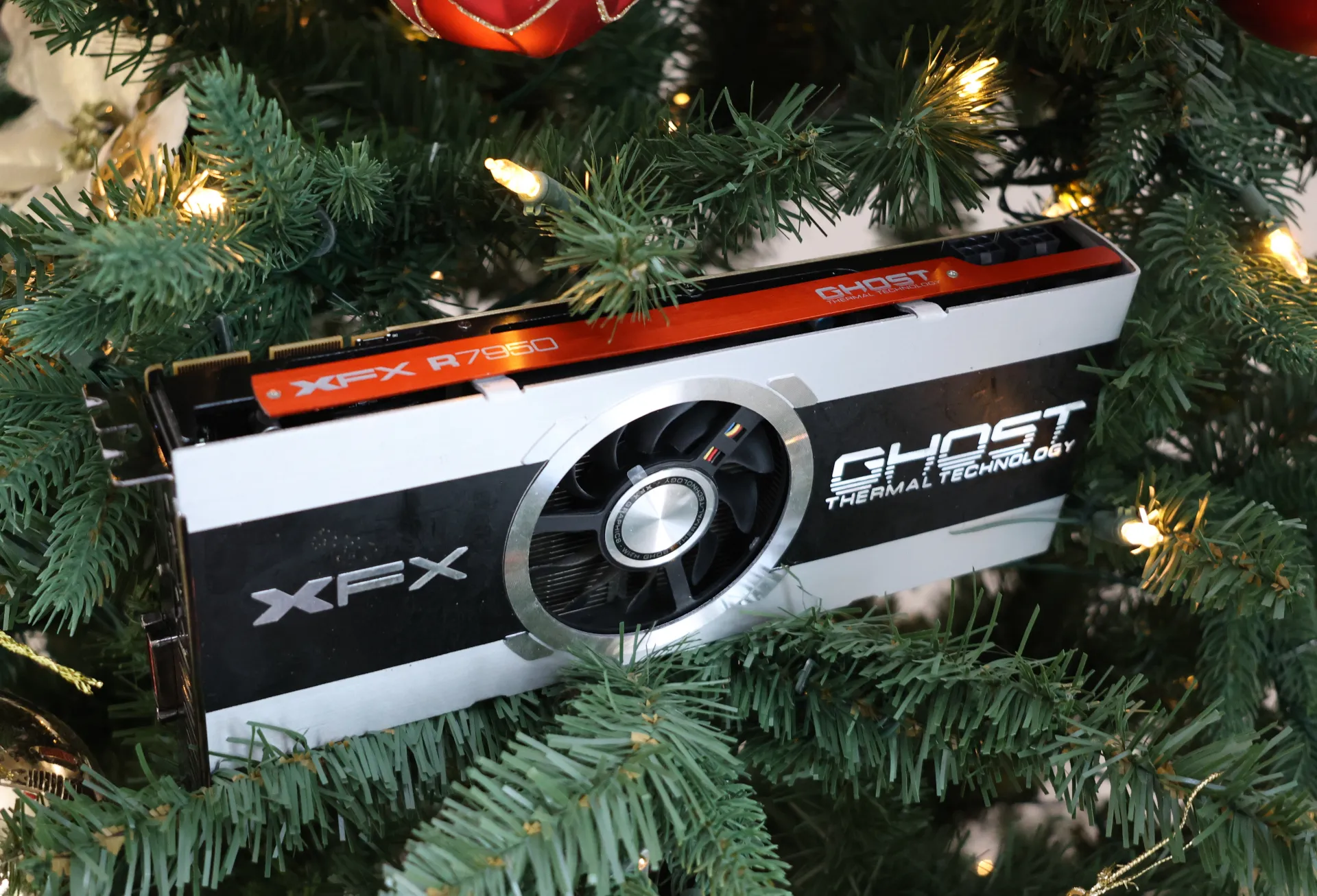

I recently swapped out my videocard for a Radeon HD7800 series. Since then I’m experiencing a specific crash while playing Hollow Knight Silksong (with wine). The game runs fine, except cutscenes cause a hard crash. Completing the Flexile Spines quest for example.

warn:  DxgiSwapChain::GetFrameStatistics: Frame statistics may be inaccurate
info:  Found cache file: C:\users\user\AppData\Local\dxvk\b33793d5490f95c9.dxvk.bin
info:  Cache: 96 shaders (129 kB)
info:  DXVK: Using 8 compiler threads
info:  Presenter: Actual swapchain properties:
info:    Format:       VK_FORMAT_B8G8R8A8_UNORM
info:    Color space:  VK_COLOR_SPACE_SRGB_NONLINEAR_KHR
info:    Present mode: VK_PRESENT_MODE_FIFO_KHR (dynamic: yes)
info:    Buffer size:  1920x1080
info:    Image count:  4
022c:fixme:win:create_window_handle DPI context 0x22 not implemented
0228:fixme:wbemprox:client_security_SetBlanket 00006FFFFBDC4030, 00007FBFCF889590, 10, 0, (null), 3, 3, 0000000000000000, 0
0228:fixme:wbemprox:client_security_Release 00006FFFFBDC4030
0228:fixme:wbemprox:enum_class_object_Next timeout not supported
0228:fixme:win:create_window_handle DPI context 0x22 not implemented

(wine:239586): GStreamer-CRITICAL **: 22:43:23.354: gst_caps_get_size: assertion 'GST_IS_CAPS (caps)' failed

(wine:239586): GStreamer-Video-CRITICAL **: 22:43:23.354: gst_video_info_from_caps: assertion 'gst_caps_is_fixed (caps)' failed
amdgpu: The CS has been rejected, see dmesg for more information (-12).

System is up to date (unstable branch)

How can i debug this further?

libertypo · 2 September 2026 21:02

You already have the answer in the snippet you posted…

deedee · 2 September 2026 21:42

I did try dmesg, but that only shows my gamepad connecting/disconnecting.

libertypo · 3 September 2026 04:39

would you care to let us know your hardware info and what dmesg command you used?

deedee · 3 September 2026 06:58

GPU: Club 3D R9 280 royalKing Specs | TechPowerUp GPU Database

dmesg command used: sudo dmesg

I have rebooted and ran dmesg again with grep amdgpu.

[    0.000000] Command line: BOOT_IMAGE=/boot/vmlinuz-linux-xanmod-x64v2 root=UUID=99496ba9-f8c5-45fa-a5ac-1d391345fd04 rw quiet splash elevator=noop mitigations=off ipv6.disable=1 radeon.si_support=0 amdgpu.si_support=1 amdgpu.dpm=1 amdgpu.ppfeaturemask=0xffffffff
[    0.039219] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-linux-xanmod-x64v2 root=UUID=99496ba9-f8c5-45fa-a5ac-1d391345fd04 rw quiet splash elevator=noop mitigations=off ipv6.disable=1 radeon.si_support=0 amdgpu.si_support=1 amdgpu.dpm=1 amdgpu.ppfeaturemask=0xffffffff
[    5.265259] amdgpu: Virtual CRAT table created for CPU
[    5.265276] amdgpu: Topology: Add CPU node
[    5.265305] amdgpu: Overdrive is enabled, please disable it before reporting any bugs unrelated to overdrive.
[    5.265324] amdgpu 0000:01:00.0: SI support provided by amdgpu.
               Use radeon.si_support=1 amdgpu.si_support=0 to override.
[    5.265447] amdgpu 0000:01:00.0: initializing kernel modesetting (TAHITI 0x1002:0x679A 0x1787:0x3000 0x00).
[    5.265458] amdgpu 0000:01:00.0: register mmio base: 0xF7E00000
[    5.265460] amdgpu 0000:01:00.0: register mmio size: 262144
[    5.265534] amdgpu 0000:01:00.0: detected ip block number 0 <common_v1_0_0> (si_common)
[    5.265537] amdgpu 0000:01:00.0: detected ip block number 1 <gmc_v6_0_0> (gmc_v6_0)
[    5.265539] amdgpu 0000:01:00.0: detected ip block number 2 <ih_v1_0_0> (si_ih)
[    5.265540] amdgpu 0000:01:00.0: detected ip block number 3 <gfx_v6_0_0> (gfx_v6_0)
[    5.265541] amdgpu 0000:01:00.0: detected ip block number 4 <sdma_v1_0_0> (si_dma)
[    5.265543] amdgpu 0000:01:00.0: detected ip block number 5 <smu_v6_0_0> (si_dpm)
[    5.265544] amdgpu 0000:01:00.0: detected ip block number 6 <dce_v1_0_0> (dm)
[    5.265546] amdgpu 0000:01:00.0: detected ip block number 7 <uvd_v3_1_0> (uvd_v3_1)
[    5.265547] amdgpu 0000:01:00.0: detected ip block number 8 <vce_v1_0_0> (vce_v1_0)
[    5.271994] amdgpu 0000:01:00.0: Fetched VBIOS from ROM BAR
[    5.271998] amdgpu 0000:01:00.0: [drm] ATOM BIOS: 113-C3864000-100, build: 253387  , ver: 015.031.000.000.000000, 2013/01/24
[    5.294673] amdgpu 0000:01:00.0: Found VCE firmware Version: 50.0 Binary ID: 1
[    5.360981] amdgpu 0000:01:00.0: vgaarb: deactivate vga console
[    5.360986] amdgpu 0000:01:00.0: Trusted Memory Zone (TMZ) feature not supported
[    5.361052] amdgpu 0000:01:00.0: [drm] PCIE gen 2 link speeds already enabled
[    5.361059] amdgpu 0000:01:00.0: vm size is 64 GB, 2 levels, block size is 10-bit, fragment size is 9-bit
[    5.363111] amdgpu 0000:01:00.0: VRAM: 3072M 0x000000F400000000 - 0x000000F4BFFFFFFF (3072M used)
[    5.363116] amdgpu 0000:01:00.0: GART: 1024M 0x0000000000000000 - 0x000000003FFFFFFF
[    5.363125] amdgpu 0000:01:00.0: [drm] Detected VRAM RAM=3072M, BAR=256M
[    5.363128] amdgpu 0000:01:00.0: [drm] RAM width 384bits GDDR5
[    5.363267] amdgpu 0000:01:00.0:  3072M of VRAM memory ready
[    5.363271] amdgpu 0000:01:00.0:  7962M of GTT memory ready.
[    5.363284] amdgpu 0000:01:00.0: [drm] GART: num cpu pages 262144, num gpu pages 262144
[    5.364142] amdgpu 0000:01:00.0: [drm] PCIE GART of 1024M enabled (table at 0x000000F400800000).
[    5.378393] amdgpu 0000:01:00.0: [drm] Internal thermal controller with fan control
[    5.378403] amdgpu 0000:01:00.0: [drm] si dpm initialized
[    5.382601] amdgpu 0000:01:00.0: [drm] Found UVD firmware Version: 64.0 Family ID: 13
[    5.545865] amdgpu 0000:01:00.0: [drm] Display Core v3.2.378 initialized on DCE 6.0
[    5.556688] snd_hda_intel 0000:01:00.1: bound 0000:01:00.0 (ops amdgpu_dm_audio_component_bind_ops [amdgpu])
[    5.799865] amdgpu 0000:01:00.0: [drm] UVD initialized successfully.
[    6.079084] amdgpu 0000:01:00.0: VCE initialized successfully.
[    6.079694] amdgpu 0000:01:00.0: SE 2, SH per SE 2, CU per SH 8, active_cu_number 28
[    6.381705] amdgpu 0000:01:00.0: overdrive feature is not supported
[    6.381801] amdgpu 0000:01:00.0: Runtime PM not available
[    6.382238] amdgpu 0000:01:00.0: [drm] Registered 6 planes with drm panic
[    6.396280] [drm] Initialized amdgpu 3.64.0 for 0000:01:00.0 on minor 1
[    6.402379] fbcon: amdgpudrmfb (fb0) is primary device
[    6.446128] amdgpu 0000:01:00.0: [drm] fb0: amdgpudrmfb frame buffer device

Kernels tested: linux61 (6.1.186-1), xanmod-v2 (7.1.11-1)
xf86-video-amdgpu: 25.0.0-1
gstreamer: 1.28.6-3
vkd3d: 1.19-1
wine: 11.16-2

scotty65 · 3 September 2026 07:01

Please provide the output of:

inxi --filter --verbosity=8

or the short form (preferred):

inxi -zv8

inxi man pages (Arch Manual)

Running `inxi` in `chroot`

Providing `inxi` when you cannot access your desktop environment

Providing `inxi` when you cannot access your desktop environment:

If you are unable to copy and paste the inxi output due to being unable to access your desktop, but can still access a TTY text session, then you can send the inxi output to a pastebin service:
inxi -zv8c0 | nc termbin.com 9999
Note: the nc command may require installation of the openbsd-netcat package:
pamac install openbsd-netcat
or
sudo pacman -Syu openbsd-netcat
After the output is sent, a link to the inxi output will be provided, which you can then add to your forum post.

If you are not allowed to post links in the forum due to being a new member, you can still paste the link as code by typing 3 backticks ``` on empty lines above and below the pasted URL.

Any code or command output (such as inxi output) should be placed within a scrollable pre-formatted text enclosure according to forum guidelines.

See here for instructions

[Mini How-To] format code or command output

Select and copy all the text in the Terminal window (minus the prompt, if you are using zsh).

Then paste the output in between two lines containing three backticks:
```
or three tildes:
~~~

Or:

Copy & paste, then highlight the pasted text and click the </> button at the top of the reply window (easier for smaller outputs).

deedee · 3 September 2026 07:35

Do note, some information was withheld.

System:
  Kernel: 7.1.11-xanmod1-1-x64v2 arch: x86_64 bits: 64 compiler: gcc v: 16.2.1
    clocksource: tsc avail: hpet,acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-linux-xanmod-x64v2
    root=UUID=99496ba9-f8c5-45fa-a5ac-1d391345fd04 rw quiet splash
    elevator=noop [REDACTED] radeon.si_support=0
    amdgpu.si_support=1 amdgpu.dpm=1 amdgpu.ppfeaturemask=0xffffffff
  Desktop: Xfce v: 4.21.0-dev-39dac098 tk: Gtk v: 3.24.52 wm: xfwm4
    v: 4.20.0 with: xfce4-panel dm: LightDM v: 1.33.1 Distro: Manjaro
    base: Arch Linux
Machine:
  Type: Desktop System: ASUS product: All Series v: N/A serial: N/A
  [REDACTED]
Battery:
  Message: No system battery data found. Is one present?
Memory:
  System RAM: total: 16 GiB available: 15.55 GiB used: 4.44 GiB (28.5%)
  Array-1: capacity: 16 GiB slots: 2 modules: 2 EC: None
    max-module-size: 8 GiB note: est.
  Device-1: ChannelA-DIMM0 type: DDR3 detail: synchronous size: 8 GiB
    speed: 1600 MT/s volts: N/A width (bits): data: 64 total: 64
    manufacturer: Crucial part-no: CT102464BD160B.C16 serial: <filter>
  Device-2: ChannelB-DIMM0 type: DDR3 detail: synchronous size: 8 GiB
    speed: 1600 MT/s volts: N/A width (bits): data: 64 total: 64
    manufacturer: Crucial part-no: CT102464BD160B.M16 serial: <filter>
PCI Slots:
  Slot: 1 type: PCIe status: in use length: long volts: 3.3 bus-ID: 01:00.0
CPU:
  [REDACTED]
Graphics:
  Device-1: Advanced Micro Devices [AMD/ATI] Tahiti PRO [Radeon HD 7950/8950
    OEM / R9 280] vendor: Hightech Information System driver: amdgpu v: kernel
    alternate: radeon arch: GCN-1 code: Southern Islands process: TSMC 28nm
    built: 2011-20 pcie: gen: 2 speed: 5 GT/s lanes: 16 link-max: gen: 3
    speed: 8 GT/s ports: active: HDMI-A-1 empty: DP-1,DP-2,DVI-I-1
    bus-ID: 01:00.0 chip-ID: 1002:679a class-ID: 0300 temp: 41.0 C
  Display: x11 server: X.Org v: 21.1.24 compositor: xfwm4 v: 4.20.0 driver:
    X: loaded: amdgpu unloaded: modesetting alternate: fbdev,vesa dri: radeonsi
    gpu: amdgpu display-ID: :0.0 screens: 1
  Screen-1: 0 s-res: 1920x1080 s-dpi: 96 s-size: 509x286mm (20.04x11.26")
    s-diag: 584mm (22.99")
  Monitor-1: HDMI-A-1 mapped: HDMI-A-0 model: BenQ
	[REDACTED]
  EDID-Warnings: 1: parse_edid: unhandled CEA mode 96 2: parse_edid:
    unhandled CEA mode 97
  API: EGL v: 1.5 hw: drv: amd radeonsi platforms: device: 0 drv: radeonsi
    device: 1 drv: swrast gbm: drv: radeonsi surfaceless: drv: radeonsi x11:
    drv: radeonsi inactive: wayland
  API: OpenGL v: 4.6 vendor: amd mesa v: 26.2.1-arch1.1 glx-v: 1.4
    direct-render: yes renderer: AMD Radeon HD 7900 Series (radeonsi tahiti ACO
    DRM 3.64 7.1.11-xanmod1-1-x64v2) device-ID: 1002:679a memory: 2.93 GiB
    unified: no
  API: Vulkan v: 1.4.357 layers: 3 device: 0 type: discrete-gpu name: AMD
    Radeon HD 7900 Series (RADV TAHITI) driver: mesa radv v: 26.2.1-arch1.1
    device-ID: 1002:679a surfaces: N/A
  Info: Tools: api: eglinfo, glxinfo, vulkaninfo de: xfce4-display-settings
    gpu: radeontop x11: xdriinfo, xdpyinfo, xprop, xrandr
Audio:
  Device-1: Intel 8 Series/C220 Series High Definition Audio vendor: ASUSTeK
    driver: snd_hda_intel v: kernel bus-ID: 00:1b.0 chip-ID: 8086:8c20
    class-ID: 0403
  Device-2: Advanced Micro Devices [AMD/ATI] Tahiti HDMI Audio [Radeon HD
    7870 XT / 7950/7970] vendor: Hightech Information System
    driver: snd_hda_intel v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 16
    link-max: gen: 3 speed: 8 GT/s bus-ID: 01:00.1 chip-ID: 1002:aaa0
    class-ID: 0403
  API: ALSA v: k7.1.11-xanmod1-1-x64v2 status: kernel-api with: 1: aoss
    type: oss-emulator 2: apulse type: pulse-emulator
    tools: alsactl,alsamixer,amixer
  Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
  Server-2: JACK v: 1.9.22 status: off tools: qjackctl
  Server-3: PipeWire v: 1.6.8 status: n/a (root, process) with:
    1: pipewire-pulse status: active 2: wireplumber status: active
    3: pipewire-alsa type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet
   [REDACTED]
  IF: enp4s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
  IP v4: <filter> type: dynamic noprefixroute scope: global
    broadcast: <filter>
  Info: services: NetworkManager,ntpd,smbd
  WAN IP: <filter>
Bluetooth:
  Message: No bluetooth data found.
Logical:
  Message: No logical block device data found.
RAID:
  Message: No RAID data found.
Drives:
  [REDACTED]
Partition:
  [REDACTED]
Swap:
  Alert: No swap data was found.
Unmounted:
  [REDACTED]
USB:
  Hub-1: 1-0:1 info: full speed or root hub ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-2: 1-1:2 info: Intel ports: 4 rev: 2.0 speed: 480 Mb/s (57.2 MiB/s)
    lanes: 1 mode: 2.0 chip-ID: 8087:8008 class-ID: 0900
  Hub-3: 2-0:1 info: hi-speed hub with single TT ports: 10 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Device-1: 2-10:2 info: Logitech MX518 Optical Mouse type: mouse
    driver: hid-generic,usbhid interfaces: 1 rev: 2.0
    speed: 1.5 Mb/s (183 KiB/s) lanes: 1 mode: 1.0 power: 98mA
    chip-ID: 046d:c01e class-ID: 0301
  Hub-4: 3-0:1 info: full speed or root hub ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-5: 3-1:2 info: Intel ports: 6 rev: 2.0 speed: 480 Mb/s (57.2 MiB/s)
    lanes: 1 mode: 2.0 chip-ID: 8087:8000 class-ID: 0900
  Hub-6: 4-0:1 info: super-speed hub ports: 2 rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 chip-ID: 1d6b:0003
    class-ID: 0900
  Hub-7: 5-0:1 info: hi-speed hub with single TT ports: 2 rev: 2.0
    speed: 480 Mb/s (57.2 MiB/s) lanes: 1 mode: 2.0 chip-ID: 1d6b:0002
    class-ID: 0900
  Hub-8: 6-0:1 info: super-speed hub ports: 2 rev: 3.0
    speed: 5 Gb/s (596.0 MiB/s) lanes: 1 mode: 3.2 gen-1x1 chip-ID: 1d6b:0003
    class-ID: 0900
Sensors:
  System Temperatures: cpu: 46.0 C mobo: N/A gpu: amdgpu temp: 41.0 C
  Fan Speeds (rpm): N/A
Repos:
  Packages: pm: pacman pkgs: 2237 libs: 604 tools: pamac,trizen,yaourt
  Active pacman repo servers in: /etc/pacman.conf
    1: https://geo-mirror.chaotic.cx/$repo/$arch
  Active pacman repo servers in: /etc/pacman.d/mirrorlist
    1: https://manjaro.mirrors.lavatech.top/unstable/$repo/$arch
Processes:
  [REDACTED]
Info:
  Processes: 273 Power: uptime: 9h 13m states: freeze,mem,disk suspend: deep
    avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
    suspend, test_resume image: 6.21 GiB services: upowerd,xfce4-power-manager
    Init: systemd v: 261 default: graphical tool: systemctl
  Compilers: clang: 22.1.8 gcc: 16.2.1 Shell: Sudo (sudo) v: 1.9.17p2
    default: Bash v: 5.3.15 running-in: xfce4-terminal inxi: 3.3.41

linux-aarhus · 3 September 2026 08:11

Your active kernel is unsupported on Manjaro.

Please switch to a supported kernel e.g. Linux 7.2 (recommended when using AMD hardware)

sudo pacman -Syu linux72

libertypo · 3 September 2026 08:33

That’s a few thousand lines of noise that doesn’t help your case.
But first things first :
As @linux-aarhus pointed out, update the kernel as the earlier versions of 7 series had some glitches with AMD hardware

As for dmesg you should use a combination of dmesg and grep to filter the noise and display only relevant facts.

dmesg --help
grep --help

deedee · 3 September 2026 08:57

I did. Just to clarify, the only thing that changed on the system was the GPU.
Previous GPU was a GTX970 with Nvidia 580xx drivers, this worked without problems.

A list of changes / timeline:

removed Nvidia GPU
installed Radeon GPU
installed xf86-video-amdgpu package
set kernel command line options: radeon.si_support=0 amdgpu.si_support=1 amdgpu.dpm=1 amdgpu.ppfeaturemask=0xffffffff
removed Nvidia drivers

Got an immediate crash with Silksong, after some digging found that dxvk was not set up.
installed dxvk with winetricks. Game running except cut scenes (where we are now),

EDIT: I tried linux72 just now as requested, but still gives me the same crash.

soundofthunder · 3 September 2026 09:53

@deedee

Note that the z in inxi -zv8 filters personally identifiable information from the command output.

When z is used, any further redaction is superfluous and only succeeds in limiting the scope of information that might assist in successfully diagnosing your issue.

Please see:

[Mini-HowTo] Provide System Information

Basic details provided by *-fetch type apps might give enough information for someone wishing to buy a computer, however, for Support purposes it’s best to ask your system directly.

Output of the inxi command will generate more useful and detailed information for those who may wish to help:

Suggested inxi command (use either):


`inxi -zv8`	(short-form)
`inxi --filter --verbosity=8`	(long-form)

man inxi (The inxi manual)

Command output should be presented as pre-formatted text in accordance with forum guidelines.

Running inxi within a chroot environment

Add --color=0 to the long-form command, or…
Change the short-form command to inxi -zv8c0

Your privacy is respected

deedee · 3 September 2026 10:20

Considering the state of the world today i don’t see how being cautious is a bad thing. If there’s something really important missing just name that so i can reconsider.

soundofthunder · 3 September 2026 10:26

This is for reference: The general expectation is that when output from a command is requested, especially by forum staff, it should be provided; especially given that your caution has already been addressed by filtering the output.

As you may imagine, having to request portions of the inxi output which you could have already provided is less than optimal.

Regards.

Mod edit:- Removed marked Solution (this post) illogically placed.

scotty65 · 3 September 2026 10:50

I’m just wondering if any of these extra boot parameters are still required?

You shouldn’t need all of the radeon & amdgpu parameters if you install linux71, linux72 or linux73 (RC) as, from linux619, the kernel defaults to using the amdgpu driver for AMD GCN 1.0 “Southern Islands” or GCN 1.1 “Sea Islands” graphics cards:

Regarding the elevator=noop boot parameter, remove that from your boot parameters and see if running the kernel’s default scheduler fixes the issue. Possibly the noop scheduler is causing the issue. We should at least rule it out by booting with the default kernel scheduler.

Chapter 8. Storage and File Systems | Performance Tuning Guide | Red Hat Enterprise Linux | 7 | Red Hat Documentation:

So, install linux71 or linux72 (or linux73 if you want to test the next kernel), remove the noop, radeon & amdgpu boot parameters from /etc/default/grub, run sudo update-grub, and then reboot to see if the problem still occurs.

deedee · 3 September 2026 11:51

Moving from wine to wine-staging fixed the issue.
