Hi,
I’m a linux user since 2008 but still a noob… I’m just a user…
In the last years I’m using manjaro with my old (but still loved) Acer aspire E5 with cinnamom DE.
Few days ago I decided to upgrade my hardware buying an HP Omen 16. I installed manjaro with KDE DE but I have some issues… some I solved by myself, but now I’m going crazy with audio… Yesterday I was on discord and I wasn’t able to get the internal microphone works… I had to use an external one.
I’m here to have suggestions…
Thanks
Stefano
Welcome @Senseiste
Those suggestions will likely be enhanced by you providing more useful information. To begin with, please provide your system information as described (below) and according to forum guidelines for presentation.
[Mini-HowTo] Provide System Information
Basic details provided by *-fetch type apps might give enough information for someone wishing to buy a computer, however, for Support purposes it’s best to ask your system directly.
Output of the inxi command will generate more useful and detailed information for those who may wish to help:
Suggested inxi command (use either):
|
|
inxi -zv8 |
(short-form) |
inxi --filter --verbosity=8 |
(long-form) |
Command output should be presented as pre-formatted text in accordance with forum guidelines.
Running inxi within a chroot environment
- Add
--color=0 to the long-form command, or…
- Change the short-form command to
inxi -zv8c0
Your privacy is respected
[Mini-HowTo] Present code or command output
Note: Grave accent (or, backtick) characters are used.
For inline code or to show a single command:
- please follow this simple example:
code here.
For multi-line command output:
- place text beween two rows of three (```) backtick characters to form a scrollable text box, or …
- use the </> button in the Compose window to achieve the same result.
The empty row between these rows of backtick characters is where to paste any multi-line command output (such as inxi).
An example of a pre-formatted text enclosure:
What is a Quark?
A. In Physics, an elementary particle and fundamental constituent of matter.
B. A character from the Star Trek: "Deep Space Nine" television series.
C. A soft, creamy, usually unsalted cheese traditional to central Europe.
Here the system output:
System:
Kernel: 6.18.12-1-MANJARO arch: x86_64 bits: 64 compiler: gcc v: 15.2.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-6.18-x86_64
root=UUID=fe321a7a-a8f0-48cf-b297-2f667a233739 rw rootflags=subvol=@
quiet splash udev.log_priority=3 acpi=force apm=power_off
Desktop: KDE Plasma v: 6.5.6 tk: Qt v: N/A info: frameworks v: 6.24.0
wm: kwin_wayland vt: 1 dm: SDDM Distro: Manjaro base: Arch Linux
Machine:
Type: Laptop System: HP product: OMEN Gaming Laptop 16-ap0xxx v: N/A
serial: <superuser required> Chassis: type: 10 serial: <superuser required>
Mobo: HP model: 8E35 v: 99.20 serial: <superuser required>
part-nu: C0DT0EA#ABZ uuid: <superuser required> Firmware: UEFI vendor: AMI
v: F.08 date: 07/24/2025
Battery:
ID-1: BAT0 charge: 54.5 Wh (79.5%) condition: 68.6/68.6 Wh (100%)
volts: 16.59 min: 15.4 model: HP Primary type: Li-ion serial: <filter>
charging: status: not charging cycles: 2
CPU:
Info: model: AMD Ryzen 9 8940HX with Radeon Graphics bits: 64 type: MT MCP
arch: Zen 4 gen: 4 level: v4 note: check built: 2022+ process: TSMC n5 (5nm)
family: 0x19 (25) model-id: 0x61 (97) stepping: 2 microcode: 0xA60120C
Topology: cpus: 1x dies: 2 clusters: 2x1 cores: 16 threads: 32 tpc: 2
smt: enabled cache: L1: 1024 KiB desc: d-16x32 KiB; i-16x32 KiB L2: 16 MiB
desc: 16x1024 KiB L3: 64 MiB desc: 2x32 MiB
Speed (MHz): avg: 3748 min/max: 422/5386 boost: enabled scaling:
driver: amd-pstate-epp governor: performance cores: 1: 3748 2: 3748 3: 3748
4: 3748 5: 3748 6: 3748 7: 3748 8: 3748 9: 3748 10: 3748 11: 3748 12: 3748
13: 3748 14: 3748 15: 3748 16: 3748 17: 3748 18: 3748 19: 3748 20: 3748
21: 3748 22: 3748 23: 3748 24: 3748 25: 3748 26: 3748 27: 3748 28: 3748
29: 3748 30: 3748 31: 3748 32: 3748 bogomips: 153312
Flags-basic: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a
ssse3 svm
Vulnerabilities:
Type: gather_data_sampling status: Not affected
Type: ghostwrite status: Not affected
Type: indirect_target_selection status: Not affected
Type: itlb_multihit status: Not affected
Type: l1tf status: Not affected
Type: mds status: Not affected
Type: meltdown status: Not affected
Type: mmio_stale_data status: Not affected
Type: old_microcode status: Not affected
Type: reg_file_data_sampling status: Not affected
Type: retbleed status: Not affected
Type: spec_rstack_overflow mitigation: Safe RET
Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via
prctl
Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer
sanitization
Type: spectre_v2 mitigation: Enhanced / Automatic IBRS; IBPB:
conditional; STIBP: always-on; PBRSB-eIBRS: Not affected; BHI: Not
affected
Type: srbds status: Not affected
Type: tsa mitigation: Clear CPU buffers
Type: tsx_async_abort status: Not affected
Type: vmscape mitigation: IBPB before exit to userspace
Graphics:
Device-1: NVIDIA GB206M [GeForce RTX 5070 Max-Q / Mobile]
vendor: Hewlett-Packard driver: nvidia v: 590.48.01 non-free: 550-580.xx+
status: current (as of 2025-11) arch: Lovelace code: AD1xx
process: TSMC n4 (5nm) built: 2022+ pcie: gen: 1 speed: 2.5 GT/s lanes: 8
link-max: gen: 5 speed: 32 GT/s lanes: 16 ports: active: none
empty: HDMI-A-1 bus-ID: 01:00.0 chip-ID: 10de:2d18 class-ID: 0300
Device-2: Advanced Micro Devices [AMD/ATI] Raphael vendor: Hewlett-Packard
driver: amdgpu v: kernel arch: RDNA-2 code: Navi-2x process: TSMC n7 (7nm)
built: 2020-22 pcie: gen: 4 speed: 16 GT/s lanes: 16 ports: active: eDP-1
empty: DP-1,Writeback-1 bus-ID: 06:00.0 chip-ID: 1002:164e class-ID: 0300
temp: 50.0 C
Device-3: Luxvisions Innotech HP True Vision FHD Camera driver: uvcvideo
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 5-1.2:4
chip-ID: 30c9:00ff class-ID: fe01 serial: <filter>
Display: wayland server: X.org v: 1.21.1.21 with: Xwayland v: 24.1.9
compositor: kwin_wayland driver: X: loaded: amdgpu,nvidia
unloaded: modesetting,nouveau alternate: fbdev,nv,vesa dri: radeonsi
gpu: amdgpu display-ID: 0
Monitor-1: eDP-1 model: AU Optronics 0xdbb2 serial: <filter> built: 2024
res: mode: 1920x1200 hz: 144 scale: 100% (1) dpi: 142 gamma: 1.2
size: 344x215mm (13.54x8.46") diag: 406mm (16") ratio: 16:10 modes:
max: 1920x1200 min: 640x480
API: EGL v: 1.5 hw: drv: nvidia drv: amd radeonsi platforms: device: 0
drv: nvidia device: 2 drv: radeonsi device: 3 drv: swrast gbm: drv: nvidia
surfaceless: drv: nvidia wayland: drv: radeonsi x11: drv: radeonsi
inactive: device-1
API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: amd mesa v: 26.0.2-arch1.1
glx-v: 1.4 direct-render: yes renderer: AMD Radeon 610M (radeonsi
raphael_mendocino ACO DRM 3.64 6.18.12-1-MANJARO) device-ID: 1002:164e
memory: 500 MiB unified: no display-ID: :1.0
API: Vulkan v: 1.4.341 layers: 8 device: 0 type: integrated-gpu name: AMD
Radeon 610M (RADV RAPHAEL_MENDOCINO) driver: mesa radv v: 26.0.2-arch1.1
device-ID: 1002:164e surfaces: N/A device: 1 type: discrete-gpu
name: NVIDIA GeForce RTX 5070 Laptop GPU driver: nvidia v: 590.48.01
device-ID: 10de:2d18 surfaces: N/A
Info: Tools: api: clinfo, eglinfo, glxinfo, vulkaninfo
de: kscreen-console,kscreen-doctor gpu: nvidia-settings,nvidia-smi
wl: wayland-info x11: xdpyinfo, xprop, xrandr
Audio:
Device-1: NVIDIA GB206 High Definition Audio driver: snd_hda_intel v: kernel
pcie: gen: 4 speed: 16 GT/s lanes: 8 link-max: gen: 5 speed: 32 GT/s
lanes: 16 bus-ID: 01:00.1 chip-ID: 10de:22eb class-ID: 0403
Device-2: Advanced Micro Devices [AMD/ATI] Radeon High Definition Audio
vendor: Hewlett-Packard driver: snd_hda_intel v: kernel pcie: gen: 4
speed: 16 GT/s lanes: 16 bus-ID: 06:00.1 chip-ID: 1002:1640 class-ID: 0403
Device-3: Advanced Micro Devices [AMD] Audio Coprocessor
vendor: Hewlett-Packard driver: snd_rpl_pci_acp6x v: kernel pcie: gen: 4
speed: 16 GT/s lanes: 16 bus-ID: 06:00.5 chip-ID: 1022:15e2 class-ID: 0480
Device-4: Advanced Micro Devices [AMD] Ryzen HD Audio
vendor: Hewlett-Packard driver: snd_hda_intel v: kernel pcie: gen: 4
speed: 16 GT/s lanes: 16 bus-ID: 06:00.6 chip-ID: 1022:15e3 class-ID: 0403
API: ALSA v: k6.18.12-1-MANJARO status: kernel-api with: aoss
type: oss-emulator tools: alsactl,alsamixer,amixer
Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
Server-2: JACK v: 1.9.22 status: off tools: N/A
Server-3: PipeWire v: 1.6.2 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet
vendor: Hewlett-Packard driver: r8169 v: kernel pcie: gen: 1 speed: 2.5 GT/s
lanes: 1 port: e000 bus-ID: 04:00.0 chip-ID: 10ec:8168 class-ID: 0200
IF: eno1 state: down mac: <filter>
Device-2: Realtek RTL8852BE-VT PCIe 802.11ax Wireless Network
vendor: Hewlett-Packard driver: rtw89_8852bte v: kernel pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: d000 bus-ID: 05:00.0 chip-ID: 10ec:b520
class-ID: 0280
IF: wlo1 state: up mac: <filter>
Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
Bluetooth:
Device-1: Realtek Bluetooth Radio driver: btusb v: 0.8 type: USB rev: 1.0
speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 5-1.1:3 chip-ID: 0bda:b86a
class-ID: e001 serial: <filter>
Report: rfkill ID: hci0 rfk-id: 0 state: up address: see --recommends
Drives:
Local Storage: total: 953.87 GiB used: 44.66 GiB (4.7%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: KIOXIA model: N/A
size: 953.87 GiB block-size: physical: 512 B logical: 512 B speed: 63.2 Gb/s
lanes: 4 tech: SSD serial: <filter> fw-rev: HP02AS00 temp: 30.9 C
scheme: GPT
Partition:
ID-1: / raw-size: 953.57 GiB size: 953.57 GiB (100.00%)
used: 44.66 GiB (4.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 664 KiB (0.2%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
ID-3: /home raw-size: 953.57 GiB size: 953.57 GiB (100.00%)
used: 44.66 GiB (4.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
ID-4: /var/log raw-size: 953.57 GiB size: 953.57 GiB (100.00%)
used: 44.66 GiB (4.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:2
Swap:
Alert: No swap data was found.
Sensors:
System Temperatures: cpu: 40.0 C mobo: N/A gpu: amdgpu temp: 51.0 C
Fan Speeds (rpm): cpu: 2083 fan-2: 1935
Info:
Memory: total: 32 GiB note: est. available: 30.4 GiB used: 6.14 GiB (20.2%)
Processes: 584 Power: uptime: 3h 55m states: freeze,mem,disk
suspend: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 12.09 GiB services: org_kde_powerdevil,
power-profiles-daemon, upowerd Init: systemd v: 259 default: graphical
tool: systemctl
Packages: pm: pacman pkgs: 1374 libs: 368 tools: pamac pm: flatpak pkgs: 0
Compilers: clang: 22.1.1 gcc: 15.2.1 Shell: Zsh v: 5.9 running-in: konsole
inxi: 3.3.40
Mod edit: removed empty lines from inxi output
I suggest check ALSA mixer setting for onboard audio device:
amixer -c1
Audio capture is usually disabled by default:
Simple mixer control 'Capture',0
Capabilities: cvolume cswitch
Capture channels: Front Left - Front Right
Limits: Capture 0 - 63
Front Left: Capture 0 [0%] [-16.00dB] [off]
Front Right: Capture 0 [0%] [-16.00dB] [off]
To enable audio capture and set microphone recording level
amixer -c1 sset 'Capture' 39 cap
https://linux-hardware.org/?probe=7dfc0bb8cb&log=amixer
Simple mixer control 'Capture',0
Capabilities: cvolume cswitch
Capture channels: Front Left - Front Right
Limits: Capture 0 - 63
Front Left: Capture 39 [62%] [12.00dB] [on]
Front Right: Capture 39 [62%] [12.00dB] [on]

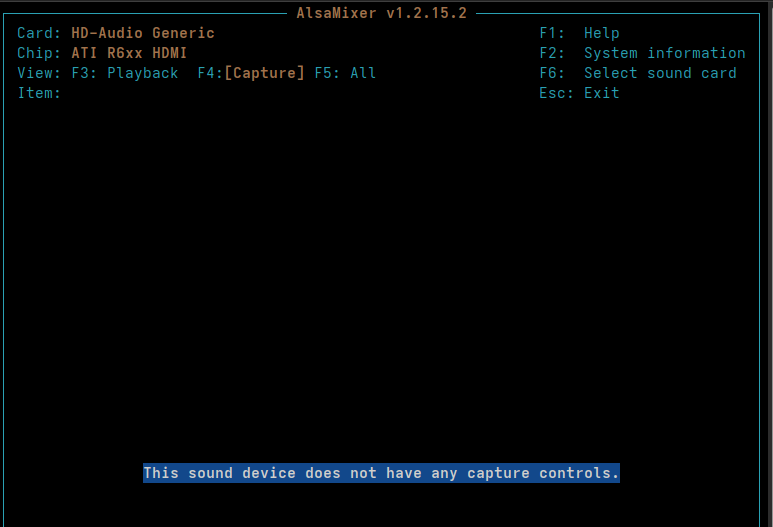

Or use alsamixer to change audio capture settings:
alsamixer -c1 --view=Capture
Thanks for replying…
amixer -c1
Simple mixer control 'PCM',0
Capabilities: pvolume
Playback channels: Front Left - Front Right
Limits: Playback 0 - 255
Mono:
Front Left: Playback 255 [100%] [0.00dB]
Front Right: Playback 255 [100%] [0.00dB]
Simple mixer control 'IEC958',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'IEC958',1
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'IEC958',2
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'IEC958',3
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
I don’t have “capture”…
Card 1 is for HDMI digital outputs only, internal digital mics and analog inputs/outputs are probably on Card 2 ( -c2 )
Please get more information about all ALSA devices:
sudo alsa-info.sh --upload
As a new user, forum software may not allow you to post an active link to the uploaded data, but an inactive link can be posted as preformatted text </> [Ctrl+E]
http://alsa-project.org/db/?f=...
1 Like
Thank you for patience…
(http://alsa-project.org/db/?f=07c4ecd58f9674d11e6627d9ee2feac1b2997079)
ALSA data shows analog microphone inputs for external microphones, but no internal digital microphones
**** List of CAPTURE Hardware Devices ****
card 2: Generic_1 [HD-Audio Generic], device 0: ALC245 Analog [ALC245 Analog]
Subdevices: 1/1
Subdevice #0: subdevice #0
card 3: Device [USB PnP Audio Device], device 0: USB Audio [USB Audio]
Subdevices: 1/1
Subdevice #0: subdevice #0
A similar issue was reported to ALSA maintainers Dec 2025:
bugzilla.kernel.org – 220919 – HP Omen 16 (AMD, Realtek ALC245) internal microphone not detected on Linux
HP Omen 16 (model 16-ap00xx)
On Linux, the internal laptop microphone is not detected at all.
Only the analog input (ALC245 Analog) is available.
No DMIC / Digital Microphone device appears in ALSA
1 Like
